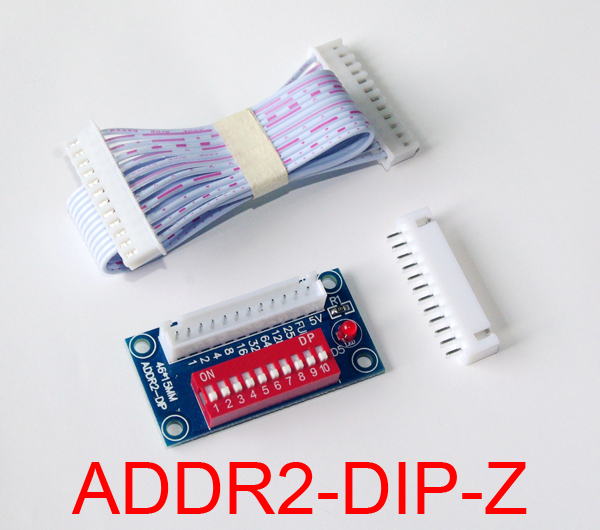

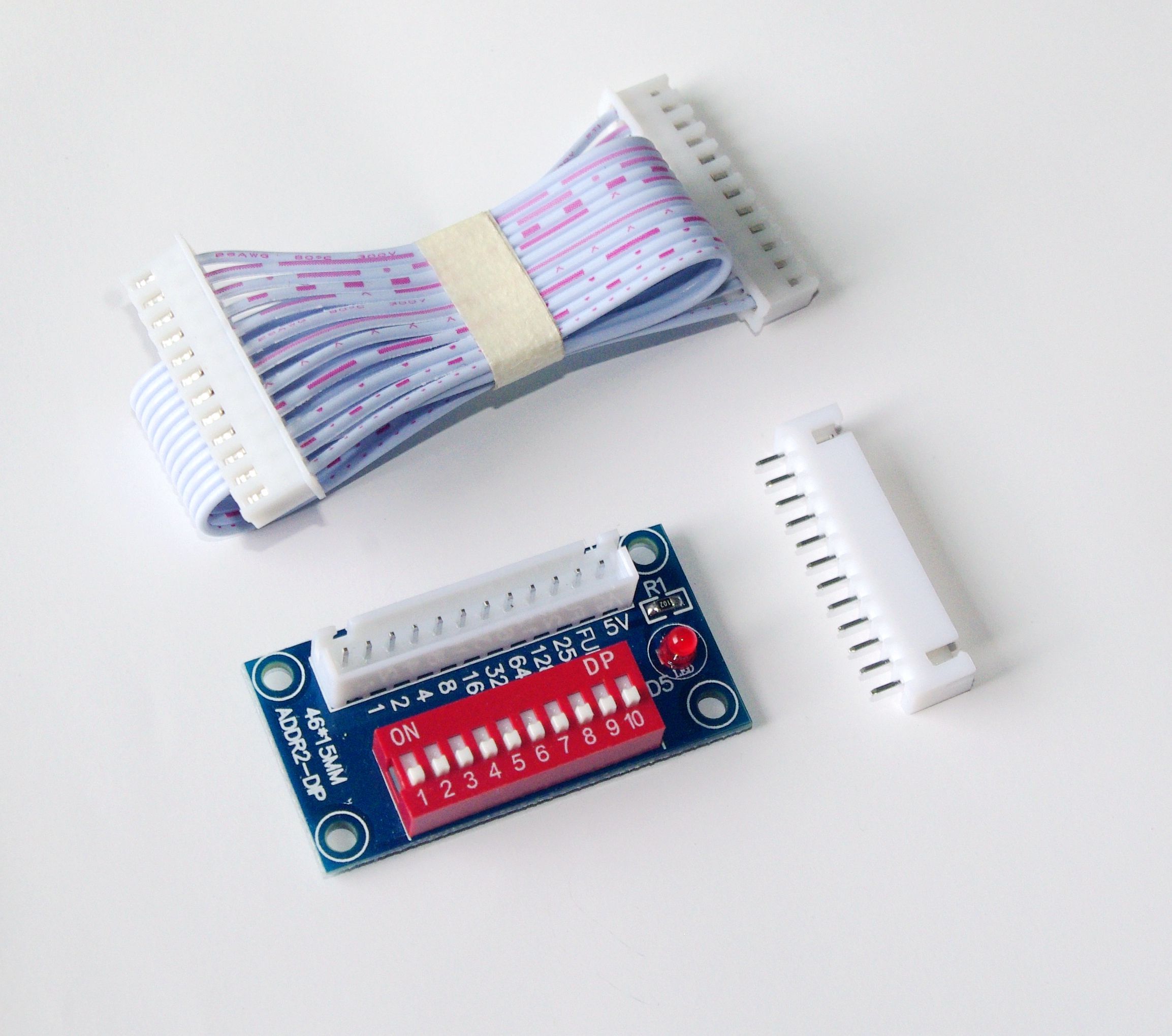

The ADDR2-DIP-Z is a compact DIP-switch address/configuration module for hardware-based node addressing and mode selection. It includes a 12P 200mm ribbon cable, binary address positions (1/2/4/8/16/32/64/128/256) plus FUN, and LED status indication. With 46×25×15mm size and 40g weight, it fits DMX512 lighting decoders, RS485/Modbus nodes, PLC modules and AV control gear. Technicians can set device IDs without PC software, avoiding address conflicts in multi-device systems. The clear DIP layout and plug-in cable simplify field installation, maintenance, and quick replacement in stage, broadcast and automation setups.
Binary Address Setting: Uses 1/2/4/8/16/32/64/128/256 + FUN for precise hardware addressing.
12P 200mm Cable: Comes with ribbon/12-pin cable for direct board-to-board connection.
No Software Needed: Set node ID/mode on-site via DIP, ideal for quick deploy and service.
LED Indication: Built-in LED for power/signal status at a glance.
Wide Compatibility: Suits DMX512, RS485/Modbus, PLC, lighting decoder and industrial automation.
|
Parameter |
Specification |
|---|---|
|
Product Model / Label |
ADDR2-DIP-Z |
|
Dimension |
46 × 25 × 15 mm |
|
Weight |
40 g |
|
Cable/Interface |
12P line / 200 mm (ribbon/connector per diagram) |
|
Setting Method |
DIP switch (binary) |
|
Address/Value Bits |
1, 2, 4, 8, 16, 32, 64, 128, 256 |
|
Extra Control |
FUN (mode/function, per device protocol) |
|
Indicator |
LED (power/status) |
|
Typical Use |
DMX512 address, RS485/Modbus node ID, PLC/decoder config |
|
Mounting |

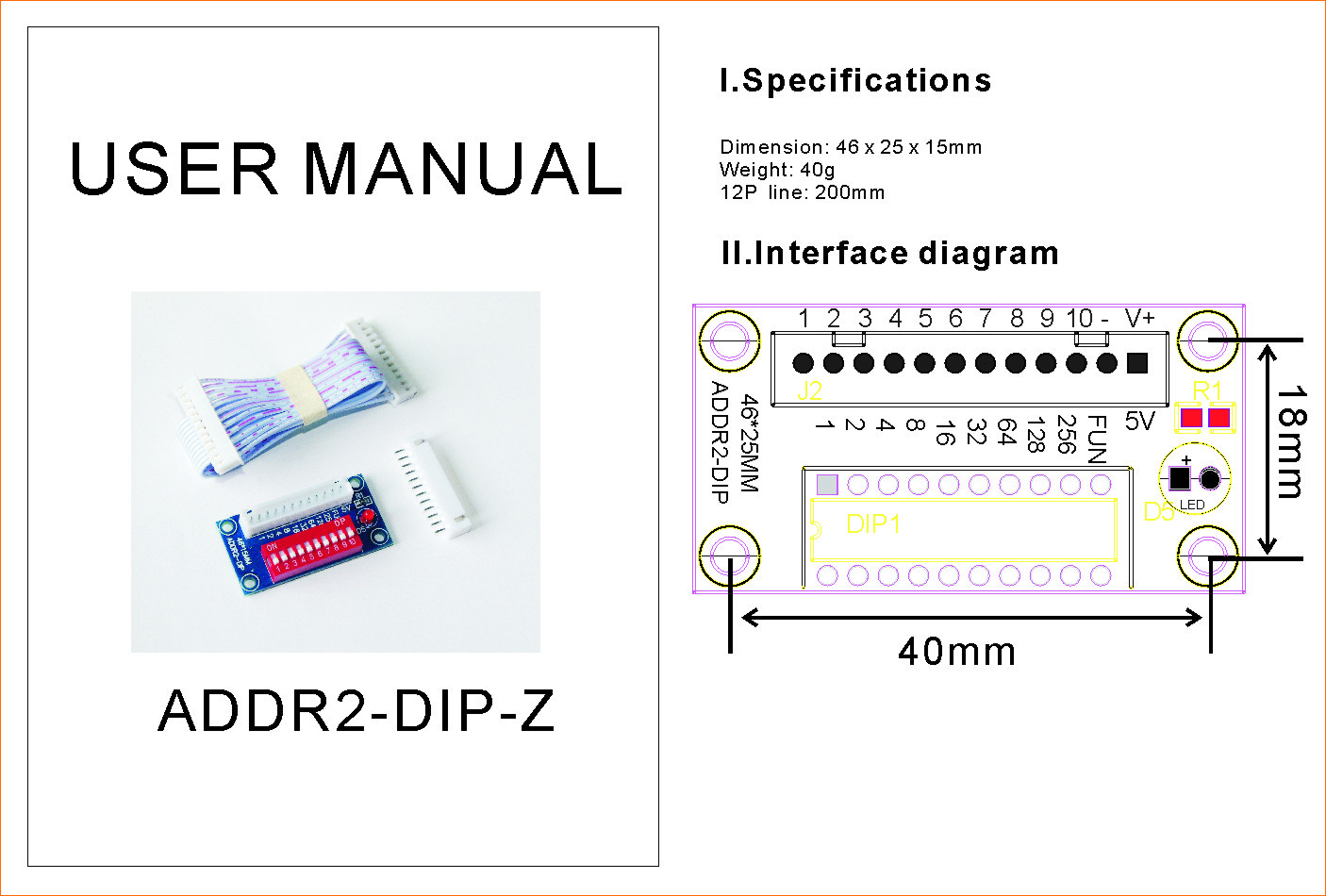

PCB/panel mount holes (see diagram) |
|
Note |
DMX universe 1–512; avoid overlapping channel ranges; FUN meaning varies by host device |
