Operating on safe DC 24V at 10W/m, it stays cool and energy-efficient even in continuous use. The ultra-slim 8mm width fits discreetly into narrow profiles and tight grooves. With CRI ≥90 and a 180° wide beam, colors render naturally and illumination is uniformly soft. The solid silicone jacket resists UV, yellowing, salt spray, and extreme temperatures from -40℃ to +60℃. Flexible yet durable, this strip bends to your design without compromising its waterproof seal. Choose professional-grade outdoor lighting that combines elegance, reliability, and safety in one continuous ribbon of light.
💧 True IP67 Solid Silicone Extrusion: One-piece seamless silicone jacket—no cut ends, no glue gaps. Fully submersible up to 1m, dust-tight, and pressure-wash safe.
✨ Dot-Free COB Illumination: 480 LEDs/m in COB packaging eliminate visible dots and hotspots, creating a smooth, continuous "light sheet" effect ideal for close-view applications.
🌤️ UV & Yellowing Resistant: High-grade silicone maintains clarity and flexibility outdoors; won't crack, haze, or turn yellow under prolonged sun exposure.
⚡ Safe 24V Low Voltage: DC 24V operation reduces current and voltage drop, enabling longer runs with consistent brightness—safe for outdoor residential and commercial use.

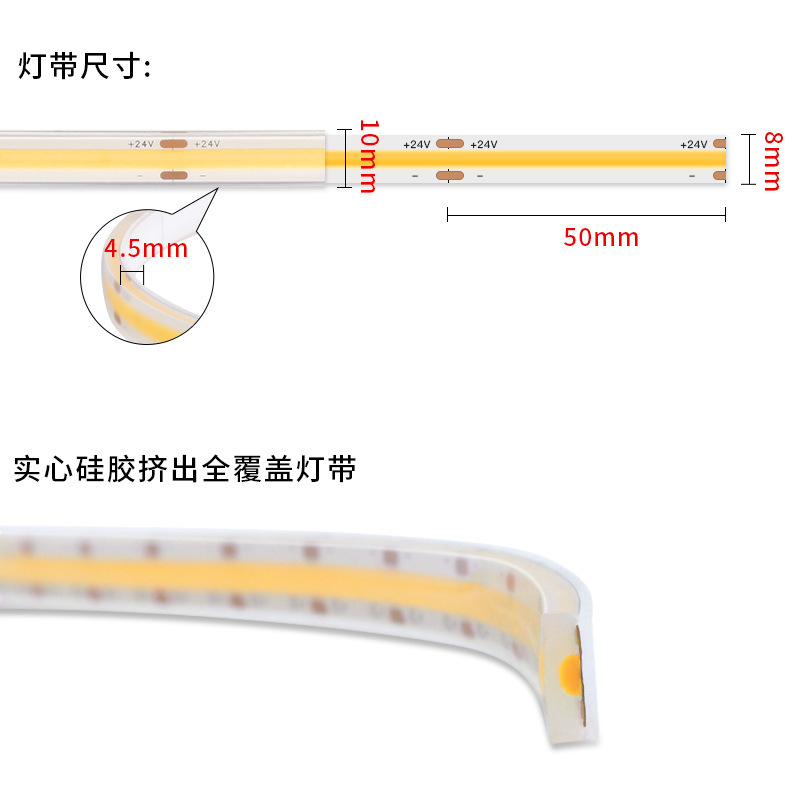

📏 Ultra-Slim 8mm Width: Narrow PCB fits into compact aluminum channels, stair nosings, and narrow architectural gaps where standard IP67 strips cannot go.
Product Specification Sheet — 8mm IP67 Solid Silicone COB LED Strip
|
Category |
Item |
Specification |
|---|---|---|
|
General |
Product Type |
IP67 Solid Silicone Extruded COB LED Strip |
|
LED Technology |
COB (Chip-on-Board) |
|
|
LED Density |
480 LEDs/m |
|
|
Electrical |
Input Voltage |
DC 24V (Constant Voltage) |
|
Power Consumption |
10W/m (50W / 5m roll) |
|
|
Current |
~0.42A/m @ 24V |
|
|
Cuttable Unit |
Every 50mm (approx. every 24 chips) |
|
|
Optical |
Color Temperature |
2700K / 3000K / 4000K / 6000K (Single CCT, non-tunable) |
|
CRI (Ra) |
≥90 (High Color Rendering) |
|
|
Luminous Efficacy |
100–110 lm/W |
|
|
Beam Angle |
180° (wide, uniform) |
|
|
Feature |
Dot-free, no dark spots, soft uniform glow |
|
|
Physical |
PCB Width |
8mm |
|
Overall Width |
~10mm (with silicone jacket) |
|
|
Overall Height |
~3.5mm (flat top profile) |
|
|
Roll Length |
5m / roll (custom lengths available) |
|
|
Extrusion Type |
Solid silicone, one-piece, seamless |
|
|
Waterproof |
IP Rating |
IP67 (solid silicone extrusion, not glued) |
|
Max Immersion |
≤1m depth |
|
|
UV Resistance |
Yes, anti-yellowing |
|
|
Salt Spray |
Pass (coastal rated) |
|
|
Environment |
Operating Temp. |
-40℃ to +60℃ |
|
Storage Temp. |
-50℃ to +70℃ |
|
|
Lifespan |
30,000–50,000 hours |
|
|
Installation |
Mounting |
3M VHB tape on back + mounting clips (included) |
|
Bending |
Side bend only (not face-bend) |
|
|
End Caps |
Pre-installed; field re-sealing requires silicone sealant |
|
|
Application |
Outdoor architectural, landscape, stair, step, pathway, facade, signage, marine, garden, eaves, soffit |
