Running on safe DC12V or DC24V at 10W/m, it stays cool and energy-efficient while delivering high brightness with no visible flicker, thanks to a constant-current / quality driver design. With CRI ≥90, wood grain, glassware, and clothing show their true colors. The slim 8mm PCB hides easily into narrow aluminum profiles, while the 3M backing enables fast peel-and-stick installation. From warm 3000K to crisp 6000K, it upgrades any interior from basic task light to premium architectural ambiance.

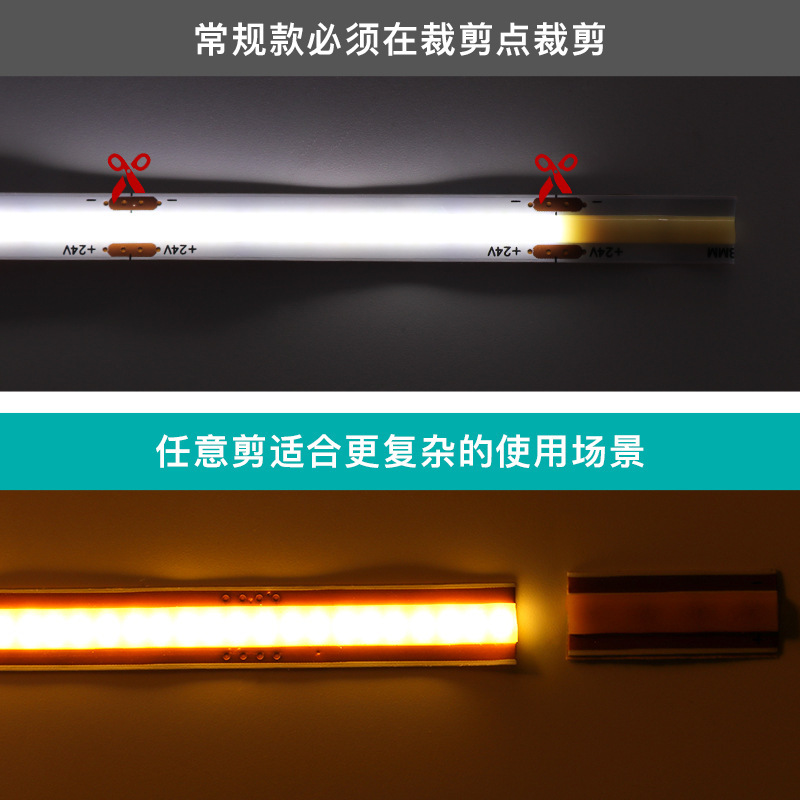

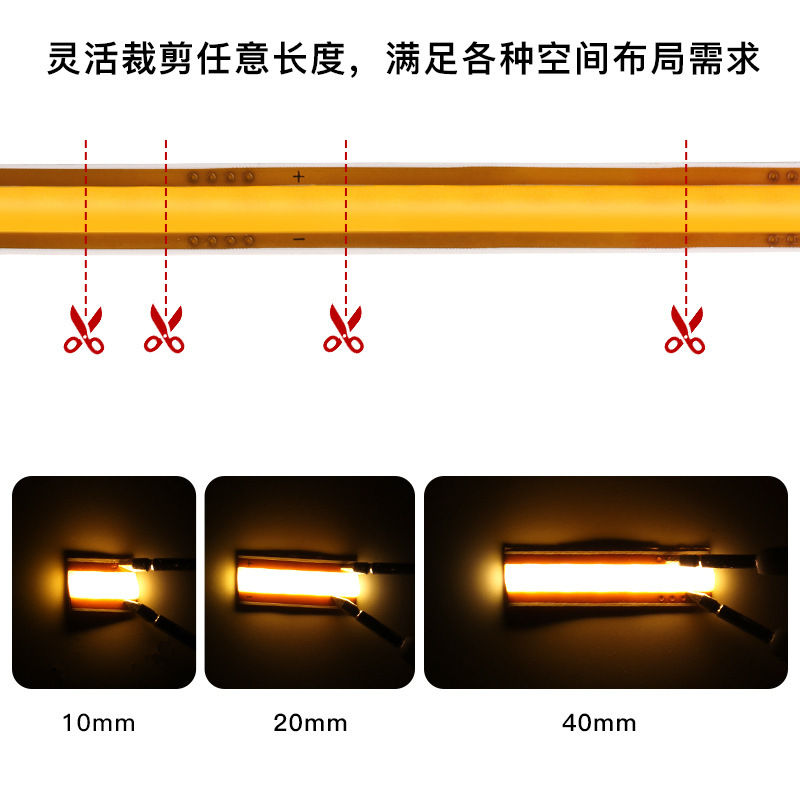

✂️ Free-Cut / Link Board: Continuous COB circuit allows short cutting units and board-to-board linking with 2-pin COB connectors—no dark ends, no wasted strip.
✨ Dot-Free COB Light: 400 chips/m directly on FPCB produce a seamless light sheet with no LED dots, even without an aluminum profile.
👁️ Flicker-Free & High CRI: Constant-voltage stable drive, CRI ≥90, soft 180° beam—eye-friendly for closets, kitchens, and retail displays.
🔌 12V / 24V Flexible: Same tape supports 12V or 24V systems; 24V gives lower current and longer runs with less voltage drop.
🪟 Cabinet-Ready 8mm Width: Ultra-slim 8mm PCB fits wardrobe lips, wine-rack grooves, under-shelf channels, and narrow extrusions.
Product Specification Sheet — 8mm COB Free-Cut Linear LED Strip
|
Category |
Item |
Specification |
|---|---|---|
|
General |
Product Type |
8mm COB Single-Color Free-Cut LED Strip |
|
LED Technology |
COB (Chip-on-Board) |
|
|
LED Density |
400 LEDs/m |
|
|
Electrical |
Input Voltage |
DC12V / DC24V |
|
Power |
10W/m (50W / 5m roll) |
|
|
Current |
~0.83A/m @12V / ~0.42A/m @24V |
|
|
Drive |
Constant voltage, flicker-free with quality PWM dimmer/driver |
|
|
Cut / Link |
Cutting |
Free-cut / short-segment (12V ≈25mm or 10mm class; 24V ≈50mm or 20mm class, by circuit)* |
|
Linking |
Solderless 2-pin COB connectors / board-to-board / wire bridge |
|
|
Optical |
CCT |
2700K / 3000K / 4000K / 6000K |
|
CRI |
Ra ≥90 |
|
|
Lumen |
~800–1000 lm/m |
|
|
Beam Angle |
180° |
|
|
Feature |
Dot-free, no dark spots, uniform linear glow |
|
|
Physical |
PCB Width |
8mm |
|
PCB |
2oz double-sided FPCB |
|
|
Roll |
5m / roll (10m customizable) |
|
|
Adhesive |
3M 300LSE / 9448A |
|
|
Environment |
IP Rating |
IP20 (IP65/IP67 optional) |
|
Temp. |
-20℃ ~ +45℃ |
|
|
Life |
30,000–50,000h |
|
|
Control |
Dimming |
0-100% PWM / TRIAC(with driver) / 0-10V |
|
Application |
Cabinet, wardrobe, wine cabinet, shelf, cove, closet, display case, hotel, office |
