DC24V at 10W/m keeps current low and runs stable; 620–630nm red reads vivid at night without the flicker of cheap SMD tapes. The slim 8mm PCB sits inside a soft silicone sleeve that bends around curves and hides easily in narrow grooves. Dim it with any 24V PWM / 0-10V / Triac-compatible driver for ambient holiday mood or steady architectural accent. Rugged, flexible and uniformly red—this is the outdoor decorator’s strip for borders, outlines and eye-catching linear accents.

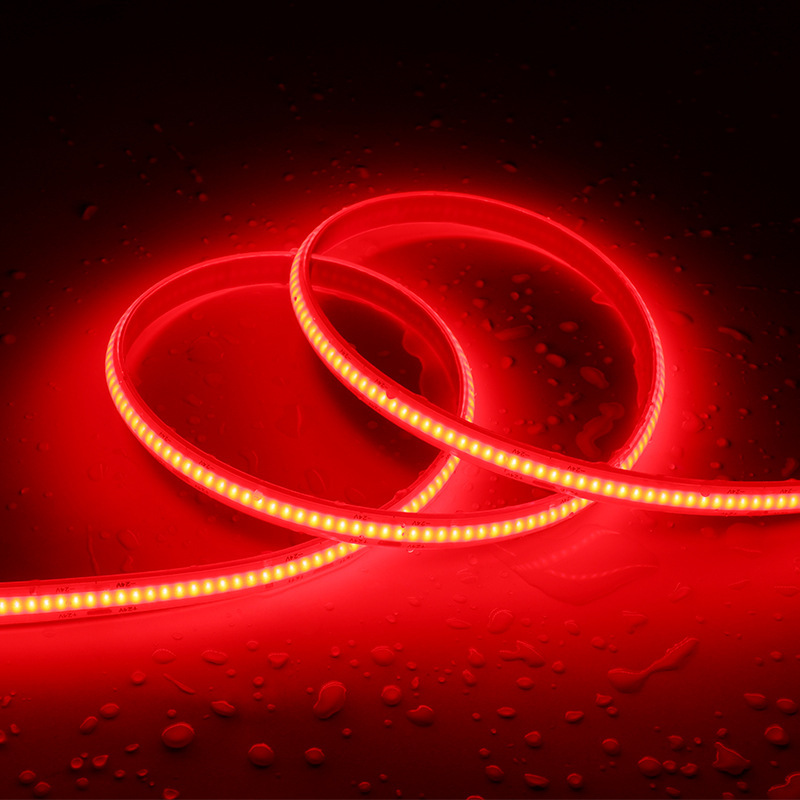

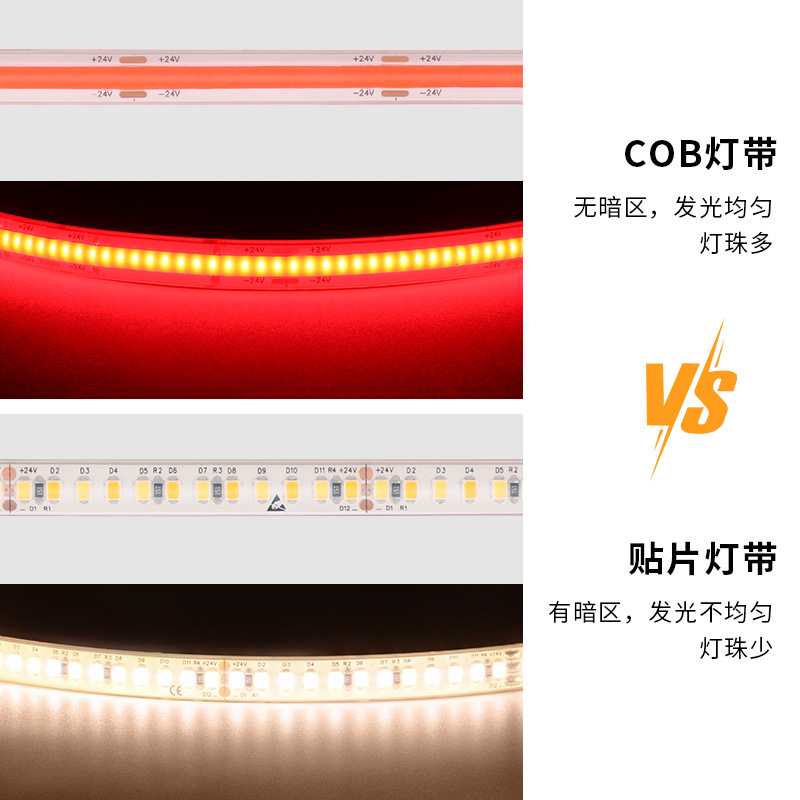

🔴 True COB Red, Dot-Free: 320 COB red chips/m (620–630nm) under one silicone layer = continuous red line, no visible dots, no hot spots.
🌊 Arc Solid Silicone IP67: One-piece extruded arc silicone body—dust-tight, rain-proof, UV-stable; outdoor facades, gardens, signs and festival installs.

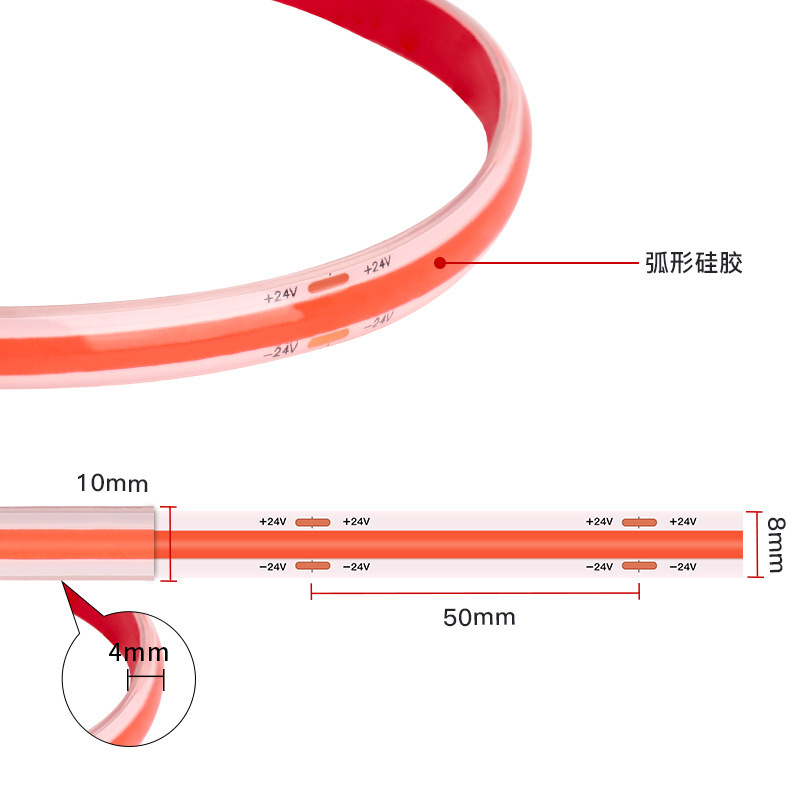

〰️ Curve-Friendly 8mm: Slim 8mm PCB inside flexible silicone bends around corners, letters and architectural curves where rigid bars fail.
🔌 24V 10W/m Safe & Stable: Low-current CV input, less voltage drop, longer safe runs; pairs with standard 24V dimmable drivers (no pixel controller needed).
🏷️ Decor + Architecture Combo: Works for festive/retail red themes and permanent landscape/facade outlining—one strip covers holiday, signage and architectural accent.

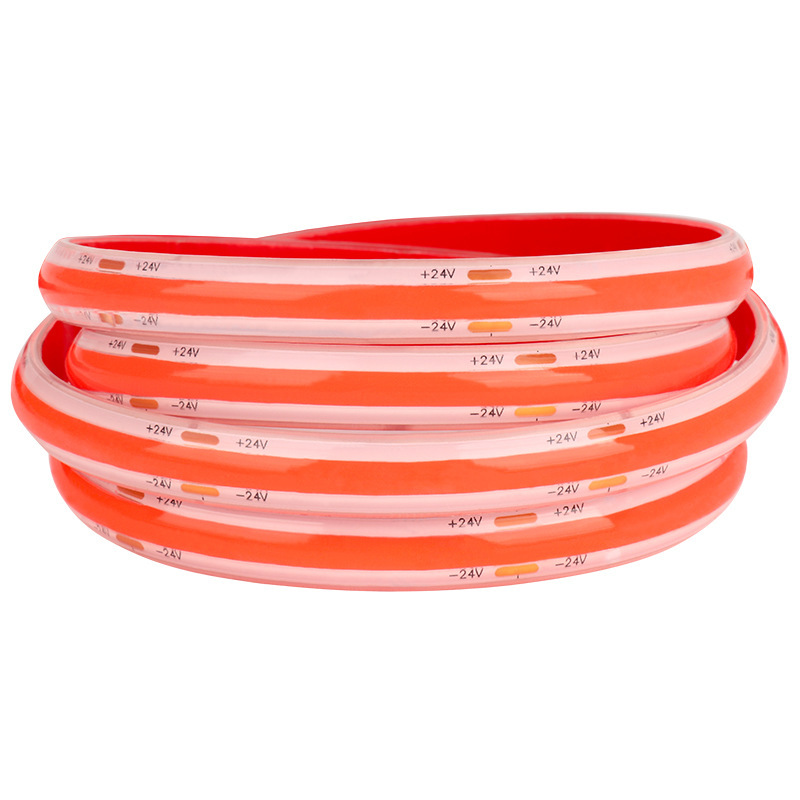

Product Specification Sheet— 8mm Arc Solid Silicone COB Red LED Strip
|
Category |
Item |
Specification |
|---|---|---|
|
General |
Type |
8mm Arc-Profile Solid Silicone COB Single-Color Strip |
|
LED Tech |
COB (Chip-on-Board), monochrome red |
|
|
LED Density |
320 LEDs/m |
|
|
Electrical |
Voltage |
DC 24V Constant Voltage |
|
Power |
10W/m (50W / 5m roll) |
|
|
Current |
~0.42A/m @ 24V |
|
|
Optical |
Color |
Red 620–630nm |
|
CRI |
N/A for monochrome red (color purity / wavelength binned) |
|
|
Output |
~90–120 lm/m typical for red COB (vendor-dependent) |
|
|
Beam |
~120°–180° via arc silicone diffusion |
|
|
Mechanical |
PCB Width |
8mm |
|
Sleeve |
Arc / rounded solid silicone extrusion |
|
|
Cut Unit |
50mm (24V) |
|
|
Roll |
5m standard |
|
|
Mount |
Clips / channel / silicone sealant (peel liner not reliable on silicone) |
|
|
Control |
Dimming |
PWM / 0-10V / Triac driver (2-wire V+/V−), non-addressable |
|
Environment |
IP |
IP67 |
|
Temp |
-20℃ ~ +50℃ (some builds -40~60℃) |
|
|
Life |
30,000–50,000h |
|
|
Application |
Facade outline, eave, garden edge, pergola, sign border, festival, retail red theme, landscape accent |
