The minimalist design blends seamlessly into any wall, while the robust build ensures durability and safety. Perfect for living rooms, bedrooms, or commercial displays, it offers both ambient mood lighting and practical illumination. Upgrade your lighting control today with a device that combines cutting-edge technology with sophisticated aesthetics. Experience the perfect blend of style and functionality.
Capacitive Glass Touch Panel: Features a high-sensitivity, anti-scratch tempered glass surface that responds instantly to touch, offering a modern and luxurious look.
Full RGBW Color Control: Seamlessly switch between millions of RGB colors and a dedicated pure white channel for both vibrant mood lighting and functional daylight.

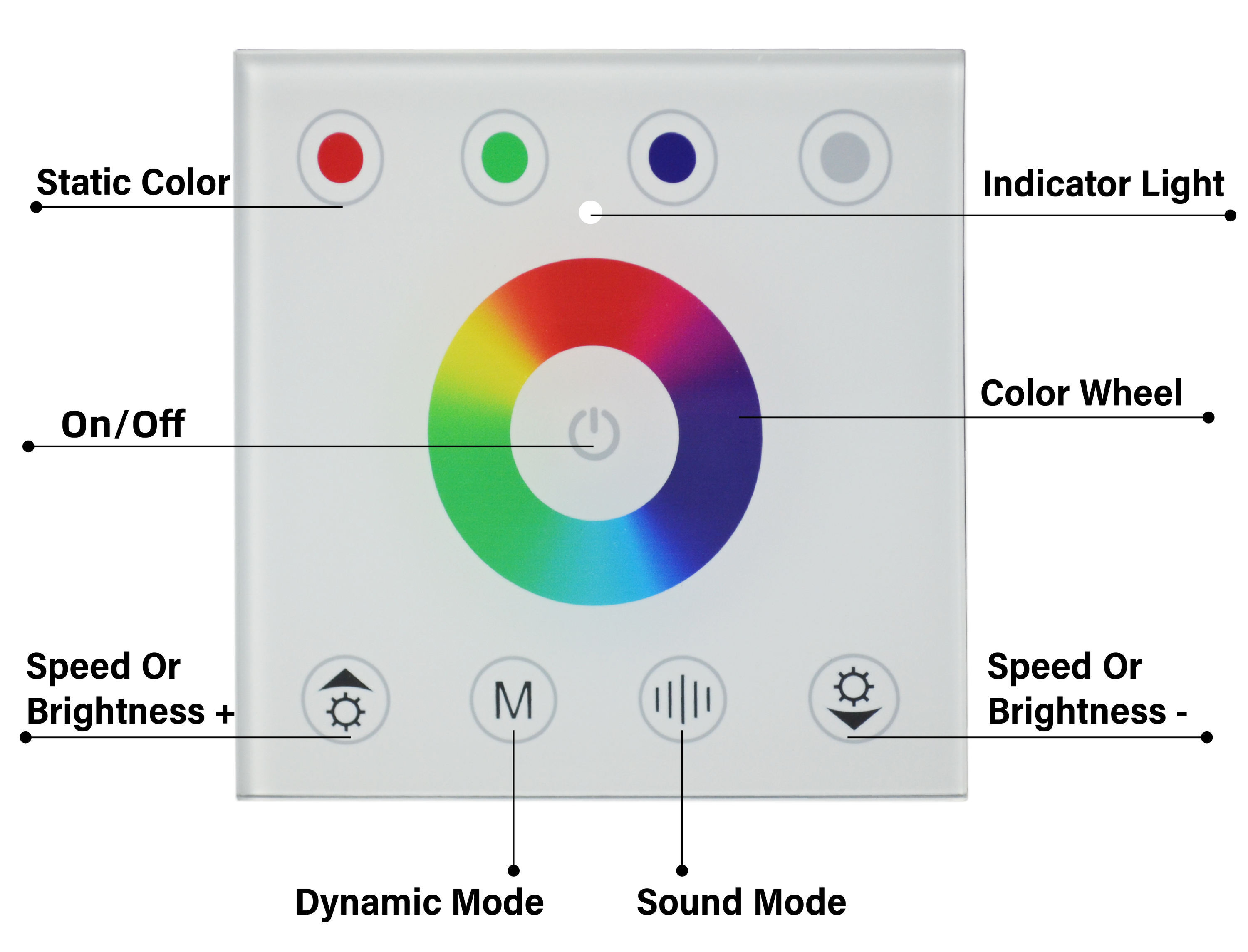

Multi-Zone & Dynamic Modes: Built-in programs include jump, gradient, and strobe effects; adjustable speed and brightness via dedicated touch keys.
Standard 86-Type Wall Box Fit: Designed to fit standard international wall boxes, making it a perfect upgrade or new installation for residential and commercial spaces.
Memory Function: Automatically saves your last setting before power-off, ensuring your preferred lighting scene is restored immediately upon reactivation.
|
Parameter |
Specification |
|---|---|
|
Product Name |
86-Type RGBW LED Touch Controller |
|
Model No. |
(e.g., T4-W / P4) |
|
Input Voltage |
DC 12V / 24V (Auto-detect) |
|
Output Channels |
4 Channels (R, G, B, W) |
|
Max Output Current |
4A per channel (16A total) |
|
Max Output Power |
192W (12V) / 384W (24V) |
|
Control Method |
Capacitive Touch Panel |
|
Gray Scale Levels |
4096 levels per channel |
|
Dimming Range |
0 - 100% (Smooth Flicker-free) |
|
Panel Material |
Tempered Glass + PC Base |
|
Installation |
Flush mount in 86-type wall box |
|
Operating Temp. |
-20℃ to +55℃ |
|
Protection Rating |
IP20 (Indoor use only) |
|
Dimensions |
86mm x 86mm x 35mm (Depth) |
|
Warranty |
2 Years |
