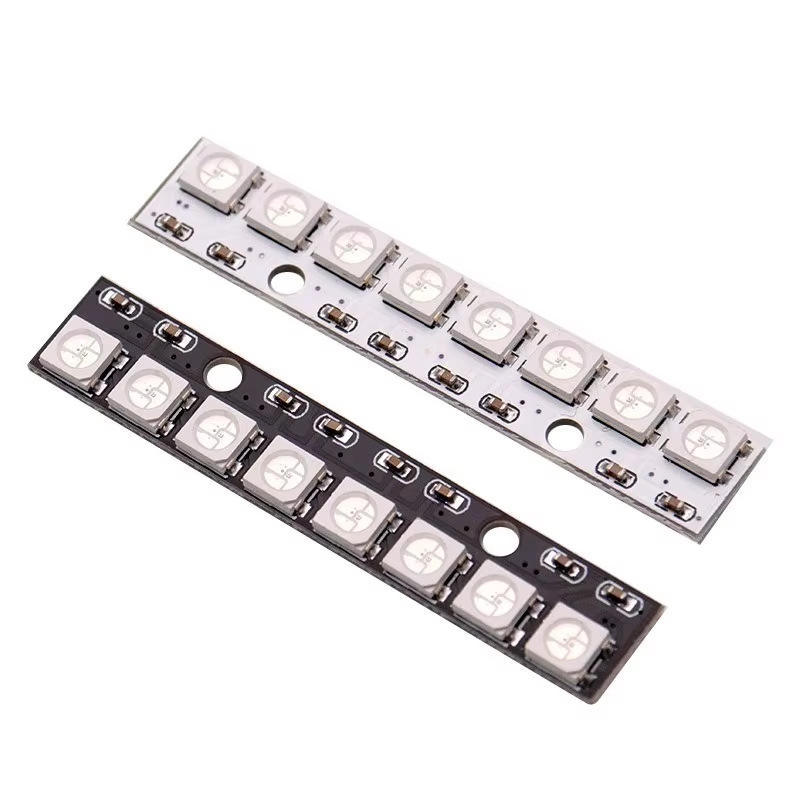

Perfect for Arduino, Raspberry Pi, and ESP32 projects, this module is ideal for custom PC case lighting, mood lamps, wearables, and IoT indicators. The board includes decoupling capacitors for stable performance and standard 2.54mm headers for breadboard or PCB mounting. Whether you are a beginner learning coding or an engineer prototyping a product, this module offers a reliable and dazzling solution for all your visual effects needs.
Individually Addressable: Each of the 8 LEDs can be controlled separately to display unique colors and effects, requiring only one microcontroller pin.
Built-in Intelligent Driver: Integrated WS2812B IC within the 5050 LED package ensures consistent color and high refresh rates without external components.
Daisy-Chain Support: Features Data Input (DIN) and Data Output (DOUT) pins, allowing you to connect multiple modules in series for larger arrays.
Plug & Play Compatibility: Fully compatible with popular platforms like Arduino, ESP32, and Raspberry Pi, supported by extensive libraries (e.g., Adafruit NeoPixel).
Compact & Robust Design: Standard 5050 footprint with onboard power filtering capacitors; operates on 5V logic for easy integration into DIY electronics.
|
Parameter |
Specification |
|---|---|
|
Product Name |
8-Bit WS2812B RGB LED Module |
|
LED Type |
5050 SMD RGB LED |
|
Controller IC |
WS2812B (Integrated) |
|
Operating Voltage |
DC 3.5V - 5.3V (Typical 5V) |
|
Current Consumption |
48mA (Max per LED @ Full White Brightness) |
|
Total Power (8 LEDs) |
~2.4W (Max) |
|
Communication Protocol |
Single-wire Serial (800kHz Data Rate) |
|
Color Depth |
24-bit (256 levels per R/G/B channel) |
|
Viewing Angle |
120 Degrees |
|
Interface Pins |
VCC, GND, DIN (Data In), DOUT (Data Out) |
|
PCB Dimensions |
60mm x 12mm (Typical) |
|
Mounting |
2.54mm Pitch Pin Header / Breadboard |
