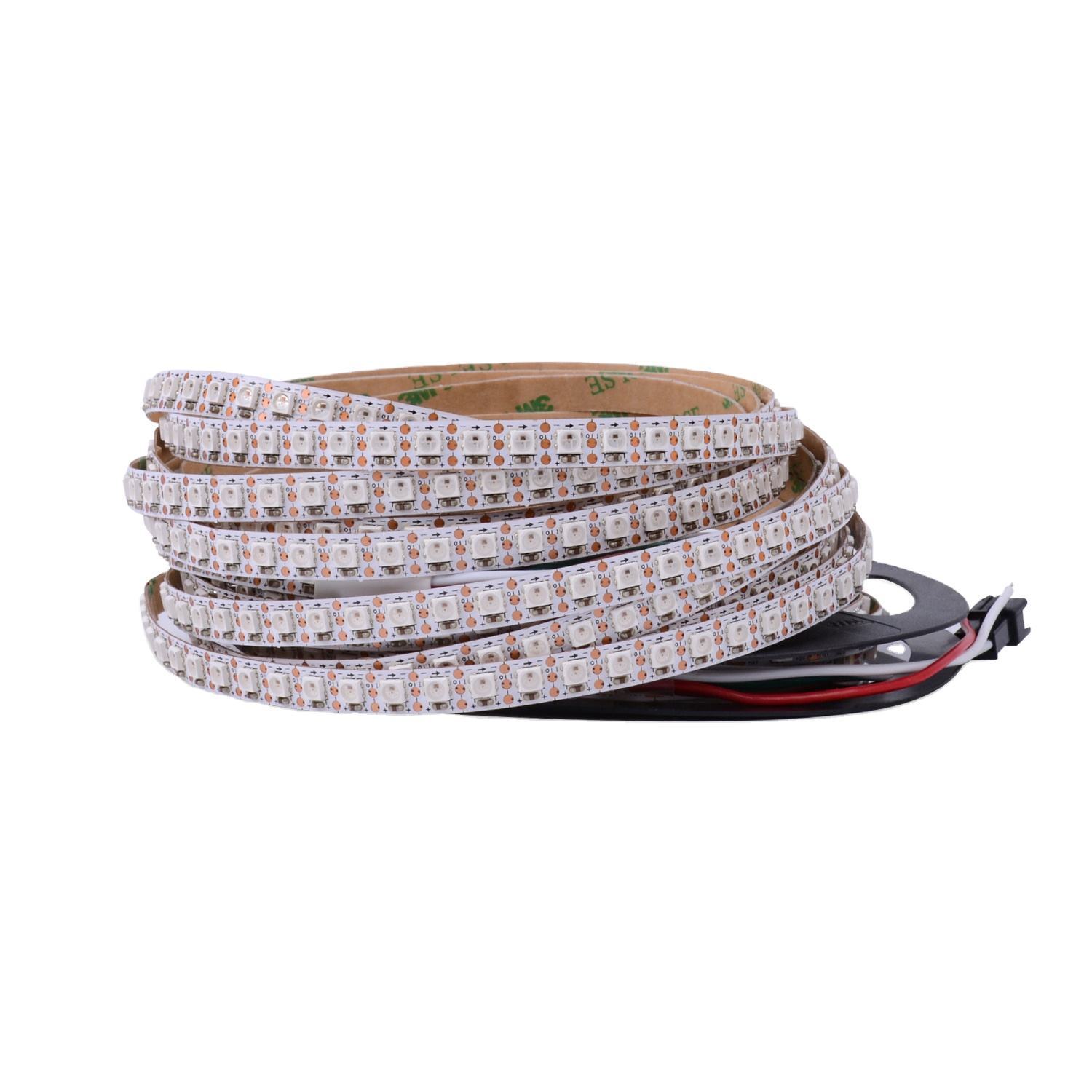

7mm Narrow Width WS2812B 144 LEDs/M Addressable LED Strip Light, SMD 3535 RGB Flexible Tape, DC5V, Cuttable, for DIY Projects & Ambient Lighting

Transform your creative visions into reality with our ultra-narrow 7mm WS2812B LED strip. Featuring a high density of 144 SMD 3535 LEDs per meter, this strip delivers incredibly smooth and granular lighting effects perfect for detailed pixel art, signage, and architectural accents.

Each LED is individually addressable, allowing you to display millions of colors and dynamic patterns simultaneously. The compact 7mm width allows for installation in tight spaces where standard strips won't fit. Powered by DC 5V, it is safe and compatible with popular microcontrollers like Arduino and Raspberry Pi. Despite its small size, it offers high brightness and flexibility. Whether you are building a custom PC case, backlighting a monitor, or designing a smart wearable, this strip provides professional-grade performance in a slim, easy-to-use package.



  • Ultra-Narrow 7mm Width:​ The slim Flexible Printed Circuit (FPC) board allows for installation in tight spaces, narrow grooves, and compact electronic enclosures where standard 10mm/12mm strips cannot fit.

  • High Density 144 LEDs/Meter:​ Equipped with SMD 3535 chips, the high pixel density ensures seamless color transitions and detailed visual effects without visible "dots" of light.

  • Individually Addressable (WS2812B):​ Each LED features a built-in IC chip, allowing you to control the color and brightness of every single pixel independently to create rainbow waves, chasing effects, and custom animations.

  • DC 5V Safe Voltage:​ Operates on a low-voltage 5V system, making it safe for DIY projects, compatible with USB power banks, and easy to integrate with microcontrollers (Arduino, ESP32, Raspberry Pi).

  • Cuttable & Flexible:​ The tape can be cut at every LED node (every 6.94mm) without damaging the rest of the strip, allowing you to customize the exact length needed for your project.

>=1 meters
$12.00
Download
View all downloads
  • 7mm Narrow Width WS2812B 144 LEDs/M Addressable LED Strip Light, SMD 3535 RGB Flexible Tape, DC5V, Cuttable, for DIY Projects & Ambient Lighting,Whymelighting – Pro LED Strips & Diffused Blocks, Factory Direct,7mm Narrow Width WS2812B 144 LEDs/M Addressable LED Strip Light, SMD 3535 RGB Flexible Tape, DC5V, Cuttable, for DIY Projects & Ambient Lighting

Description

Parameter​

Specification​

Product Type​

Addressable RGB LED Strip Light

LED Chip​

SMD 3535 RGB

IC Type​

WS2812B (Built-in)

LED Density​

144 LEDs / Meter

PCB Width​

7.0 mm

Working Voltage​

DC 5V

Power Consumption​

Max 43W / Meter (approx. 8.6A/m)

Color Type​

Full Color RGB (256 brightness levels)

Cutting Unit​

Every 1 LED (6.94 mm length)

Waterproof Rating​

Available in IP20 (Non-waterproof), IP65 (Epoxy coated), IP67 (Silicone tube)

Beam Angle​

120 Degrees

Lifespan​

>50,000 hours

Compatible Systems​

Arduino, Raspberry Pi, T1000S, K1000C, SP107E, etc.

Working Temp.​

-20°C to +60°C
