Connect via WiFi or wired Ethernet, with multi-panel synchronization and APP remote control. Auto/manual screen lock prevents accidental taps. Powered by 12–24V DC at 0.7A, it supports both wall-mount and desktop placement for maximum installation flexibility.
Android-Powered HD Display: Full Android OS with 1024×600 resolution supports APK installation, GIF animations, and rich media UI for an immersive control experience.
Universal Protocol Bridge: Custom UDP commands convert to RS485/RS232 output, directly controlling DMX, relays, HVAC, and AV equipment without additional gateways.
Fully Custom UI: Define button quantity, multi-page layouts, graphic text (multi-language), and animated backgrounds (PNG/JPG/GIF) tailored to any project.
Multi-Device Sync & Remote: Wired Ethernet or WiFi; multi-panel state synchronization and smartphone APP control keep every station updated in real time.
Flexible Power & Mount: 12–24V DC wide input (0.7A); supports both wall-mount and desktop placement—adapts to rack rooms, reception desks, or flush-wall installs.

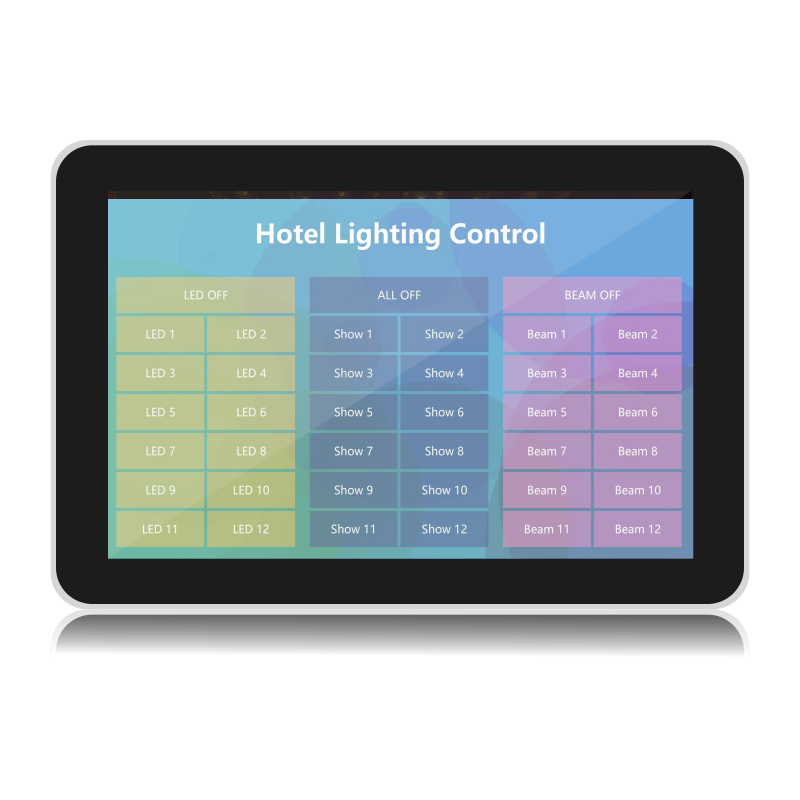

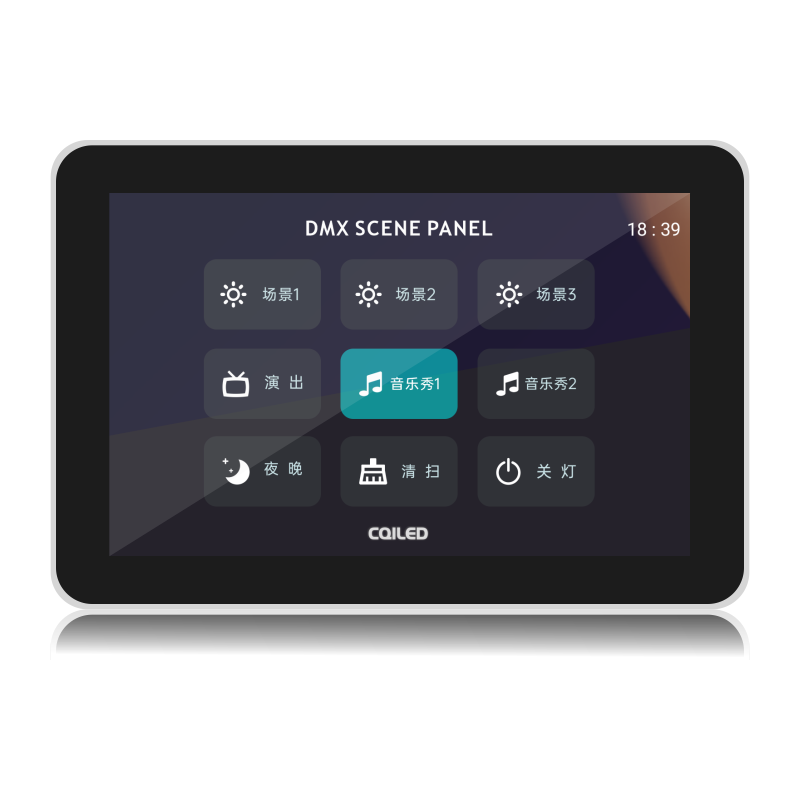

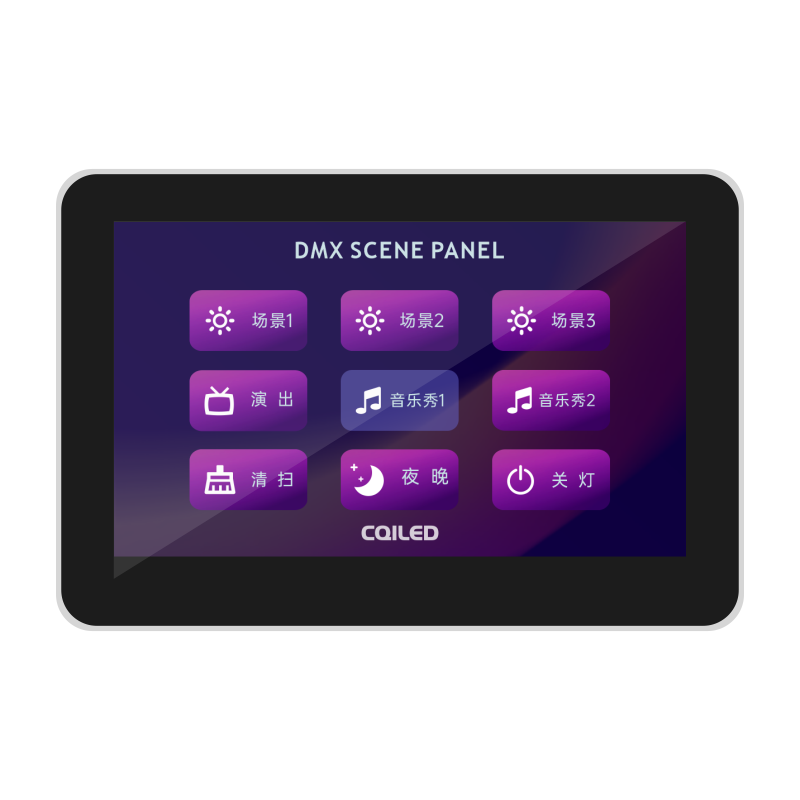

CQ-DSP07 7" Android Smart Scene Panel
|
Category |
Specification |
|---|---|
|
Model |
CQ-DSP07 |
|
Display |
7" Touchscreen, 1024 × 600 pixels, IPS |
|
Operating System |
Android OS |
|
UI Customization |
Custom buttons, pages, PNG/JPG/GIF animation support, graphic text, multi-language |
|
Communication |
WiFi, Wired Ethernet, UDP, RS485, RS232 |
|
Protocol Features |
Custom UDP commands, UDP ↔ RS485/RS232 conversion |
|
Control Modes |
On-screen touch, multi-panel sync, APP remote control |
|
Power Supply |
12–24V DC, 0.7A (wide input) |
|
Installation |
Wall-mount or Desktop placement |
|
Screen Lock |
Auto-lock / manual lock to prevent accidental operation |
|
Available Sizes |
4" / 7" / 10" and larger (optional) |
|
Configuration |
On-device UI editor, Android app support |
