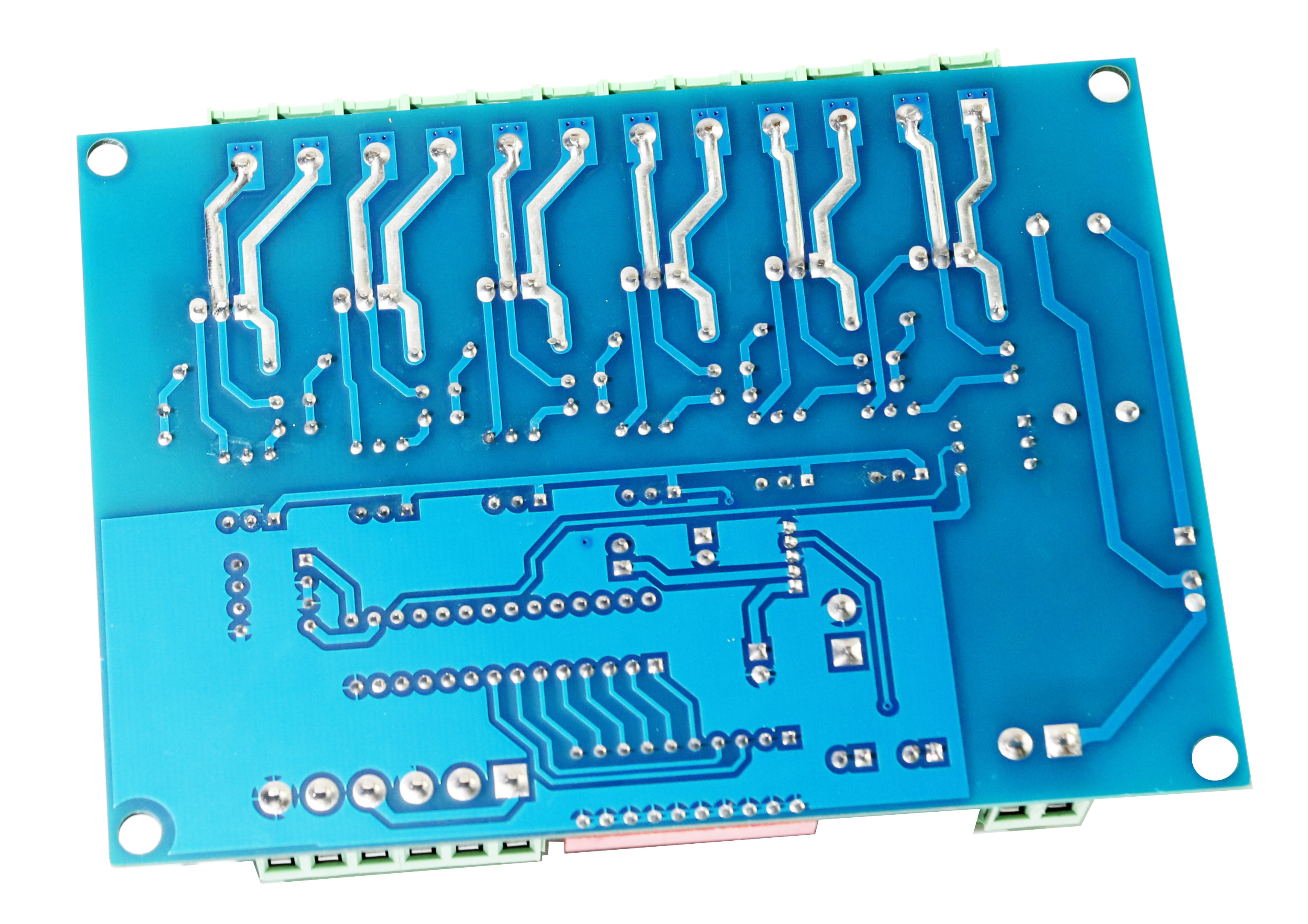

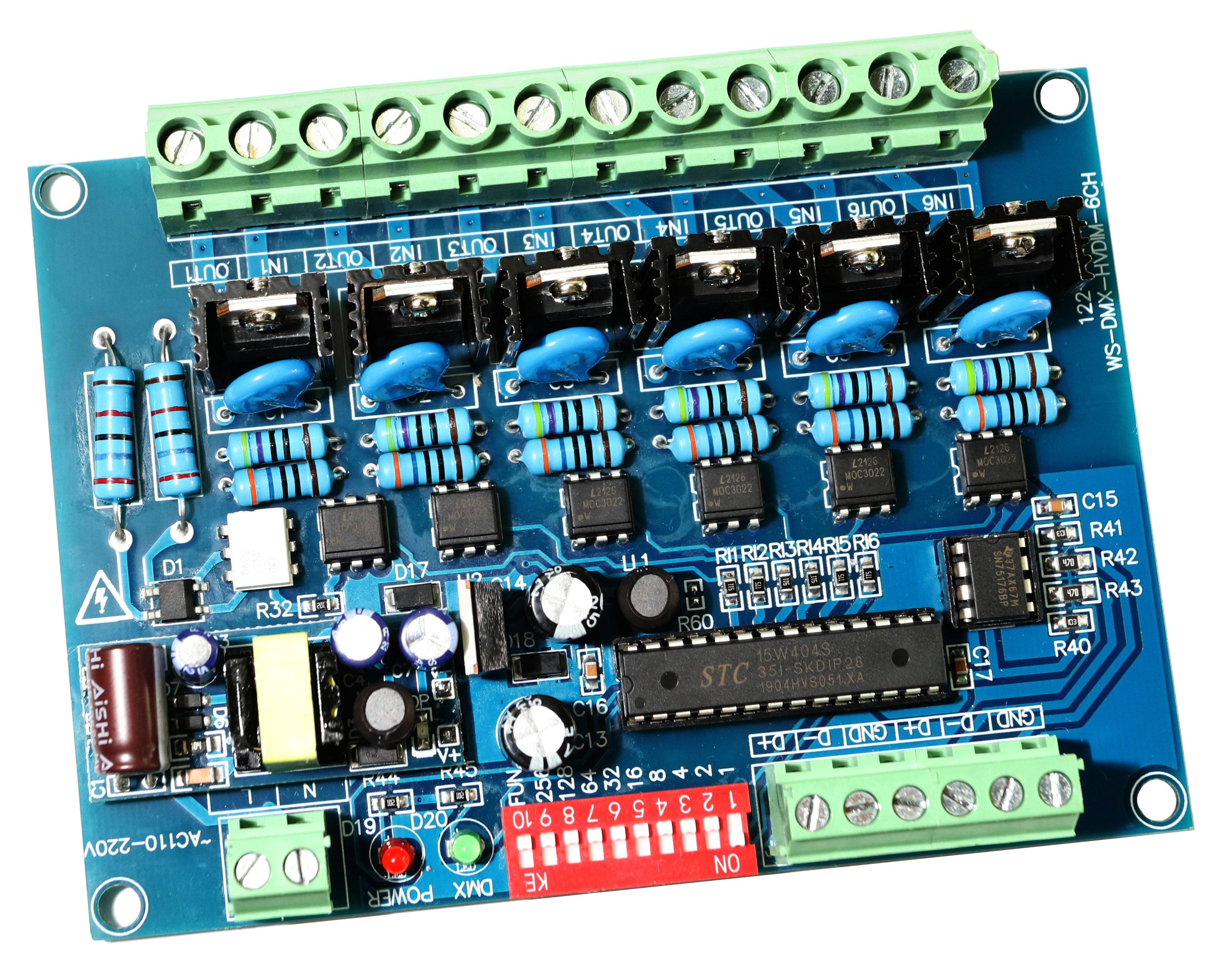

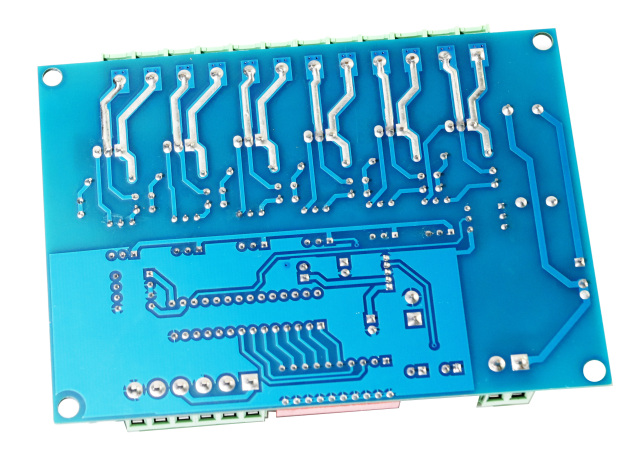

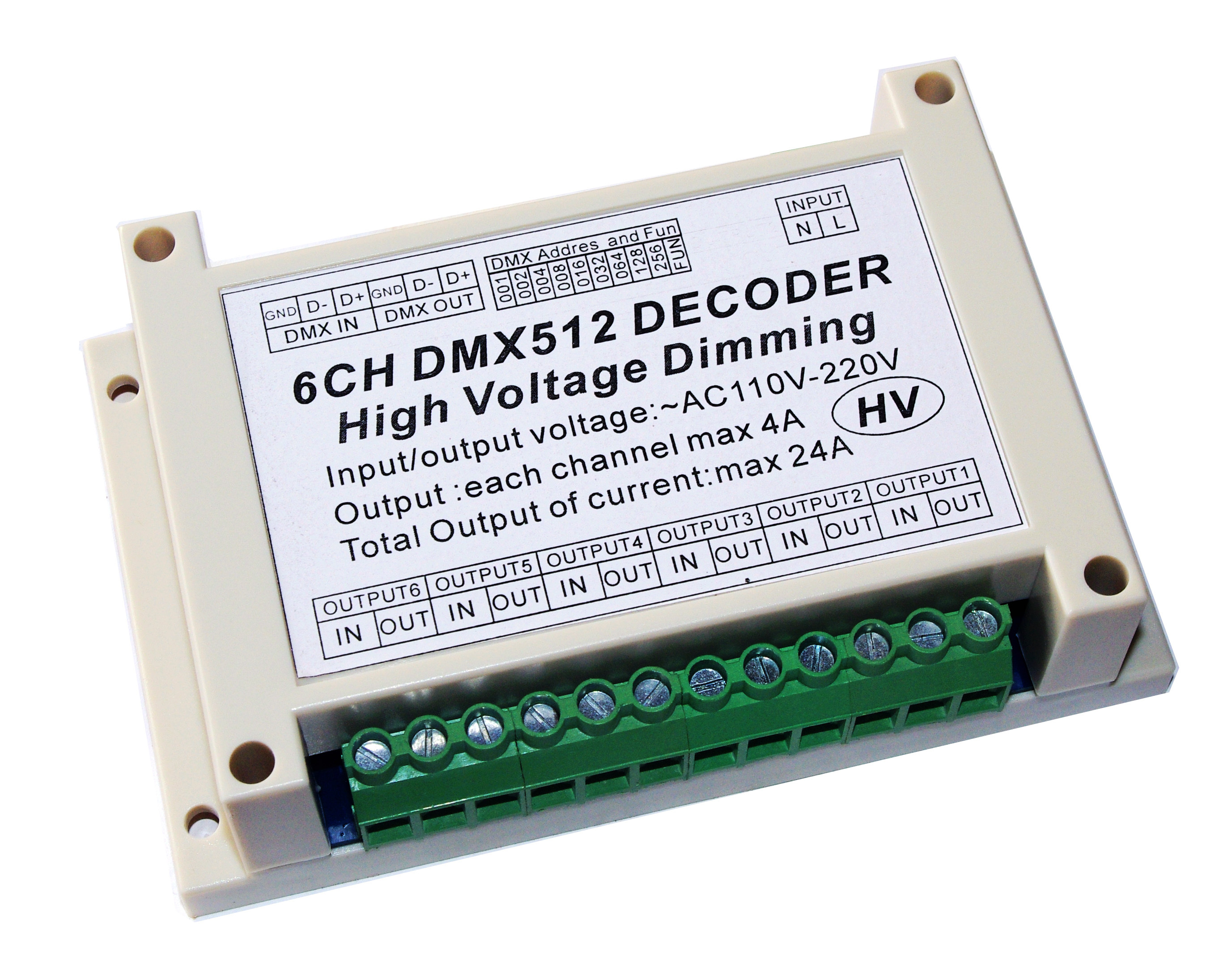

This 6CH DMX512 high-voltage dimmer decoder converts DMX512/RDM control into AC dimming output for 110V/220V lighting loads. It accepts AC110V-220V 50Hz, provides 6 dimmer channels with up to 4A per channel and 24A total, and includes DMX IN/OUT for daisy-chain wiring. Address/mode is set via DIP switches (binary 1/2/4…256 + FUN). Suitable for stage, architectural, commercial and decorative AC lighting control. Installers should follow mains safety rules, avoid short circuits, and plan DMX starting address across 6 channels to prevent overlap.
6-Channel HV Dimming: Drives AC110V/220V lighting loads via DMX512 control.
Clear Current Rating: Up to 4A/channel, total up to 24A (per label/manual).
DMX IN/OUT: Supports daisy-chain to multiple decoders/fixtures on one DMX line.
DIP Address/Mode: Binary address set (1/2/4/8/16/32/64/128/256) + FUN for test/speed modes.
Pro Install Use: For stage, architectural, shop/window and AC lamp dimming control.
|
Parameter |
Specification |
|---|---|
|
Product Name / Tag |
6CH DMX512 Decoder / High Voltage Dimming / DMX-HVDIM-6CH |
|

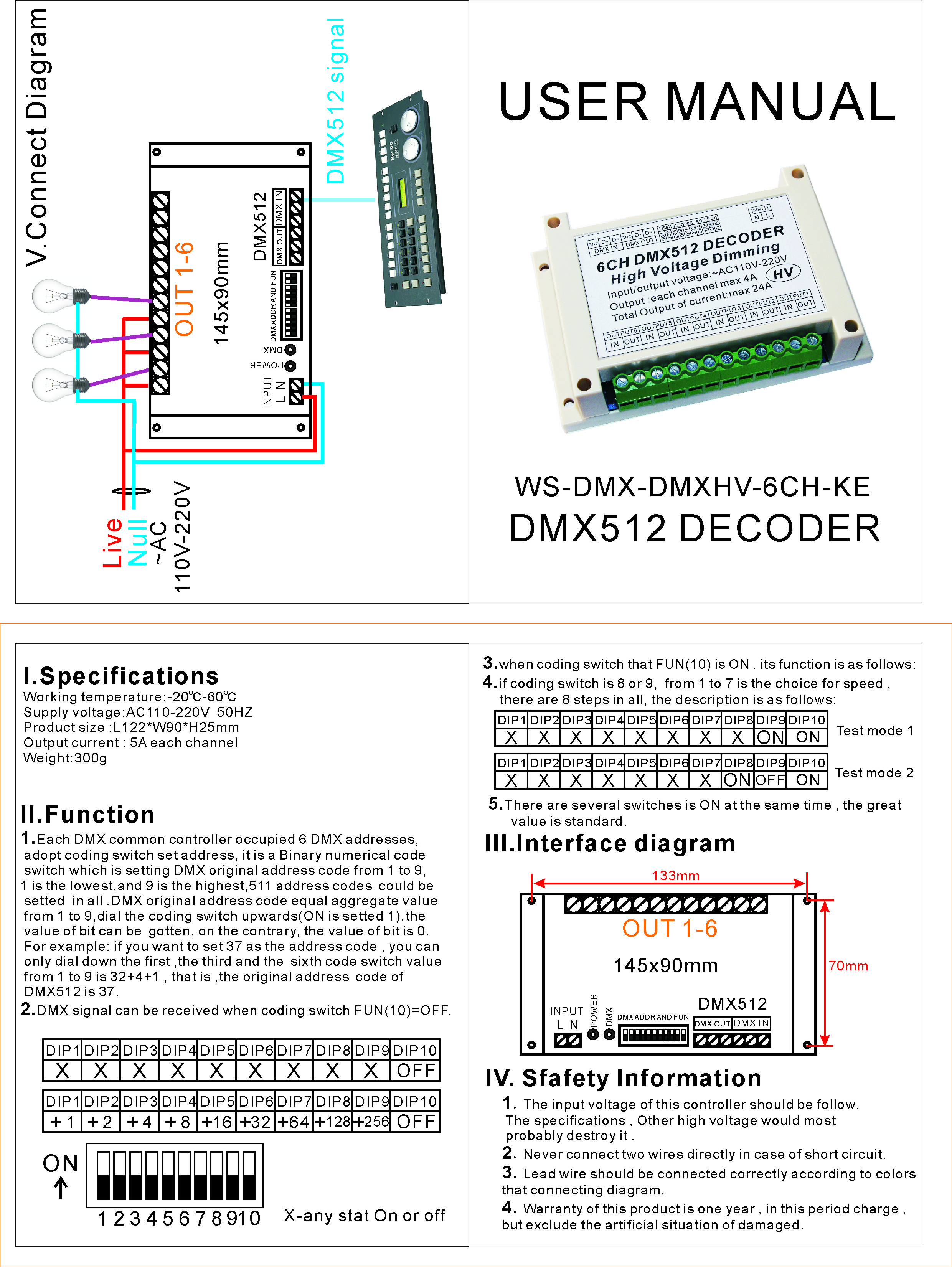

Alt. Label (per image) |
WS-DMX-DMXHV-6CH-KE |
|
Control Signal |
DMX512 (DMX IN: GND/D-/D+; DMX OUT) |
|
Input Power |
~AC110V-220V, 50Hz (mains/AC) |
|
Output |
6-channel AC dimming output |
|
Output Current |
Max 4A per channel; total max 24A |
|
DMX Address Footprint |
Occupies 6 DMX addresses |
|
Address Setting |
DIP: 1/2/4/8/16/32/64/128/256 + FUN(10) |
|
Working Temp. |
-20℃ ~ 60℃ |
|
Size (product/manual) |
L122×W90×H25mm (manual); outline ref 145×90mm |
|
Weight |
~300g |
|
Application |
AC lamps, stage dimming, architectural lighting, DMX AC load control |
|
Safety Note |
Mains voltage; avoid short; follow local electrical code; check DMX 120Ω termination/polarity |
