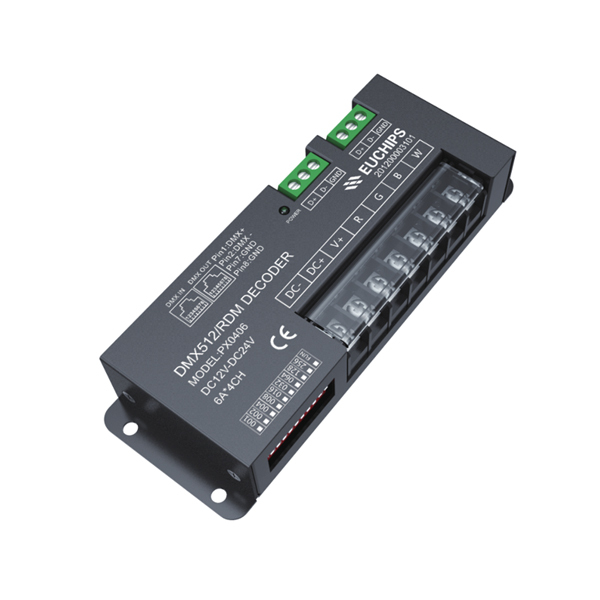

6A*4ch DMX512/RDM RGBW Decoder PX0406

Name: 6A*4ch DMX512/RDM RGBW Decoder PX0406
Price: 99.00 USD
Availability: InStock

No.PX0406

Welcome to use PX series DMX512/RDM decoder & driver. PX series adopt the advanced micro-computer control technology and converted the DMX512,RDM/2009 digital signal widely used in international to the PWM control signal. 1~4 channels output for option and each channel able to achieve 256 gradations of controlling, and also it can be used as the connector of PC digital light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

Features

· Meets DMX512/1990,RDM /2009 protocol
· Supported RDM parameters:
DISC_UNIQUE_BRANCH
DISC_MUTE
DISC_UN_MUTE
DEVICE_INFO
SOFTWARE_VERSION_LABEL
DMX512/RDM_START_ADDRESS
IDENTIFY_DEVICE
MANUFACTURER_LABEL

>=1 pcs

$99.00

GET A QUOTE

Download

View all downloads

Description

SUPPORTED_PARAMETERS
· In DMX mode set the DMX address manually by switch; in RDM mode, the host computer address allocation
· Constant voltage output, the maximum current of 6A /ch for RGBW decoder
· 256 grade brightness adjustment
· Short-circuit protection,overload protection,over-temperature protection
·Flicker-free

Technical Parameters

Model		PX 0406
Outpu t	Channels	1-4
	Voltage	12-24VDC
	Current	6A*4CH
	Power	288W(12V)/576W(24 V)
Input	Voltage	12-24VD C
	Standby loss	＜1W
	Control signal	DMX512 1990/RDM 2009
Othe rs	Dimension	1405026mm（ L * W* H）
	Packing siz e	1455632 mm（ L * W* H）
	G.W.	240g
	Operation temperature	-20- 50℃
	Relative humidity	20% - 90%RH
