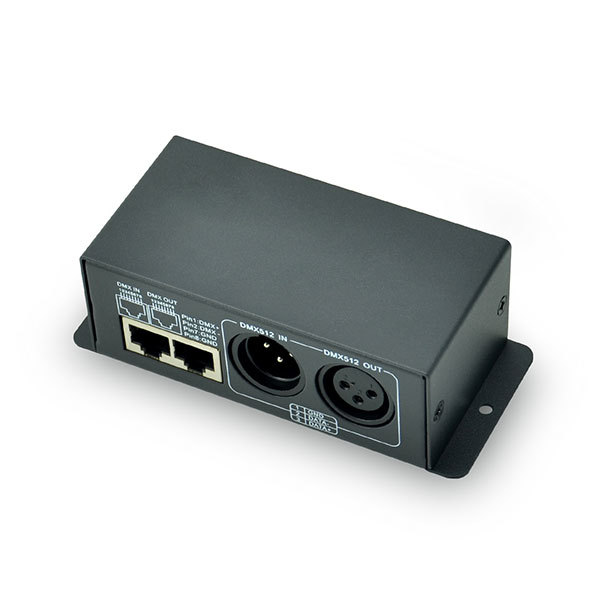

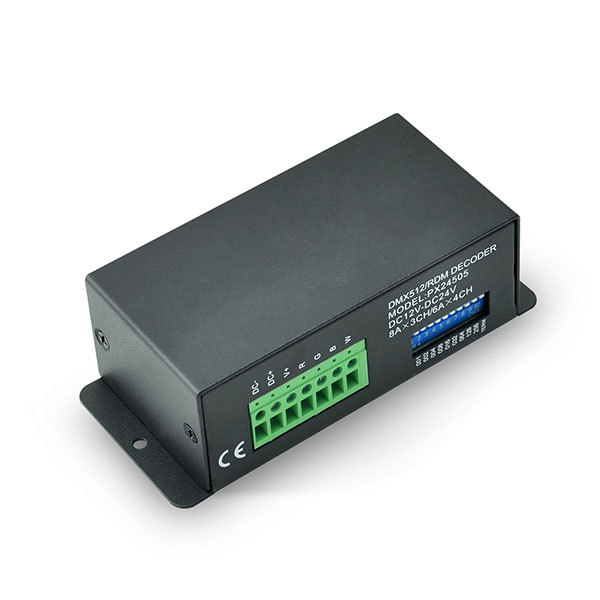

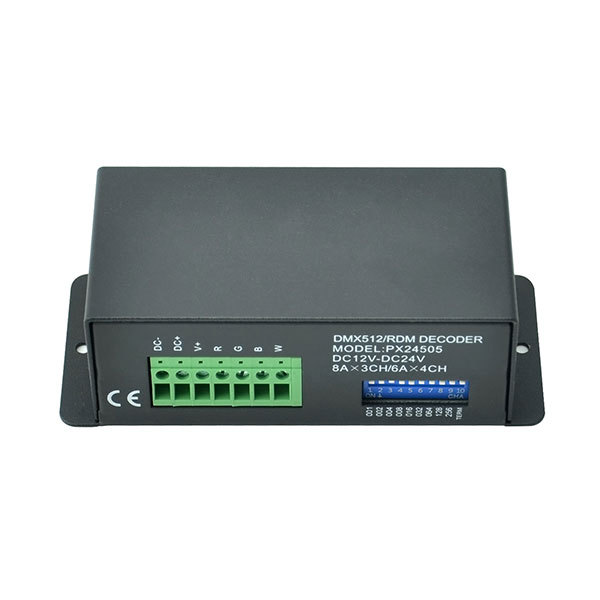

6A4ch/8A3ch 288~576W 12-24VDC RJ45 & XLR-3 CV DMX Decoder PX24505

Name: 6A*4ch/8A*3ch 288~576W 12-24VDC RJ45 & XLR-3 CV DMX Decoder PX24505
Price: 38.00 USD
Availability: InStock

No.PX24505

PX series adopt the advanced micro-computer control technology and converted the DMX512,RDM/2009 digital signal widely used in international to the PWM control signal. 1~4 channels output for option and each channel able to achieve 256 gradations of controlling, and also it can be used as the connector of PC digital light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

Feature

1. Meets RDM512/1990,RDM /2009 protocol

2. Supported RDM parameters:

DISC_UNIQUE_BRANCH

DISC_MUTE

DISC_UN_MUTE

DEVICE_INFO

SOFTWARE_VERSION_LABEL

DMX512/RDM_START_ADDRESS

IDENTIFY_DEVICE

MANUFACTURER_LABEL

SUPPORTED_PARAMETERS

>=1 pcs

$38.00

GET A QUOTE

Download

View all downloads

Description

3. In DMX mode set the DMX address manually by switch; in RDM mode, the host computer address allocation

4. Constant voltage output, the maximum current of 6A /ch for RGBW decoder and 8A/ch for RGB decoder

5. 256 grade brightness adjustment

6. Short-circuit, over load, over temperature protections

Technical Parameter

Model		PX24505
Output	Channels	1-4
	Voltage	12-24VDC
	Current	6A 4ch or 8A3ch
	Power	288W(12V)/576W(24V)
Input	Voltage	12-24VDC
	Standby loss	＜1W
	Control signal	DMX512 1990 /RDM 2009
Others	Dimension	1255441mm（LWH）
	Packing size	1366647mm(LWH)
	G.W.	344g
	Operational temperature	-20-50℃
	Relative humidity	20%-90%RH
