The full-spectrum output closely mimics natural daylight, reducing eye strain and enhancing visual comfort. Compatible with standard 24V constant voltage drivers and PWM dimming systems, it adapts to museums, retail spaces, photography studios, and medical environments. Built for reliability and easy integration, this LED block combines high color fidelity, uniform diffusion, and scalable string configuration in one compact, professional-grade solution.
True Full-Spectrum Lighting: CRI≥98 across the visible spectrum replicates natural daylight, delivering accurate color rendering for museums, retail displays, and professional photography.
Soft Diffused Output: Integrated diffuser eliminates glare and hot spots, producing uniform illumination ideal for close-range applications and backlighting.
Compact Modular Design: Each block measures just 68×68mm with 4 chips at 4W—small enough for tight spaces yet bright enough for accent and task lighting.

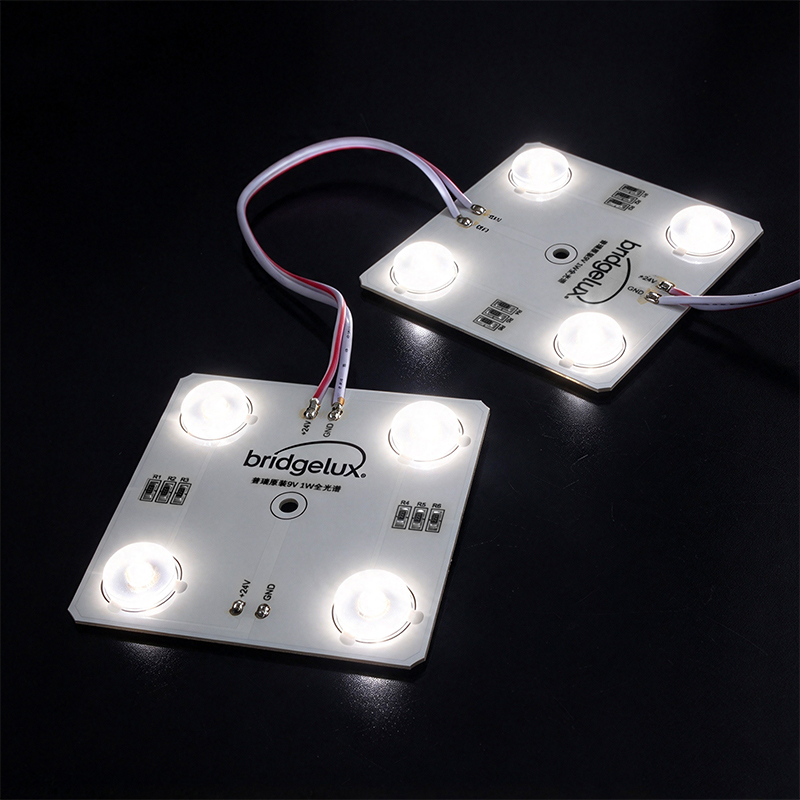

Scalable String System: Pre-wired in chains of 20 pieces per string (80W total), enabling quick deployment across large areas without individual wiring.
Versatile Compatibility: Operates on 24V constant voltage with PWM/0-10V dimming support, fitting seamlessly into existing architectural and commercial lighting systems.

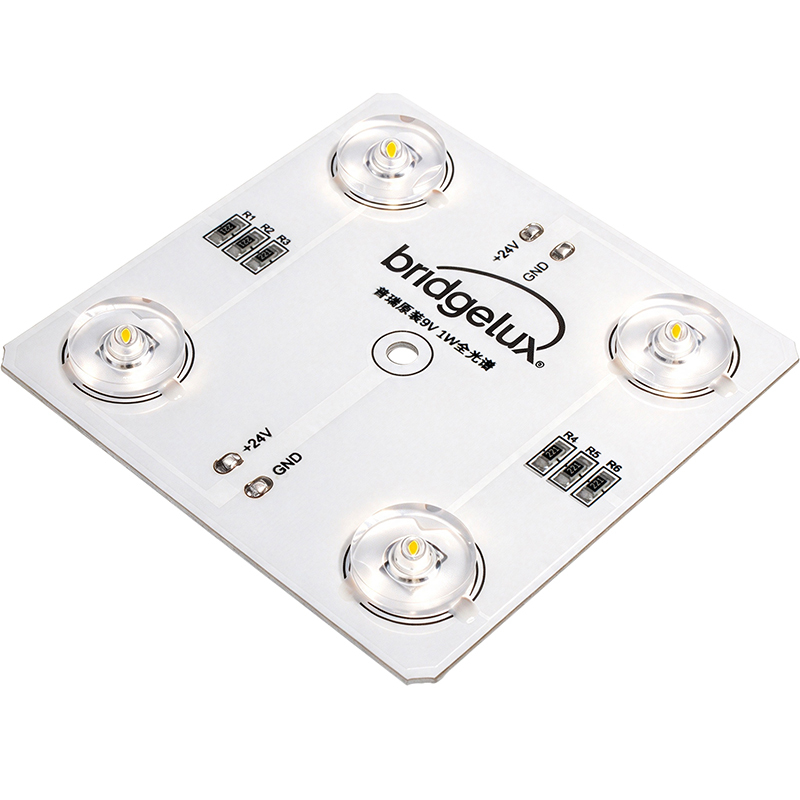

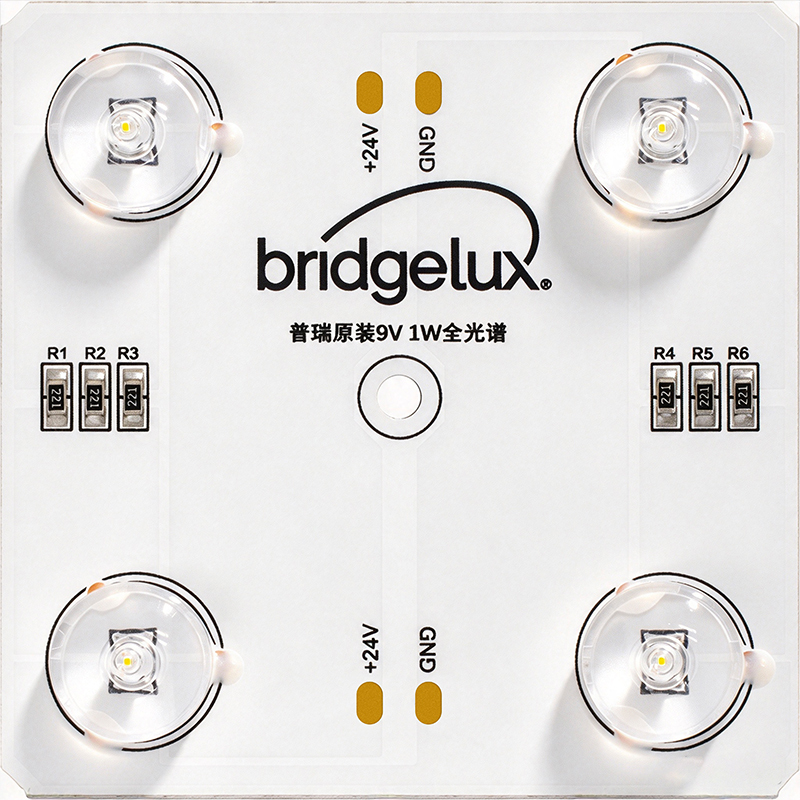

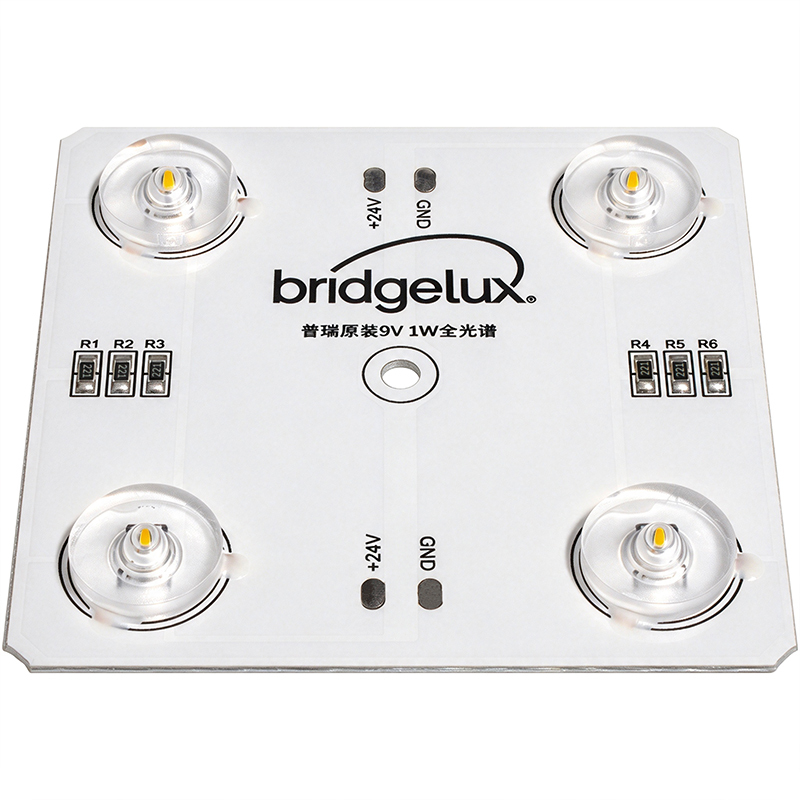

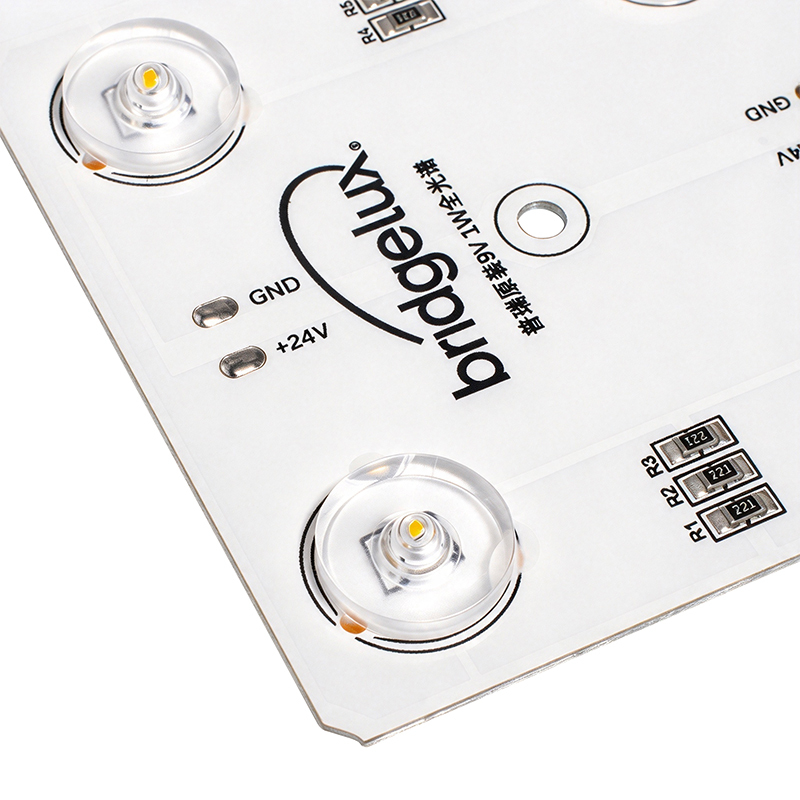

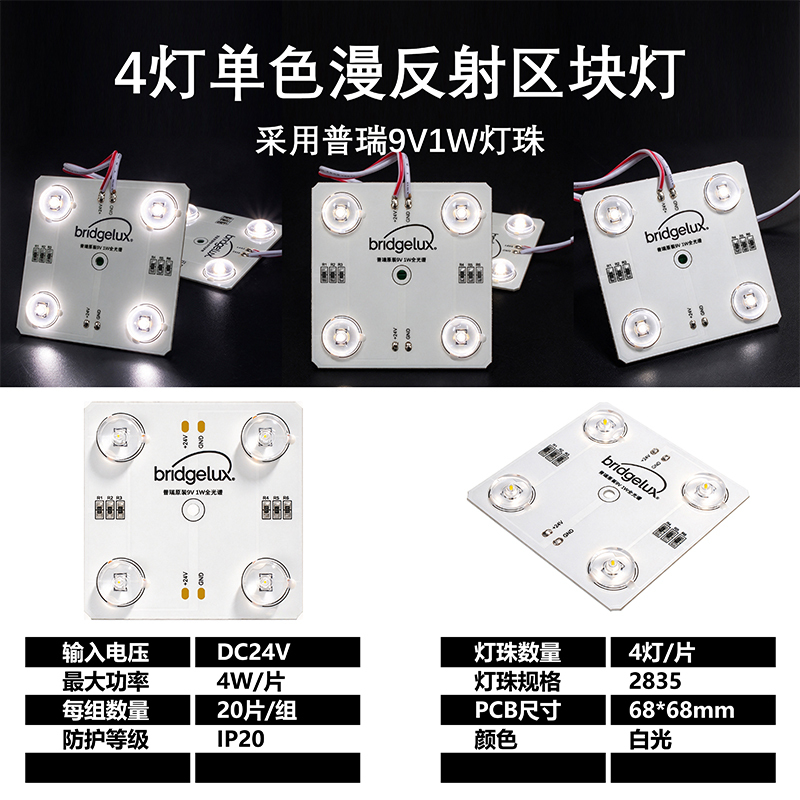

24V 4W Full Spectrum High CRI LED Light Block
|
Category |
Specification |
|---|---|
|
Model |
— (to be assigned) |
|
Input Voltage |
24V DC Constant Voltage |
|
Power Consumption |
4W per block (1W × 4 chips) |
|
Color Rendering |
Full Spectrum, CRI ≥ 98 (Ra98) |
|
Color Temperature |
Selectable (e.g., 2700K / 3000K / 4000K / 5000K / 6500K) |
|
Beam / Diffusion |
Diffused (soft, uniform output, no glare) |
|
Dimensions |
68 × 68 mm per block |
|
String Configuration |
20 pieces per string |
|
Total String Power |
80W per string (20 × 4W) |
|
String Current |
≈ 3.33A @ 24V |
|
Dimming |
PWM / 0–10V compatible (confirm with manufacturer) |
|
Installation |
Surface mount / recessed / adhesive backing (confirm) |
|
Applications |
Display cases, retail, museums, photography, backlighting |
|
Recommended PSU |
≥100W / 4A per string (20% headroom) |
