Finally dim real bulbs from DMX. This 6-channel DMX512 triac dimmer pack takes AC110-220V mains and outputs 6 independently phased-cut channels for incandescent, halogen, and stage lamps. Unlike relay packs that only switch ON/OFF, it performs smooth 0–100% brightness control with 256-step gray scale, soft fade, preheat, and selectable dimmer curves. Each channel follows one DMX channel (CH1–CH6), so any lighting console can crossfade house lights, PAR cans, festoon strings, and warm architectural luminaires. Built-in opto-isolation, fuse/MCB protection, and RFI filter keep it stable on stage and in venues. Note: for dimmable LED lamps / drivers only—standard RGB/COB pixel strips must NOT be connected here.
6CH True Triac Dimming – Phase-cut SCR control, 0–100% smooth dimming; not just relay on/off.
AC110-220V Mains Input – Drives incandescent/halogen directly; typical 5A/ch (≈1100W@220V) on compact boards.
DMX512 Native – 6 consecutive channels; DIP/Rotary start address 1–507; XLR or RJ45 signal.
Lamp-Safe Features – Filament preheat, min/max level, non-dim/relay mode, overload & over-temp protection.
Venue Ready – Theater, church, KTV, bar, wedding hall, façade warm-white dimming; not for SK6812/WS2814 pixel tape.
|
Parameter |
Specification |
|---|---|
|
Product |
6-Channel DMX512 Triac Dimmer / Digital Dimmer Pack |
|
Input Voltage |
AC 110–220V, 50/60Hz |
|
Output Channels |
6 channels, phase-cut (leading/trailing edge per model) |
|
Load Type |
Incandescent, halogen, HV halogen, dimmable LED/CFL only |
|
Current / Channel |
5A typical (compact board) / 10A–30A (cabinet type) |
|
Max Power / Channel |
220V×5A ≈ 1100W; 220V×10A ≈ 2200W |
|
Total Load |
Depends on case & cooling (e.g. 3000W / 6000W / 12000W cabinets) |
|
Protocol |
DMX512 / DMX512-1990 |
|
DMX Channels |
6 (start +0 … +5) |
|
Dimming |
256-step / 0–100%, square / linear / halogen curve |
|
Preheat |
Adjustable 1–9% (cabinet boards) |
|
Protection |
Fuse / MCB, over-current, over-temp, RFI choke |
|
Isolation |
Opto-isolated DMX side vs AC side |
|
Signal Port |

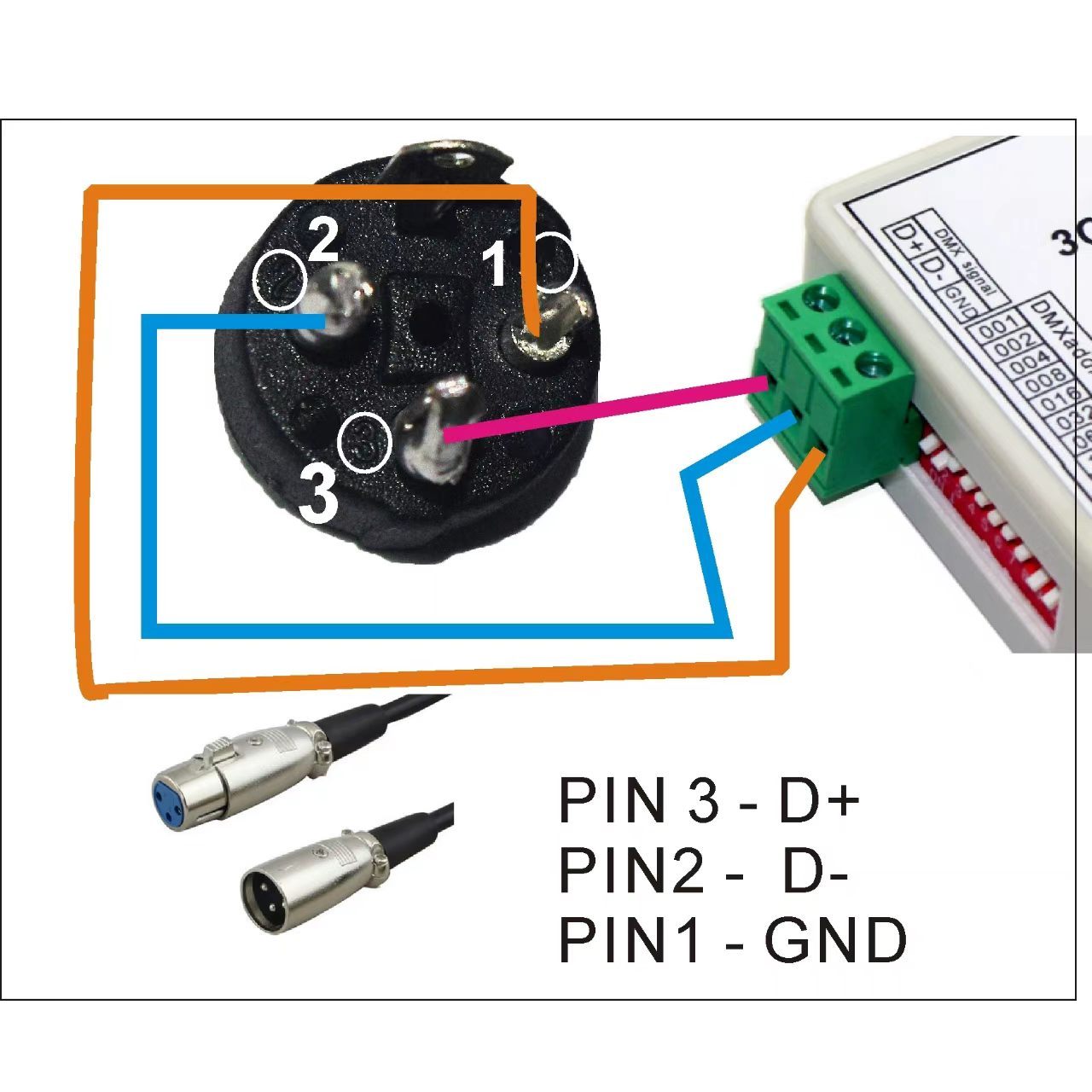

3-pin XLR IN/OUT, RJ45, or screw terminal |
|
Load Terminal |
Screw terminal or stage socket (per model) |
|
Size |
122×90×25mm (mini board) → 483×178×440mm (6kW rack) |
