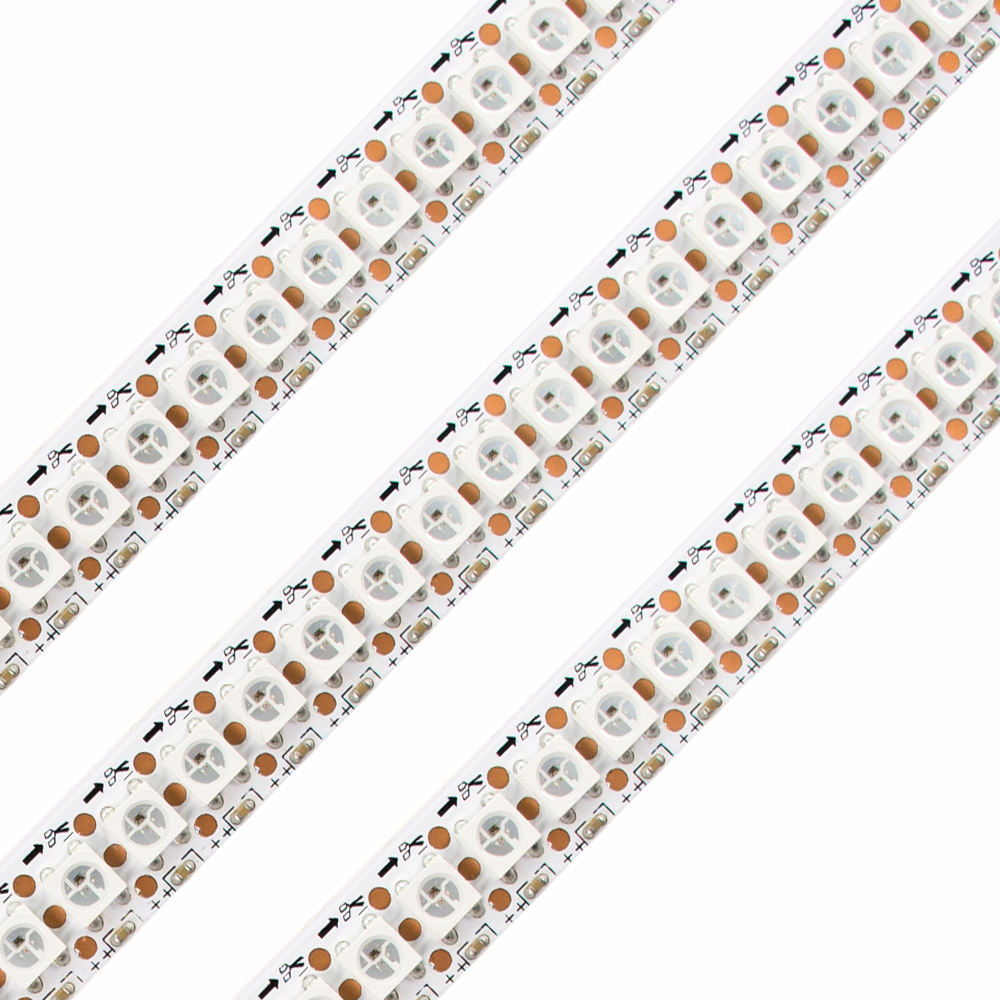

With 144 LEDs per meter, it provides unmatched color blending and high-resolution visuals—perfect for detailed lighting projects. Operating at DC 5V, it’s safe and energy-efficient, while the white FPC ensures excellent heat dissipation and a sleek look. Ideal for TV backlighting, PC mods, cove lighting, and DIY smart home decor. Compatible with LC8812B and SK6812 protocols, this strip is a versatile choice for makers and lighting enthusiasts. Unleash your creativity and bring your projects to life with brilliant, programmable RGB lighting.
Ultra-High Density (144 LEDs/m): Features 144 individually addressable 5050 SMD LEDs per meter, delivering incredibly smooth color gradients, high-resolution animations, and zero visible dots for professional-grade lighting effects.
Individually Addressable Pixels: Each LED can be controlled separately to display millions of colors, enabling complex chasing, flowing, and "Dream Color" patterns via popular controllers (Arduino, ESP32, Raspberry Pi).
Wide Compatibility & Protocol: Fully compatible with WS2812B, SK6812, and LC8812B protocols, ensuring seamless integration with mainstream software like WLED, FastLED, and Adafruit NeoPixel libraries.
Premium 12mm White PCB: Built on a 12mm wide white flexible printed circuit board for superior heat dissipation, high contrast, and a clean aesthetic that blends well with light-colored surfaces.
Safe 5V Operation & Easy Installation: Powered by DC 5V for low heat and safety; comes with strong 3M adhesive backing and cuttable design every 6.94mm (per LED) for custom lengths.
|
Parameter |
Specification |
|---|---|
|
Product Type |
Individually Addressable RGB LED Strip |
|
LED Type |
SMD 5050 RGB (Integrated IC) |
|
LED Density |
144 LEDs per meter |
|
IC Type / Protocol |
WS2812B / LC8812B / SK6812 (Single-wire) |
|
Operating Voltage |
DC 5V |
|
Power Consumption |
43.2W/m (Max, ~0.3W/LED) |
|
Pixel Resolution |
144 Pixels per meter (1 IC : 1 LED) |
|
PCB Width |
12mm |
|
PCB Color |
White (Also available in Black) |
|
Cutting Unit |
Every 1 LED (6.94mm) |
|
Waterproof Rating |
Non-waterproof (IP20) / Optional IP65/IP67 |
|
Beam Angle |
120° |
|
Color Resolution |
24-bit (256 levels per channel) |
|
Data Transfer Rate |
800 Kbps |
|
Operating Temperature |
-20°C to +60°C |
|
Lifespan |
>50,000 hours |
|
Compatible Controllers |
Arduino, ESP8266/ESP32, Raspberry Pi, SP series, WLED |
|
Adhesive |
3M VHB Tape on back |
