Multi-screen sync, partition management, web-based theme uploads, and enterprise security make it ideal for hotels, stages, fountains, and architectural projects.
DMX & Network Native: Direct UDP/OSC output; compatible with Nicolaudie, Sunlite, Daslight, and multi-brand 8-ch LED controllers.
5" Touch Interface: Compact yet intuitive—scene switching, RGBW/CCT control, and parameter setup directly on-screen.

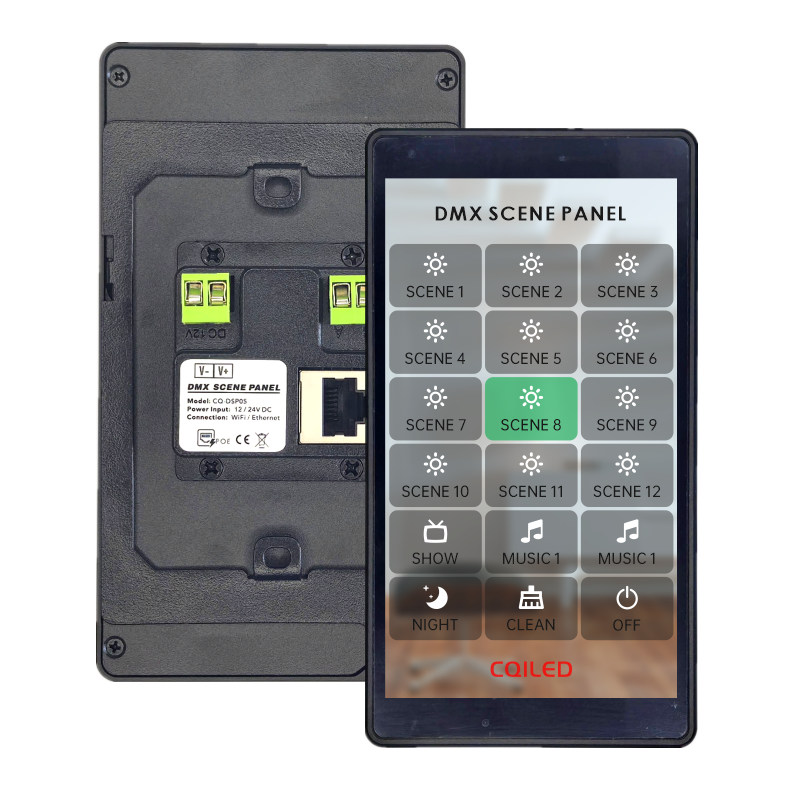

Flexible Power & Mount: PoE (IEEE 802.3af/at) or 12V DC; fits CN 86-type and US/UK Gang boxes for worldwide deployment.
Smart Scheduling & Sync: NTP clock sync, timed tasks, multi-screen linkage with tablet mirroring, and broadcast/single-point modes.
Secure & Brandable: Auto-lock, admin password, operation confirmation, partition isolation, custom themes via WEB, and neutral UI with logo support.

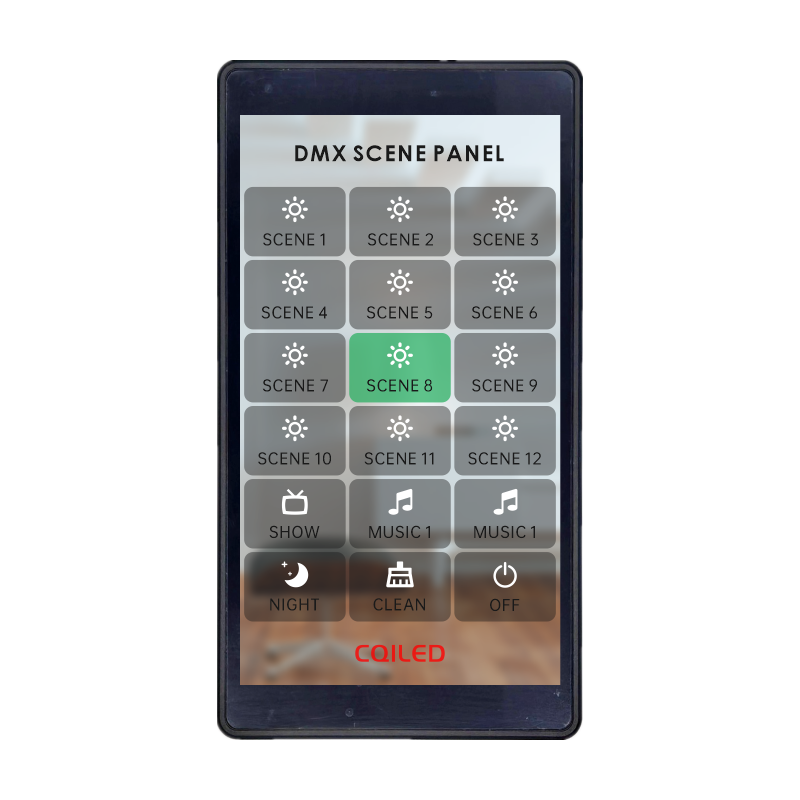

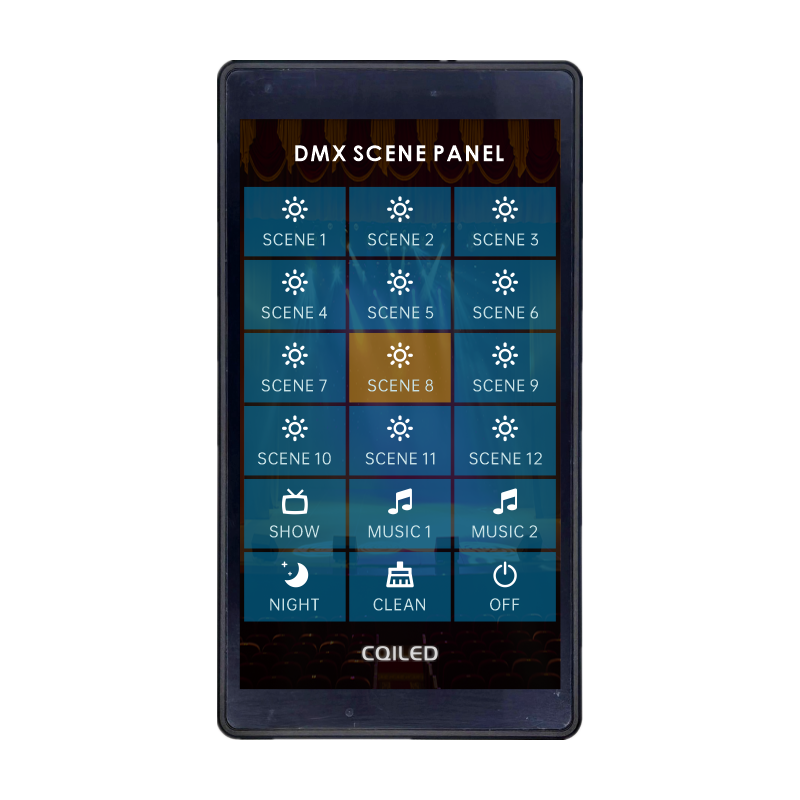

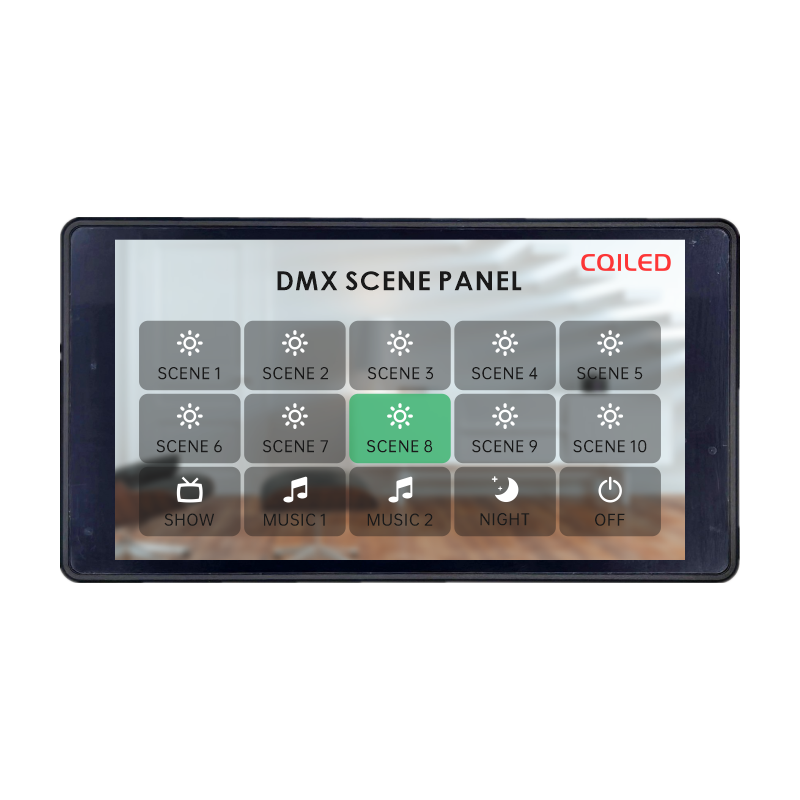

CQ-DSP05 5" DMX Scene Panel
|
Category |
Specification |
|---|---|
|
Model |
CQ-DSP05 |
|
Display |
5" TFT Touchscreen (optional 4"/5"/8"/10"+ sizes) |
|
Power Supply |
PoE (IEEE 802.3af/at) or 12V DC external |
|
Communication |
Ethernet, UDP, OSC, DMX (via network controller) |
|
Control Output |
UDP / OSC commands, compatible with Nicolaudie, Sunlite, Daslight |
|
Control Functions |
Scene switch, RGBW dimming, CCT tuning, timed tasks, scheduling |
|
Network Features |
NTP sync, multi-screen linkage, tablet two-way sync, broadcast & single-point modes |
|
Compatibility |
Multi-brand 8-ch LED main controllers, music fountains, stage lighting, DMX devices |
|
UI Customization |
Custom themes, WEB background upload, enterprise logo, welcome screen, multi-partition |
|
Security |
Auto-lock, admin password, operation confirmation, partition isolation |
|
Installation |
CN 86-type back box / North American Gang box (flush mount) |
|
Configuration |
On-screen setup, WEB interface, no PC software required |
|
Language |
Neutral interface (multi-language support, customizable) |
