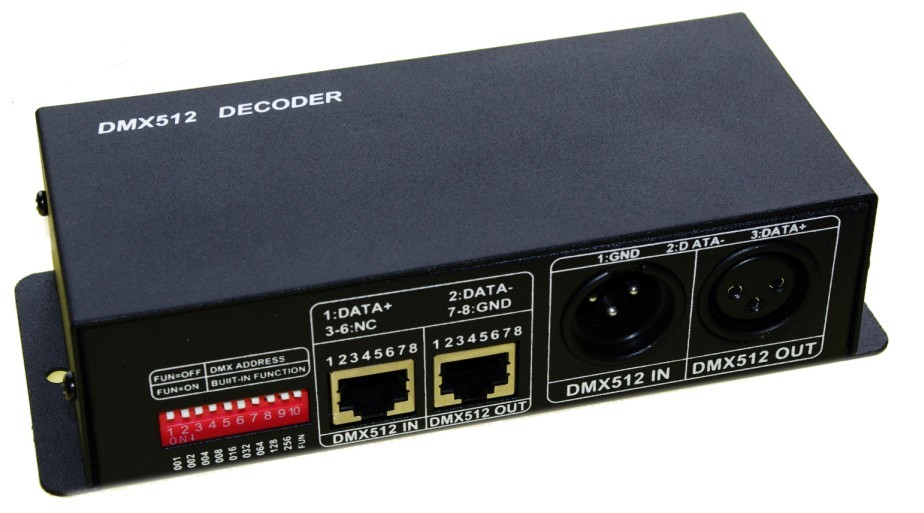

The WS-DMX-NET-K-4CH is a 4-channel DMX512 LED decoder for DC12V-24V common-anode RGBW loads, converting DMX512 console data into PWM/drain-open output (Ch1=R, Ch2=G, Ch3=B, Ch4=W). It occupies 4 consecutive DMX addresses, set via binary DIP; FUN enables standalone color/jump/gradual effects and speed steps. Rated 4A per channel with DMX IN/OUT pass-through for daisy-chain installs. Size 166×67×45mm, 320g. Use for LED strips, stage decor, architectural lighting and signage. DC only—do not connect AC mains; follow common-anode polarity and avoid shorts.
4CH RGBW DMX512: Maps Ch1=R/Ch2=G/Ch3=B/Ch4=W; occupies 4 DMX addresses.
DC12V-24V Common Anode: CMOS drain-open output for RGBW LED strips/modules.
4A Per Channel: Drives medium-power LED loads; keep thermal/power margin in design.
DIP + FUN Effects: Binary address set; FUN for black/red/green/blue/yellow/purple/white, 7-color jump/gradual and speed.
DMX IN/OUT Daisy-Chain: XLR-style pass-through simplifies multi-decoder stage/architectural wiring.
|
Parameter |
Specification |
|---|---|
|
Model / SKU |

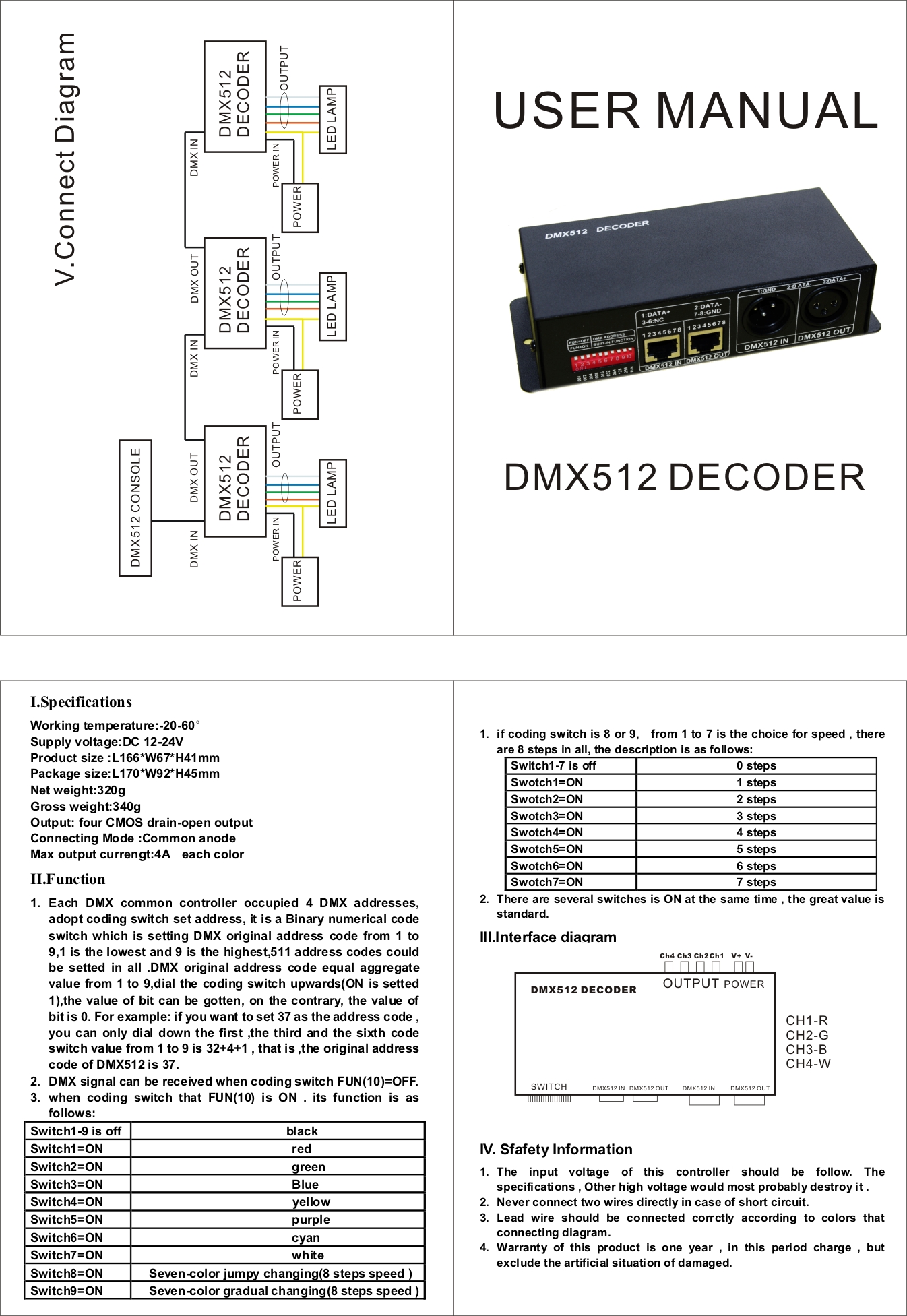

WS-DMX-NET-K-4CH (page labeled “DMX512 DECODER”) |
|
Type |
4CH DMX512 LED Decoder |
|
Control |
DMX512 (DMX IN / DMX OUT) |
|
Supply Voltage |
DC 12V-24V |
|
Output |
4 channels, CMOS drain-open |
|
Channel Map |
CH1=R, CH2=G, CH3=B, CH4=W |
|
Connecting Mode |
Common anode |
|
Output Current |
4A per channel/color |
|
DMX Footprint |
Occupies 4 DMX addresses |
|
Address Setting |
DIP binary (1/2/4/8/16/32/64/128/256) + FUN(10) |
|
FUN Behavior |
Switch1-9: black/red/green/blue/yellow/purple/white/7-color jump/7-color gradual; 8/9 + 1-7 = speed steps |
|
Working Temp. |
-20℃ ~ 60℃ |
|
Product Size |
L166 × W67 × H45 mm |
|
Net / Gross Weight |
320g / 340g |
|
Application |
RGBW LED strip, LED lamp, signage, architectural, stage/decor |
|
Safety |
DC only; no AC/mains; observe common-anode polarity; no short; check DMX A/B & 120Ω termination |
