Feature
1. The product has 4 channels output. The maximum 4A current per channel and the total power up to 768W.
2. Set the address with the dial switch, and the operation is simple and quick.
3. Green terminal and RJ45 two DMX interfaces are provided to improve signal transmission efficiency and anti-interference capability.
4. With the RDM remote management protocol, the RDM master can browse and set the parameters, the DMX address modification, the device identifica- tion and other operations through the RDM master control.
5. It has the functions of short-circuit, over-temperature, overload automatic protection and recovery.
6. has over-voltage feedback, over-temperature feedback, current monitoring function.
7. requency 2 KHZ、 no stroboscopic.
8. Fast self-test function.
Technical Parameter

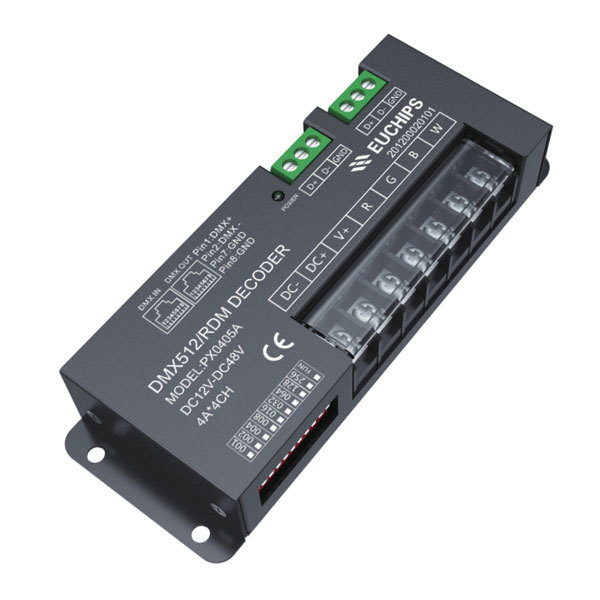

| Product Name | Constant Voltage LED RGBW DMX Decoder |
| Item | PX0405A |
| Input signal | DMX512/ RDM |
| DMX interface | RJ45, green terminal |
| Input voltage | 12-48VDC |
| output | 4A *4 CH. |
| Output power | 192W (12V) / 768W (48V) |
| Working temperature | -20~50℃ |
| product size | 140*50*26mm |
| packing measurement | 145*56*32mm |
| Weight (net weight) | 240g |
| Warranty Condition | 5 Years |
