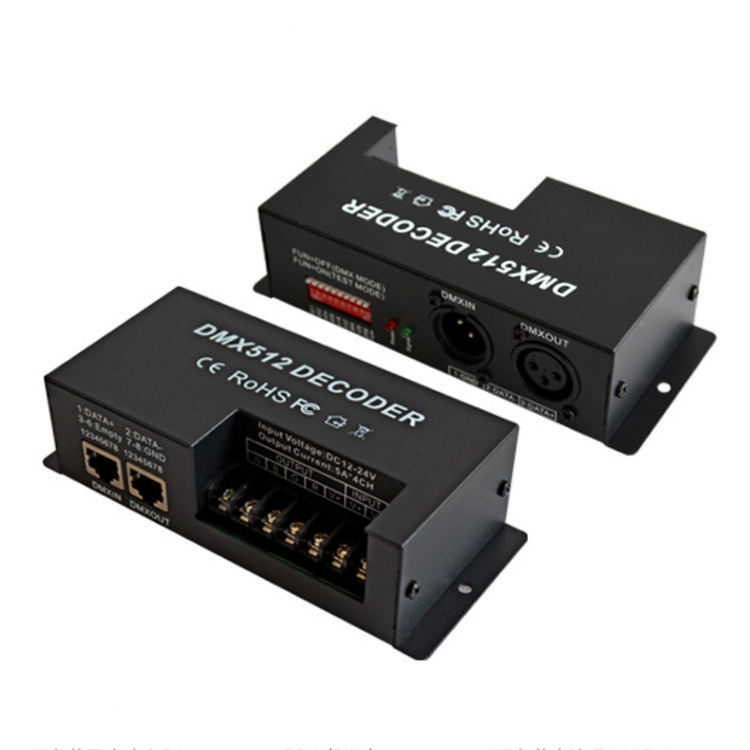

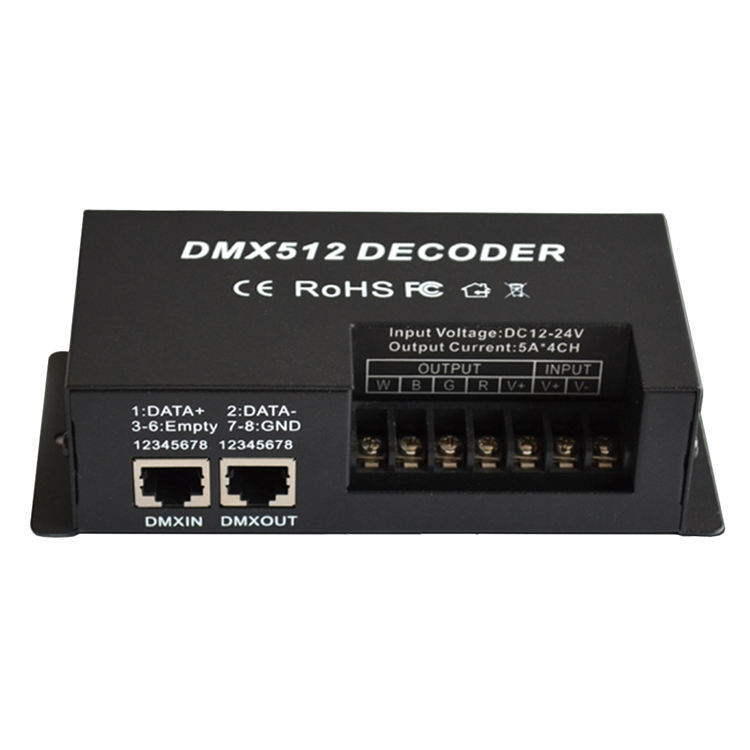

4-Channel 5A RGBW LED DMX512 Constant Voltage Decoder with DIP Switch for Stage Lights & LED Modules

Featuring an intuitive DIP switch design, setting the DMX start address is effortless, allowing for quick configuration in complex lighting setups. With a robust 5A output per channel and wide voltage compatibility (DC12-24V), it supports high-power loads up to 480W, ensuring stable performance even in demanding environments.

Built with industrial-grade components, it offers reliable short-circuit and overheat protection. Whether you are setting up a concert, theater, or permanent installation, this decoder provides the seamless control and durability you need to bring your creative vision to life.

• Professional DMX512 Control:​ Fully compatible with DMX512/1990 consoles, supporting 256-level brightness adjustment and 8-bit color depth for precise, flicker-free RGBW color mixing.

• High Power Output:​ Delivers a massive 5A per channel (Total 20A), supporting up to 480W (at 24V) to drive multiple high-intensity stage lights or long LED strips.

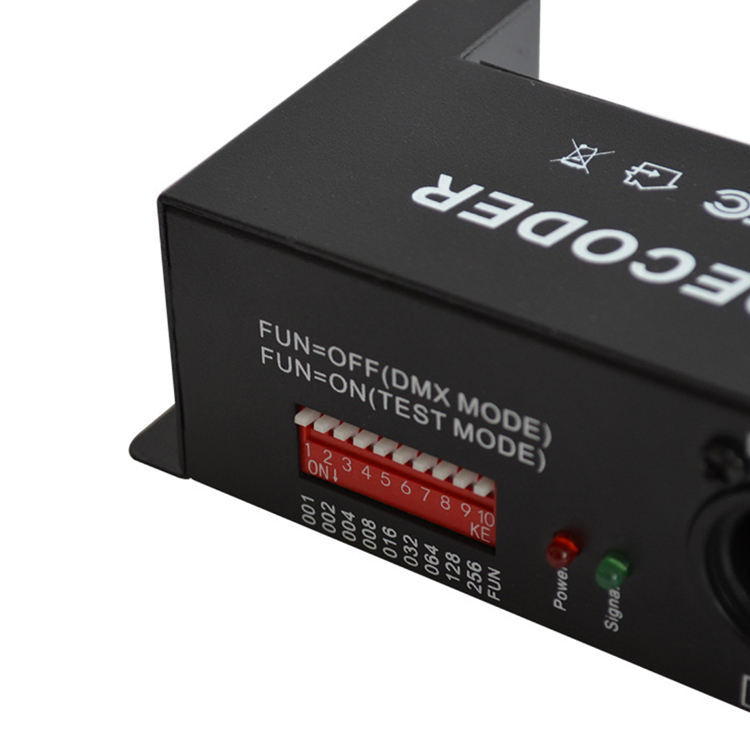

• Easy Address Setting:​ Equipped with a clear binary DIP switch, allowing you to manually set the DMX start address (1-512) without needing complex software or apps.

• Wide Voltage & Versatile Use:​ Operates on DC12-24V constant voltage, making it ideal for various applications including stage Par lights, architectural washes, and commercial LED modules.

• Dual-Mode Operation:​ Supports standard DMX control mode and a built-in "Stand-alone Mode" (via DIP switch) with preset dynamic programs for plug-and-play effects without a console.
