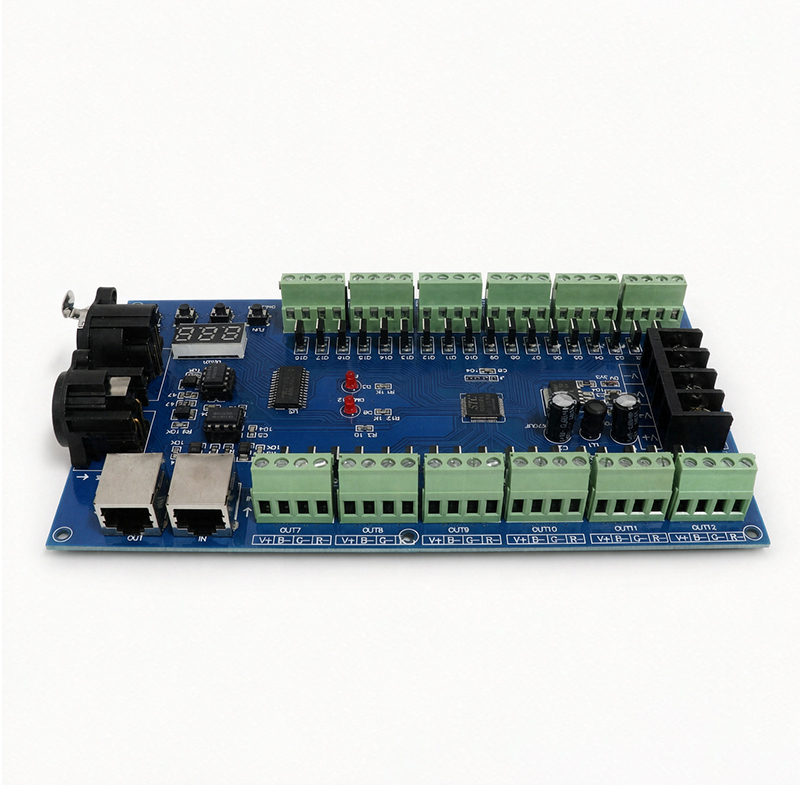

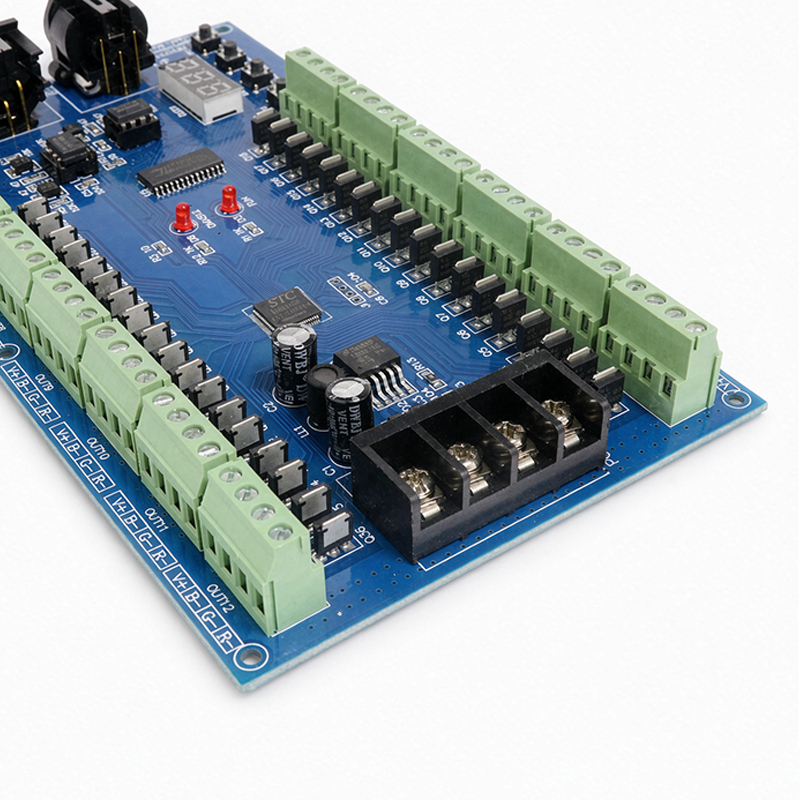

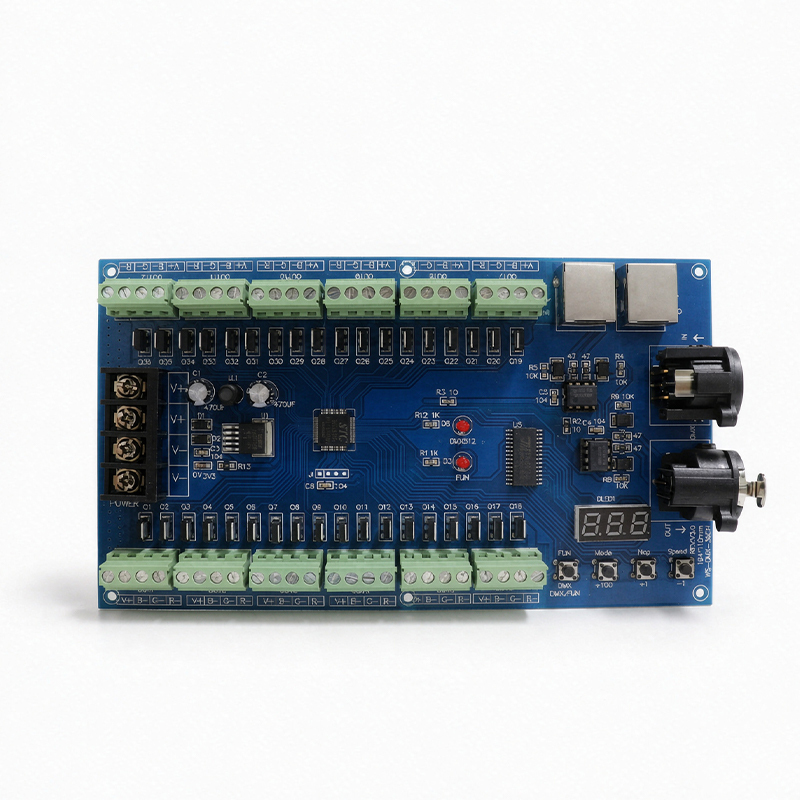

This 36-channel DMX512 bare-board decoder converts standard DMX512/1990 signals into 36 independent PWM outputs for constant-voltage LED loads. Each channel supports 256-step dimming and can drive single-color, tunable-white, RGB or RGBW strips. Wide DC input (commonly DC9–24V, some versions DC5–24V) makes it suitable for 12V/24V LED installations. Set the start address via DIP switch or buttons, cascade multiple units, and control everything from a DMX console, PC software (Madrix / MA / Sunlite) or RDM system. Ideal for stages, bars, hotels, façade lighting, retail displays and DIY DMX projects where reliable analog dimming is needed.
36 PWM Output Channels: Drive up to 36 single-color zones, 12 RGB zones, or 9 RGBW zones from one DMX start address.
DMX512/1990 Standard: Works with professional lighting consoles, DMX interfaces, Madrix, resolume, OpenDMX and Arduino DMX shields.
Constant-Voltage LED Ready: Controls 12V/24V LED strips, modules, bars and fixtures; not for WS2812/SK6812 pixel protocols.
256-Level / 8-Bit Dimming: Smooth 0–100% brightness, group/chase/fade effects when used with console programming.

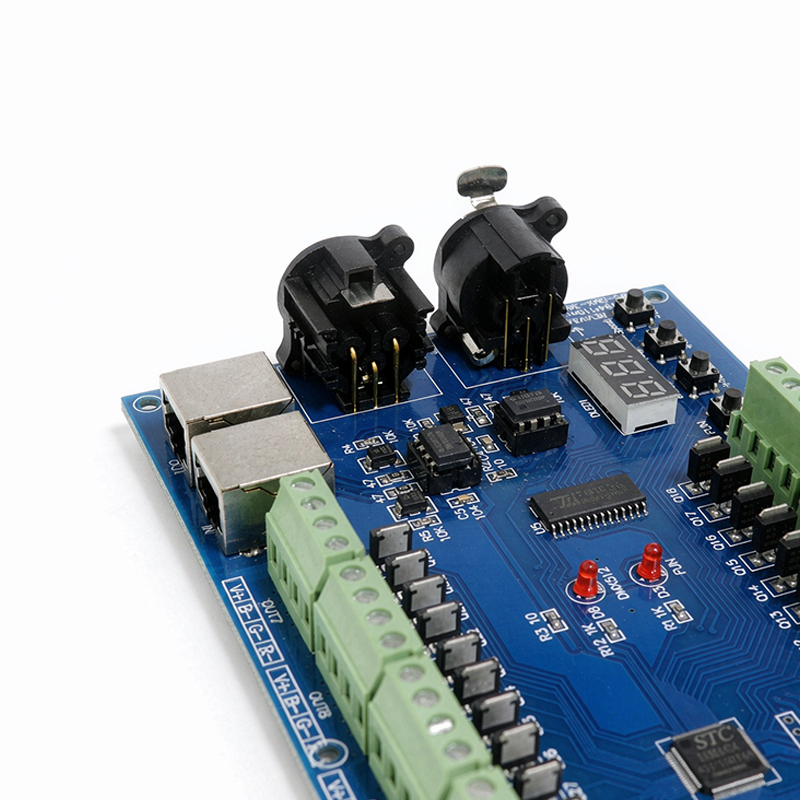

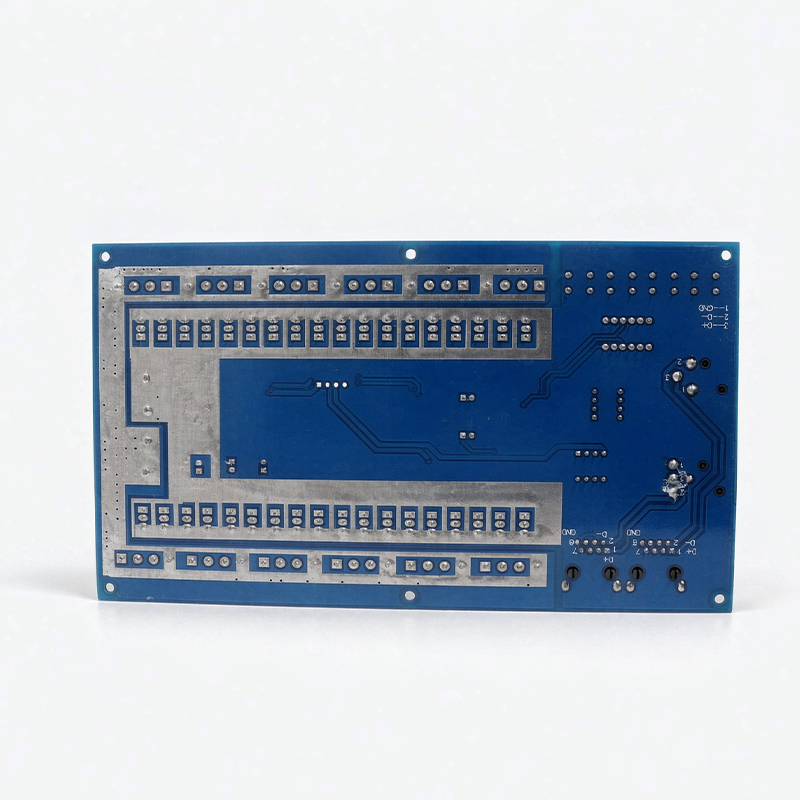

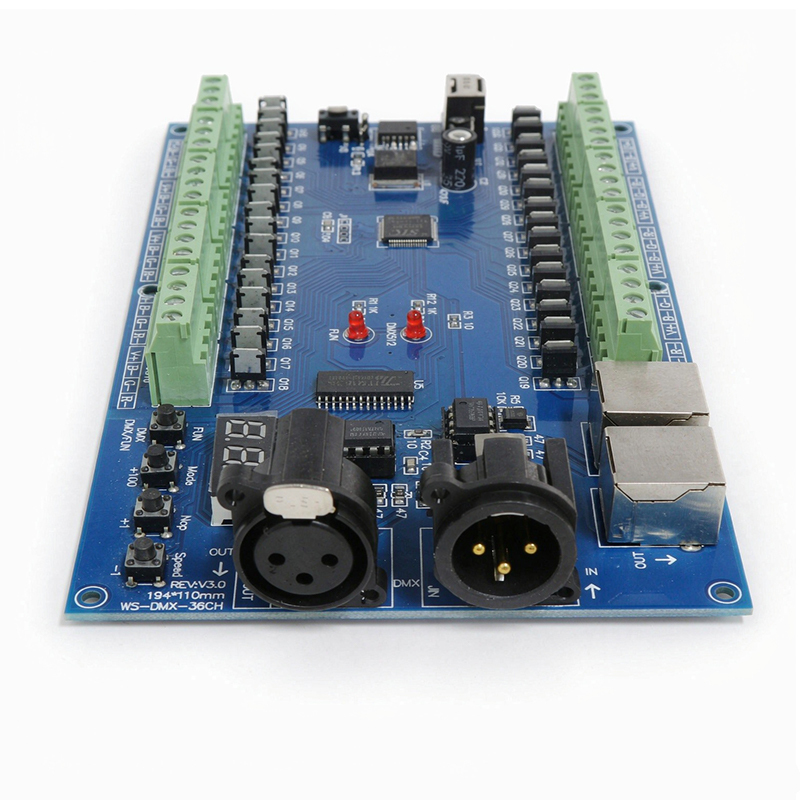

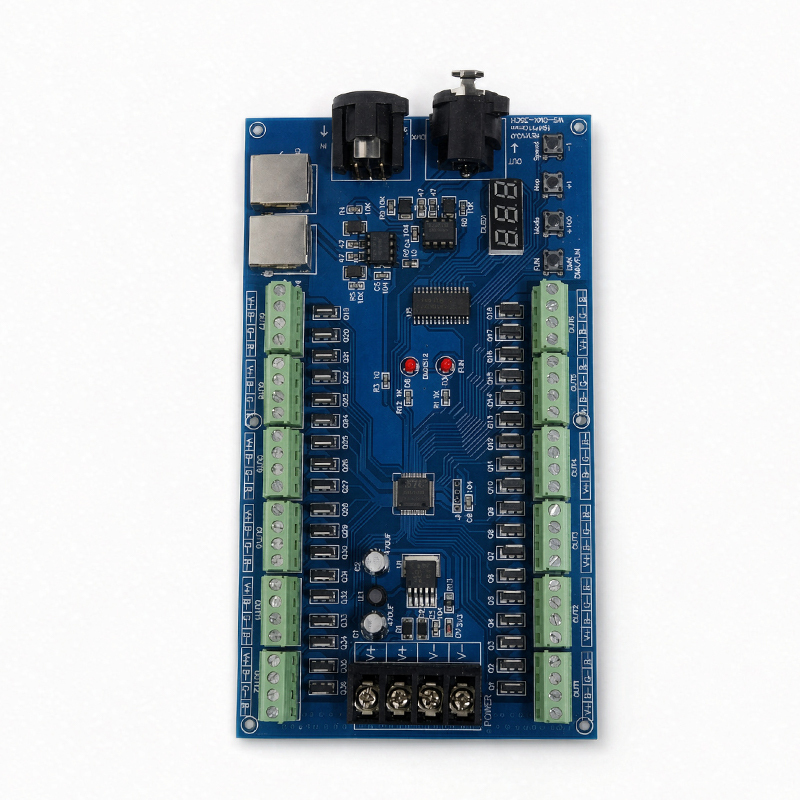

Bare Board / Enclosed Options: Bare PCB for OEM integration, or housed version with XLR-3 / XLR-5 / RJ45 / screw terminals.
|
Item |
Typical Specification |
|---|---|
|
Product |
36CH DMX512 LED Decoder / PWM Dimmer |
|
Protocol |
DMX512 / DMX512-1990 |
|
Output Channels |
36 channels PWM (constant voltage) |
|
DMX Addresses Used |
36 starting addresses |
|
Input Voltage |
DC9–24V (some boards DC5–24V / HV 5–36V) |
|
Max Load Current |
2A/ch common; 3A/ch pro versions |
|
Max Load Power |
864W @12V, 1728W @24V (2A×36) |
|
Gray Level |
256 / channel (8-bit) |
|
Output Type |
Constant voltage PWM |
|
Connectable Loads |
Single color / CCT / RGB / RGBW LED strip |
|
Addressing |
DIP switch or digital buttons + display |
|
DMX Ports |
XLR3 / XLR5 / RJ45 / screw terminal |
|
Built-in Programs |
14 test patterns, 10 speed levels (common) |
|
PWM Frequency |
~1–2 kHz typical; pro boards 500Hz–35kHz |
|
Size (bare board) |
~194×100×25 mm / 210×202 mm depending on model |
|
Application |
Stage, bar, hotel, façade, retail, DMX DIY |
|
Note |
Not a pixel/addressable IC driver; use DMX console or decoder firmware only |
