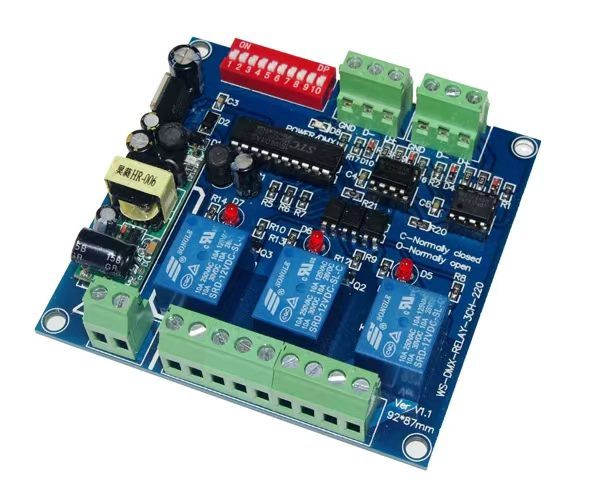

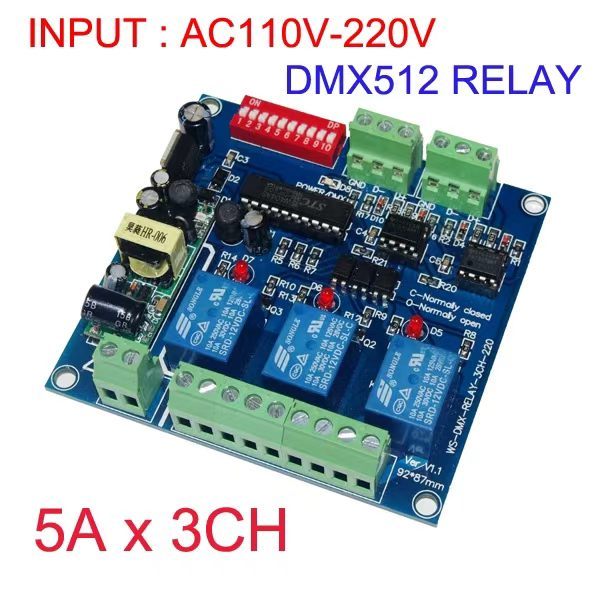

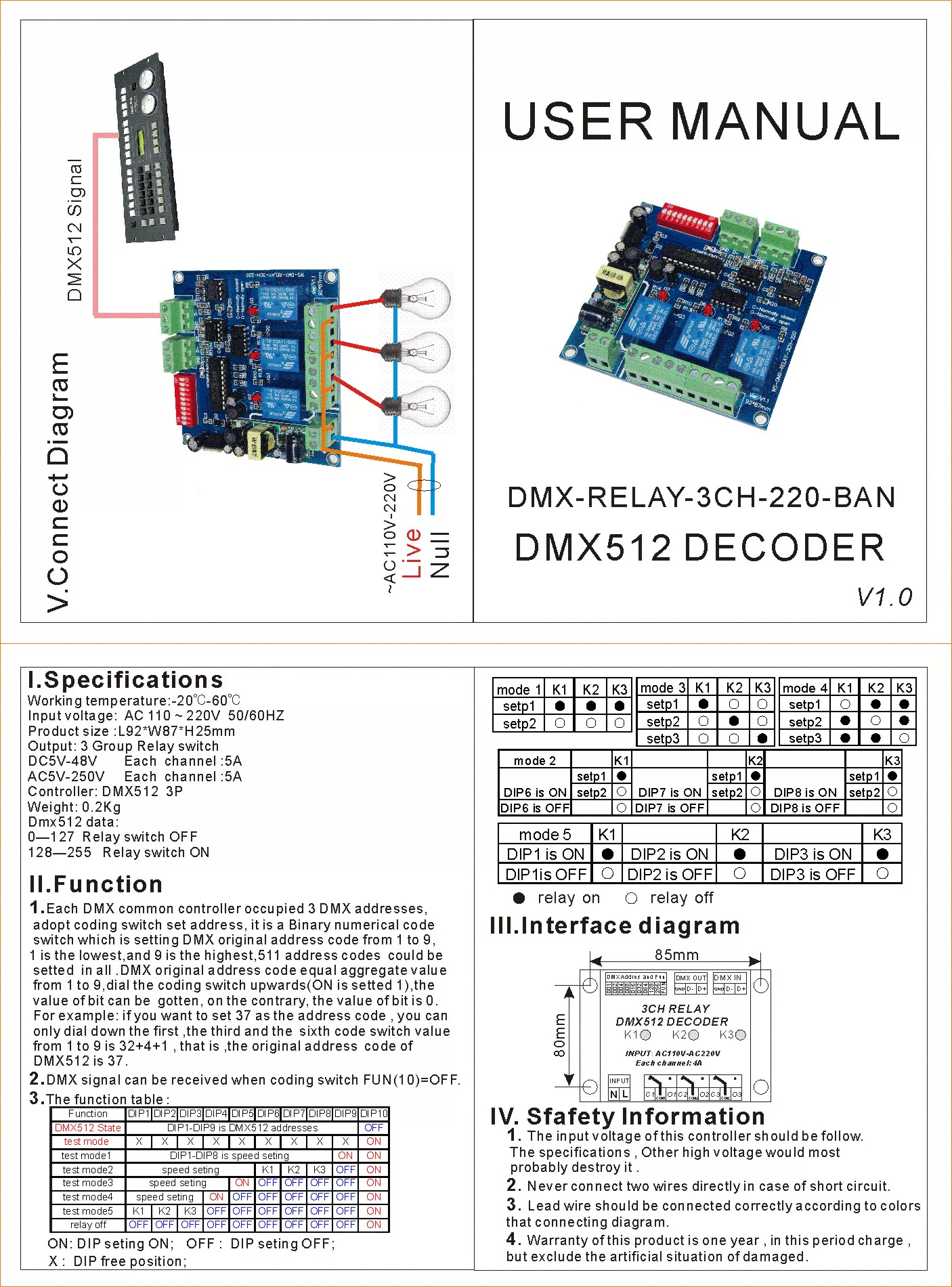

Switch three real loads from one DMX address block. This 3-channel DMX512 relay board runs on AC110-220V and gives 3 independent normally-open relays, each 5A—handling AC lamps, fog machines, signage, water pumps, 24V fans, and solenoid valves. DMX value 0–127 = OFF, 128–255 = ON, so any DMX console, tester, or pixel controller with DMX out can hard-switch non-dimmable equipment. DIP1–DIP9 set start address 1–511; DIP10(FUN)=OFF for DMX mode, FUN=ON for built-in self-run chase/test modes. Relay isolation keeps DMX logic safe from load side. No dimming, no flicker—just isolated on/off power control.
3 Independent Relay Channels – Occupy 3 DMX addresses (CH / CH+1 / CH+2); map to 3 separate loads.
AC110-220V Self-Powered – Mains feeds the board; no extra 12V/24V control PSU needed.
AC + DC Load – AC5-250V 5A/ch, DC5-48V 5A/ch (24V industrial/smart-home loads OK).
DIP Address + FUN Mode – DIP1–9 = DMX start address; DIP10 = DMX / self-test chase mode.
Isolated ON/OFF – Normally-open contacts, silver alloy; perfect for non-dimmable 220V/24V gear.
|
Parameter |
Specification |
|---|---|
|
Product |
3CH DMX512 Relay Switch Controller / Decoder Board |
|
Input Voltage |
AC 110–220V, 50/60Hz (controller power) |
|
Output |
3 groups, normally-open relay |
|
Relay Rating |
AC 5–250V 5A/ch; DC 5–48V 5A/ch |
|
Total Max |
Depends on case/heat; 5A×3 on paper, derate for inductive load |
|
Protocol |
DMX512 / DMX512-1990 |
|
DMX Channels |
3 (start +0 / +1 / +2) |
|
Control Logic |
0–127 = OFF, 128–255 = ON |
|
Addressing |
DIP1–DIP9 binary (1+2+4+8+16+32+64+128+256 = 1–511) |
|
FUN Switch |
DIP10 OFF = DMX mode; ON = built-in test/self-run modes |
|
Signal Port |
3-pin XLR IN/OUT or RJ45 (model dependent) |
|
Load Terminal |

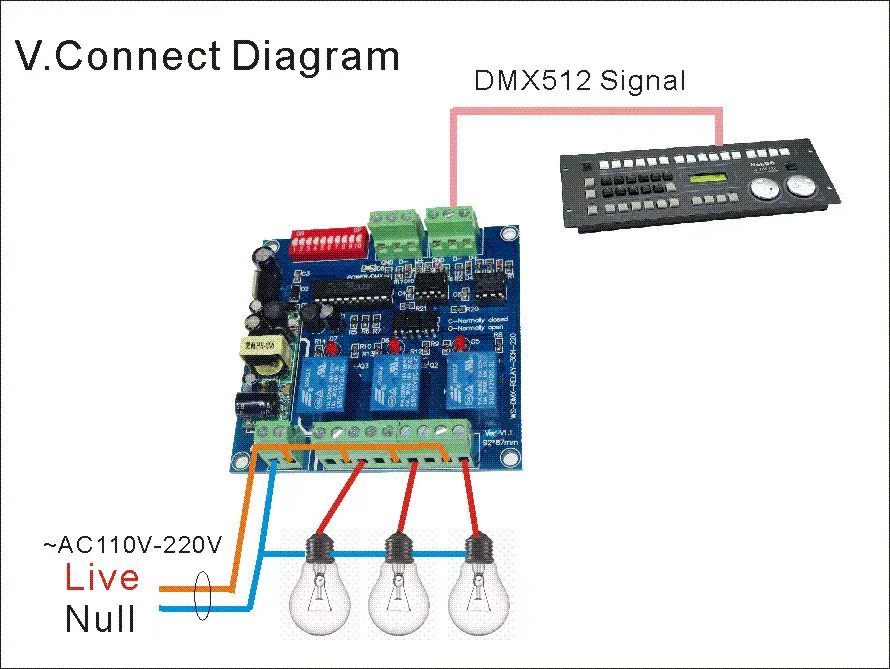

Screw terminal, COM + NO ×3 |
|
Size |
166×67×41mm (metal case) / 120×55×20mm (mini board) |
|
Contact |
Silver alloy, NO type |
|
Temp |
-20°C to 60°C |
