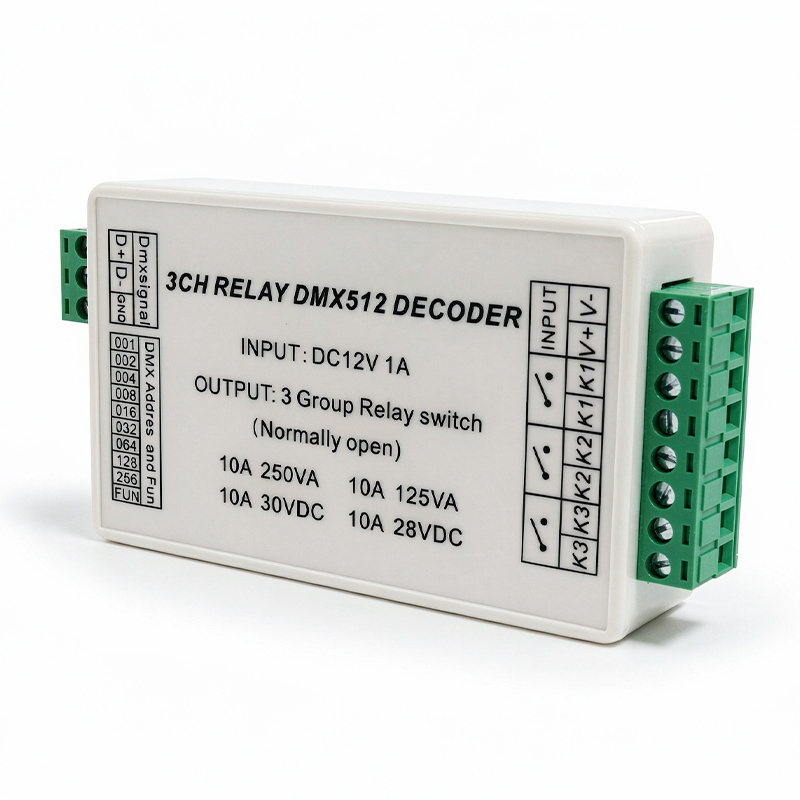

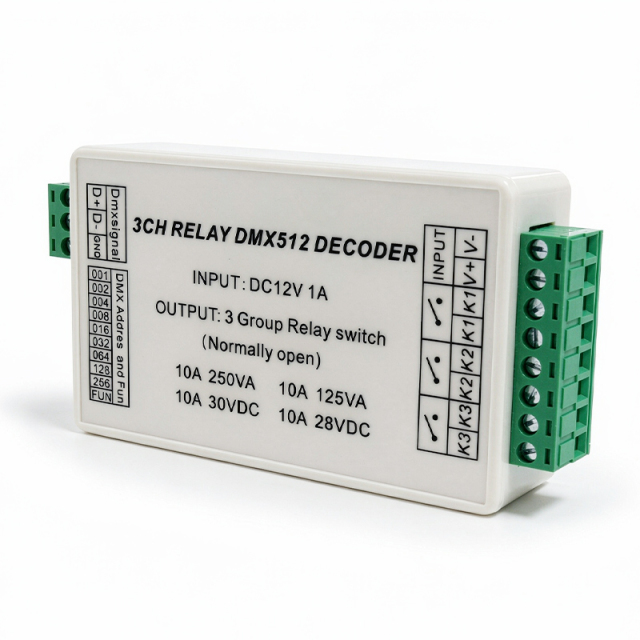

Switch real AC/DC loads from your DMX console. This 3-channel DMX512 relay controller runs on AC110-220V and gives 3 independent relay outputs—each rated 5A, supporting AC5-250V or DC5-48V (24V systems included). DMX value 0–127 = OFF, 128–255 = ON, so any lighting desk, DMX tester, or pixel controller with DMX out can hard-switch stage pars, shop signs, water pumps, fans, solenoid valves, and 220V decorative lamps. DIP switches set the start address 1–511; FUN switch enables self-test/chase modes without a console. No dimming, no flicker—just safe, isolated power switching for non-dimmable equipment.
3 Independent Relay Channels – CH1/CH2/CH3 map to 3 loads; occupy 3 DMX addresses.
AC + DC Load Support – AC 5–250V 5A/ch, DC 5–48V 5A/ch; 24V industrial/smart-home loads OK.
AC110-220V Self-Powered – Plug/mains-terminal feed powers the logic; no extra 12V/24V control PSU needed.

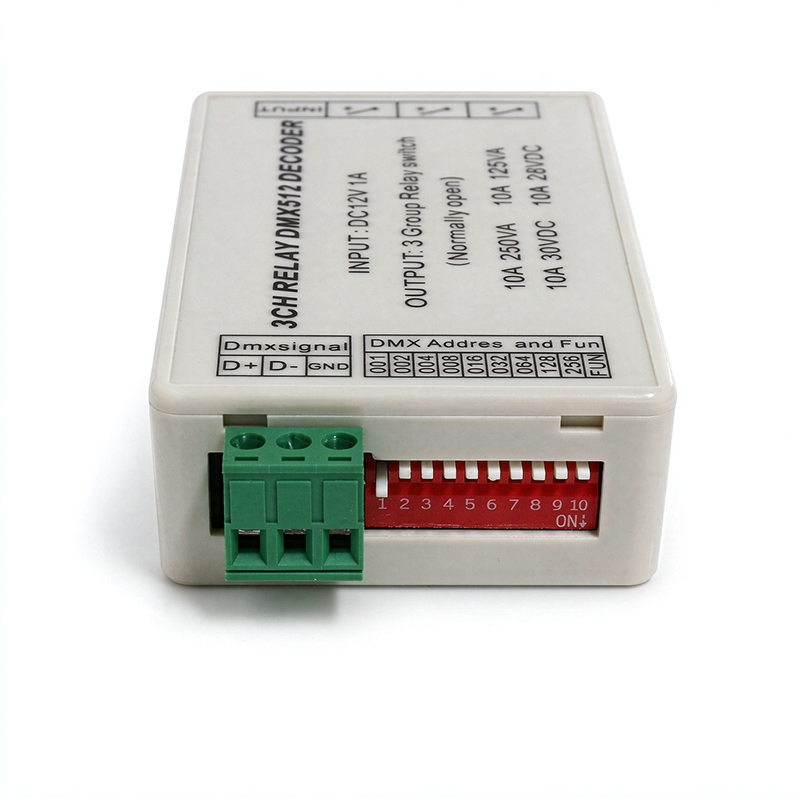

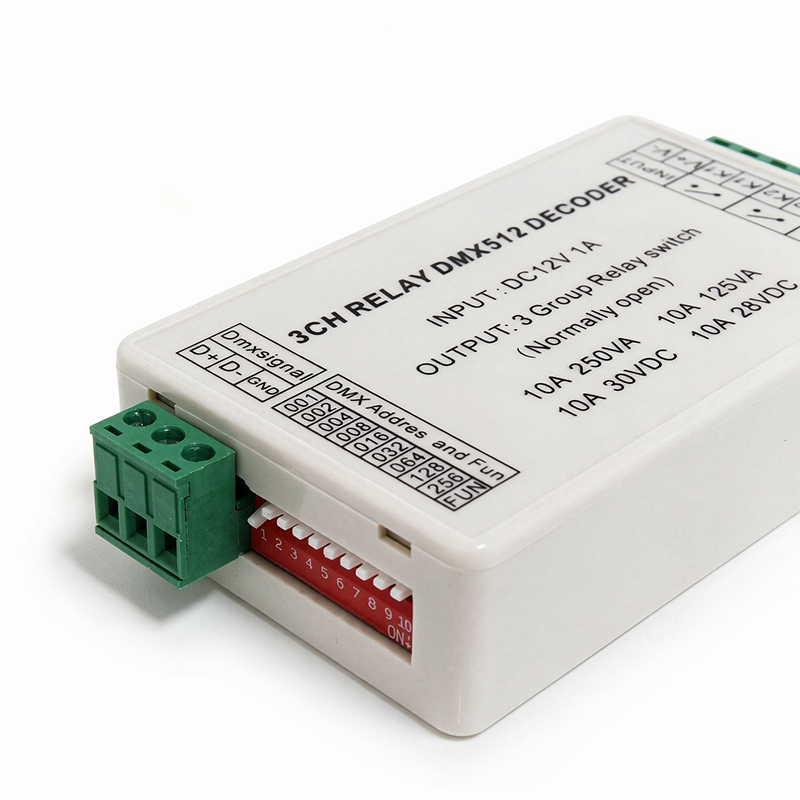

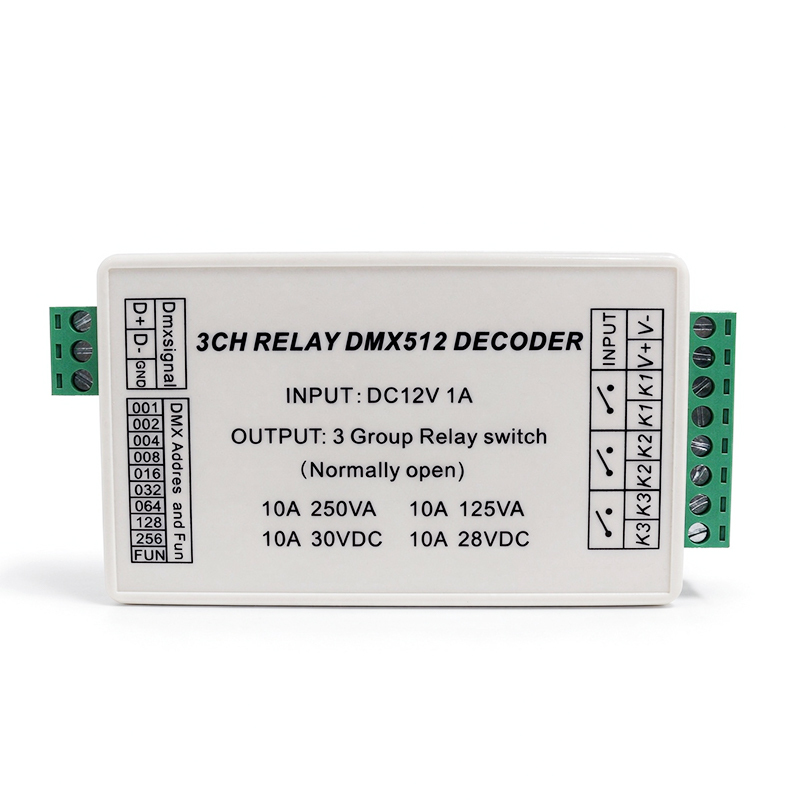

Simple DMX Logic – 0–127 OFF, 128–255 ON; DIP1–DIP9 address, DIP10 FUN for test modes.
Isolated Switching – Relay isolates DMX side from load side; ideal for non-dimmable 220V/24V gear.
|
Parameter |
Specification |
|---|---|
|
Product |
3CH DMX512 Relay Switch / Decoder |
|
Input Voltage |
AC 110–220V, 50/60Hz (controller power) |
|
Output |
3 groups, normally-open relay |
|
Relay Rating |
AC 5–250V 5A/ch; DC 5–48V 5A/ch |
|
Total Load |
Depends on heat sink/case; 5A×3 max on paper |
|
Protocol |
DMX512 / DMX512-1990 |
|
DMX Channels |
3 (start address +0 / +1 / +2) |
|
Control Logic |
0–127 = OFF, 128–255 = ON |
|
Addressing |
DIP1–DIP9 binary (1–511), DIP10 = FUN/test |
|
Signal Port |
3-pin XLR IN/OUT or RJ45 (model dependent) |
|

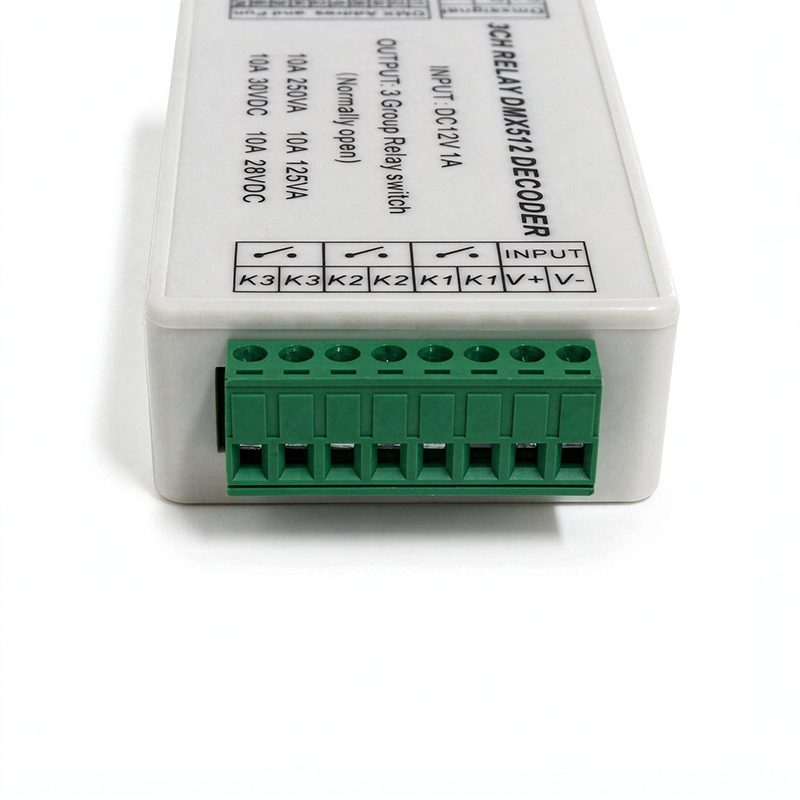

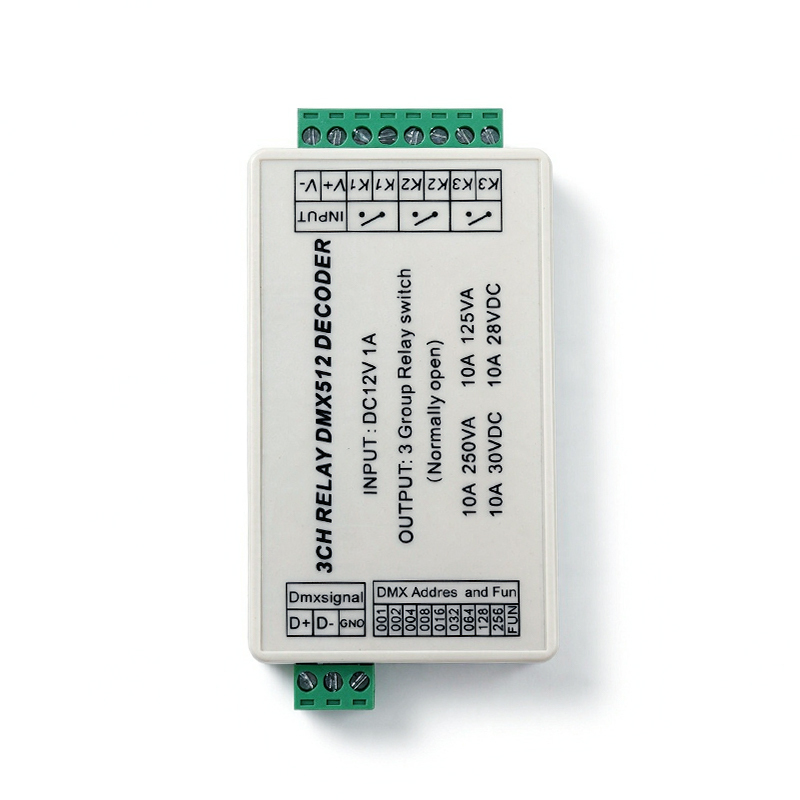

Load Terminal |
Screw terminal, COM + NO per channel |
|
Case |
Metal / ABS versions exist |
|
Size |
~166×67×41 mm |
|
Temp |
-20°C to 60°C |
