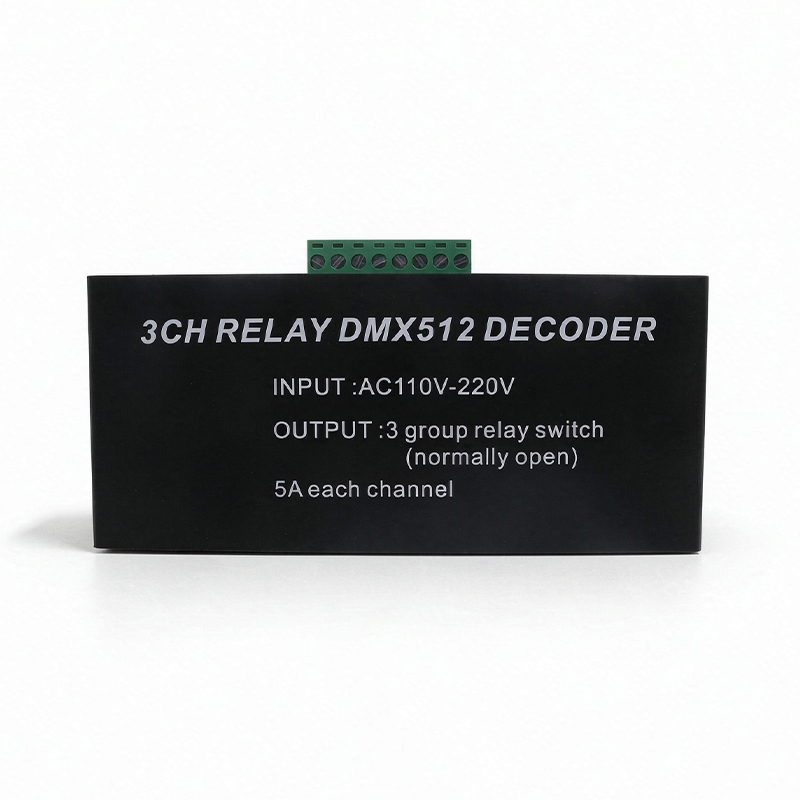

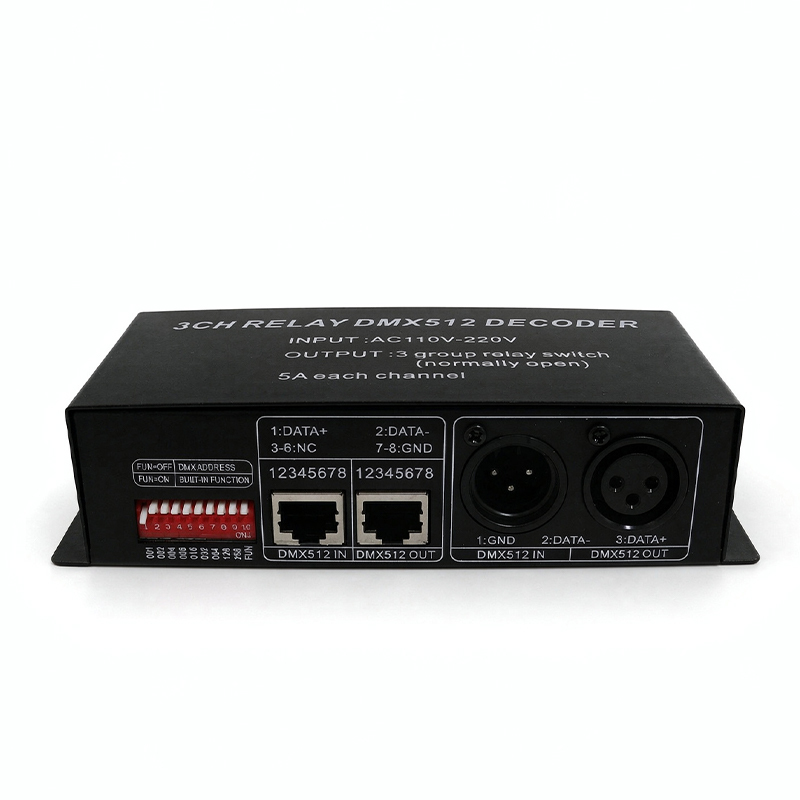

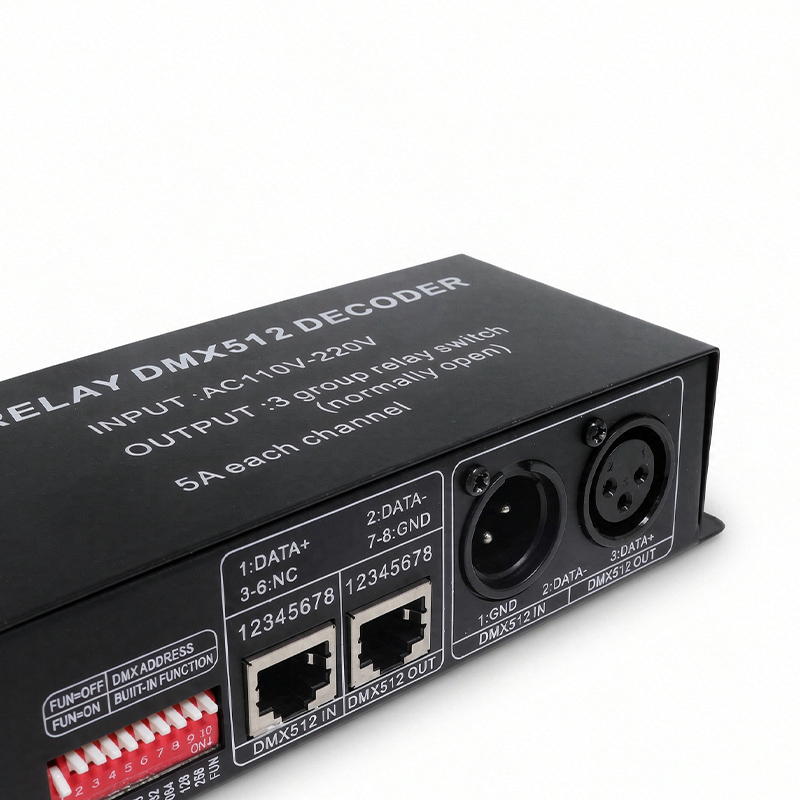

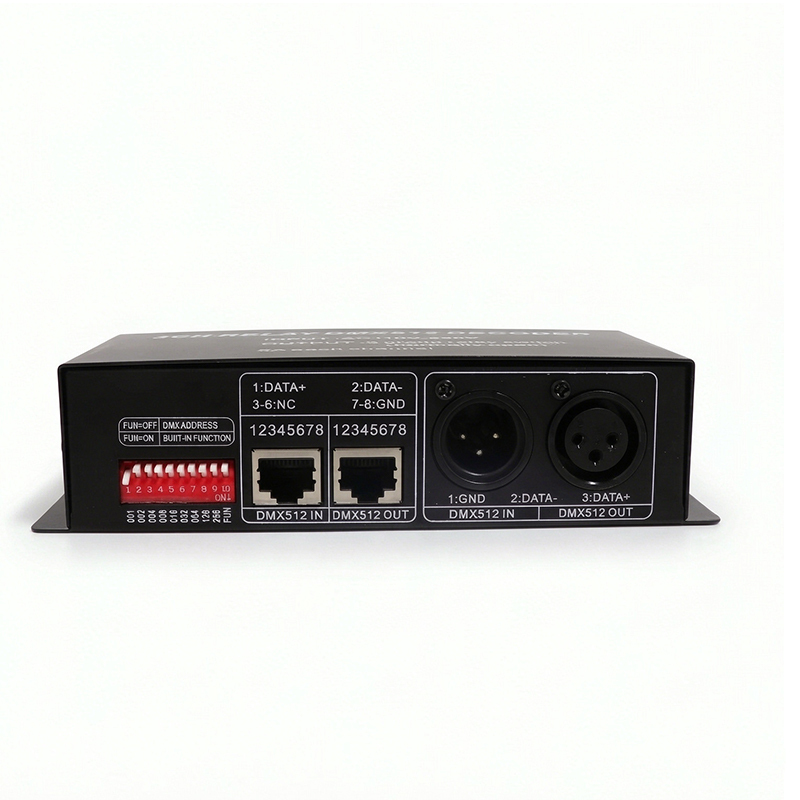

Experience robust control with our 3-Channel DMX512 Relay Decoder. Housed in a durable iron case, this controller converts standard DMX512 signals into 3 independent power switches. Featuring AC 110-220V input and 5A per channel (normally open), it reliably drives stage lights, water pumps, motors, and commercial signage. Setup is straightforward via DIP switches, and the sturdy metal enclosure ensures excellent heat dissipation and longevity in demanding environments. Perfect for integrating non-dimmable high-voltage devices into your DMX lighting console. Bridge the gap between digital control and analog power effortlessly.
3 Independent Channels: Controls 3 separate loads simultaneously with standard DMX512 protocol (CH1-CH3 mapping).
5A High Power Capacity: Each channel supports up to 5A / 250VAC (normally open), ideal for heavy-duty fixtures.
Wide Voltage Input: AC 110V-220V global compatibility, powering the unit and loads directly.

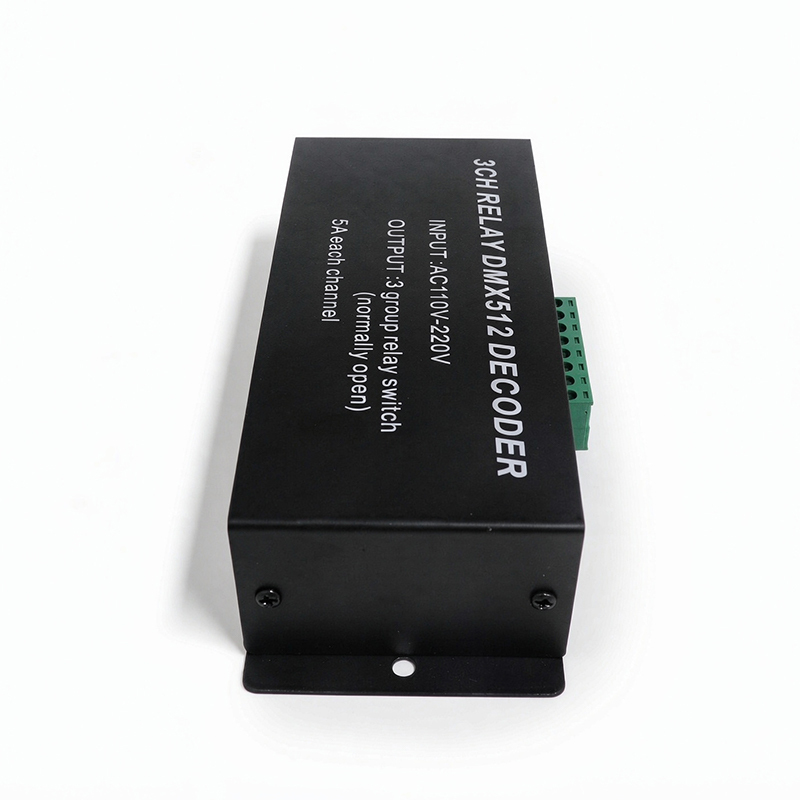

Durable Iron Case: Metal housing provides superior heat dissipation, anti-interference, and industrial-grade protection.
Versatile Applications: Perfect for stage lighting, fog machines, motors, pumps, and smart home automation.
|
Parameter |
Specification |
|---|---|
|
Product Name |
3CH DMX512 Relay Decoder Controller |
|
Housing |
Iron Case (Metal Enclosure) |
|
Input Voltage |
AC 110V - 220V, 50/60Hz |
|
Output Channels |
3 Independent Relays (Normally Open) |
|
Relay Rating |
5A / 250VAC per channel (Resistive Load) |
|
Control Protocol |
Standard DMX512 |
|
DMX Occupancy |
3 Channels |
|
Control Logic |
Value 128-255 = ON; 0-127 = OFF |
|
Power Calculation |
Max ~1100W/channel at 220V (Resistive) |
|

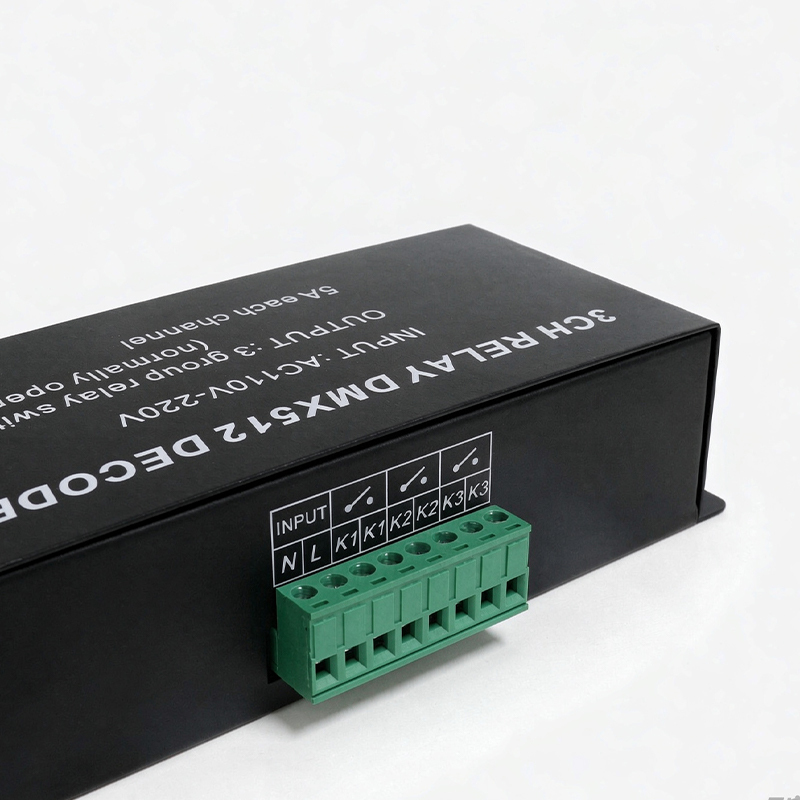

Terminal Block |
Green Screw Terminal (Top) |
