【WRGB Dream Color & External IC】 Features advanced WS2814 external IC chips with a unique WRGB channel sequence, delivering ultra-vivid, addressable dream color effects and incredibly smooth dynamic lighting transitions for any mood.
【High-Density & Precision Lighting】 Boasts an impressive 108 high-brightness 3838 SMD LEDs per meter, perfectly mapped to 18 independent pixels/m. This ensures rich color saturation and seamless gradient effects without any visible dots.
【Stable 24V Low-Voltage Operation】 Powered by DC24V with a consistent 15W/m output, offering stronger anti-interference capabilities and minimal voltage drop. This guarantees stable, long-lasting performance and low heat emission for ultimate safety.
【Durable 10mm Wide PCB】 Built on a robust 10mm wide printed circuit board, providing enhanced heat dissipation and superior flexibility. It can be easily cut and bent into any shape without compromising the strip's structural integrity.
【Versatile DIY Applications】 Ideal for both indoor accent lighting and outdoor decorative projects. Perfect for living rooms, bars, game rooms, architectural outlines, and commercial signage. Unleash your creativity and customize your space effortlessly!

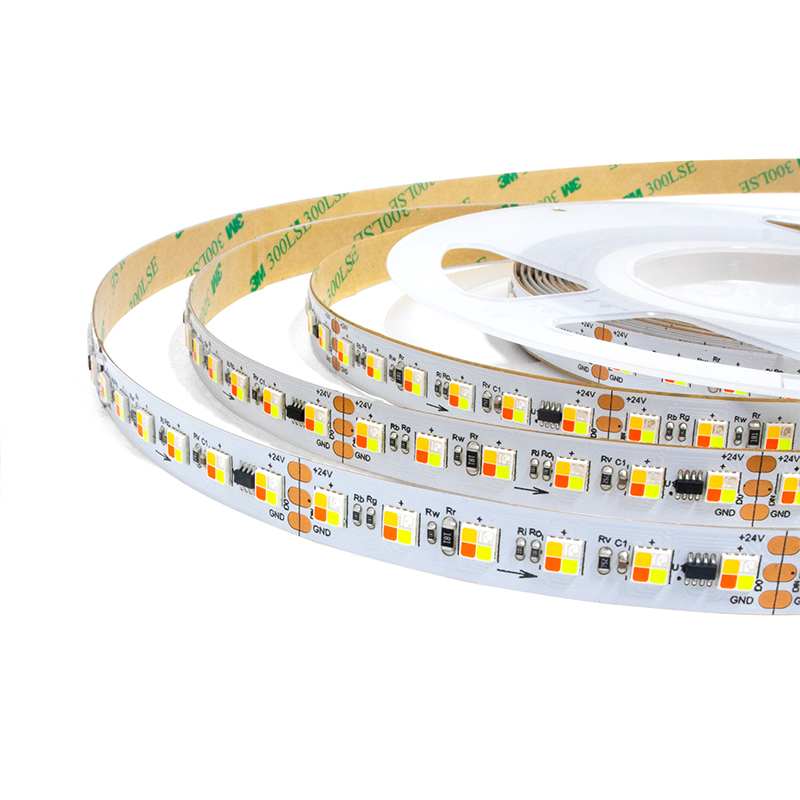

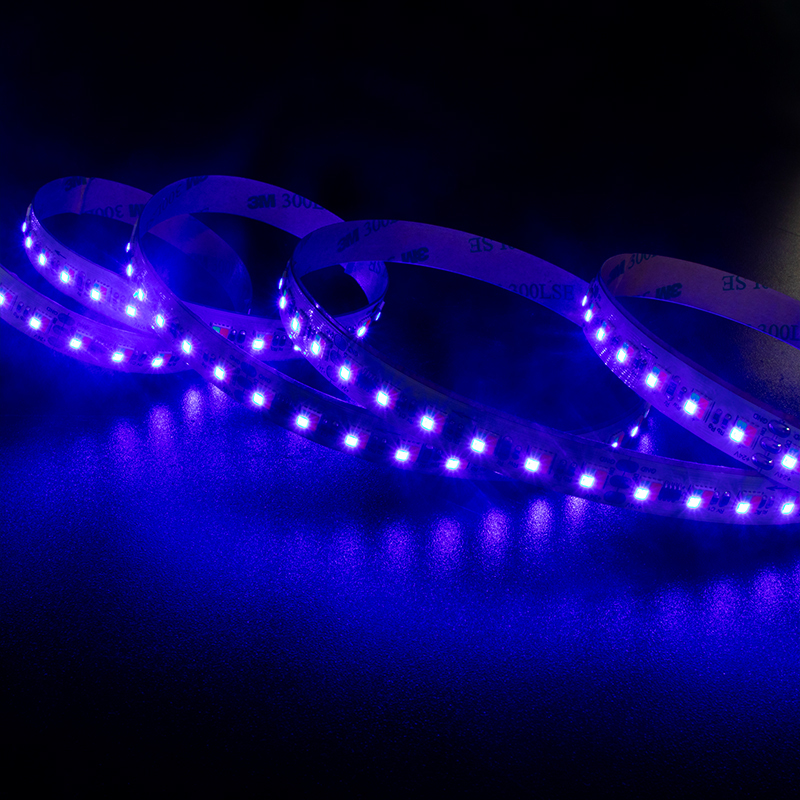

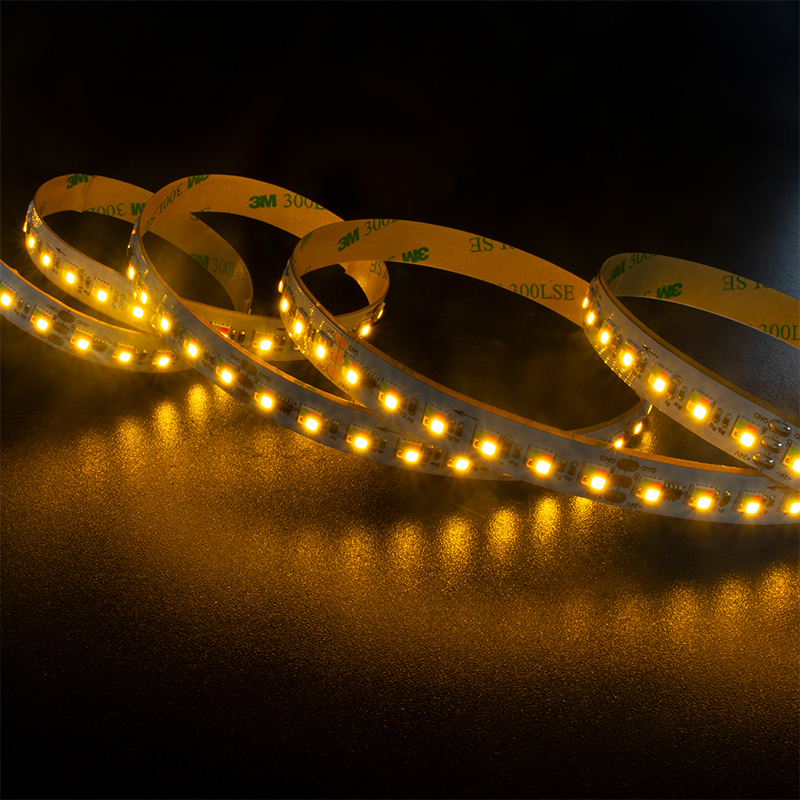

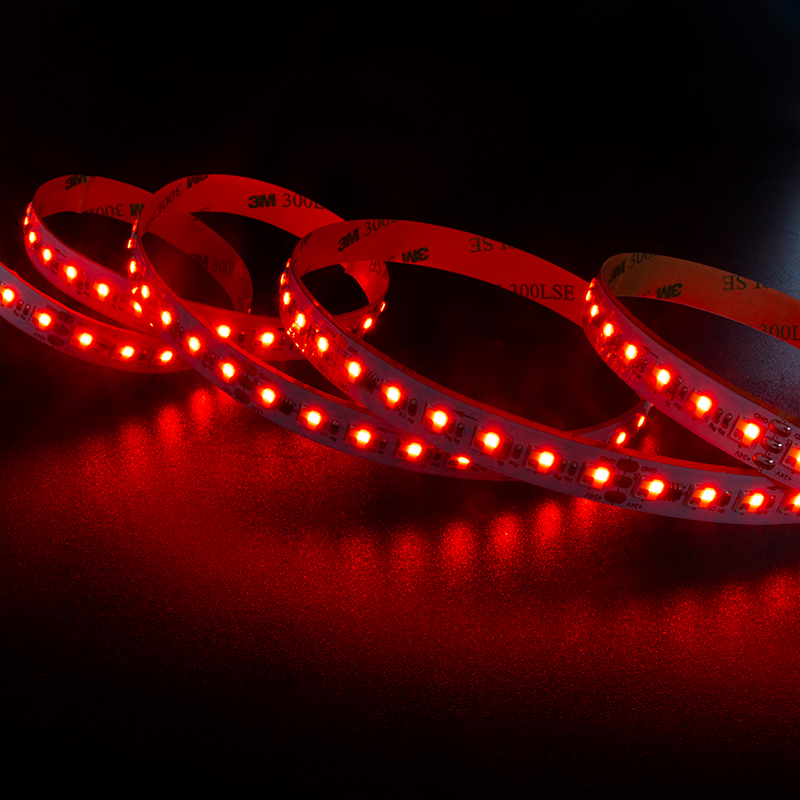

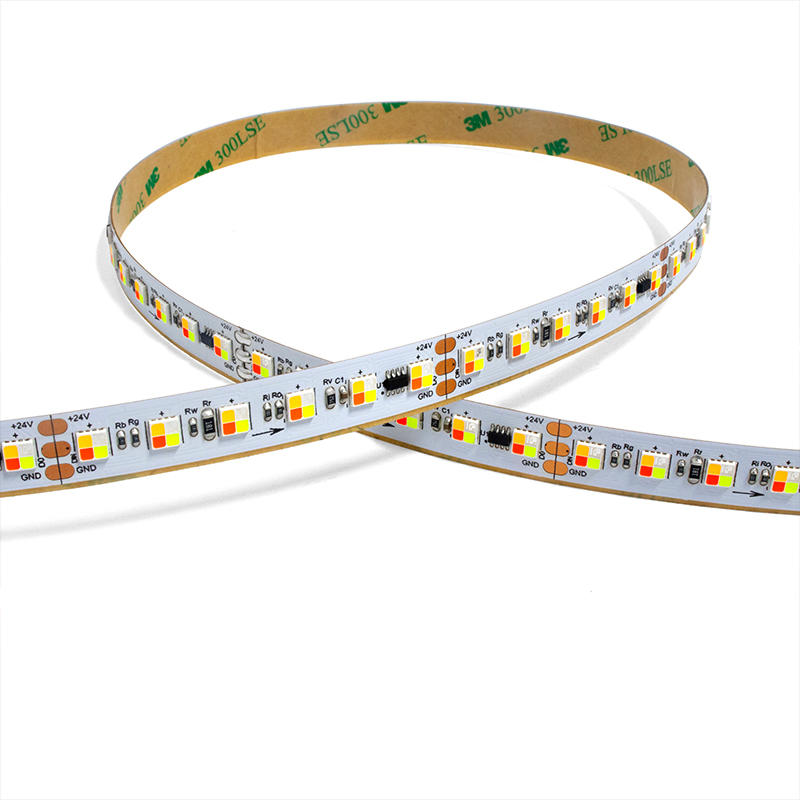

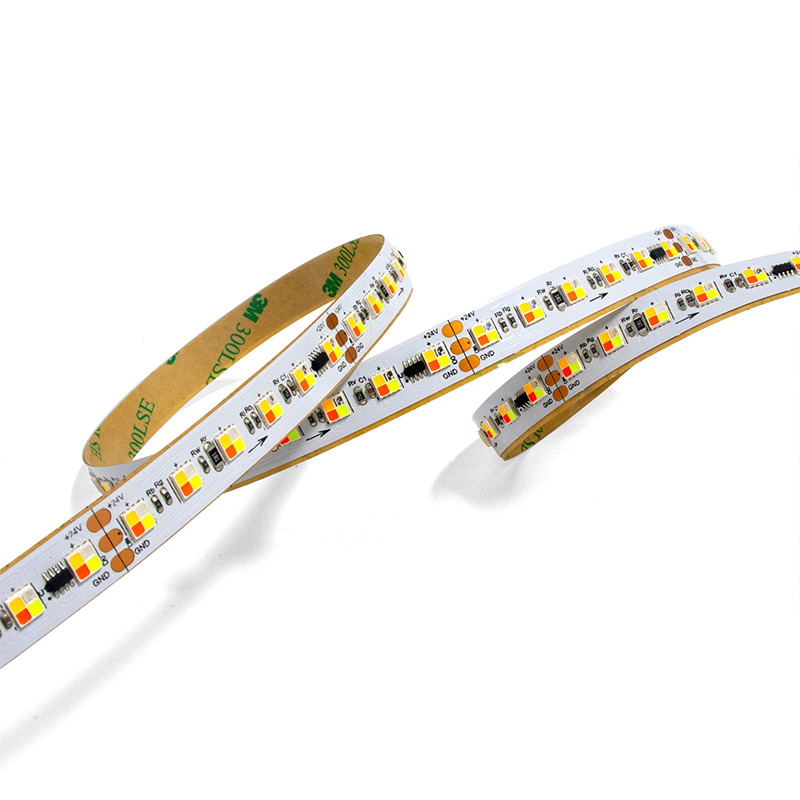

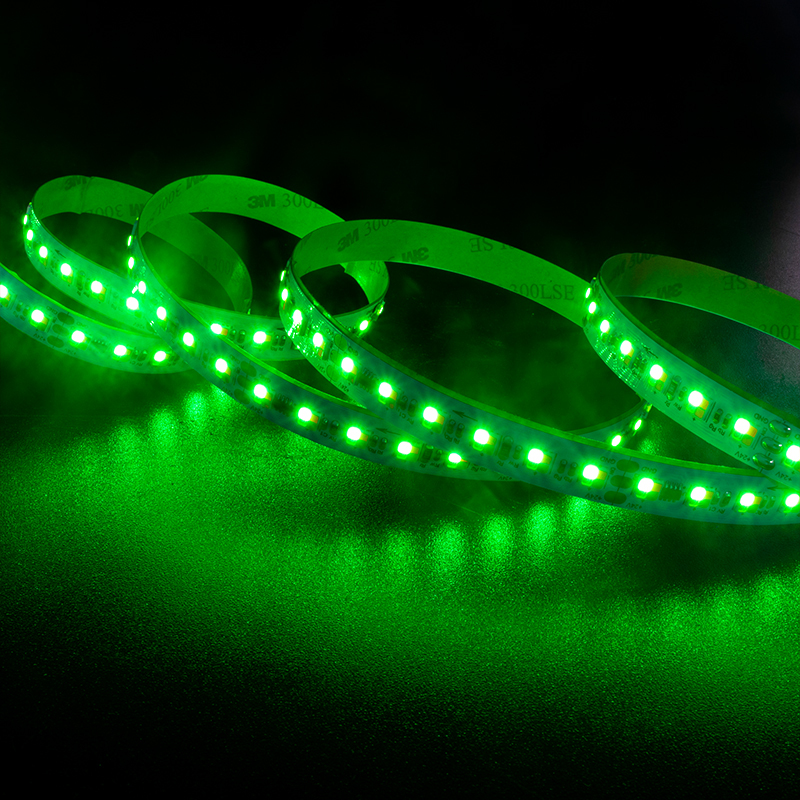

Product Name: 24V SPI WS2814 WRGB Addressable LED Strip Light
|
Category |
Specification |
|---|---|
|
Model / IC Type |
WS2814 (External IC) |
|
Input Voltage |
DC 24V |
|
Power Consumption |
15W / Meter |
|
LED Type |
3838 SMD |
|
LED Density |
108 LEDs / Meter |
|
Pixel Density |
18 Pixels / Meter |
|
Color Channel |
WRGB (Warm White + RGB) |
|
PCB Width |
10mm |
|
Cuttable Unit |
Every 6 LEDs (166.6mm) |
|
Beam Angle |
120° |
|
IP Rating |
IP20 / IP65 / IP67 (Optional) |
|
Operating Temp. |
-20°C to +60°C |
|
Lifespan |
≥50,000 Hours |
|
Certification |
CE, RoHS (Compliant) |
Key Features:
SPI Signal Control: Supports standard SPI protocol for stable data transmission and easy synchronization with mainstream controllers.
WRGB Color Mixing: Adds a dedicated Warm White channel for purer white light and richer color blending compared to standard RGB strips.
High Density: 108 LEDs/m and 18 pixels/m ensure ultra-smooth visual effects without visible spots, ideal for close-range viewing.
24V Low Heat: 24V operation reduces voltage drop and heat generation, making it safer for long runs and enclosed installations.
Typical Applications:
Interior ambient lighting, architectural outlines, commercial signage, home theaters, gaming setups, holiday decorations, and DIY creative projects.
