Individual Addressable & Dream Color: Built-in SK6812 IC chip allows each of the 60 LEDs per meter to be controlled individually. Create stunning, customizable chasing, flowing, and static patterns with smooth SPI signal transmission.
Enhanced 24V RGBW Lighting: Features 5050 SMD LEDs with a 4-in-1 RGBW design. Enjoy not only vibrant, dream-like colors but also a pure, high-quality white light for versatile ambiance settings.
Stable Performance & Low Voltage Drop: Operates on a DC24V safe voltage with a maximum power consumption of 14.4W/m. The 24V system ensures significantly lower voltage drop compared to 5V/12V strips, making it ideal for longer runs.

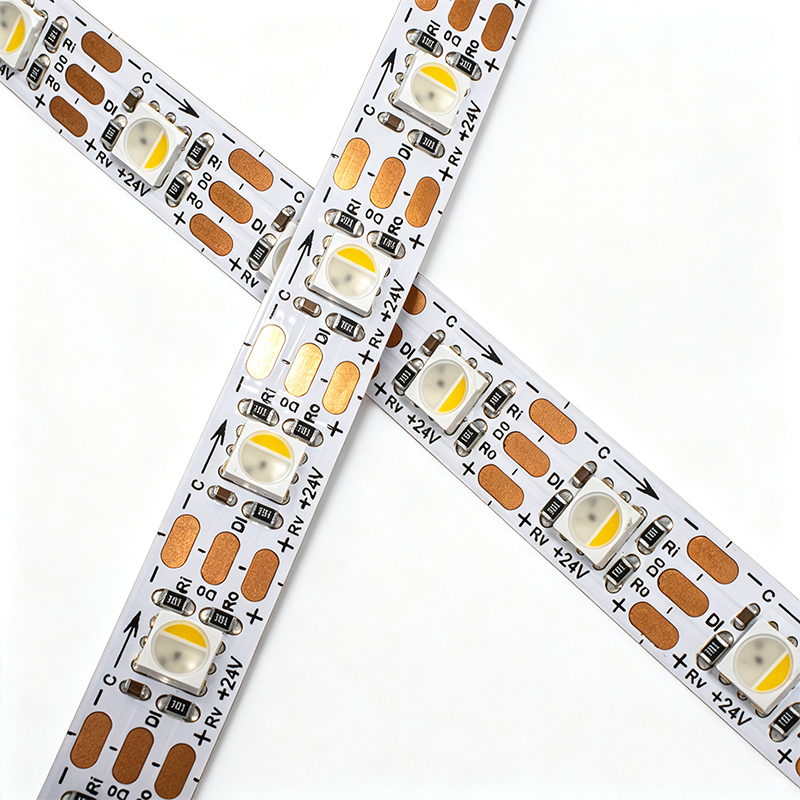

Standard 10mm PCB Width: Designed with a 10mm wide FPCB board, ensuring excellent heat dissipation and durability. This standard width is compatible with most universal 10mm LED connectors and aluminum profiles.
Flexible & Easy Installation: Comes with a strong 3M adhesive backing for secure mounting on clean, dry surfaces. The cuttable design allows you to trim the strip at marked points without damaging the rest of the lights.
1. Basic Parameters
Model: SK6812 RGBW LED Strip
Input Voltage: DC 24V
LED Type: SMD 5050 (4-in-1 RGBW)
LED Density: 60 LEDs/m (60 Pixels/m)
Power Consumption: 14.4W / Meter (Max)
2. Control & Performance
IC Type: SK6812 (Built-in)
Signal Protocol: SPI (Single-wire)
Control Mode: Addressable Point Control (Individual Pixel Control)
Gray Scale: 256-level adjustable
Colors: 16 Million+ (Dream Color Effect)
3. Physical Dimensions
PCB Width: 10mm
PCB Color: White / Black (Optional)
Waterproof Rating: IP20 Non-waterproof / IP65 / IP67 (Optional)
Cutting Unit: Every 1 LED (16.6mm interval)
4. Package Includes
1x 1meters 24V SK6812 RGBW LED Strip (Length as ordered)
Note: Power supply and controller are not included.
