Delivering vivid chasing, flowing, and strobe effects, it is ideal for architectural outlines, stage trims, retail displays, and signage. Cuttable, flexible, and scalable, this professional-grade linear lighting solution combines true DMX control with easy installation.
True DMX512 Control: 16 segments each with built-in decoder connect directly to DMX consoles—no pixel gateways or external controllers required.
24V Efficiency: Higher voltage means lower current, less voltage drop, and longer runs than 5V/12V strips; fewer power injection points simplify installation.
96 LEDs in 16 Segments: 6 LEDs per segment (5050 RGB), balancing smooth light output with individually controllable chase and animation zones.
Compact 12mm Width: Narrow PCB fits into tight profiles, slim aluminum channels, and architectural trims while remaining flexible for curves.
Cuttable & Scalable: Cut at each segment boundary, reconnect via solder or connectors; daisy-chain multiple strips for large-scale DMX installations.

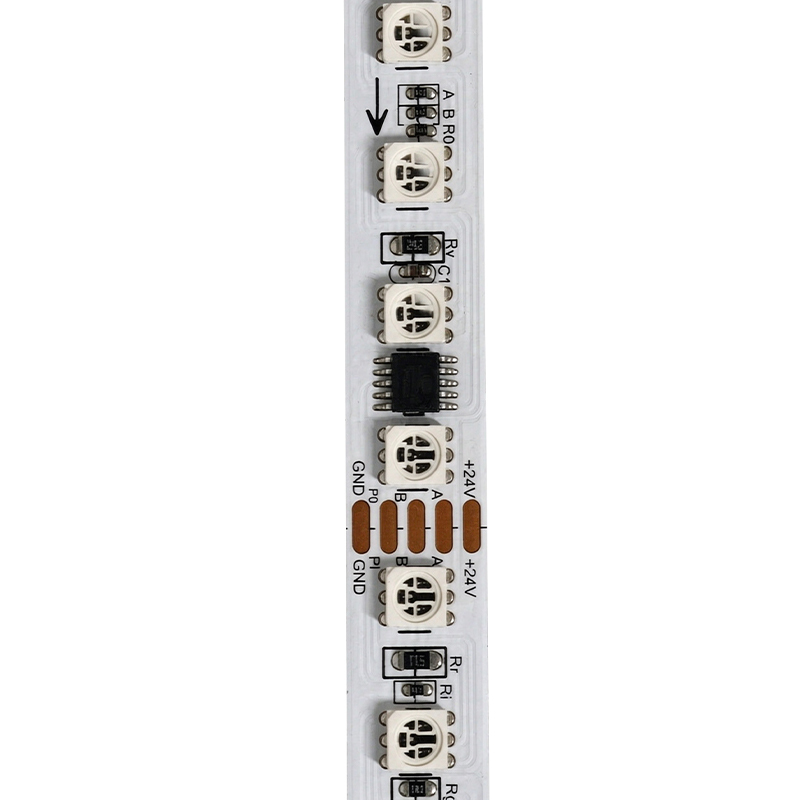

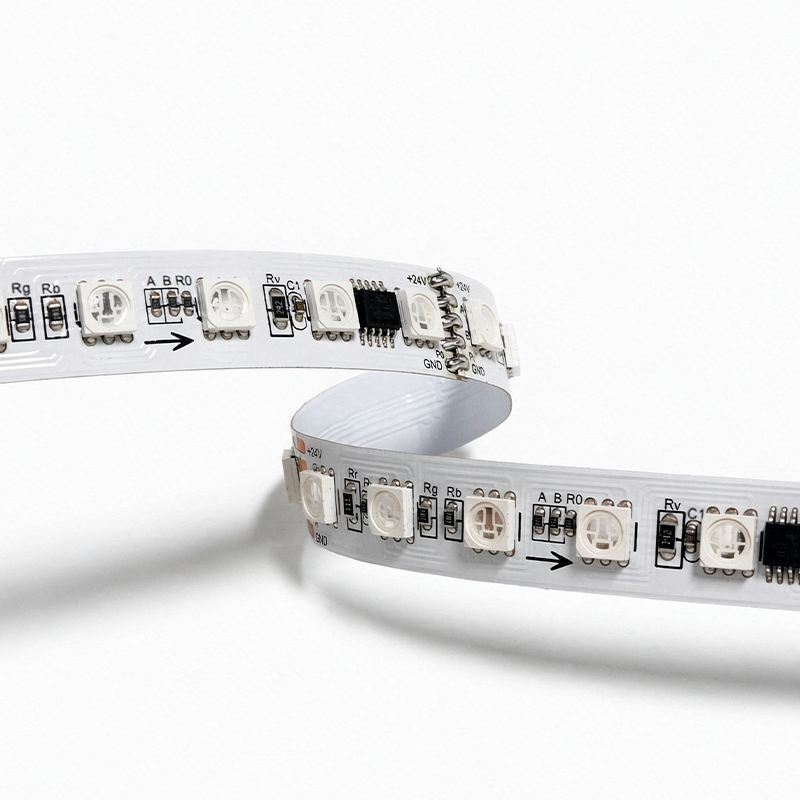

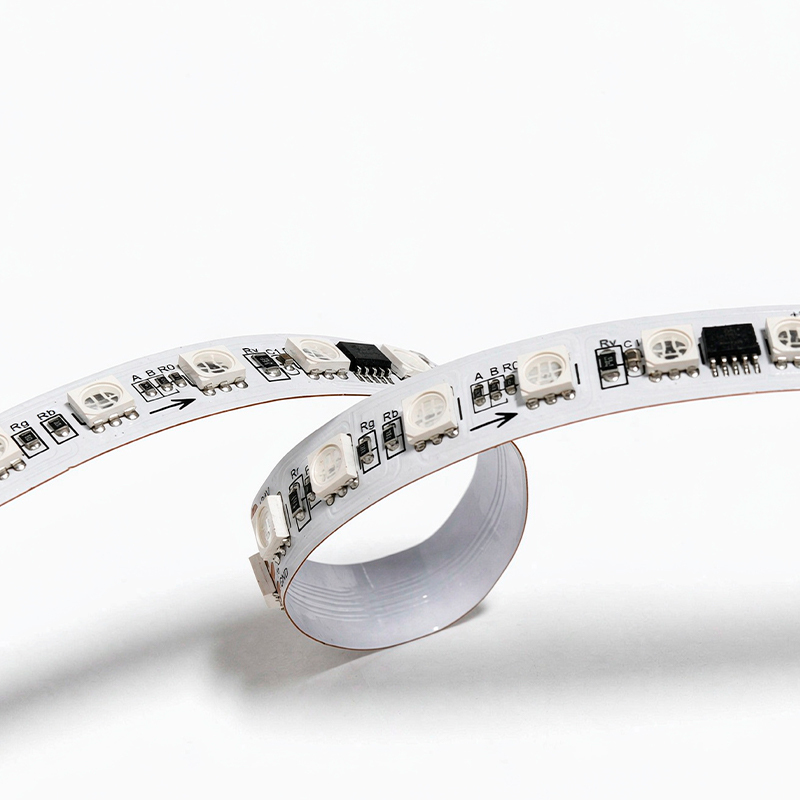

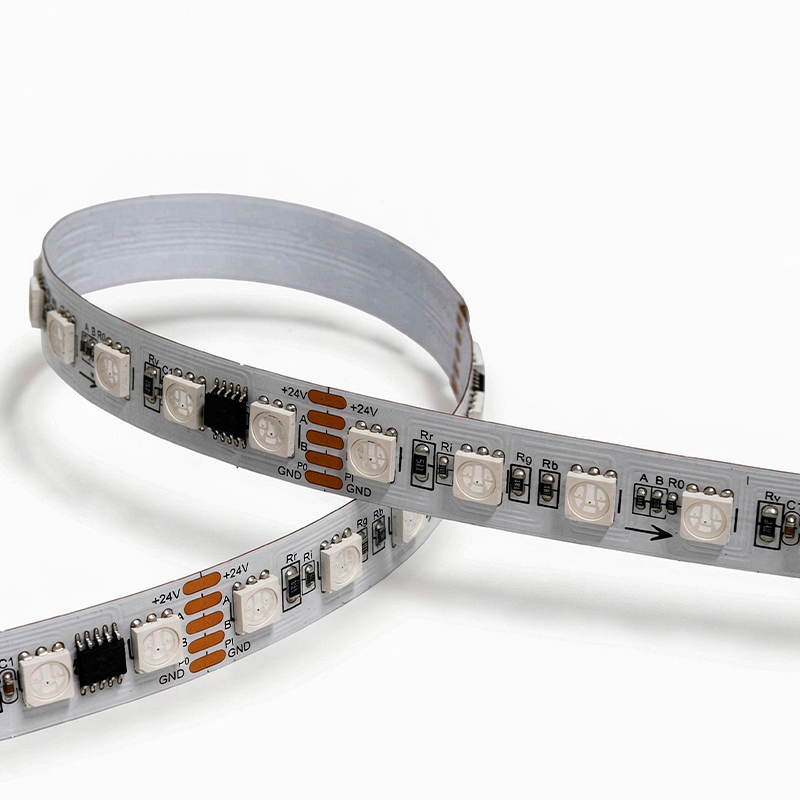

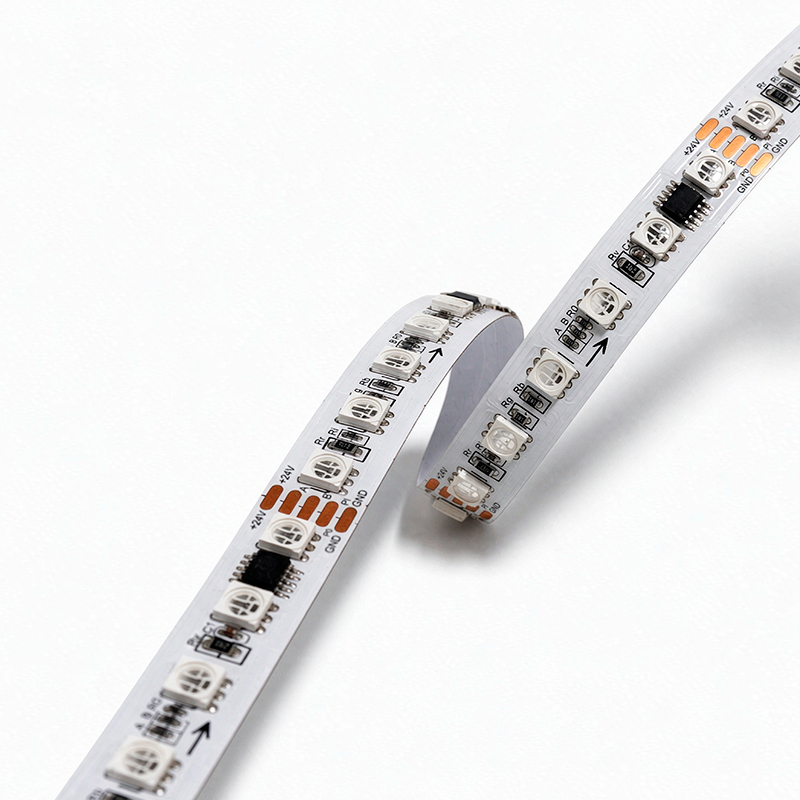

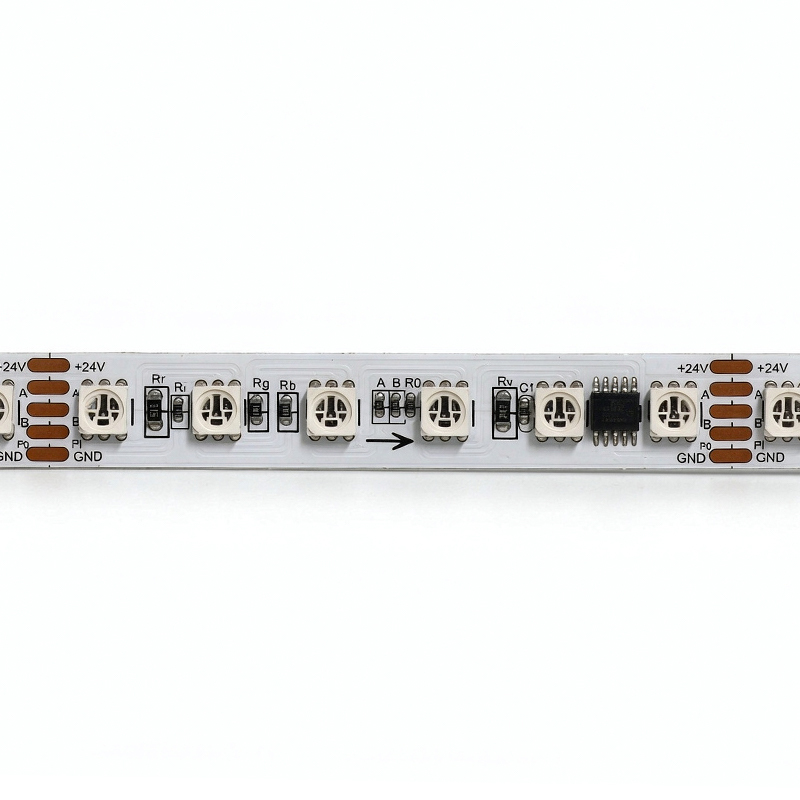

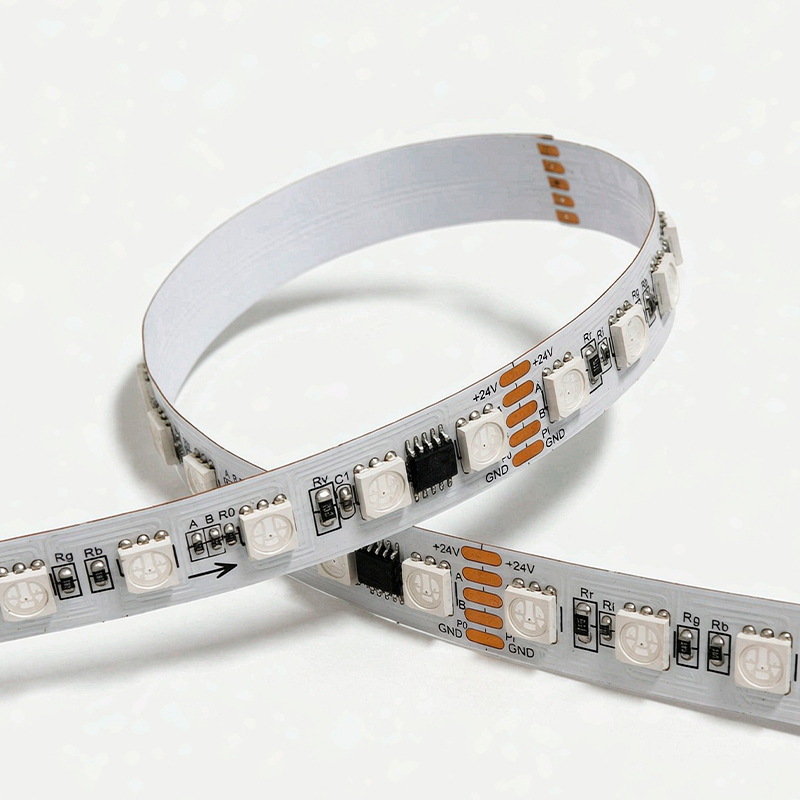

24V DMX512 RGB 5050 Addressable LED Strip — 16 Seg / 96 LED
|
Category |
Specification |
|---|---|
|
Model |
— (to be assigned) |
|
Input Voltage |
DC 24V |
|
LED Type |
SMD 5050 RGB |
|
LED Count |
96 LEDs total |
|
Segment Count |
16 segments (6 LEDs per segment) |
|
Control Protocol |
DMX512 (built-in decoder per segment) |
|
DMX Channels |
48 channels (16 seg × 3 ch RGB) |
|
Power Consumption |
~23W/m typical (confirm per manufacturer) |
|
Beam Angle |
120° |
|
Pixel Addressing |
16 addressable segments, independently controlled |
|
Color Range |
Full RGB, 8-bit per channel |
|
Cut Unit |
1 segment (6 LEDs) |
|
PCB Width |
12 mm |
|
Protection Rating |
IP20 (bare board, non-waterproof) |
|
Installation |
3M adhesive backing / mounting clips |
|
Compatible Systems |
DMX512 console, RDM controller, Art-Net/sACN gateway |
|
Applications |
Architectural outline, stage lighting, retail display, signage |
