1. Premium RGBW 4-in-1 Lighting

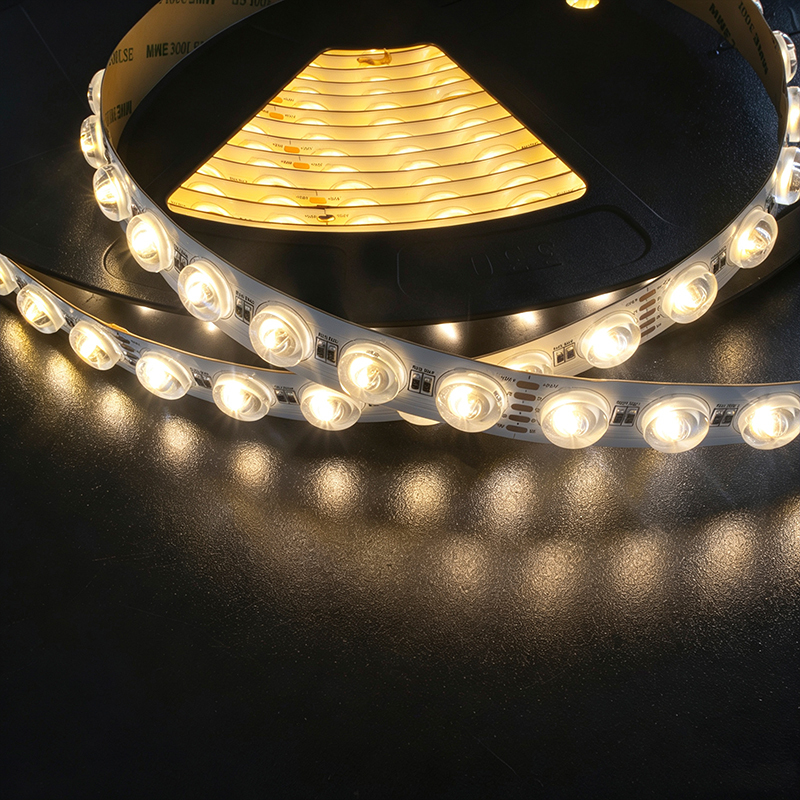

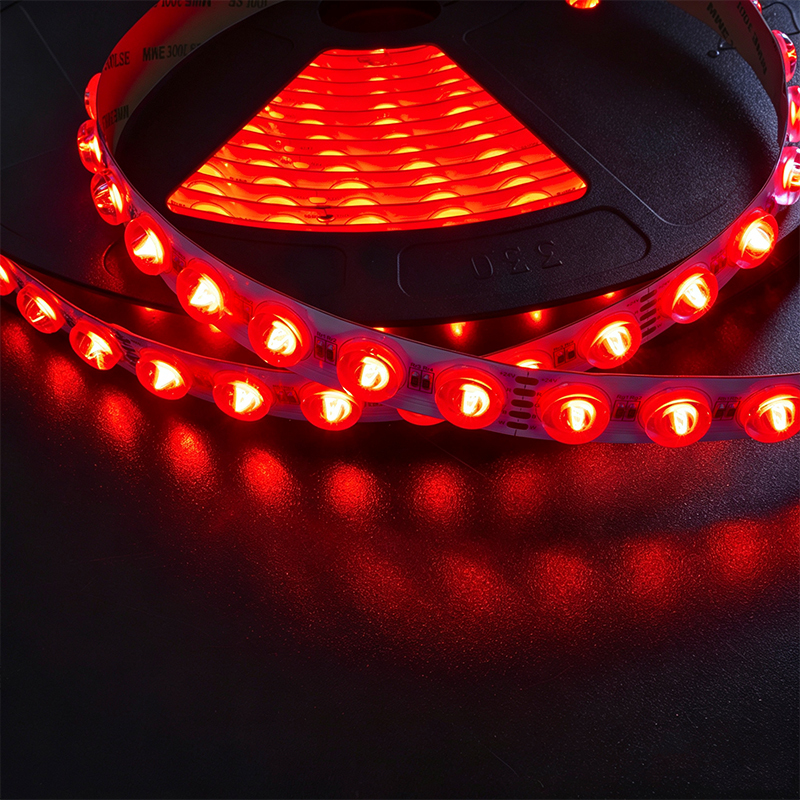

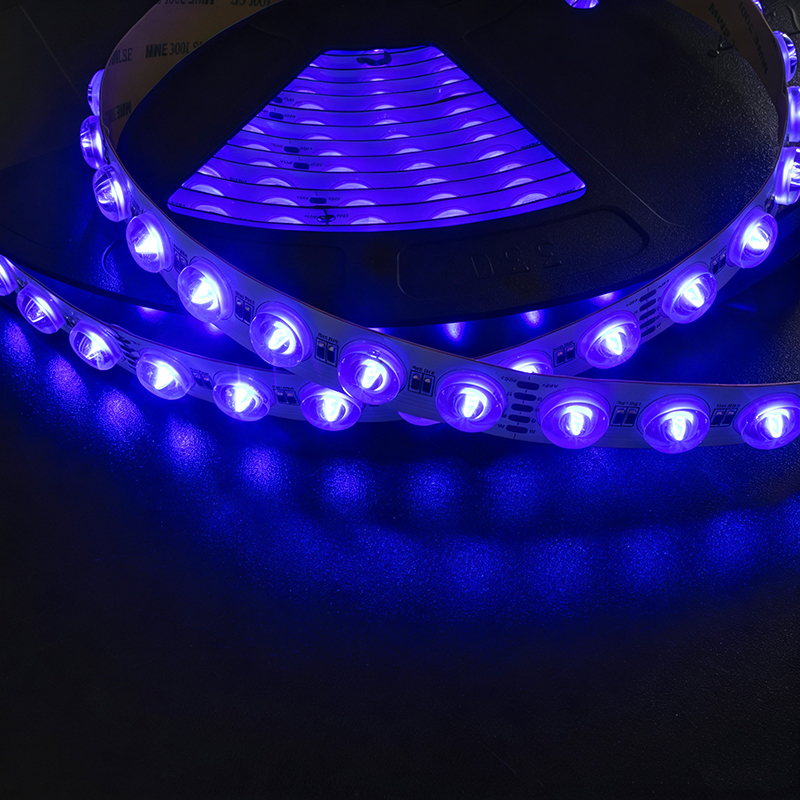

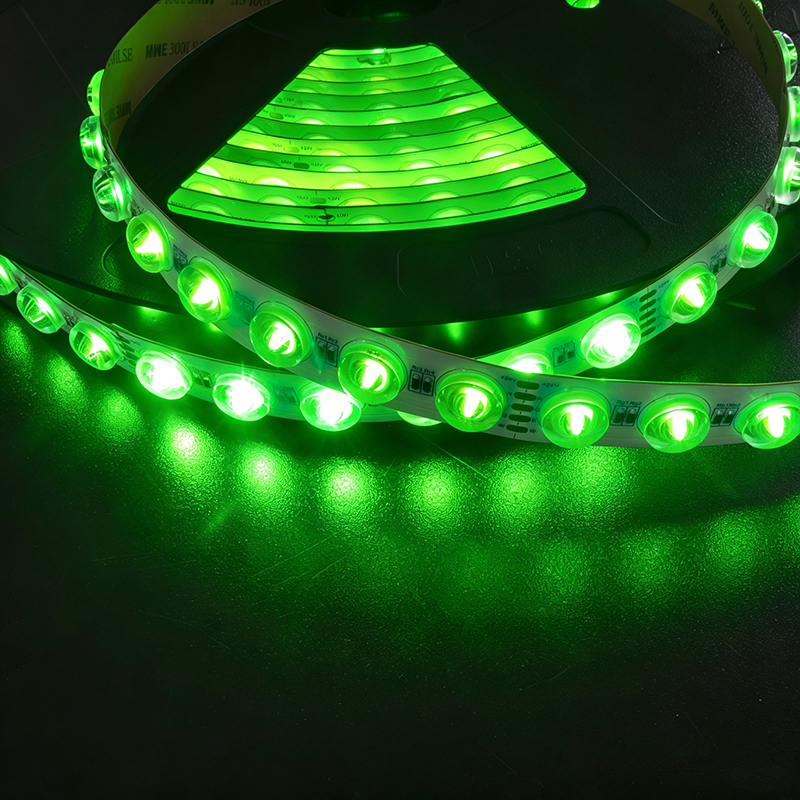

Equipped with high-quality 3030 SMD chips, this strip delivers rich RGB colors plus a dedicated pure white chip. Enjoy vibrant hues for ambiance and crisp white light for daily task lighting—all in one versatile solution.
2. Ultra-High Density & Uniform Glow
Features 48 LEDs per meter for exceptional brightness at 36W/m. The advanced diffused reflection lens eliminates dark spots and harsh glare, creating a soft, even, and professional-grade linear light output.
3. Smart Group Control System
Designed for seamless synchronization across multiple strips. Easily manage colors, brightness, and dynamic modes simultaneously, making it perfect for large-scale installations and immersive lighting projects.
4. Stable 24V Power & Durable Build
Operates on a safe 24V DC system with a wide 20mm PCB for superior heat dissipation and longevity. Engineered for consistent performance, it reduces voltage drop and ensures reliable daily use.
5. Flexible & Versatile Application

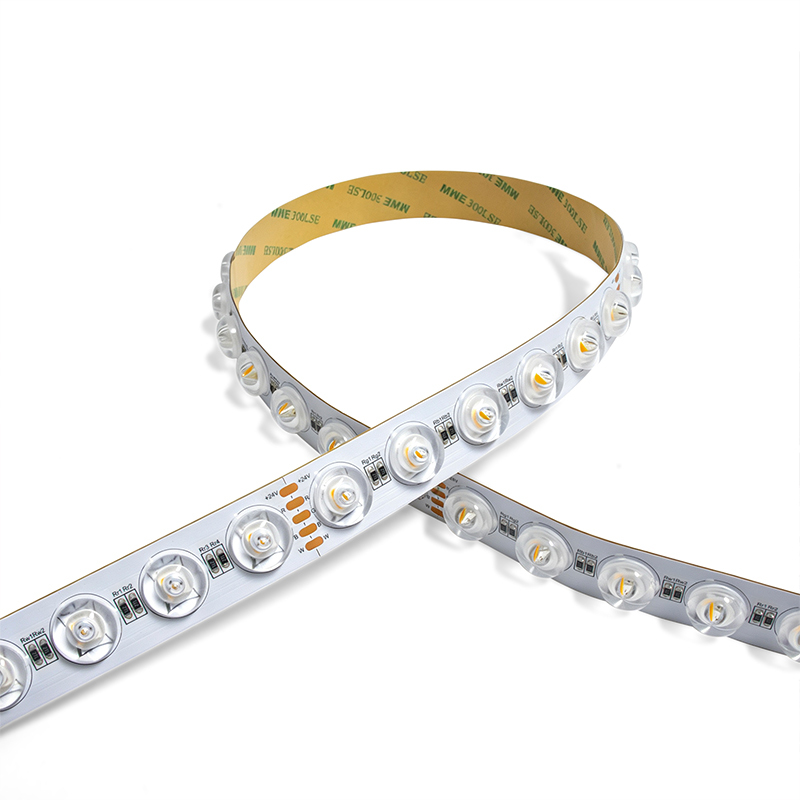

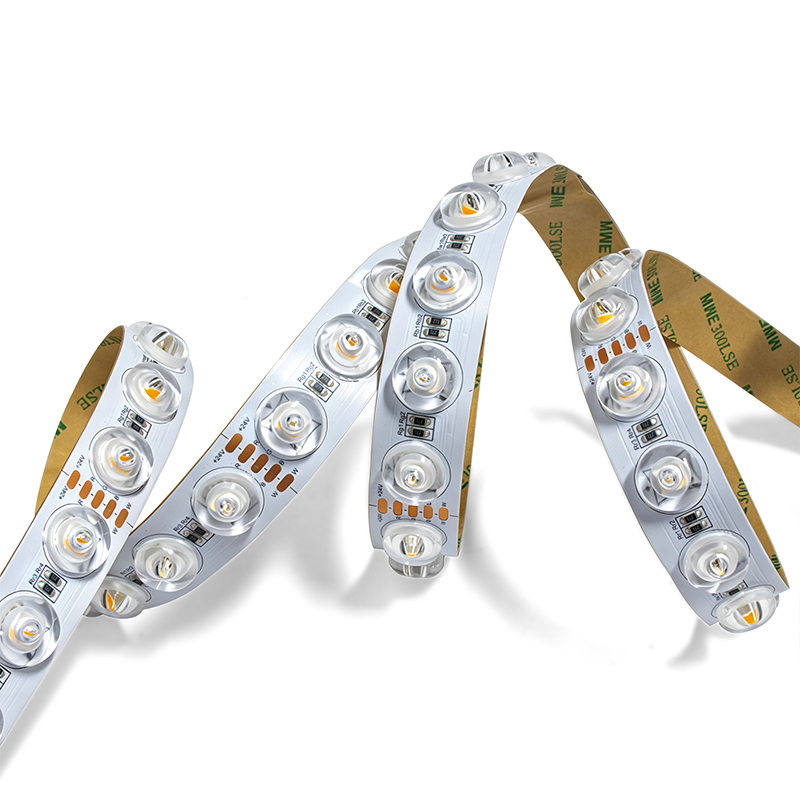

The high-quality FPCB allows smooth bending around curves and corners. Ideal for architectural outlines, cove lighting, retail displays, home theaters, and commercial signage—unlock endless creative possibilities.
Product Specification Sheet

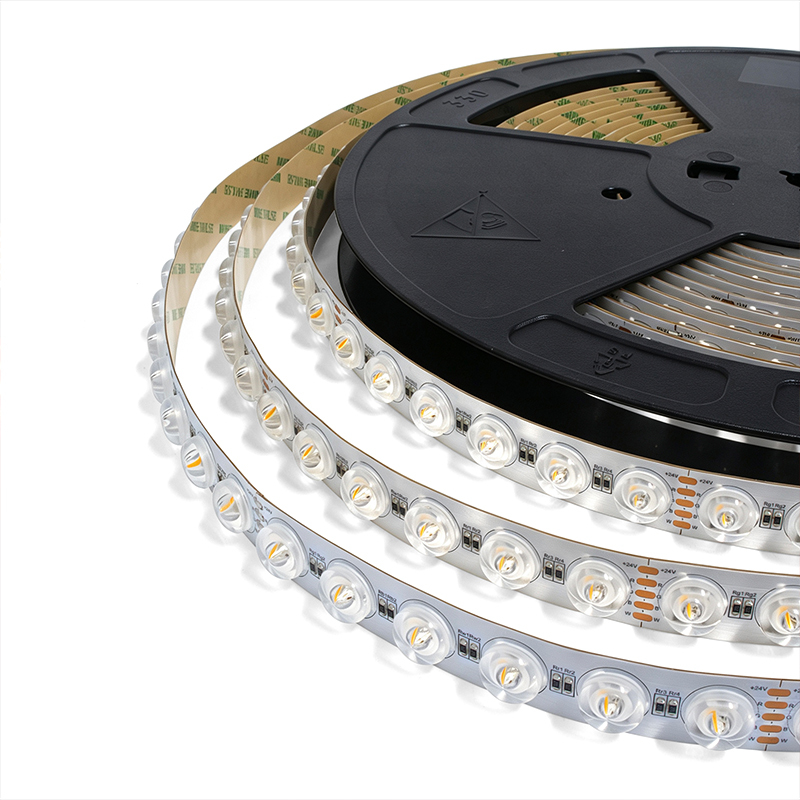

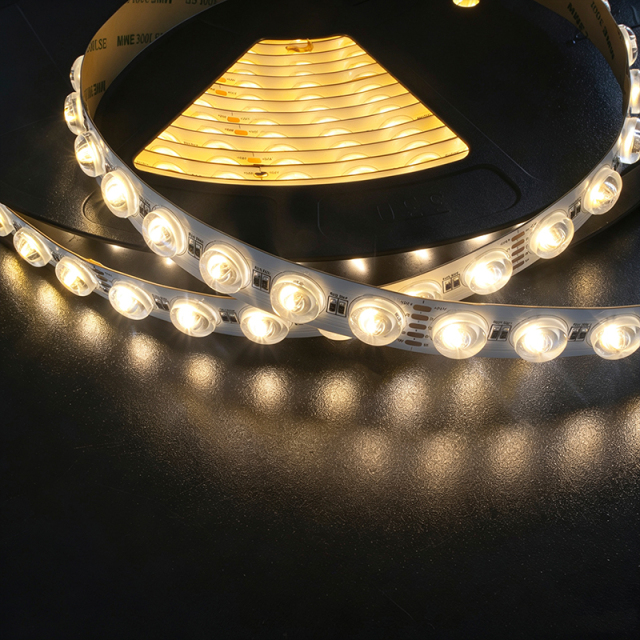

Product Name: 24V RGBW Group Control Diffused Reflection LED Strip
|
Item |
Specification |
|---|---|
|
Model |
RGBW-DR-3030-48-24V |
|
LED Type |
3030 SMD (RGBW 4-in-1) |
|
LED Density |
48 LEDs/meter |
|
Voltage |
DC 24V |
|
Power |
36W/meter (Max) |
|
PCB Width |
20mm |
|
Color Options |
RGB + Pure White (2700K/3000K/4000K/6000K optional) |
|
Control Mode |
Group Control (SPI / DMX optional) |
|
Beam Angle |
120° (Diffused) |
|
IP Rating |
IP20 / IP65 / IP67 optional |
|
Cutting Unit |

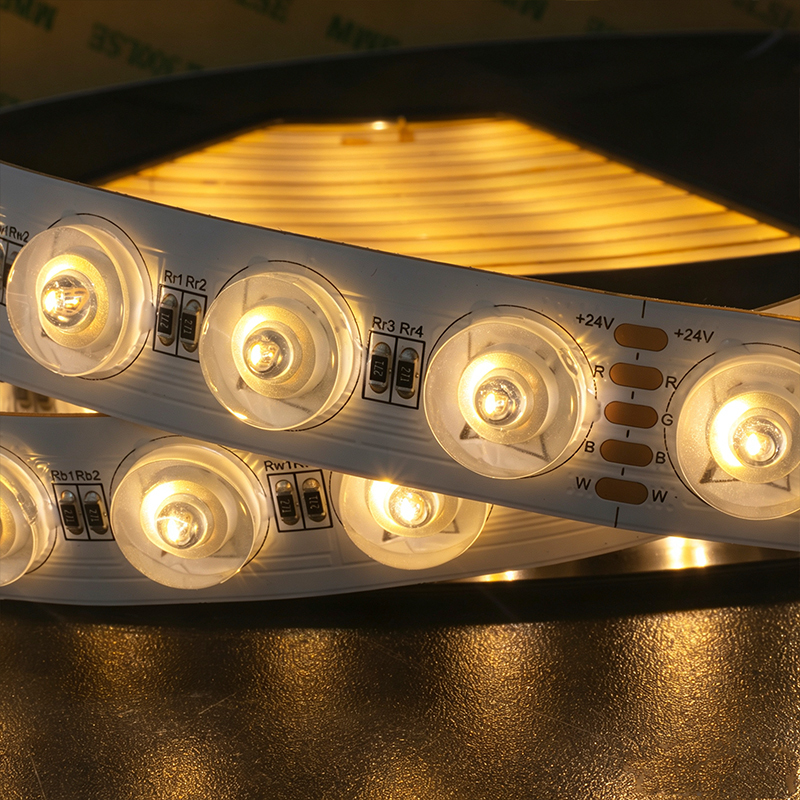

Every 125mm (6 LEDs) |
|
Working Temp. |
-20°C to +50°C |
|
Lifespan |
≥50,000 hours |
|
Certification |
CE / RoHS / FCC compliant |
|
Warranty |
3 Years |
Key Features:
Diffused reflection optical design for spot-free, glare-free illumination
High CRI option available (≥90) for true color rendering
20mm wide PCB ensures excellent heat dissipation and low voltage drop
Flexible FPCB substrate adapts to curves and narrow profiles
Compatible with mainstream RGBW controllers and amplifiers
Typical Applications:
Architectural contour lighting · Cove & recessed lighting · Retail display & showcase · Home theater & ambient decor · Commercial signage & facade
Package Includes:
LED Strip (5m/roll, custom length available)
Installation clips (optional)
Controller & power supply (sold separately)
