Differential parallel DMX means one failed IC will not crash the run, unlike serial SPI tape. Cut every 100mm, run on 24V, and address with a DMX writer or Art-Net/DMX controller. Ideal for clubs, stages, cove ceilings, retail brands, KTV, and architectural outlines where pros run lighting desks, not phone apps.
RGBW = Color + Real White: 4-in-1 5050 RGBW pixel gives 16M+ colors plus a dedicated white channel—better pastel mixing and usable white light vs RGB-only tape.
UCS512H4L DMX512: External 10-pin DMX IC, A/B differential parallel signal, breakpoint-resume; one bad pixel will not kill the chain.
24V + 12mm Black 2oz PCB: Lower current than 12V pixel tape, better heat spread, black board disappears behind trims/aluminum profiles.
10 Pixels/m, 100mm Cut: 6 LEDs per segment, smooth medium-resolution pixel pitch for outlines, ceilings, signage, and pixel curtains.
Pro Ecosystem Ready: DINA / SLESA / STICK-DE3 / Art-Net / Madrix / K-1000C class after DMX addressing; IP20/IP65/IP67/IP68 options.

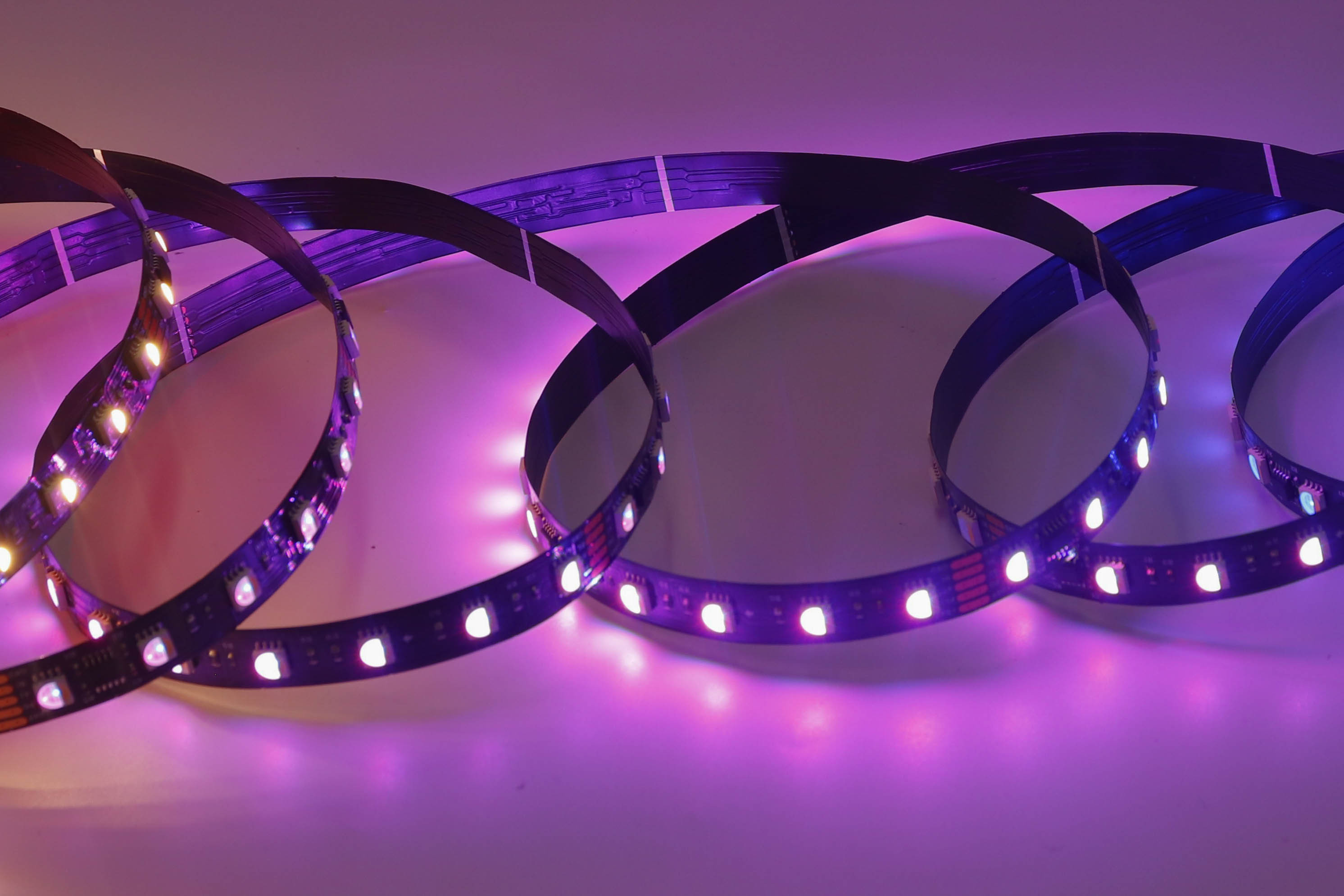

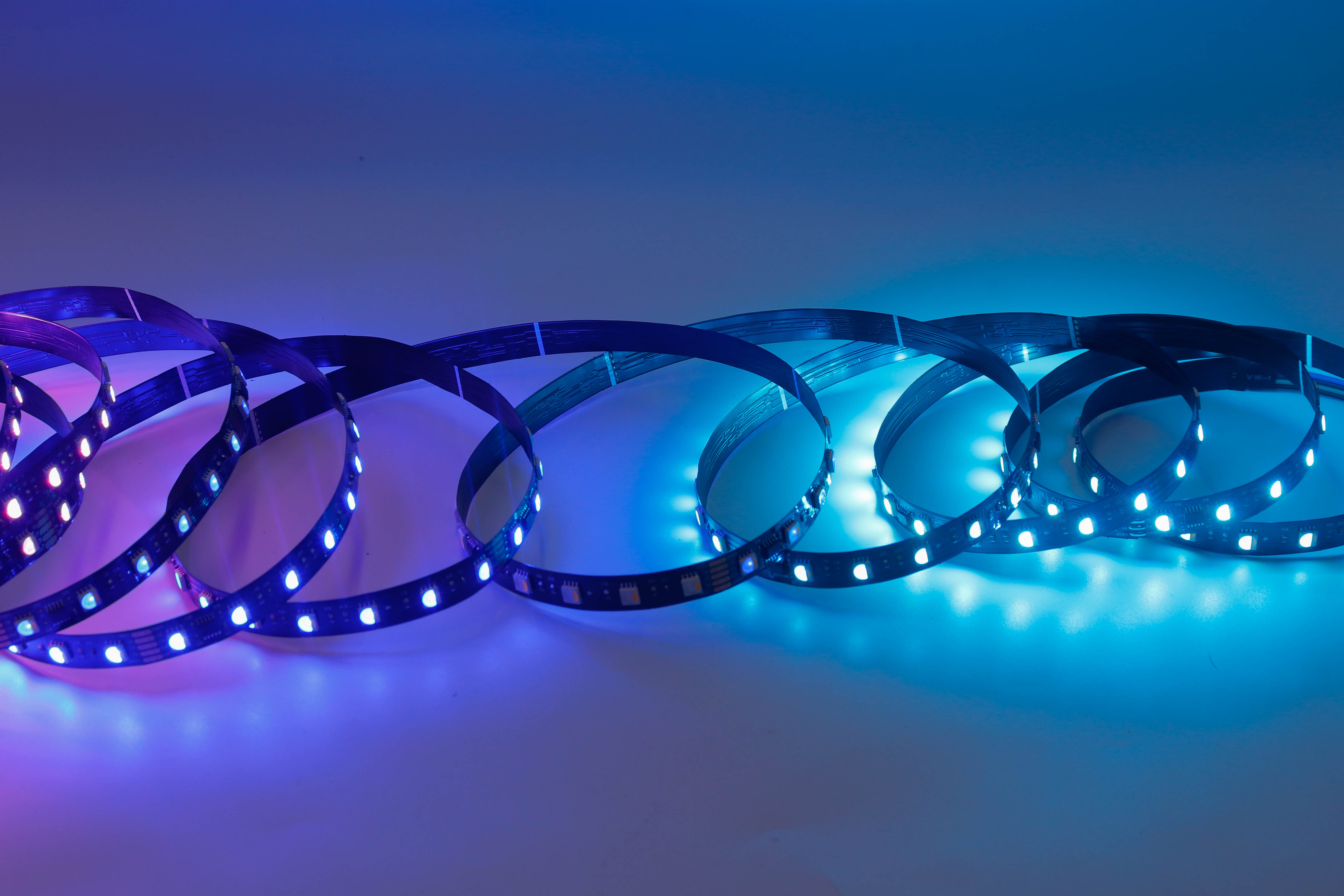

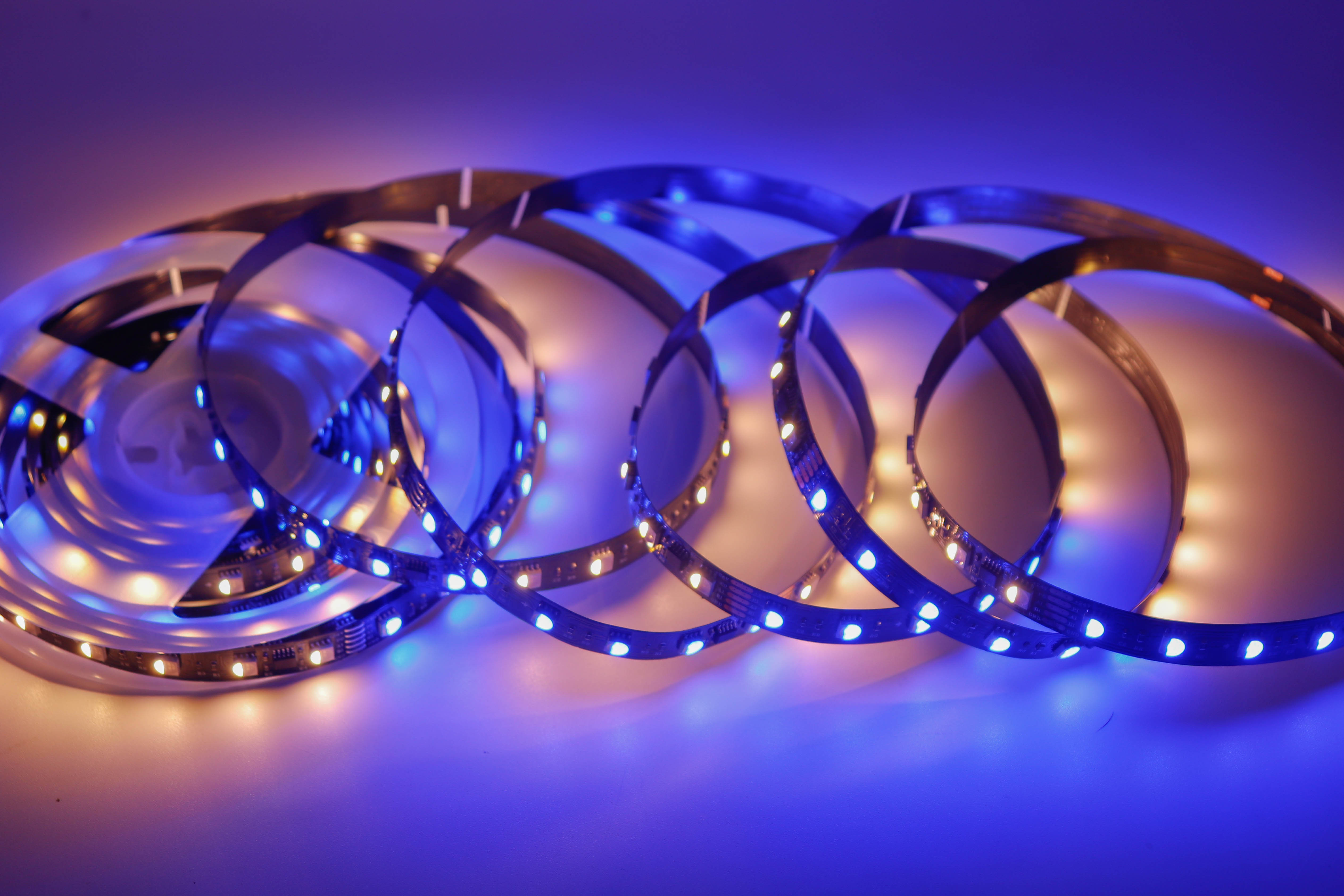

24V 5050 RGBW DMX512 Pixel Strip — UCS512H4L, 60LED/m, 12mm Black PCB
|
Category |
Specification |
|---|---|
|
Model |
PX-TAPE-5050-RGBW-UCS512H4L-60-24V-12B（建议型号，可改） |
|
LED Type |
SMD 5050 RGBW (4-in-1) |
|
LED Density |
60 LEDs/m |
|
IC Type |
UCS512H4L（external DMX512 pixel driver, 10-pin） |
|
Pixels |
10 pixels/m（1 IC drives 6 LEDs） |
|
DMX Channels |
4 ch/pixel → 40 ch/m（R, G, B, W） |
|
Voltage |
DC 24V constant voltage |
|
Power |
14.4 W/m（light load）– 19.2 W/m（typical/max，按 Bin 确认） |
|
PCB |
12mm width, 2oz copper, black FPCB |
|
Cut Unit |
100 mm（6 LEDs + 1 IC） |
|
Signal Lines |

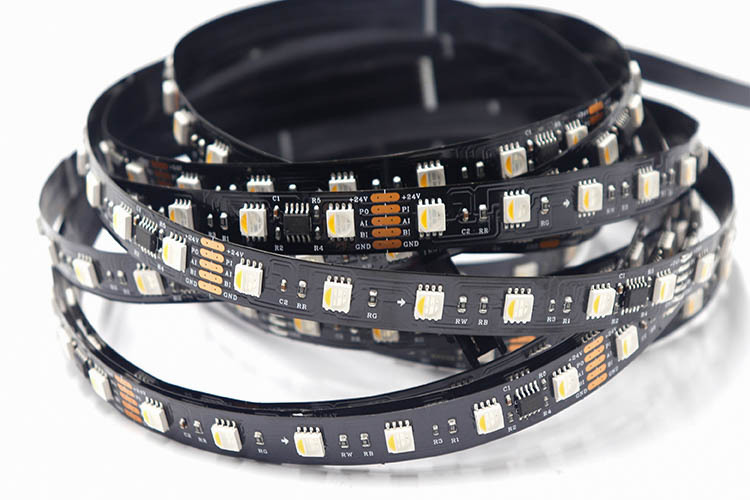

24V / A(DMX+) / B(DMX-) / PI(address) / GND — 5-line DMX harness |
|
Addressing |
DMX address writer / auto-coding UCS512 controller / Art-Net DMX |
|
Grayscale |
256-step standard；65536-step on UCS512H-series config |
|
White Option |
WW 2700K / NW 4000K / CW 6500K（project-dependent） |
|
Beam |
120° |
|
Max Run |
5 m/reel；long runs need power injection + DMX repeater |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 |
|
Application |
Stage, club, KTV, cove, retail brand wall, architectural outline, hotel ceiling, signage |
