Cut every 100mm, run on 24V, and drive it from DINA / SLESA / STICK-DE3 / Art-Net / Madrix. Ideal for clubs, stages, hotels, retail brands, cove ceilings, and architectural pixel walls.
5-in-1 RGBCW: R+G+B+WW2700K+CW6500K in one 5050; full color plus tunable white from a single pixel—better pastels, cleaner white, and human-centric CCT than RGBW 4-in-1.
UCS512G6 DMX512: Differential A/B parallel bus, 256/65536 grayscale, gamma 1.0/2.0/2.2/2.5, breakpoint resume, address-writer coding; industrial-grade vs phone-app SPI tape.
24V + 12mm Black 2oz PCB: Lower current than 12V pixel tape, better heat spread; black board hides behind aluminum profiles, coves, and truss edges.
10 Pixels/m, 100mm Cut: 6 LEDs per segment—smooth medium-resolution pixel pitch for outlines, ceilings, brand walls, and Madrix pixel maps.
Pro Ecosystem Ready: DINA / SLESA / STICK-DE3 / Art-Net / Madrix NEBULA / K-1000C class after DMX addressing; IP20/IP65/IP67/IP68 options.

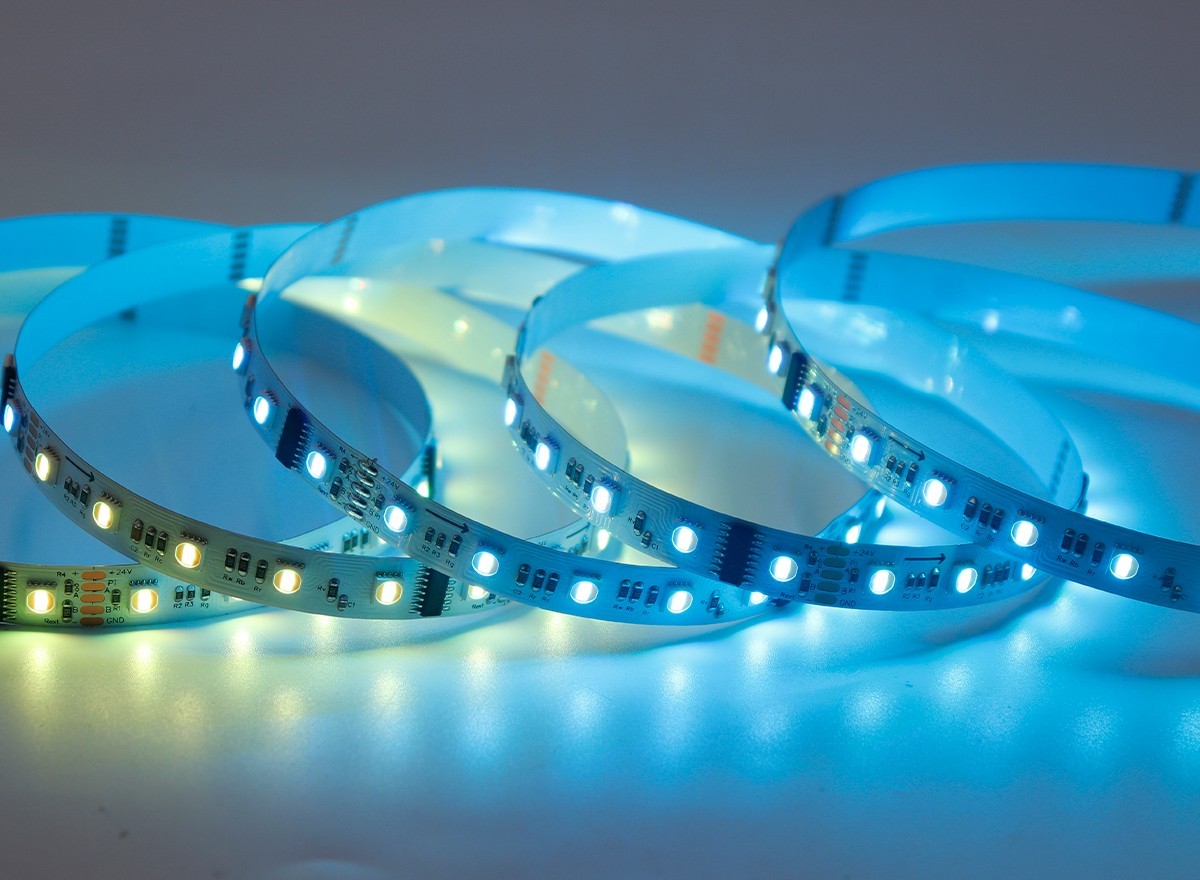

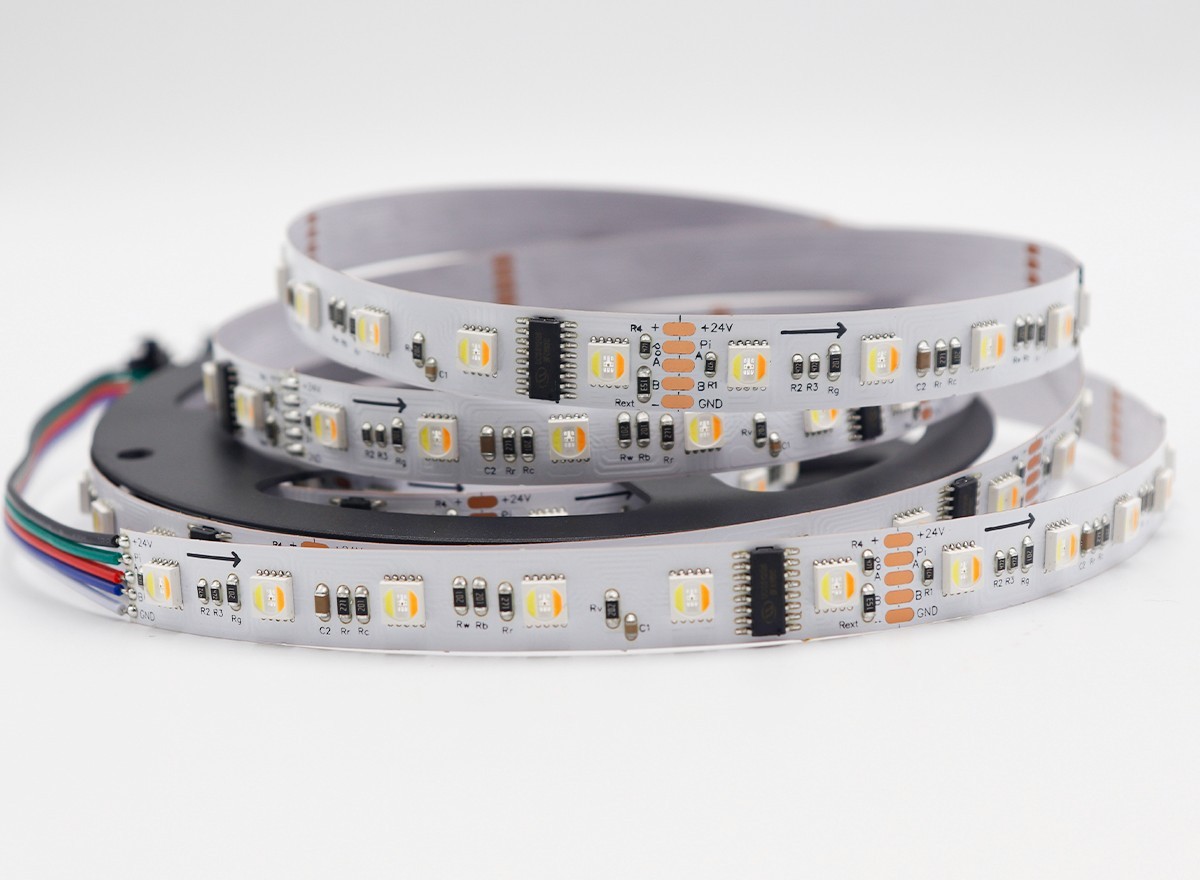

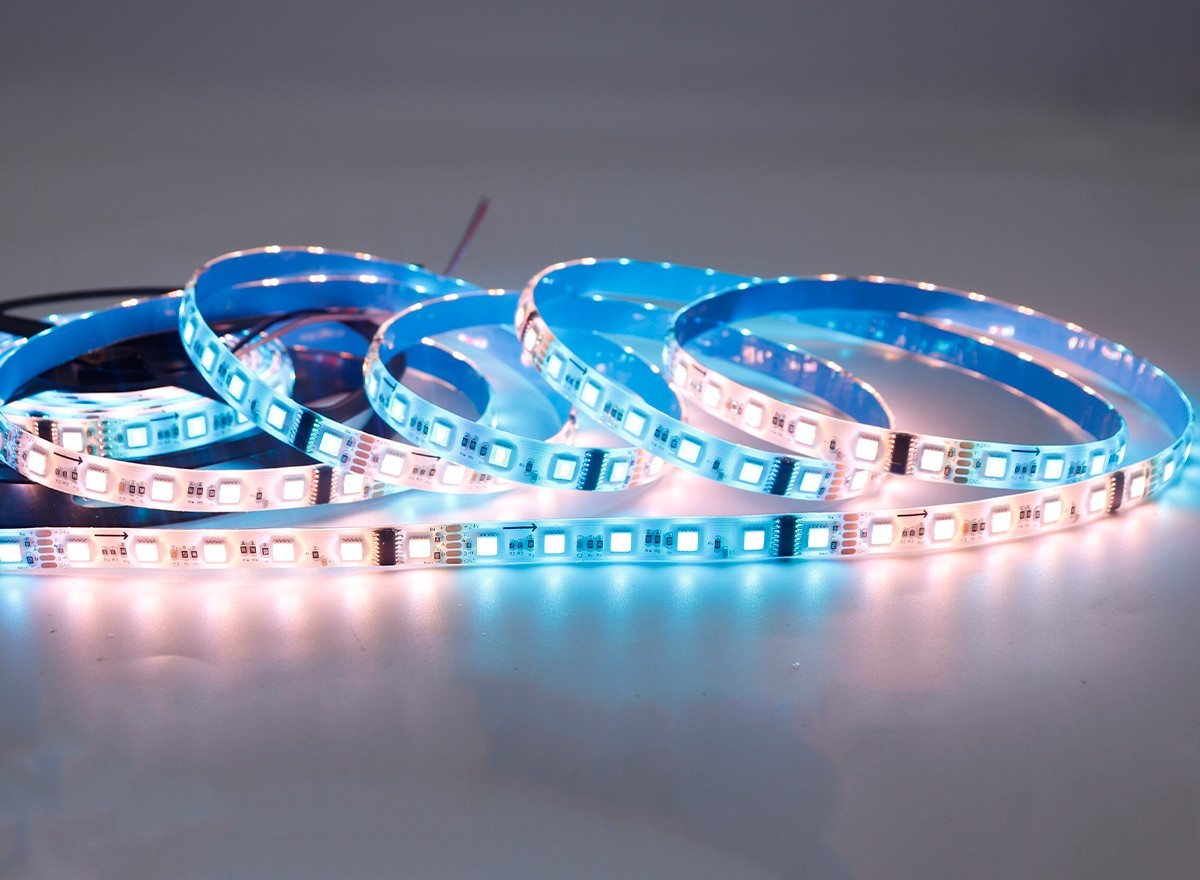

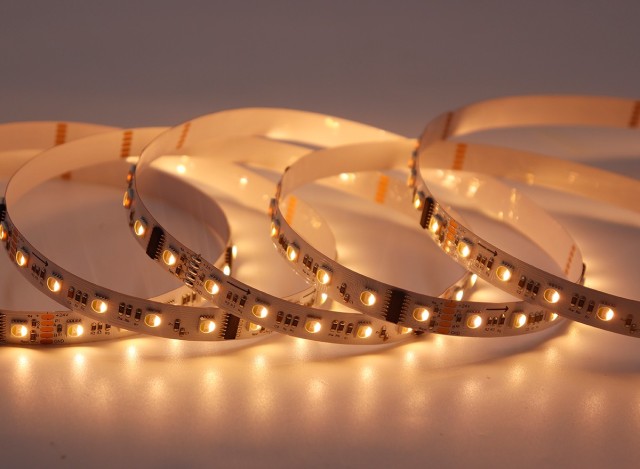

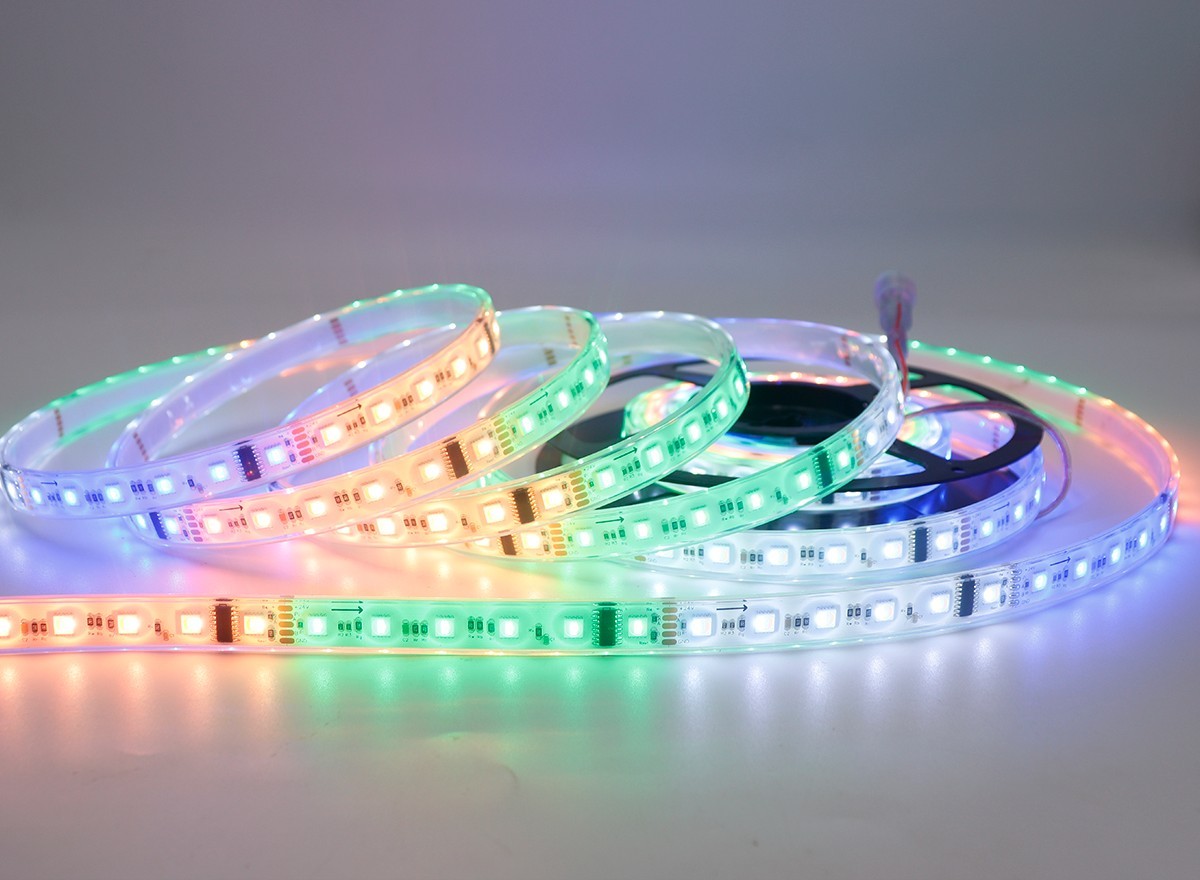

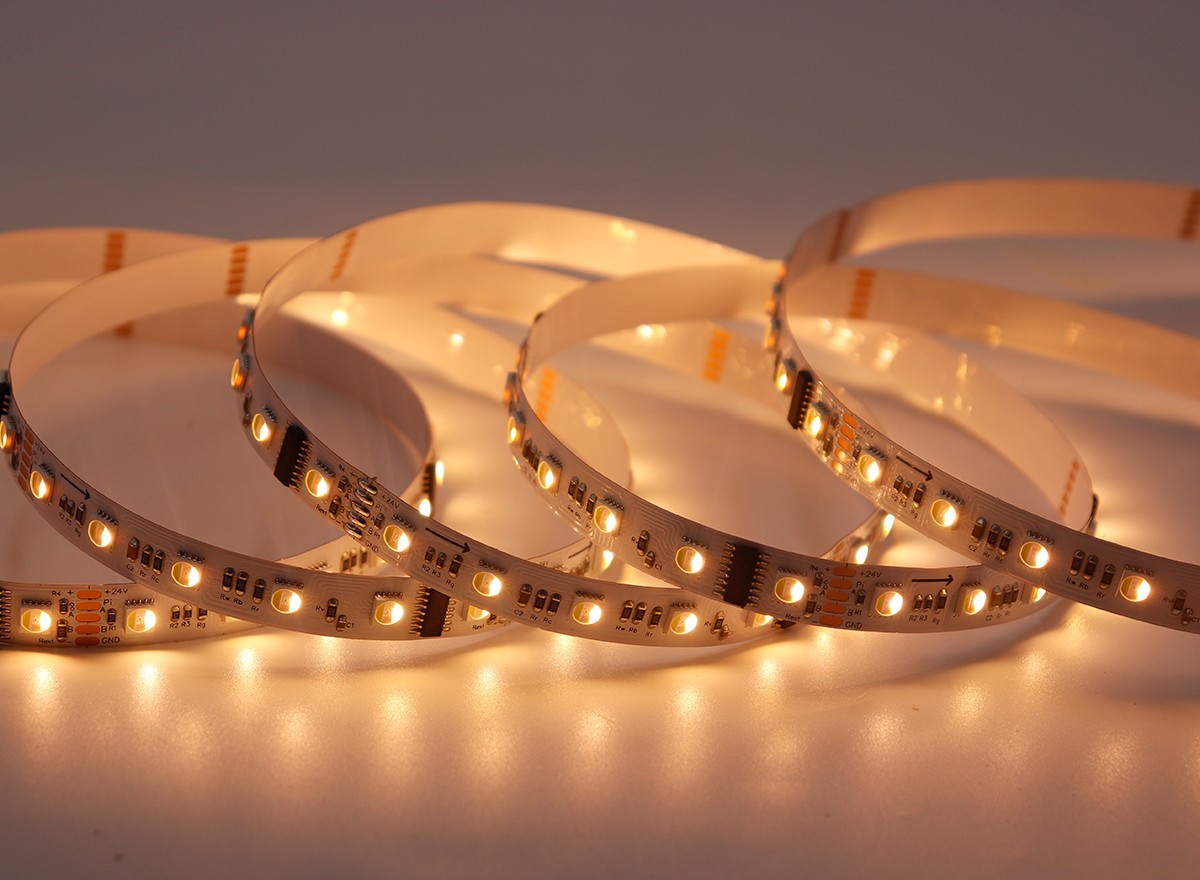

24V 5050 RGBCW DMX512 Pixel Strip — UCS512G6, 60LED/m, 10px/m, 12mm Black PCB
|
Category |
Specification |
|---|---|
|
Model |
PX-TAPE-5050-RGBCW-UCS512G6-60-24V-12B（建议型号，可改） |
|
LED Type |
SMD 5050 5-in-1（R / G / B / 2700K WW / 6500K CW） |
|
Also called |
RGBTW / RGBWW / RGBCCT pixel tape |
|
LED Density |
60 LEDs/m |
|
IC Type |
UCS512G6（DMX512 differential parallel pixel driver, external IC） |
|
Pixels |
10 pixels/m（1 IC drives 6 LEDs） |
|
DMX Channels |
5 ch/pixel → 50 ch/m（R, G, B, WW, CW） |
|
Voltage |
DC 24V constant voltage |
|
Power |
23–24 W/m typical（19.2 W/m light build possible，按 BOM 确认） |
|
PCB |
12mm width, 2oz copper, black FPCB（白/黄板可选） |
|
Cut Unit |
100 mm（6 LEDs + 1 IC） |
|
Signal Lines |
24V / A(DMX+) / B(DMX-) / PI(address) / GND — 5-line DMX harness |
|
Addressing |
DMX address writer / auto-coding UCS512 controller / Art-Net DMX |
|
Grayscale |
8-bit 256-step / 16-bit 65536-step（gamma configurable） |
|
Refresh |
High-speed DMX refresh；UCS512G6 fast screen refresh |
|
Beam |
120° |
|
Max Run |
5 m/reel；long runs need power injection + DMX repeater |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 |
|
Application |
Stage, club, KTV, cove, hotel lobby, retail brand wall, architectural outline, signage, TV studio |
