Ideal for clubs, stages, signage, architectural outlines, KTV, retail shows, and TV studios where pro lighting desks—not phone apps—run the show.
DMX512 Pixel, Not SPI: UCS512C4 decodes standard DMX512 over A/B lines; parallel addressing means one bad IC won’t kill the whole strip.
10 Pixels/m, 60 LEDs/m: 6 LEDs per pixel, 100mm cut unit, 16.67mm LED pitch—smooth pixel pitch for outlines and medium-resolution pixel curtains.
24V + 12mm Black PCB: Lower current than 5V/12V pixel tape; 2oz black FPCB dissipates heat and disappears visually behind trims and profiles.
Pro Controller Ready: Works with DINA / SLESA / STICK-DE3 / Art-Net nodes / K-1000C / K-8000C / Madrix after DMX addressing.
IP Options for Projects: IP20 bare board, IP65 drip glue, IP67 silicone tube, IP68 pour glue—indoor cove to outdoor bridge/facade.

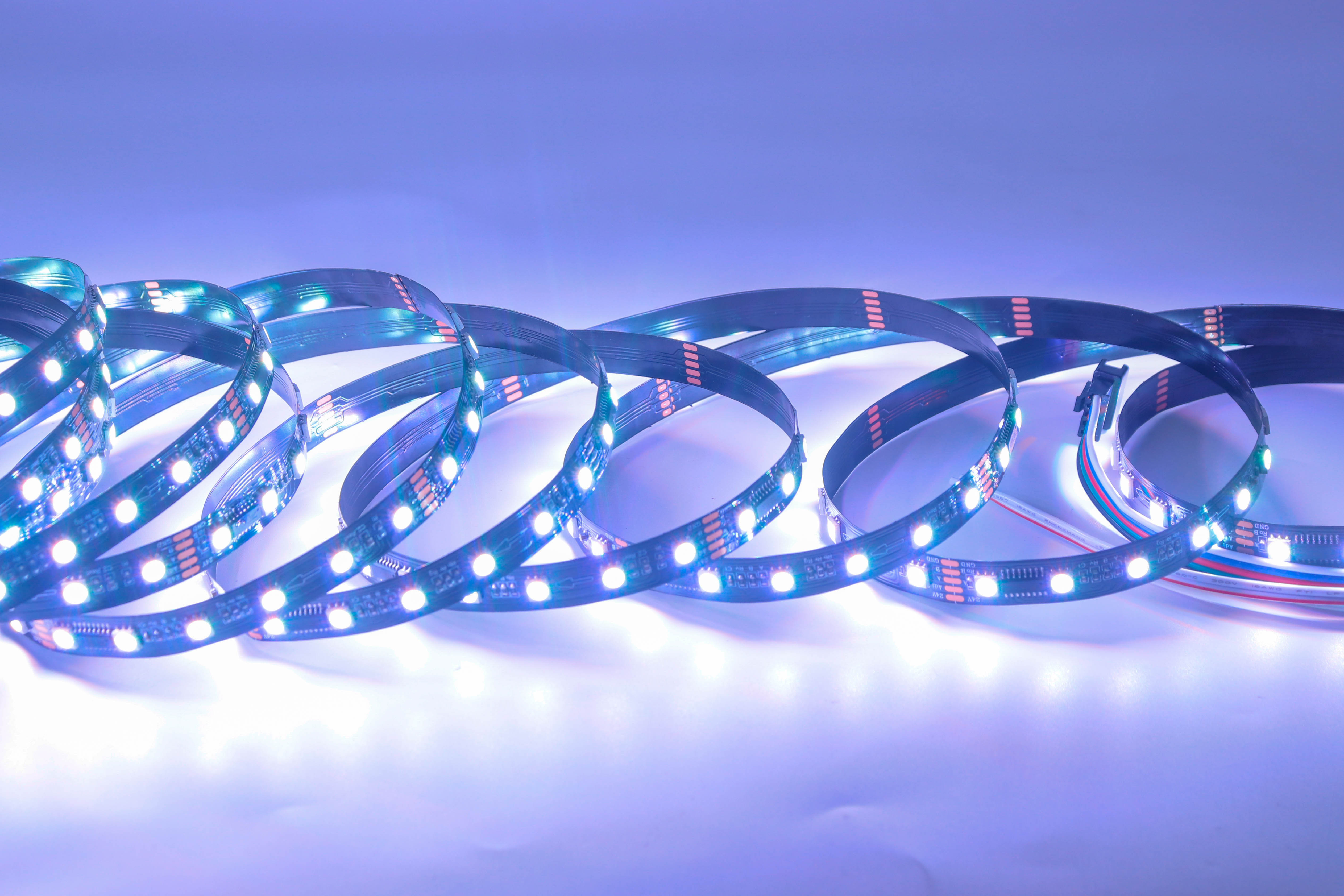

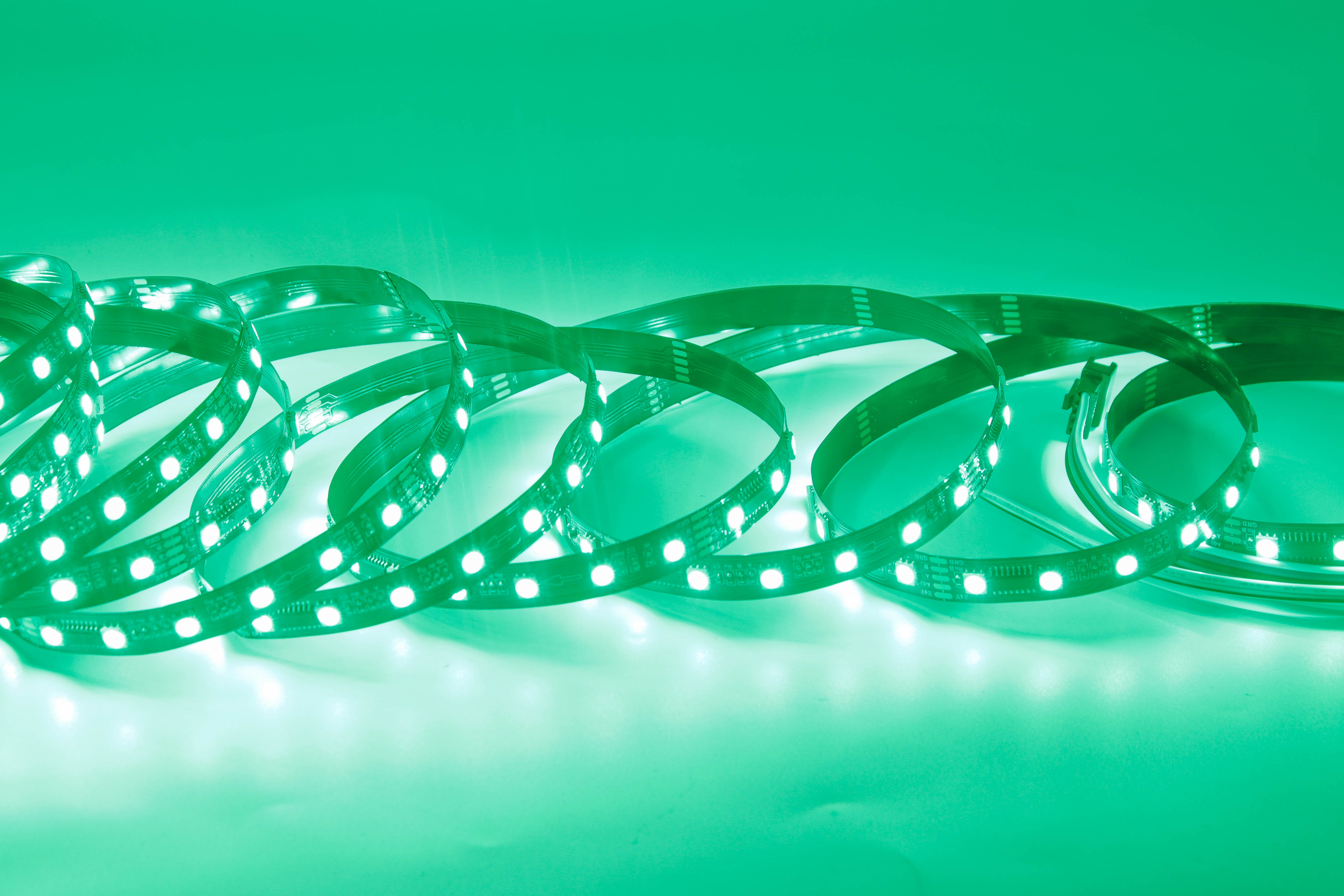

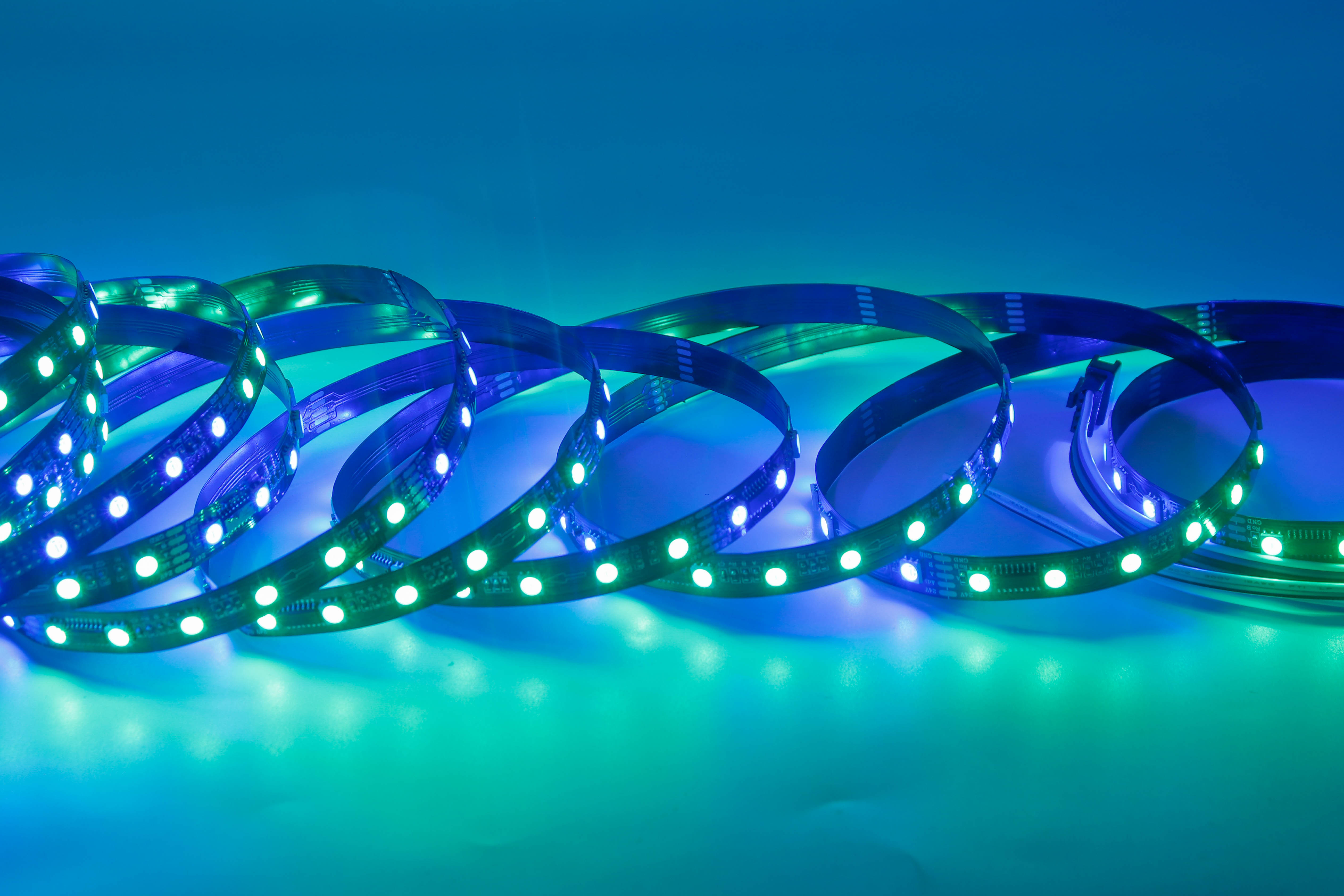

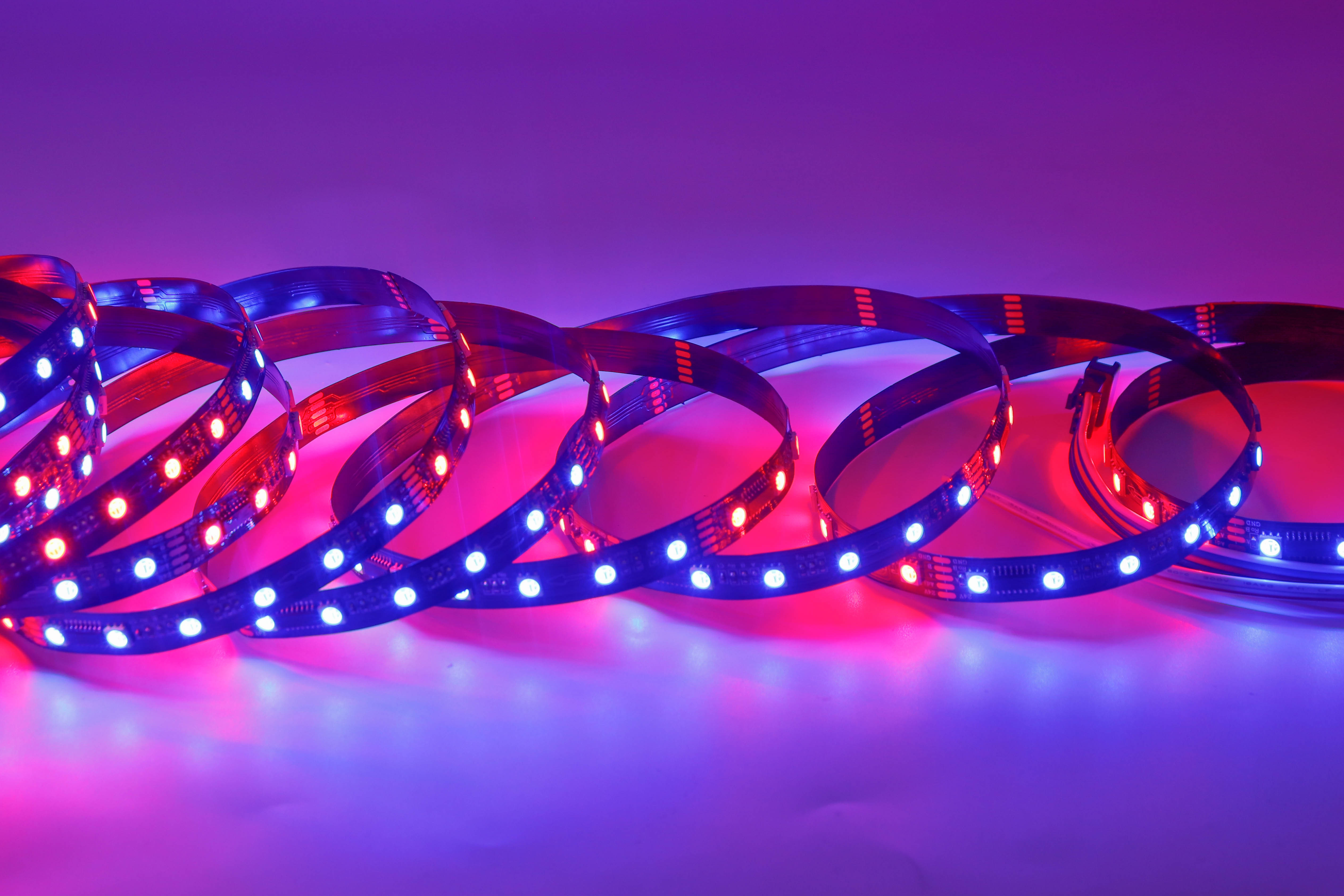

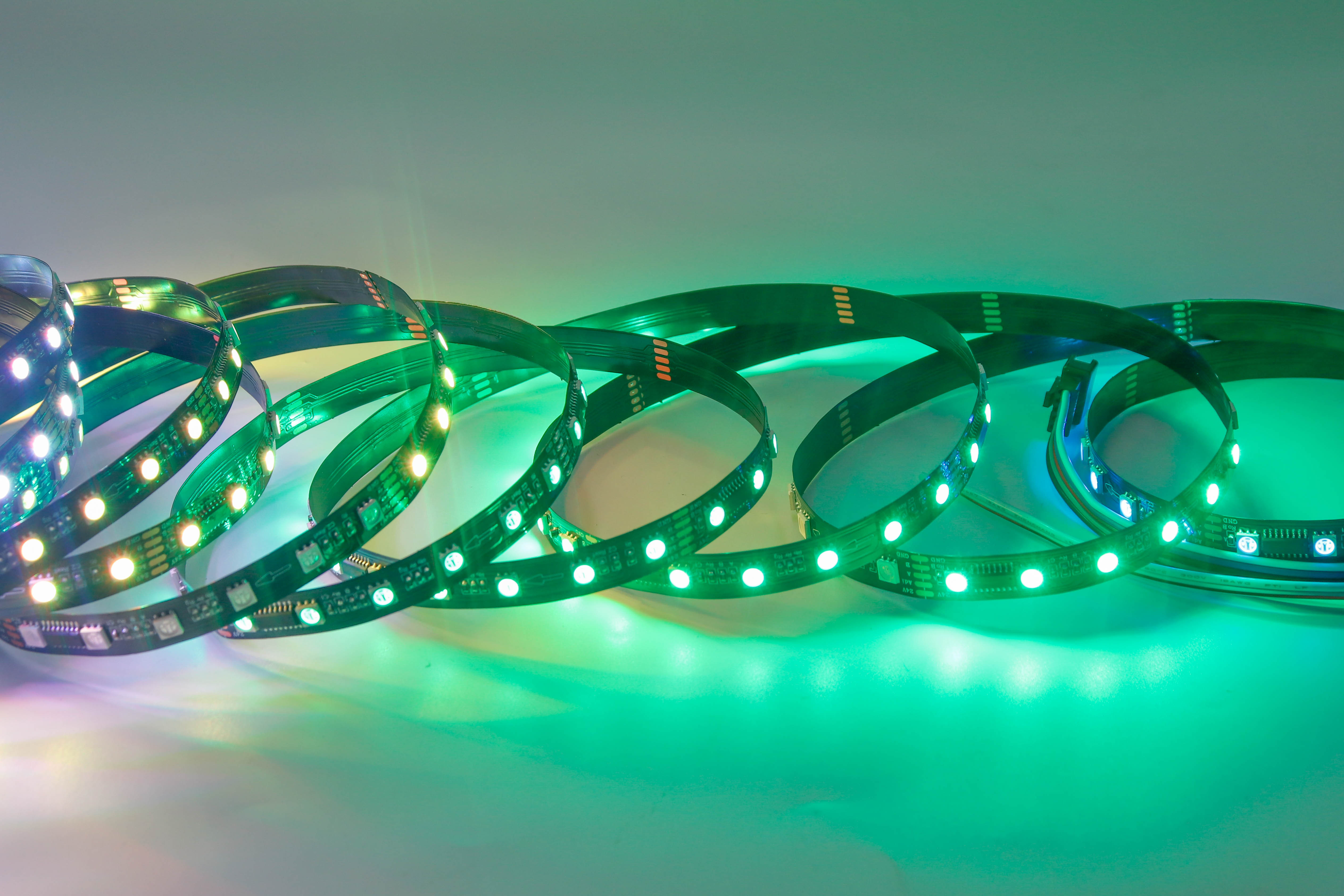

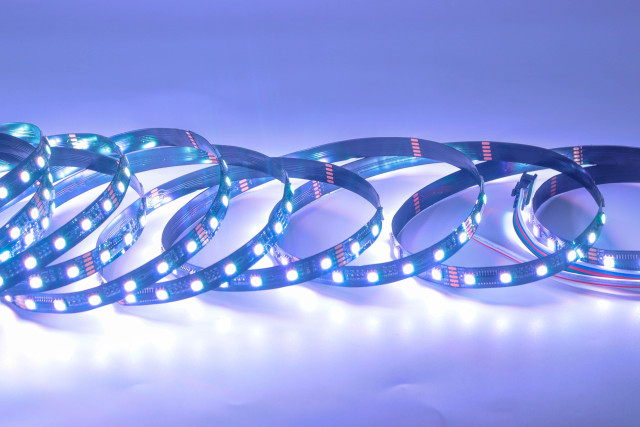

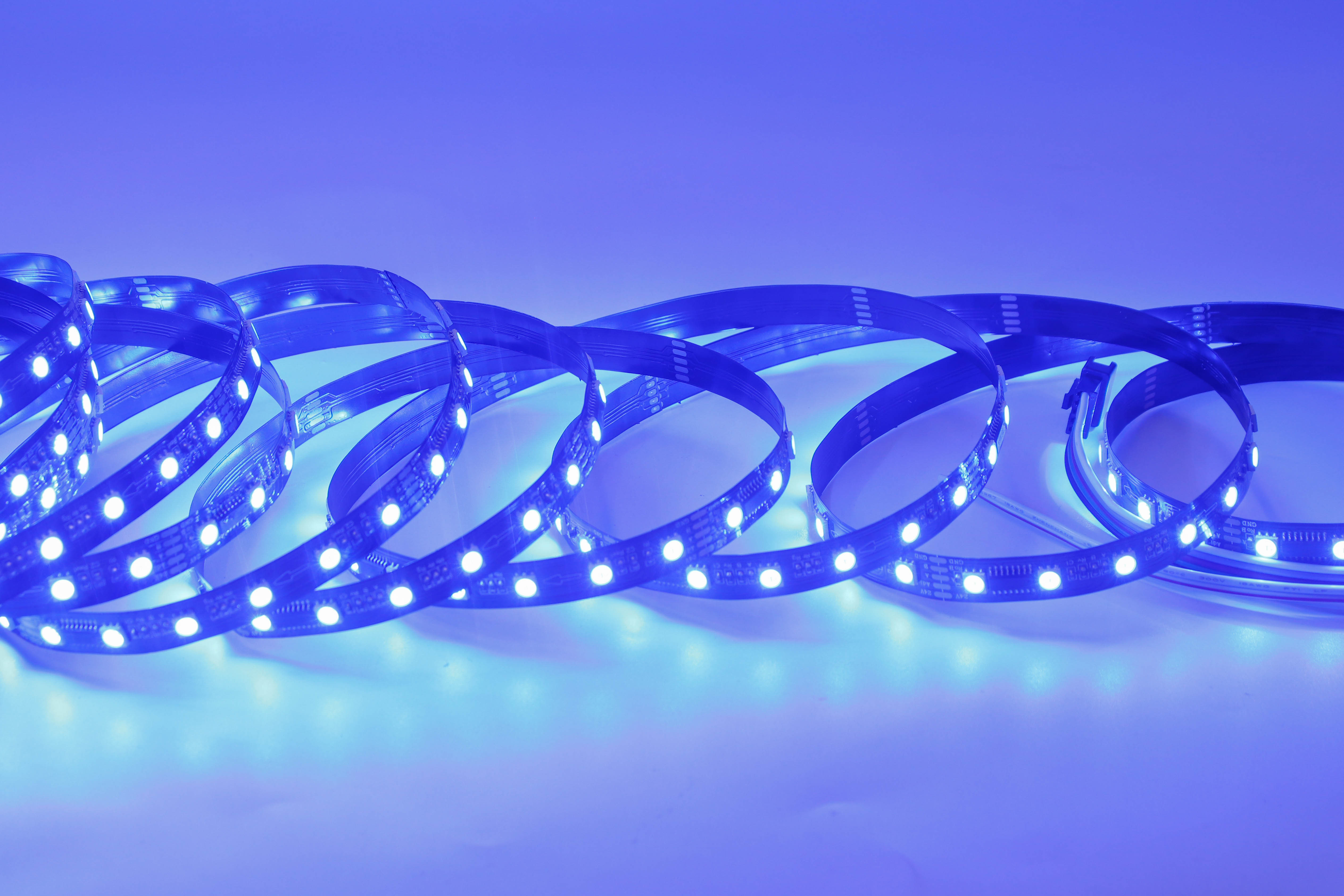

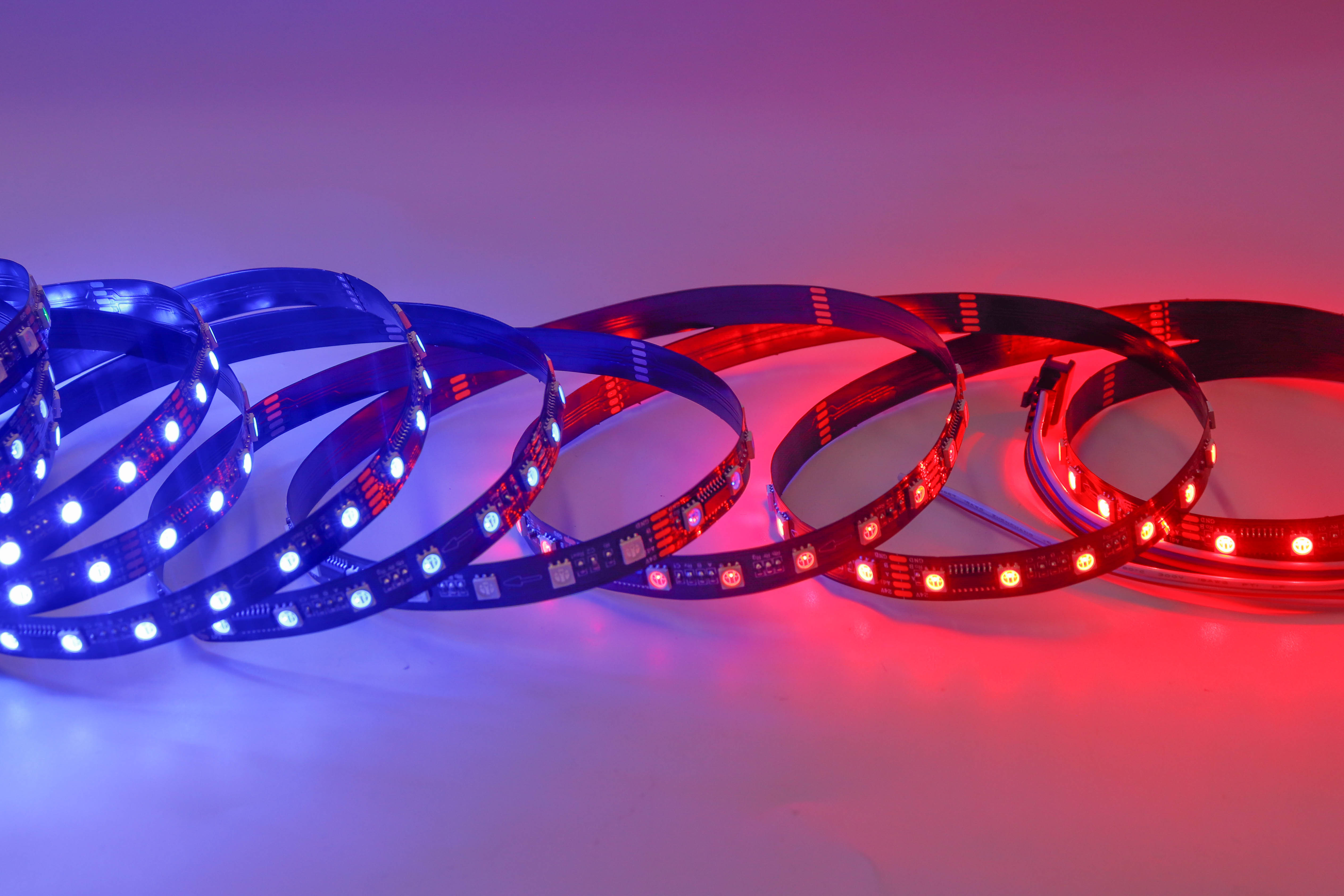

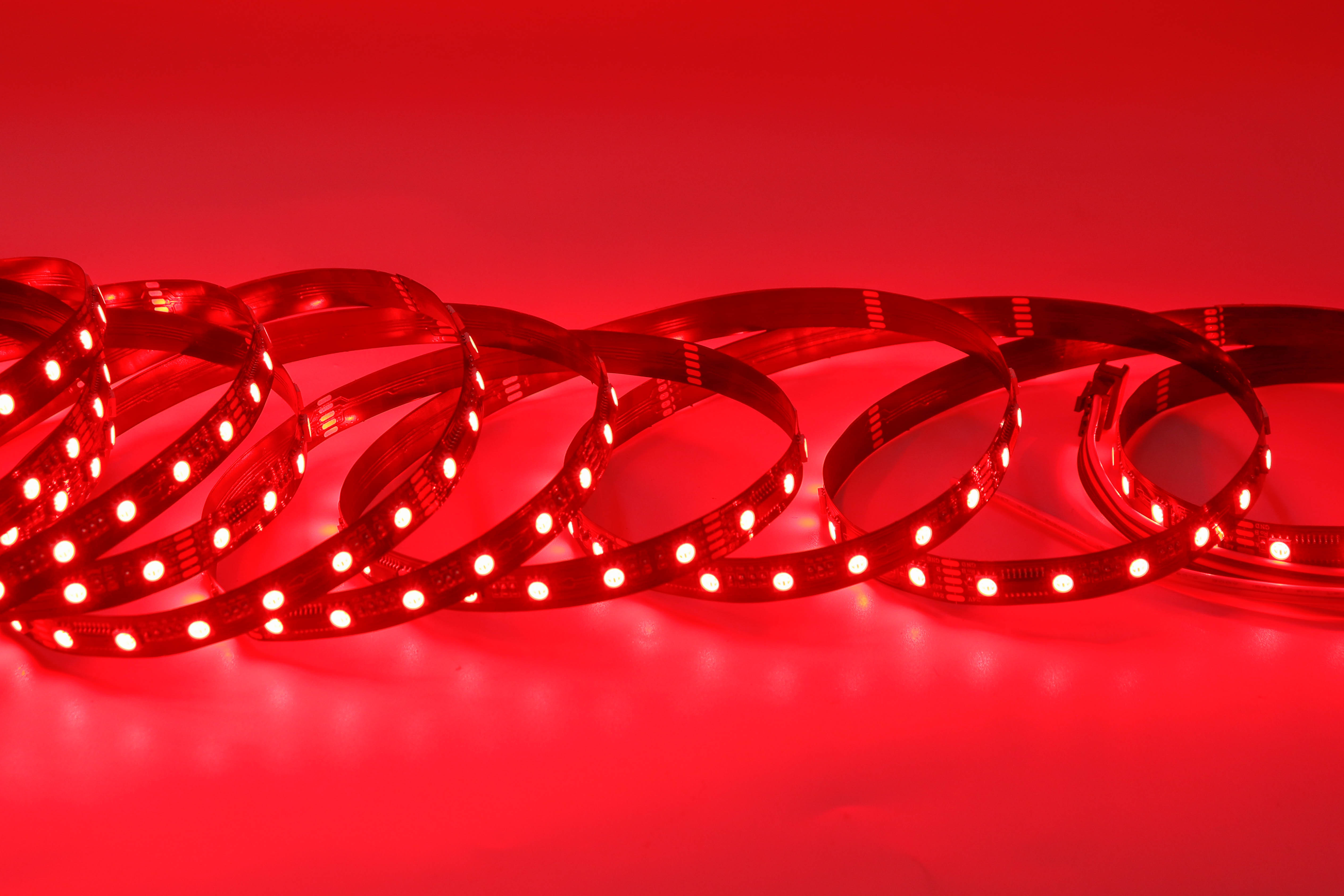

24V 5050 RGB DMX512 Pixel Strip — UCS512C4, 60LED/m, 12mm Black PCB
|
Category |
Specification |
|---|---|
|
Model |
PX-TAPE-5050-RGB-UCS512C4-60-10-24V-12B（建议型号，可改） |
|
LED Type |
SMD 5050 RGB |
|
LED Density |
60 LEDs/m |
|
IC Type |
UCS512C4（external DMX512 pixel driver） |
|
Pixels |
10 pixels/m（1 IC drives 6 LEDs） |
|
DMX Channels |
3 ch/pixel → 30 ch/m |
|
Voltage |
DC 24V constant voltage |
|
Power |
14.4 W/m typical（some mills 18–19 W/m，按 BOM 确认） |
|

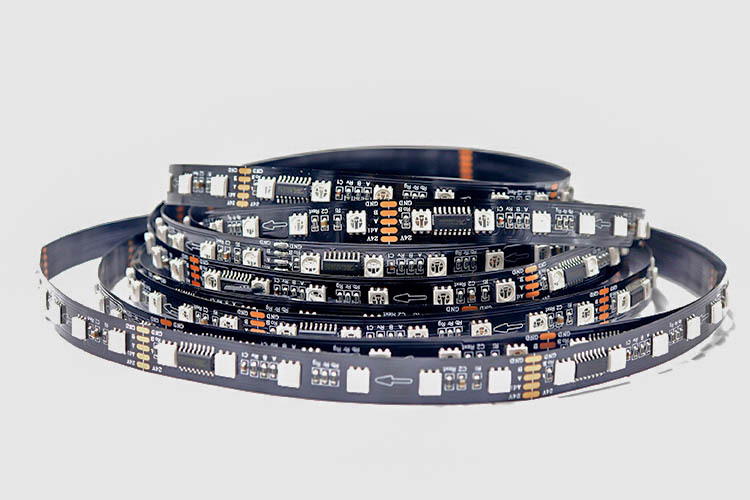

PCB |
12mm width, 2oz copper, black FPCB |
|
Cut Unit |
100 mm（6 LEDs + 1 IC） |
|
Beam Angle |
120° |
|
Signal |
DMX512 A/B；PI write-address line；24V/GND |
|
Addressing |
DMX address writer / Art-Net-DMX controller / K-1000C class |
|
Gray Scale |
256-step standard（16-bit option on some UCS512 builds） |
|
Max Run |
5 m/reel；long runs need power injection + DMX repeater |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 |
|
Adhesive |
3M 300LSE（indoor bare board） |
|
Application |
Stage, club, KTV, signage, cove, facade outline, retail show, TV studio |
