With 17W/m and 65536-level grayscale on the UCS512H5L IC, it gives smooth low-end dimming for hotels, bars, bridges, coves, and architectural outlines where you want “white running light” instead of rainbow color. Cut every 125mm, run on 24V, and drive it from DINA / SLESA / Art-Net / Madrix-class DMX systems.
White Pixel, Not RGB: 240×2835 white LEDs, 8 segments/m, 30 LEDs/segment—segment-by-segment brightness/chase/flow, no color mixing needed for elegant architectural motion.
UCS512H5L DMX512: Differential parallel DMX512 IC, auto/manual addressing, 65536 grayscale, gamma 2.2, low-gray smoothing—far more stable than serial SPI white strips.
Double-Row 24V Design: 15mm dual-row FPCB spreads heat and light; 24V cuts current vs 12V, allowing longer runs with fewer power injections.
High-Density Soft White: 240 LEDs/m removes dotting; pair with aluminum profile / silicone diffuser for continuous luminous line with programmable motion.
Pro Lighting Ready: DINA / SLESA / STICK-DE3 / Art-Net / Madrix / K-series DMX writers all work; 1 channel per segment → 8 DMX channels per meter.

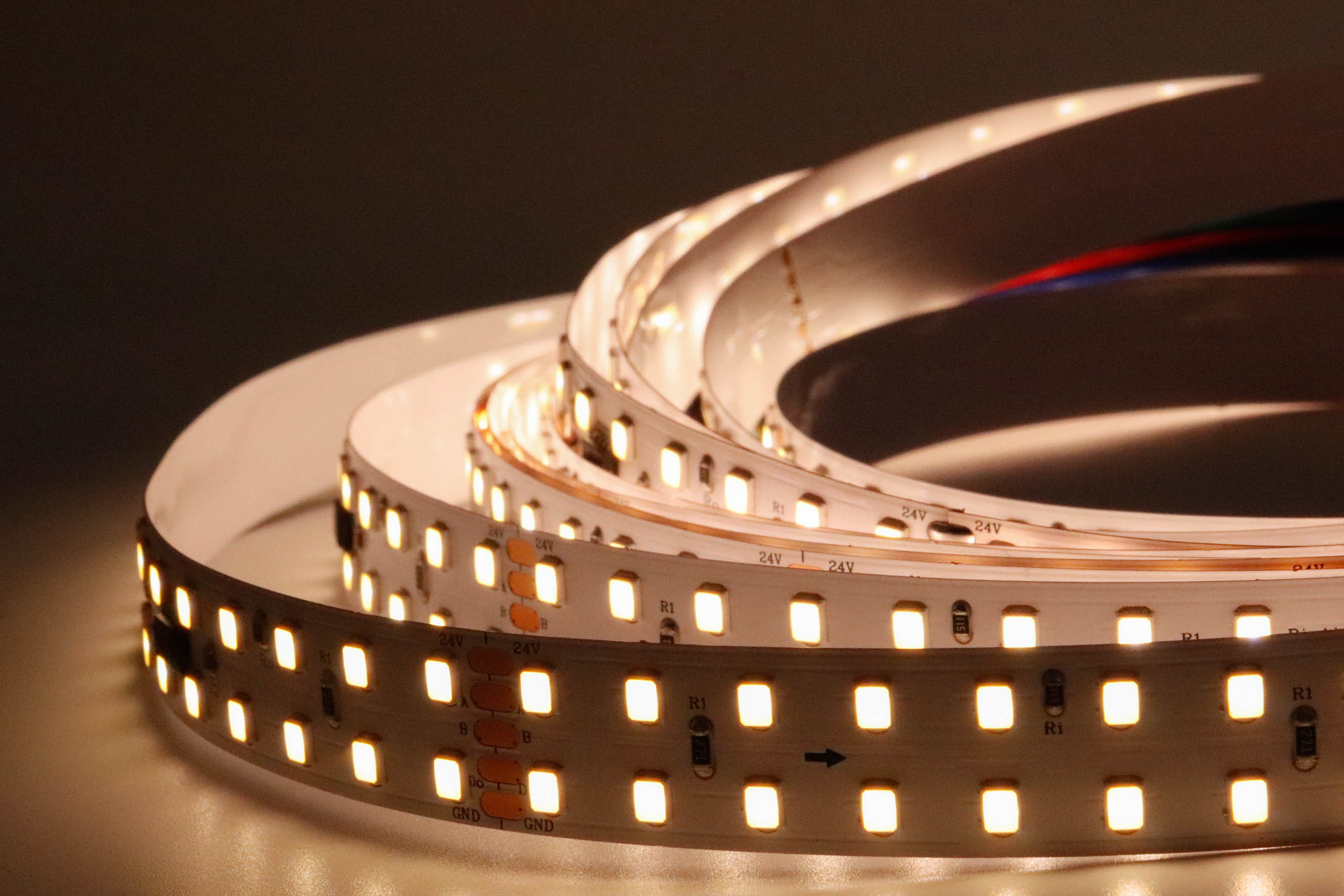

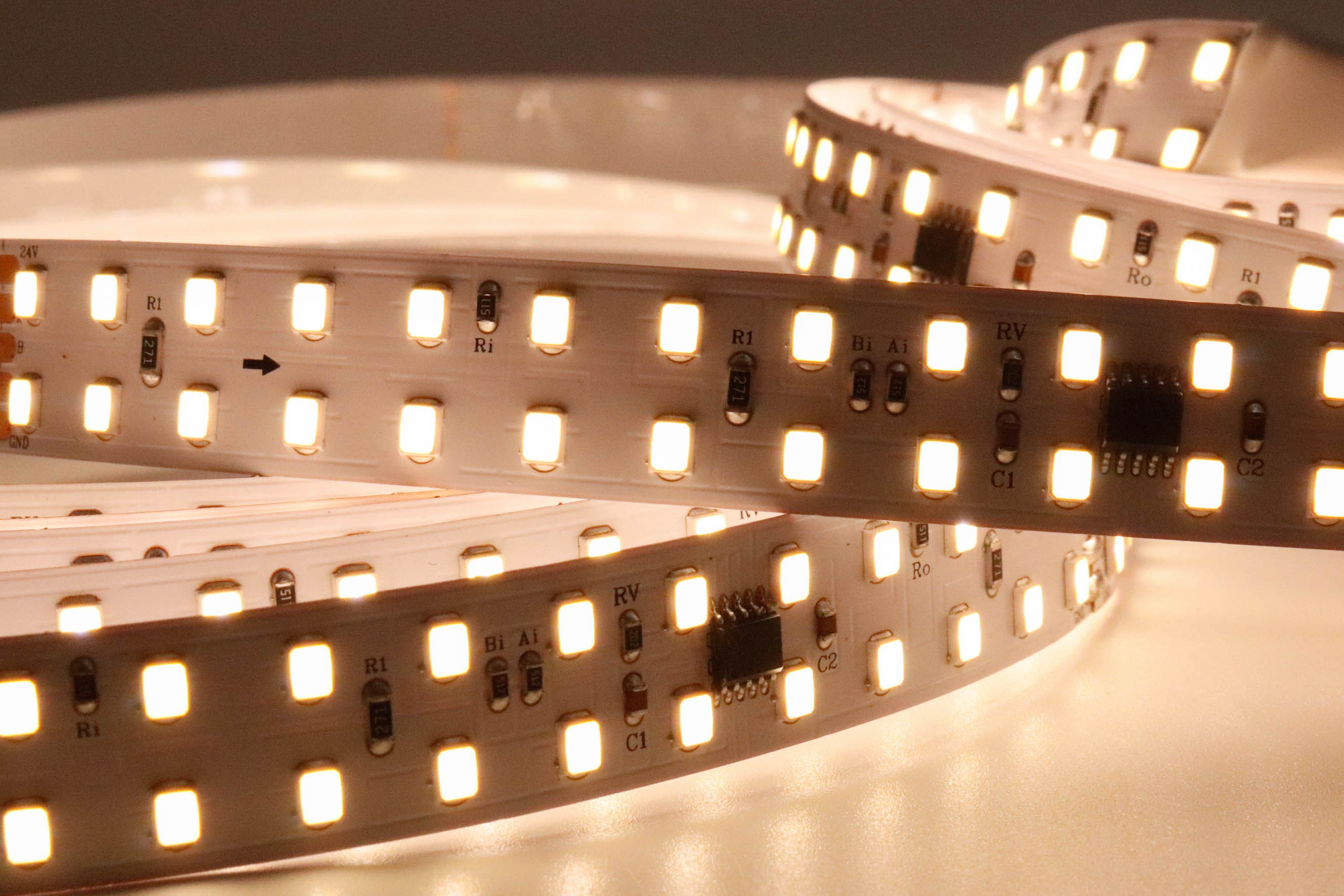

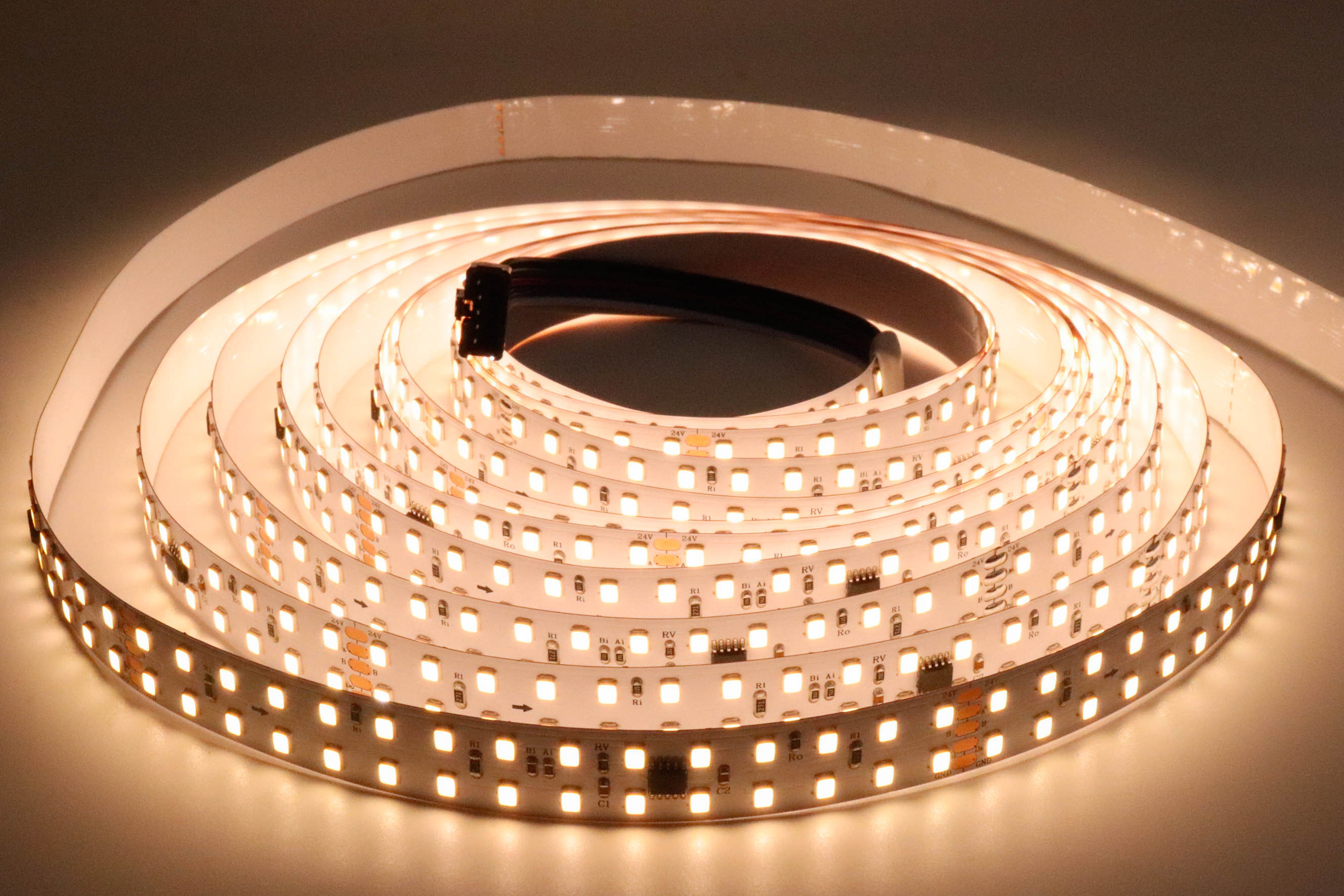

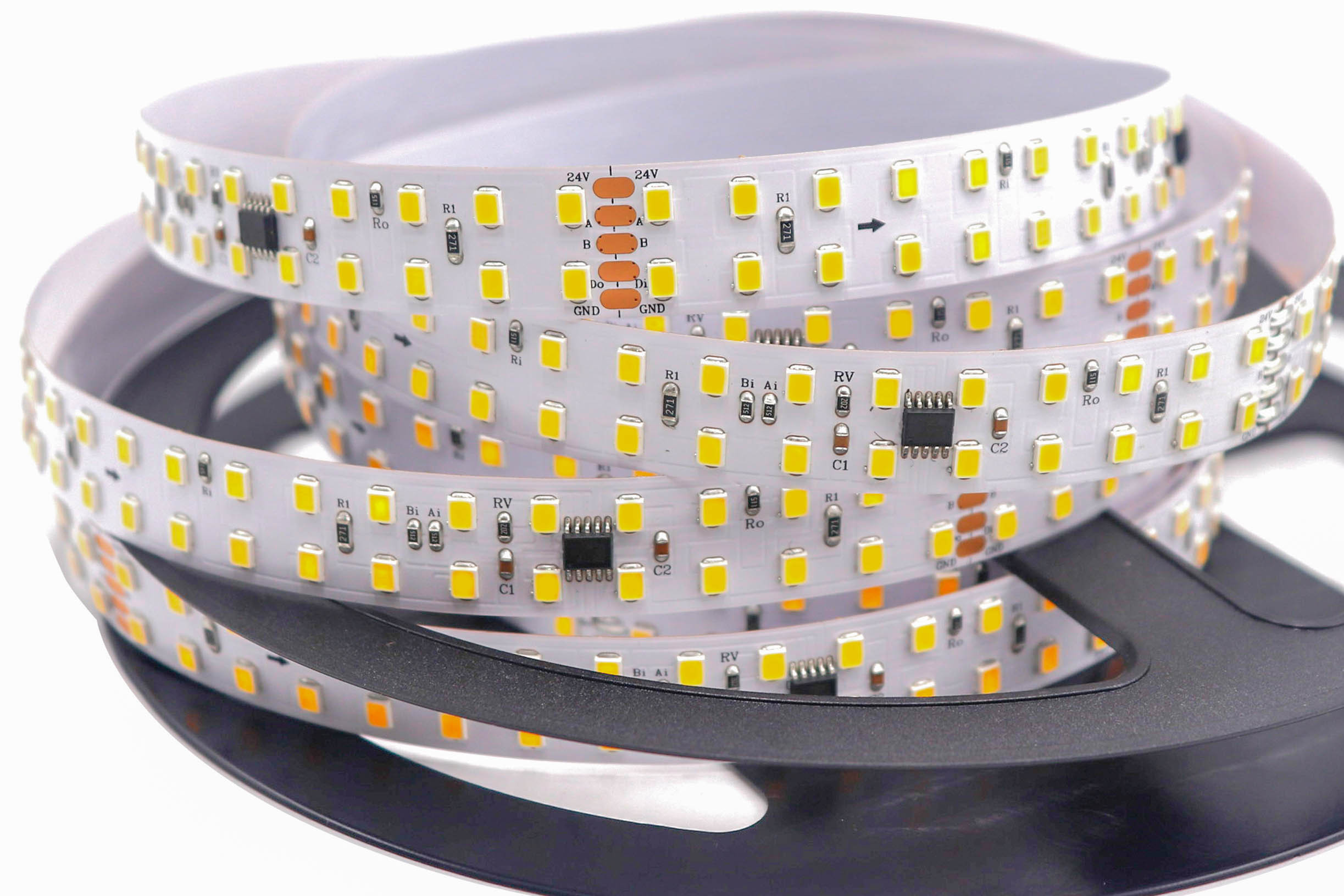

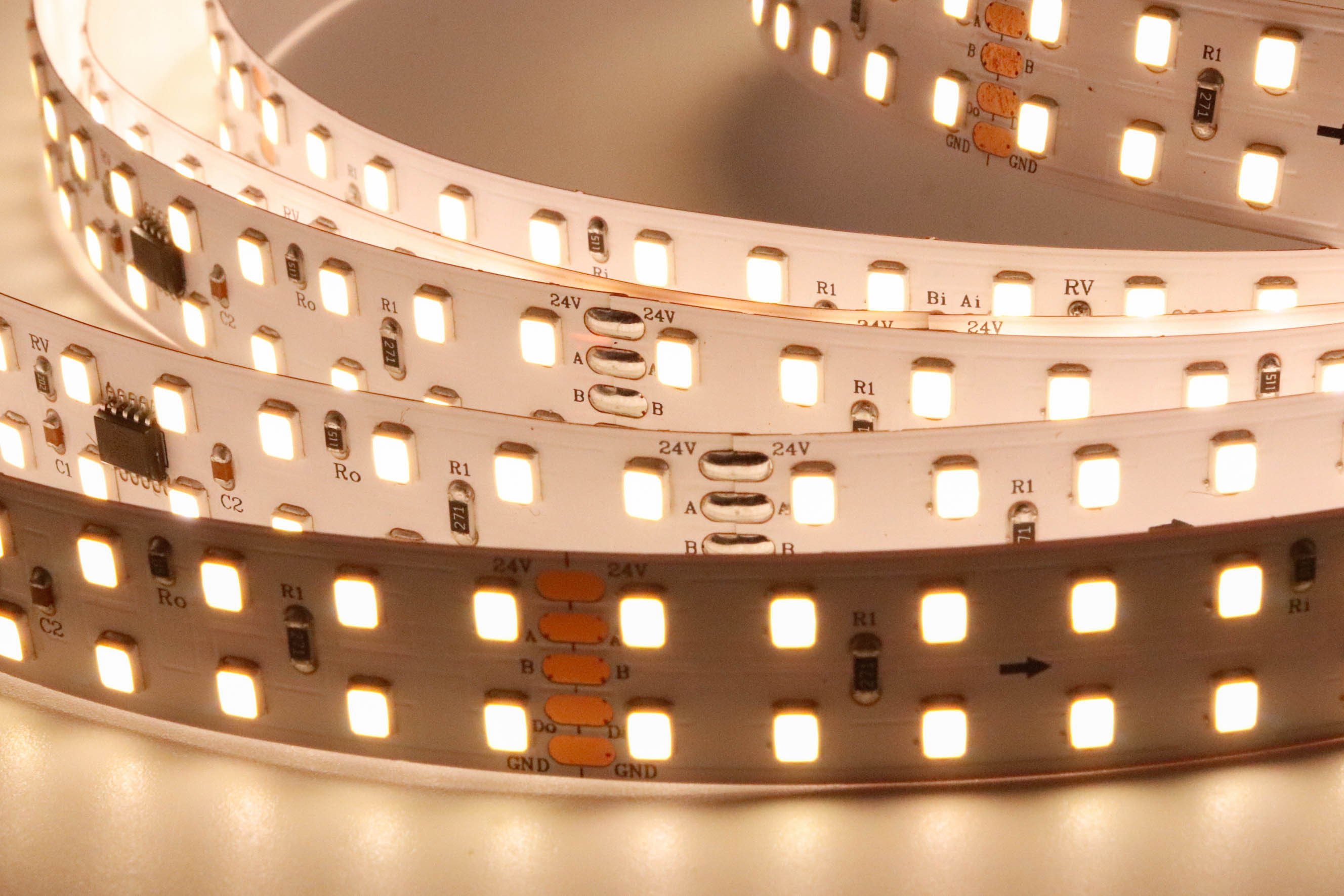

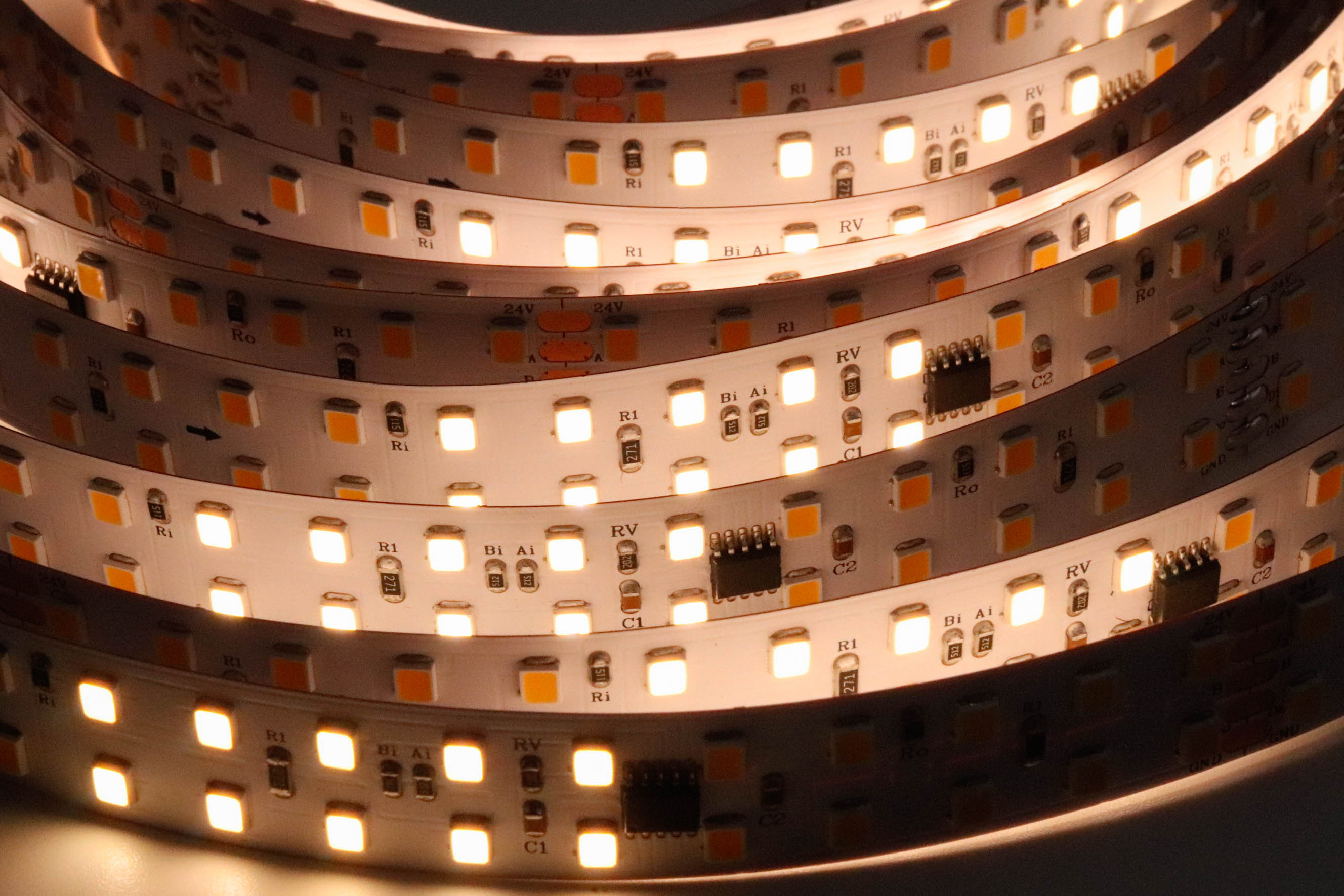

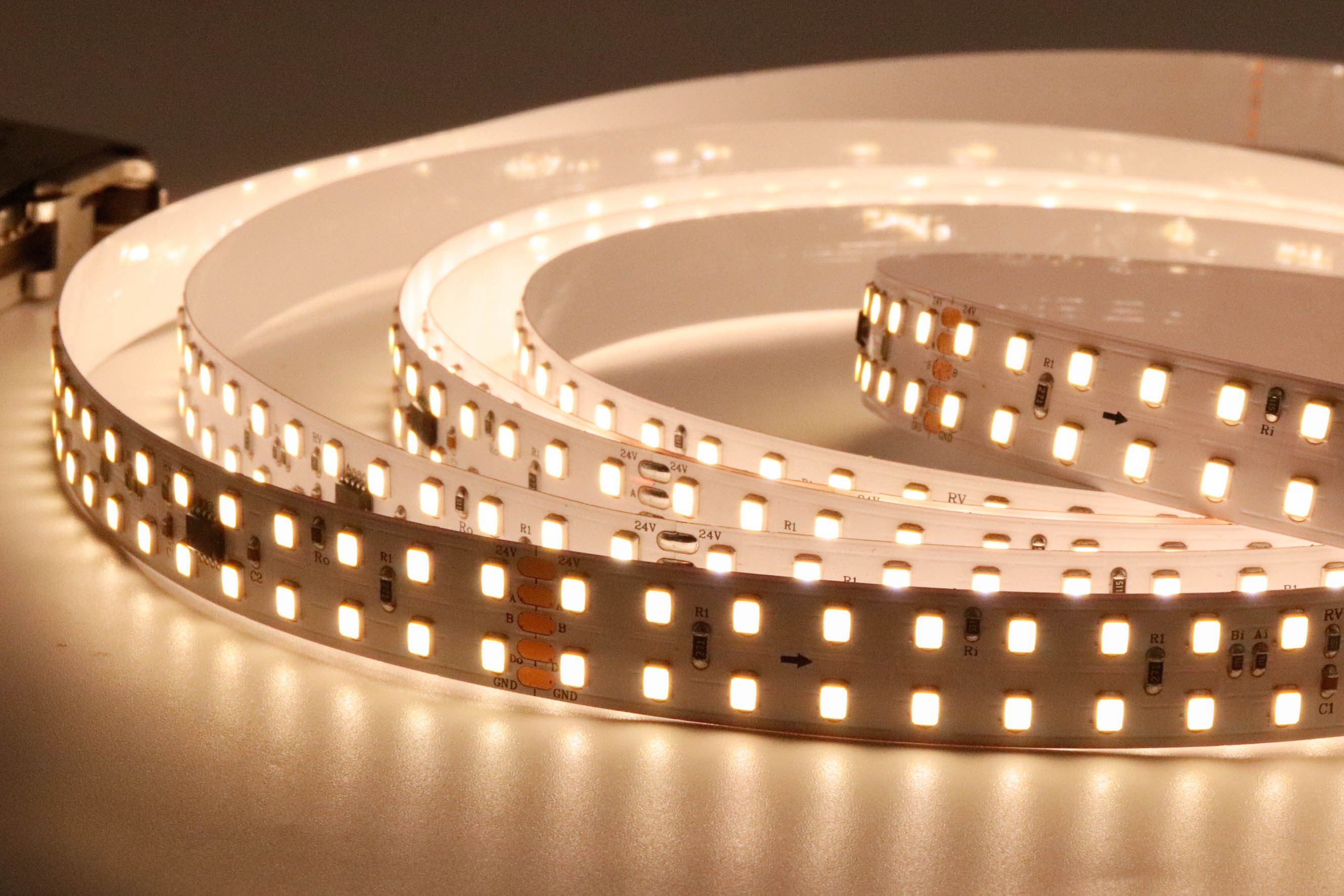

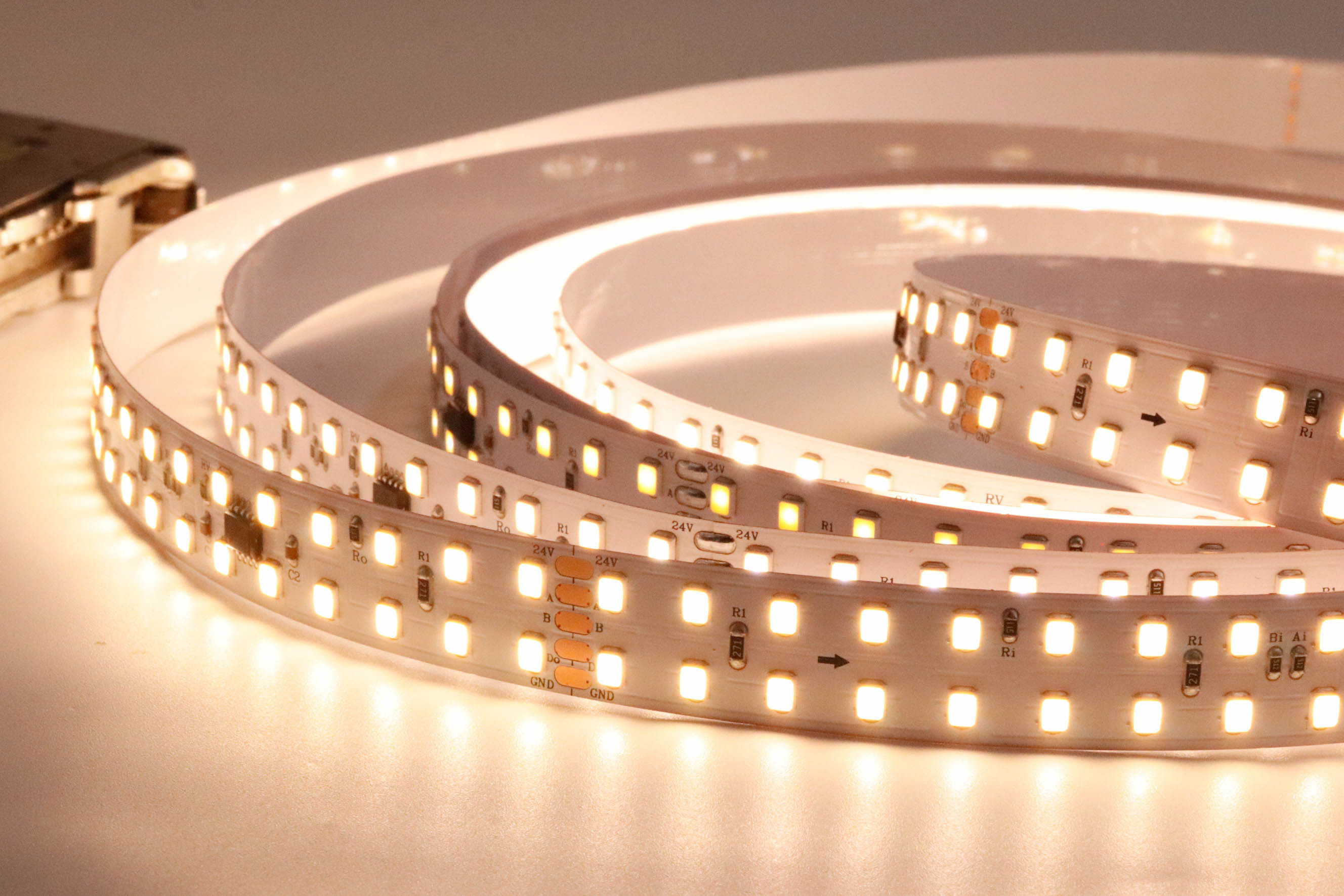

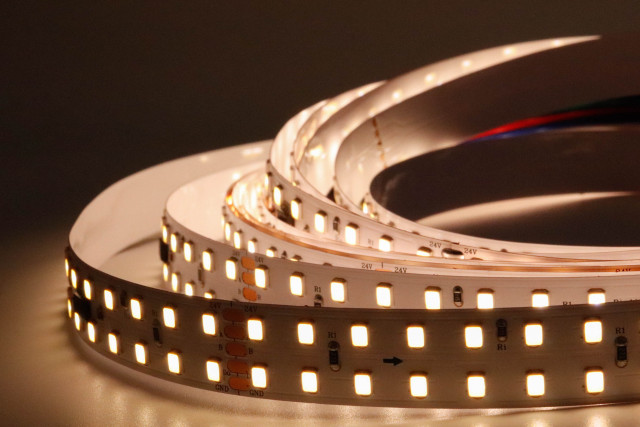

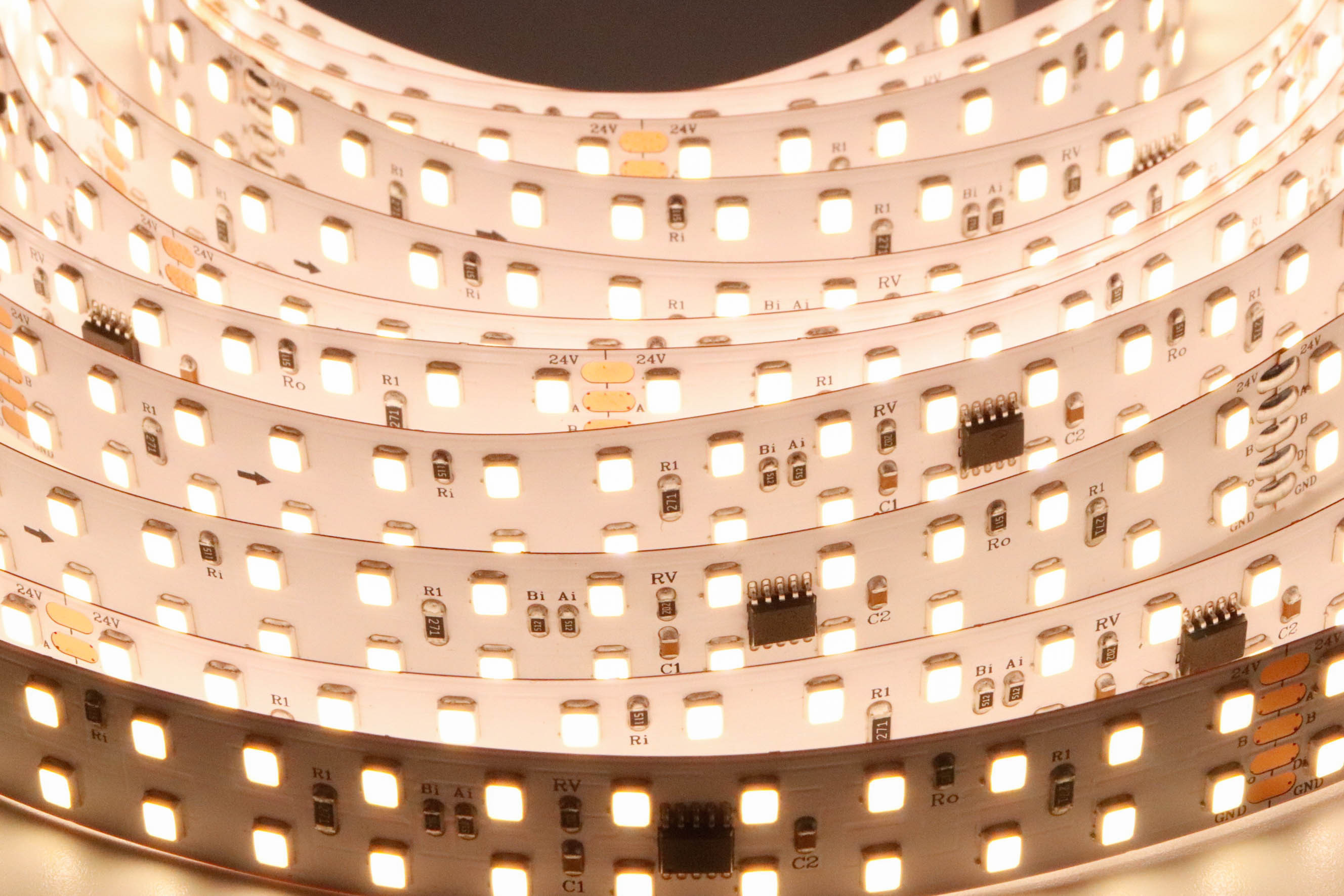

24V 2835 Monochrome DMX512 Pixel Strip — UCS512H5L, 240LED/m, Double Row
|
Category |
Specification |
|---|---|
|
Model |
WS-2835-W240-8PX-24V-UCS512H5L（建议型号，可改） |
|
LED Type |
SMD 2835 single-color white（3000K / 4000K / 6500K optional） |
|
LED Density |
240 LEDs/m |
|
IC Type |
UCS512H5L（DMX512 differential parallel pixel driver） |
|
Segments / Pixels |
8 segments/m（1 IC drives 30 LEDs） |
|
DMX Channels |
1 ch/segment → 8 ch/m |
|
Voltage |
DC 24V constant voltage |
|
Power |
~17 W/m（85 W/5m roll） |
|
PCB |
15mm width, 2oz copper, double-row FPC/rigid-flex；白板/黑板可选 |
|
Cut Unit |
125 mm（30 LEDs + 1 IC） |
|
Grayscale |
256 standard / 65536 on UCS512H5L |
|
Signal Lines |
24V / A(DMX+) / B(DMX-) / PI(address) / GND — 5-line DMX harness |
|
Addressing |
DMX address writer / auto-coding UCS512H-series controller |
|
Beam |
120° |
|
CRI |
Ra 85+ typical；Ra90 optional（项目版） |
|
Max Run |
5 m/reel；long runs need power injection + DMX repeater |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 |
|
Application |
Hotel corridor, bar counter, bridge outline, cove, facade rhythm light, staircase, retail edge, architectural white chase |
