The DMX512 signal is differential/parallel (A/B), so one IC fault does not break the whole chain like series SPI tape. 24V keeps current lower than 5V/12V pixel strips, while the white PCB gives clean, bright reflections for retail, gallery, hotel and signage installs. Output is 19.2W/m, 256 grayscale, 120° beam, cuttable every 100mm. It requires DMX address writing before show time and a DMX512/Art-Net source—not a WS2812B/SK6812 WLED controller and not an analog RGBW PWM controller.
True DMX512 RGBW: 10 pixels/m × 4 ch = 40 DMX ch/m; R/G/B + dedicated white for cleaner pastel and pure-white output than RGB-only tape.
24V 10mm White PCB: Lower current than 12V pixel tape; white board suits light boxes, logos, retail shelving and architectural coves.

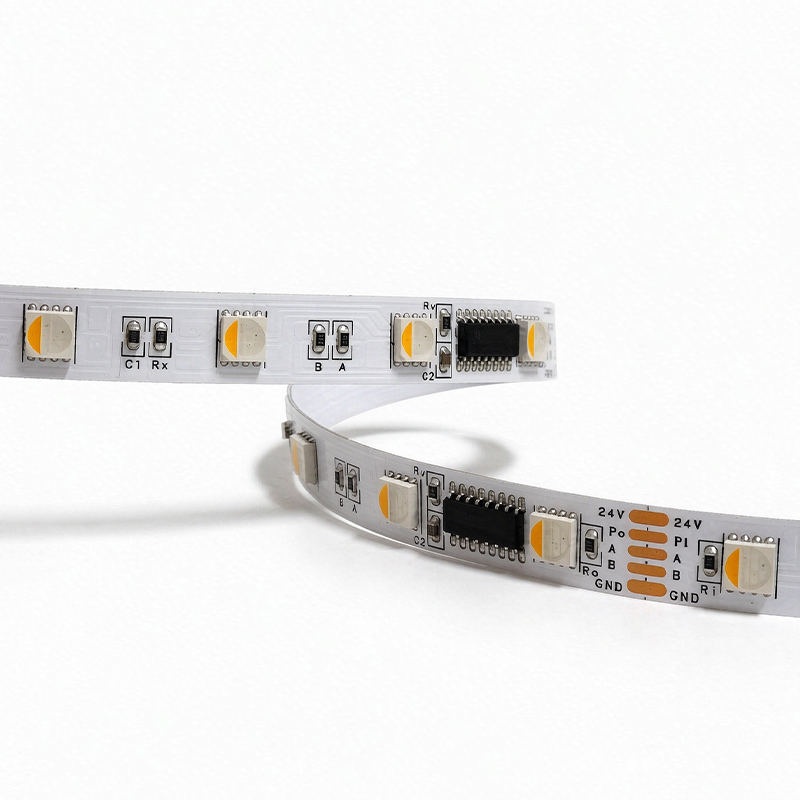

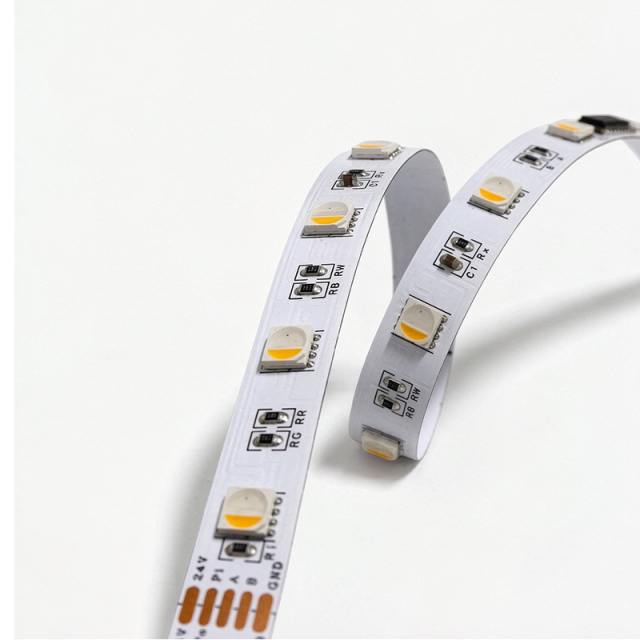

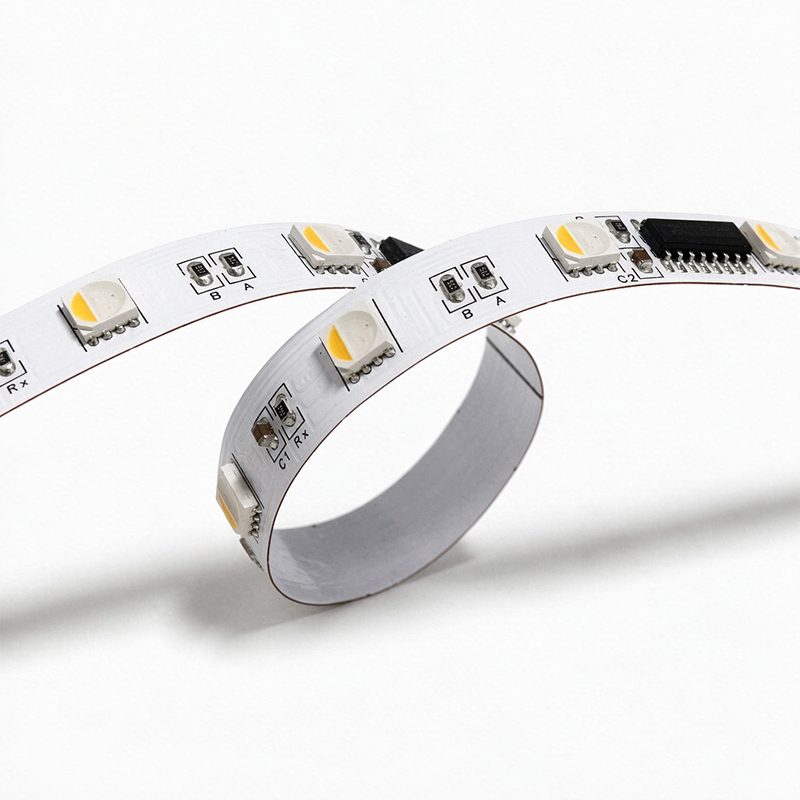

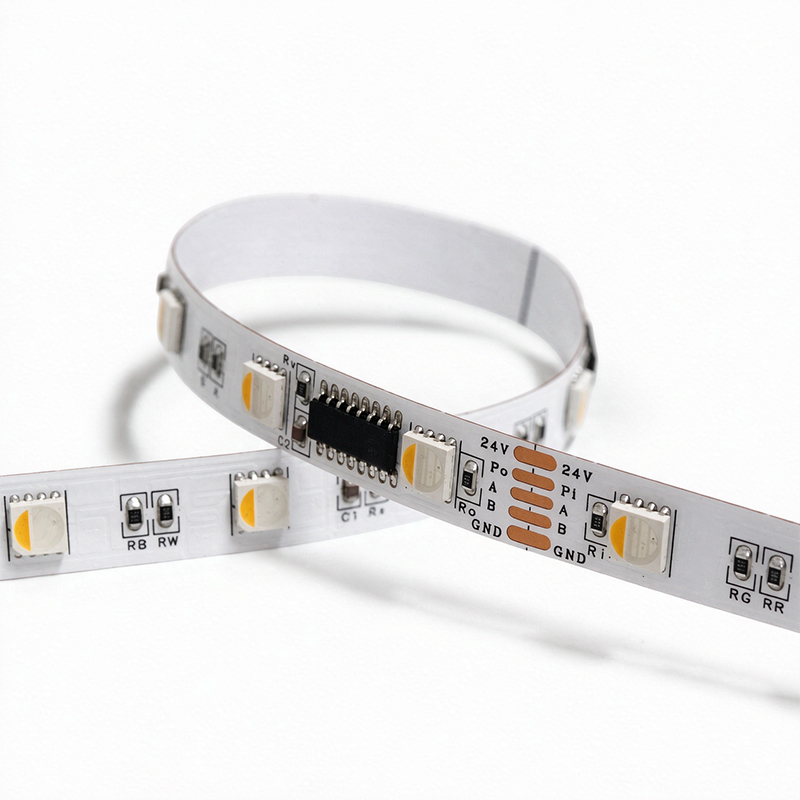

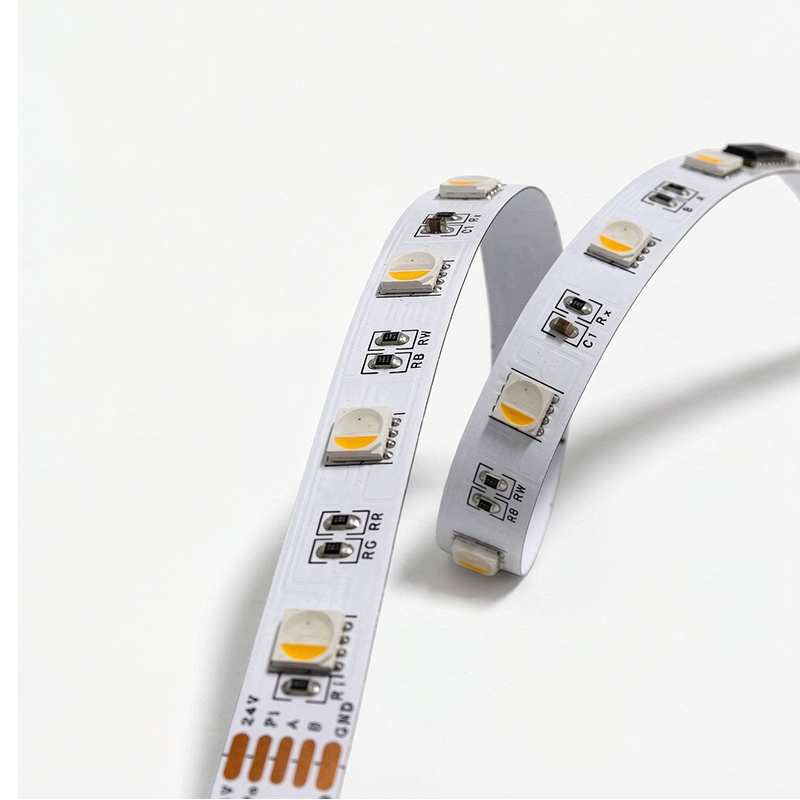

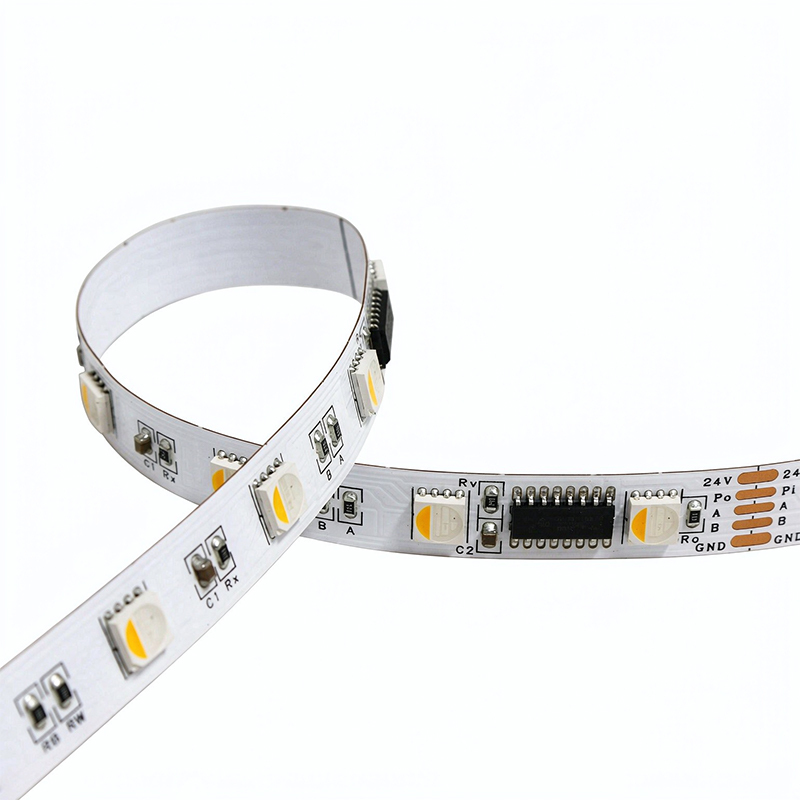

6 LEDs = 1 Pixel, Cut 100mm: 5050 RGBW 4-in-1, 19.2W/m, 5m/reel, JST/SM or open-wire ends, IP20/IP65/IP67/IP68 available.
Parallel A/B Signal: Built-in RS485/DMX decode IC (UCS512 / TM512 / SM17512 class); one bad pixel does not kill downstream pixels like WS281x daisy chain.
Pro Show Ready: DMX console, Art-Net/sACN, SD DMX player, Madrix/QLC+; needs address writer/programmer, 120Ω terminator on last unit, power injection on long runs.
|
Item |
Specification |
|---|---|
|
Style |
DMX512 RGBW addressable LED strip |
|
LED |
SMD 5050 RGBW 4-in-1（RGB + 3000K / 4500K / 6000K white optional） |
|
LED Qty |
60 LEDs/m |
|
Pixel Qty |
10 pixels/m（6 LEDs = 1 pixel） |
|
DMX Channels |
40 channels/m（10 pixels × R/G/B/W） |
|
IC Type |
UCS512 / TM512AC / SM17512 class（external DMX512 IC with RS485 decode） |
|
Protocol |
Standard DMX512（differential A/B, parallel addressing） |
|
Voltage |
DC 24V（do not exceed ~25.2V） |
|
Power |
19.2W/m（96W/5m） |
|

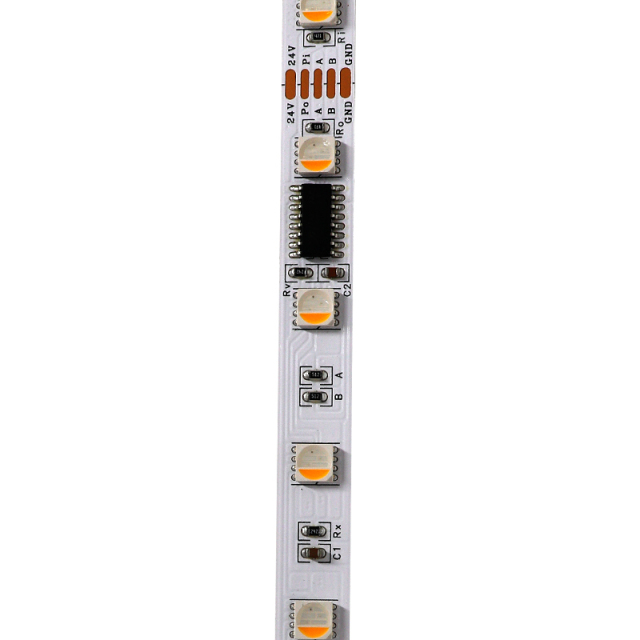

PCB |
10mm width, 2 oz FPC, White, bare board IP20 |
|
Cut Unit |
100mm / 6 LEDs（24V version） |
|
Grayscale |
256（16-bit build optional by IC） |
|
Beam Angle |
120° |
|
Signal Wires |

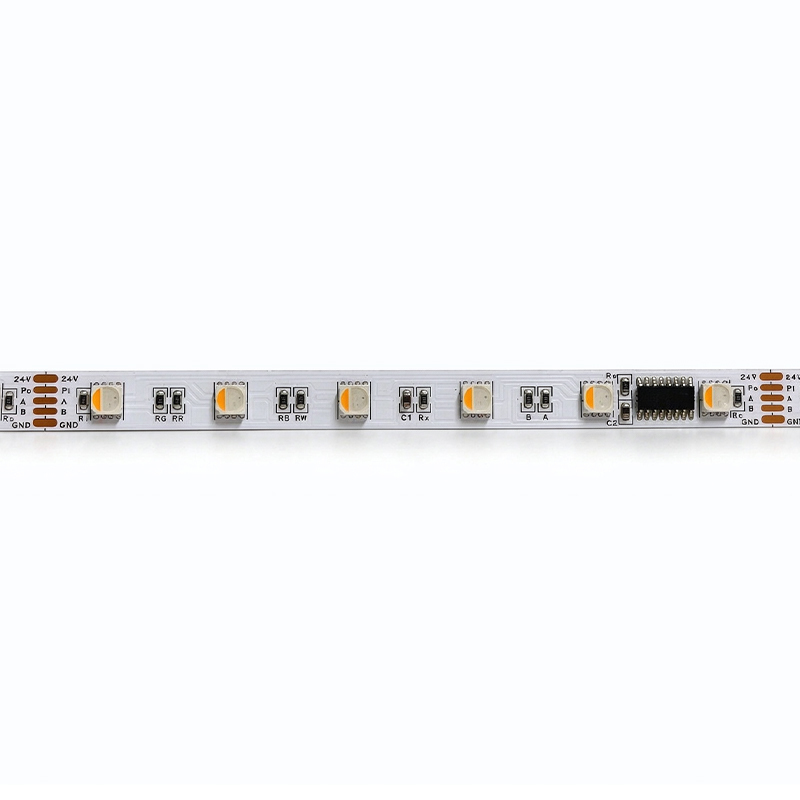

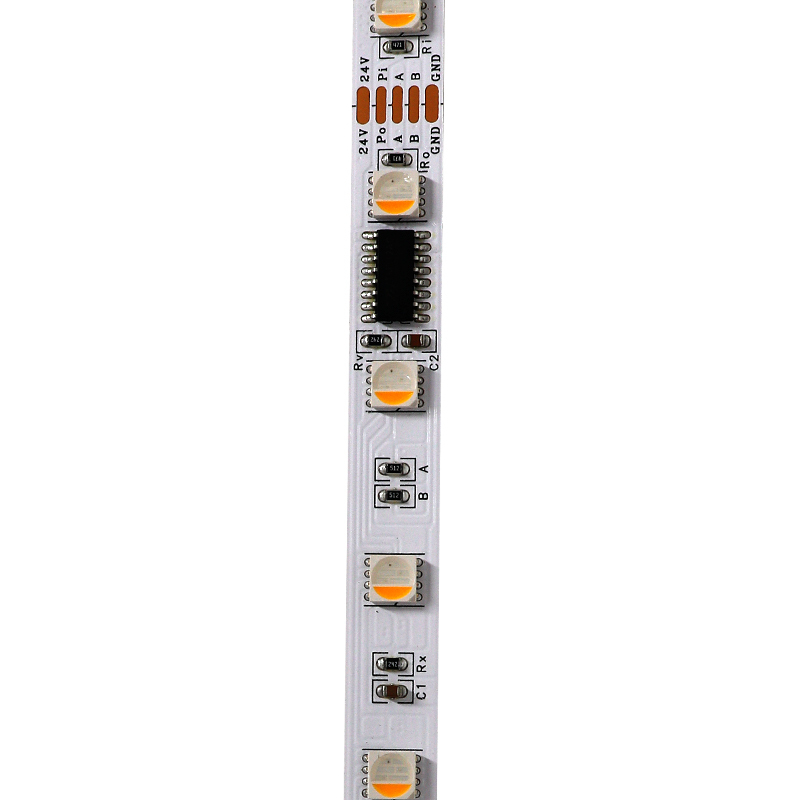

V+ / GND / A(D+) / B(D-) / PI（address write）—5-wire class |
|
Addressing |
Needs DMX address writer / programmer；auto-address only with capable DMX source |
|
Controller |
DMX512 console, Art-Net node, SD DMX player, Madrix/QLC+；not WLED SPI, not 5-in-1 PWM |
|
IP Options |
IP20 bare / IP65 gel / IP67 tube / IP68 pour |
|
Length |
5m/reel |
|
Temp |
-20°C ~ +60°C |
|
Life |
30,000–50,000h |
