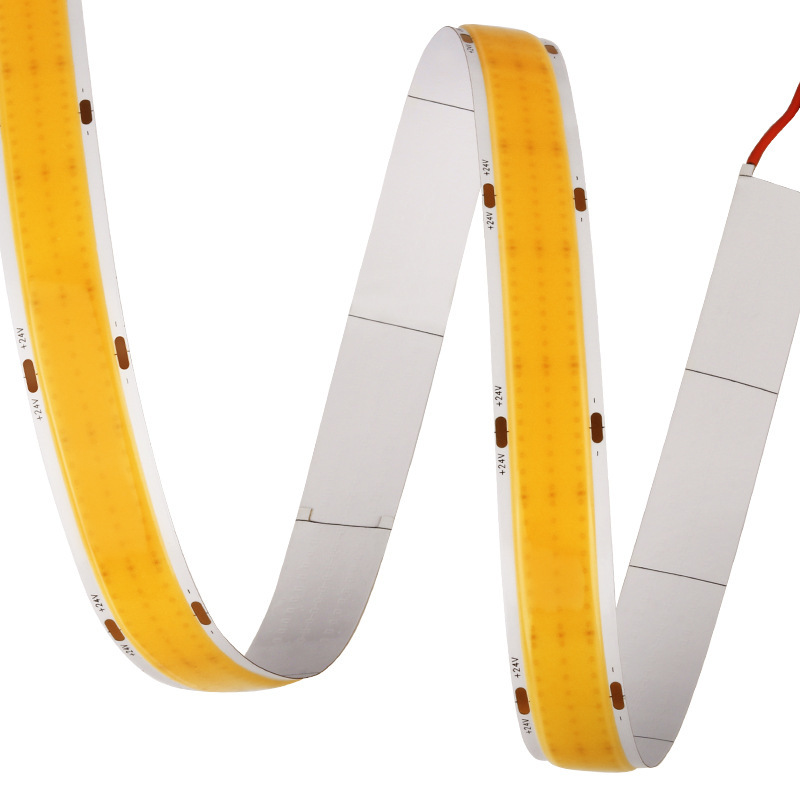

The 24V low-voltage system ensures stable performance even on long runs with minimal voltage drop. At 20mm wide, the triple-row layout produces a broader, more uniform light spread — ideal for cove ceilings, recessed channels, vanity mirrors, display cases, and ambient backlighting where standard single-row strips fall short. Flexible FPCB with premium 3M self-adhesive backing enables quick, tool-free installation on any clean surface. Cut at marked intervals for a custom fit. Professional-grade brightness, refined aesthetics, and installation simplicity — all in one strip.
💡 Triple-Row 960 LEDs — Unmatched Brightness — Three parallel COB rows pack 960 LEDs into a 20mm width, delivering ultra-high 30W/m output and a broad, uniform wall of light no single-row strip can match.
🎨 CRI 97+ High Color Rendering — Accurately reproduces natural colors for premium ambiance; ideal for retail displays, art galleries, vanity mirrors, and photography where color quality matters.
🔅 Zero Flicker & 24V Stable Performance — Constant-current IC design eliminates flicker at all dimming levels; 24V operation minimizes voltage drop and heat for reliable long-run installations.
📏 20mm Wide for Broader Light Spread — Wider profile produces a wider beam and softer diffusion; perfect for cove lighting, ceiling recesses, and channel installations requiring even coverage.
✂️ Flexible, Cuttable & 3M Self-Adhesive — Bendable FPCB conforms to curves; cut at marked intervals without damaging the rest; industrial-grade 3M backing for instant, tool-free mounting.
|
Specification |
Details |
|---|---|
|
Product Name |
Triple-Row COB LED Strip Light |
|
Model |
COB-20MM-24V-960D-3ROW |
|
Strip Width |
20mm |
|
LED Layout |
3 parallel rows (triple-row COB) |
|
LED Density |
960 LEDs/m (total across 3 rows) |
|
Operating Voltage |
DC 24V |
|
Power Consumption |
30W/m |
|
Color Temperature Options |
2700K / 3000K / 4000K / 5000K / 6000K |
|
CRI (Ra) |
≥ 97 |
|
R9 Value |
> 85 |
|
Luminous Flux |
~2800–3200 lm/m (depending on CCT) |
|
Flicker |
None (flicker-free, all dimming levels) |
|
Dimming |
PWM dimmable, 0–100% smooth |
|
Beam Angle |
180° |
|
Cuttable Unit |
Every 50mm (at marked cut lines) |
|
PCB Material |
3oz copper flexible FPCB |
|
Adhesive |
3M 300LSE VHB tape backing |
|
IP Rating |
IP20 (Indoor) / IP65 (Silicone coating, optional) |
|
Working Temp. |
-20°C ~ +50°C |
|
Lifespan |
≥ 50,000 hours |
|
Certifications |
CE, RoHS, LM-80 |
|
Warranty |
3 Years |
|
Applications |
Cove ceiling, recessed channel, vanity mirror, display case, cabinet, ambient backlight, stair, architectural accent |
