On DC24V, current stays low and runs stay stable across long façades, bridges and signage outlines. The DMX512 / TM512AC protocol lets consoles, ArtNet nodes and K-1000C/T-1000S controllers manage brightness, speed and segment patterns with industry-standard addressing. Choose 3000K warm, 4000K neutral or 6500K daylight white—clean, glare-controlled light that still moves. With CRI ≥90, IP20–IP67 options, and 125mm cutting units, it fits aluminum profiles, neon jackets and outdoor enclosures. From hotel cornices to nightclub lines and city-light sculptures, it turns a simple white strip into a synchronized light show.
🎬 DMX512 Segment Control: 8 addressable segments/meter; console-driven chase, flow, marquee, breathe, gradient—standard DMX addressing for large projects.
💡 240 LEDs/m Double-Row 20mm: High-density 2835 white chips on a wide FPCB = brighter, smoother line than 10mm 120-LED DMX tapes.
⚡ 24V Engineering Friendly: Lower current, less voltage drop, longer runs; 5-wire DMX (24V / A / B / PI / GND) with RS-485 differential signaling for noise resistance.
🤍 Single-Color but Programmable: 3000K / 4000K / 6500K white only—no RGB clutter, but still animated. Perfect for architectural white-light storytelling.
🧱 Project-Grade Build: 1+2oz copper FPC, cut every 125mm (30 LEDs), IP20/IP65/IP67 optional, aluminum-profile ready.

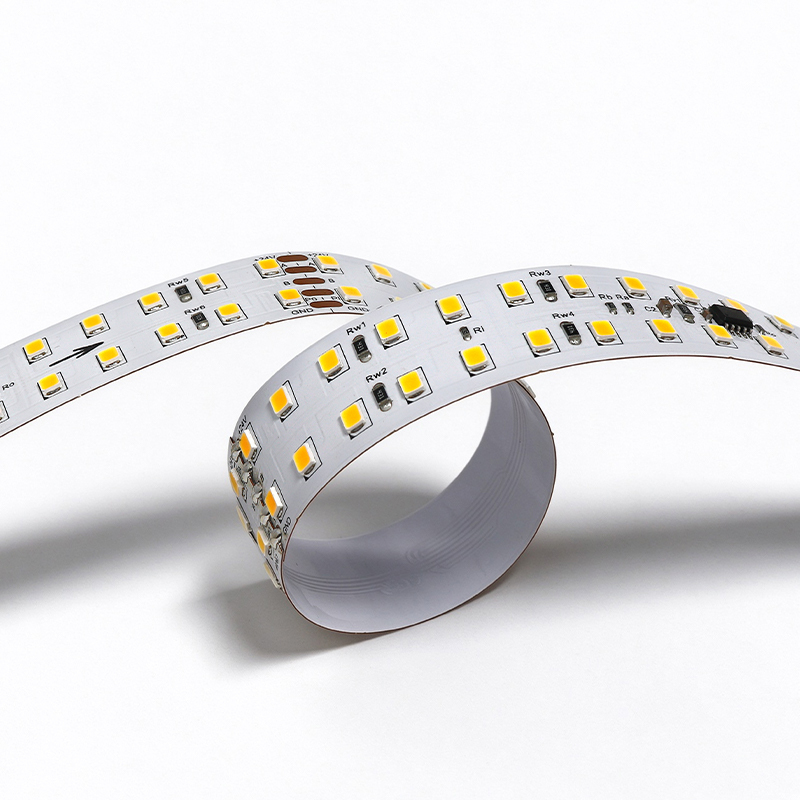

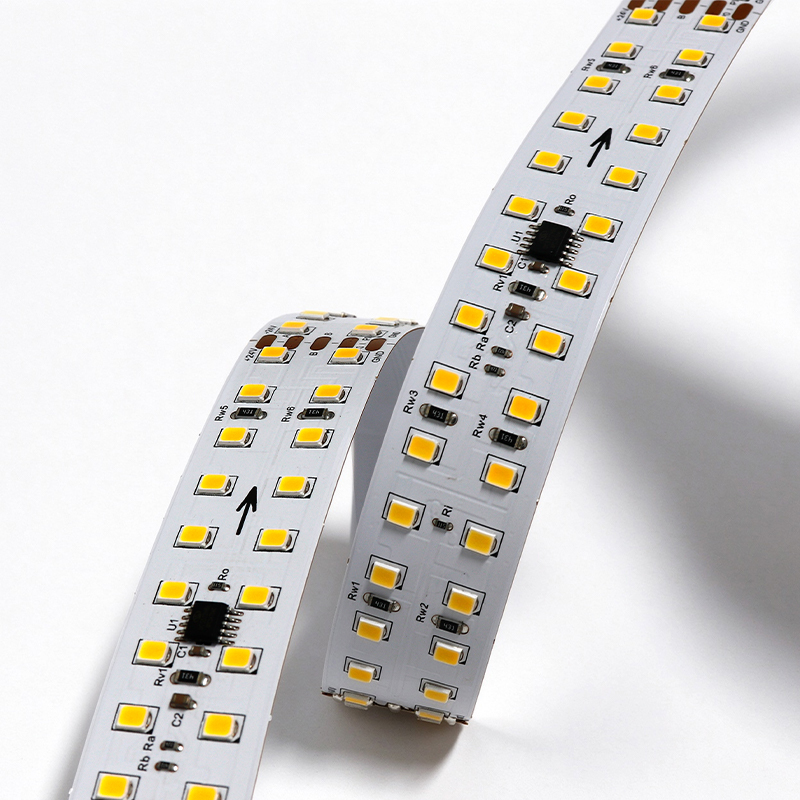

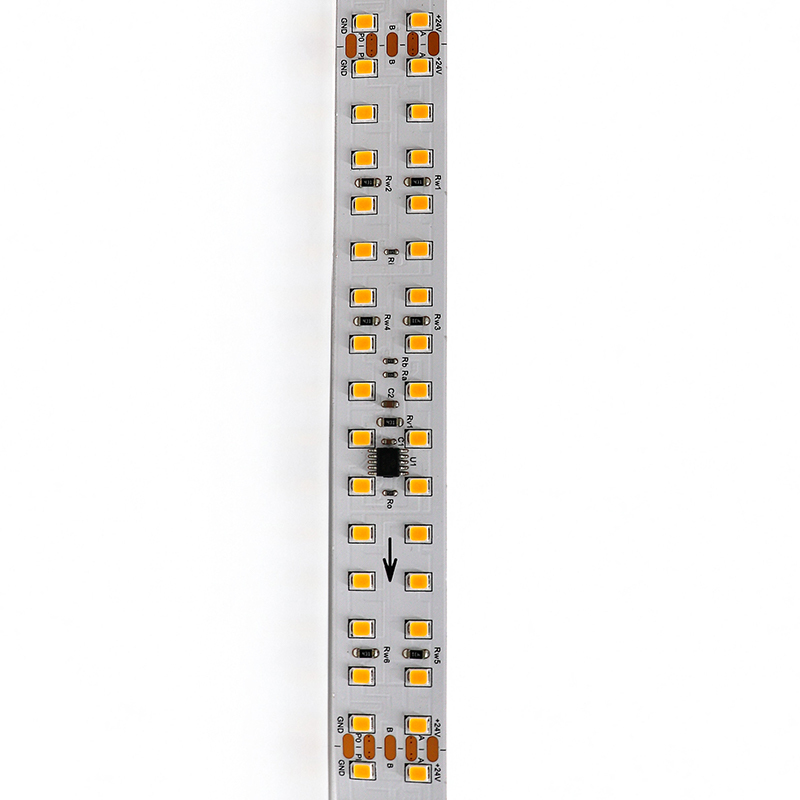

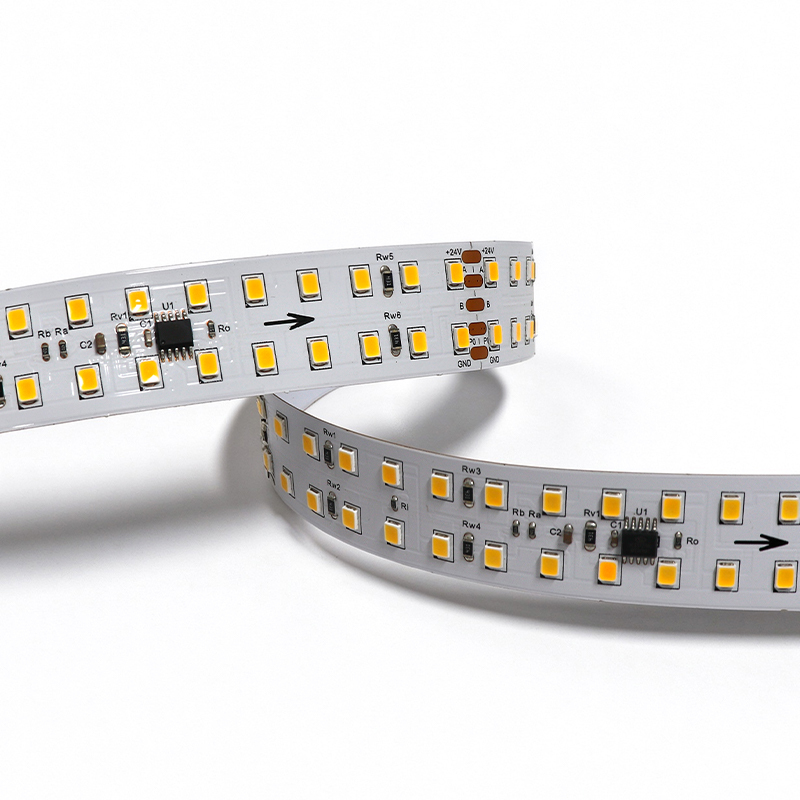

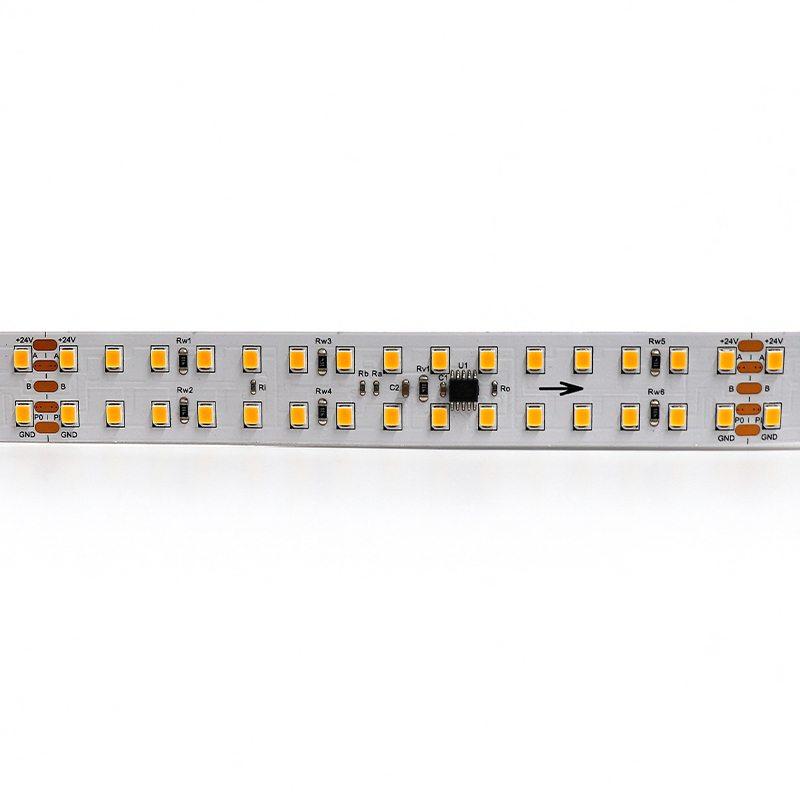

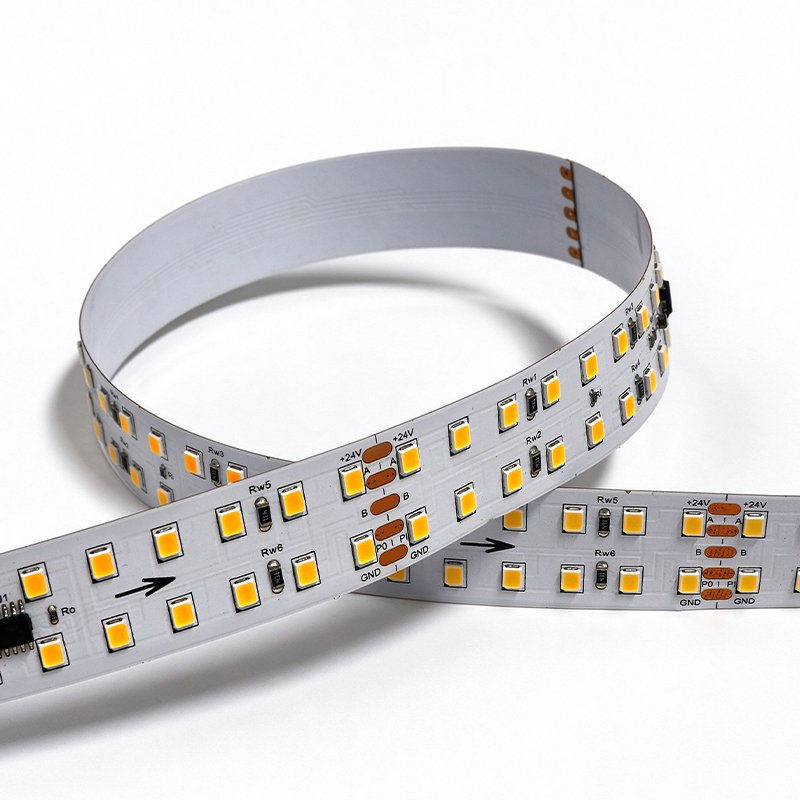

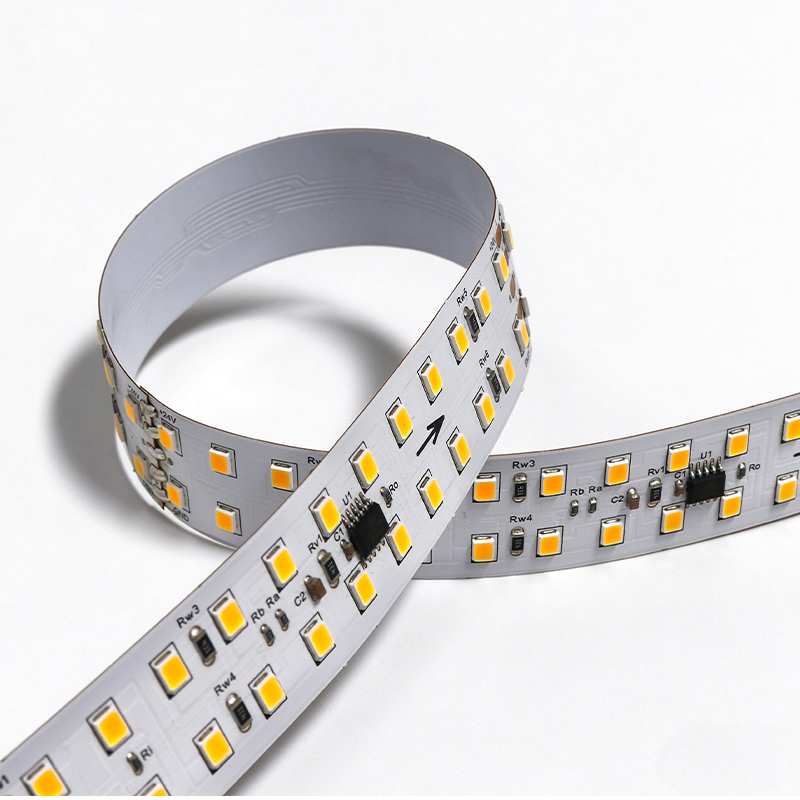

Product Specification Sheet — 20mm 2835 DMX512 Single-Color 8-Segment LED Strip
|
Category |
Item |
Specification |
|---|---|---|
|
General |
Type |
20mm 2835 DMX512 Addressable White Strip |
|
LED |
SMD 2835 (single white) |
|
|
Density |
240 LEDs/m |
|
|
Control |
Protocol |
DMX512 / TM512AC / HI512E |
|
Segments |
8 segments/m (1 IC controls 30 LEDs) |
|
|
Channels used |
1 DMX channel per segment (dimmer) → 8 ch/m |
|
|
Electrical |
Voltage |
DC 24V CV |
|
Power |
~17–19.2W/m (85–96W / 5m) |
|
|
Current |
~0.7–0.8A/m |
|
|
Optical |
CCT |
3000K / 4000K / 6500K |
|
CRI |
Ra ≥90 (≥95 optional) |
|
|
Lumen |
~1700–1975 lm/m |
|
|
Beam |
120° |
|
|
Mechanical |
PCB |
20mm wide, double-row, 1+2oz copper FPC |
|
Cut unit |
125mm / 30 LEDs (DMX group boundary) |
|
|
Roll |
5m standard |
|
|
Signal |
Wiring |
5-wire: 24V / DMX A (+) / DMX B (−) / PI (addr/preset) / GND |
|
Controller |
DMX console, ArtNet→DMX, K-1000C, T-1000S, Madrix |
|
|
Environment |
IP |
IP20 / IP65 / IP67 optional |
|
Temp |
-25~60℃ |
|
|
Life |
30,000–50,000h |
|
|
Application |
Façade cornice, bridge rail, signage outline, bar/KTV line, hotel eave, city-light art, stage white chase |
