The module includes a built-in test mode for quick verification without a DMX controller. Its 35mm DIN rail form factor enables fast installation in electrical panels, making it ideal for stage rigs, architectural lighting, and industrial control applications.
Dual-Channel Relay: Independently controls 2 circuits with selectable NO/NC dry contacts for maximum wiring flexibility.
DMX512 & RDM Support: Standard DMX control plus RDM for remote device discovery, status monitoring, and configuration.
Wide Voltage Range: Operates on 85–265V AC, compatible with both 110V and 230V mains systems worldwide.
Built-in Test Mode: Verify relay operation locally without a DMX console—ideal for commissioning and troubleshooting.
Compact DIN Rail Design: 35mm standard rail mount fits into tight spaces; integrates easily into existing distribution boards.

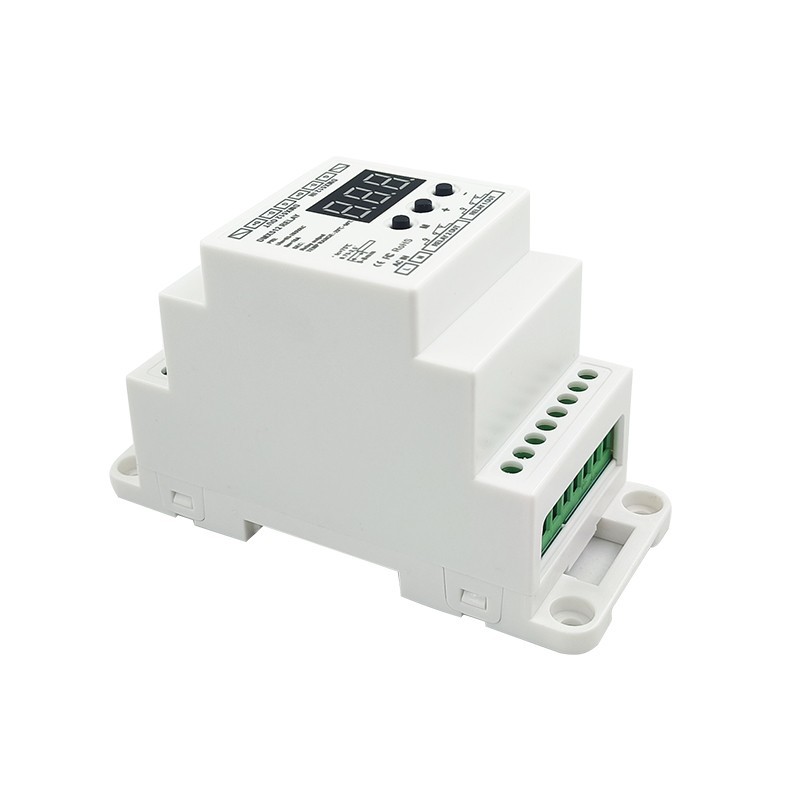

DMX-RL2 2-Channel DMX512 Relay Module
|
Category |
Specification |
|---|---|
|
Model |
DMX-RL2 |
|
Product Type |
2-Channel DMX Relay Module |
|
Input Voltage |
85–265V AC, 50/60Hz |
|
Output |
2 Channels, NO / NC Dry Contacts |
|
Protocol |
DMX512, RDM |
|
DMX Channels |
2 Channels (1 DMX per relay) |
|
Control Modes |
DMX, Manual Test Mode |
|
Address Setting |
DIP Switch / Digital Display (factory dependent) |
|
Installation |
35mm DIN Rail Mount |
|
Indicators |
DMX Signal LED, Relay Status LED |
|
Safety Features |
Electrical Isolation, Overload Protection (external fuse required) |
