A strong choice for stage rigs, bar ceilings, building outlines and rental pixel installations.
SK6813 Addressable RGB: Single-line SPI, breakpoint transmission, more reliable than WS2812B in long runs.

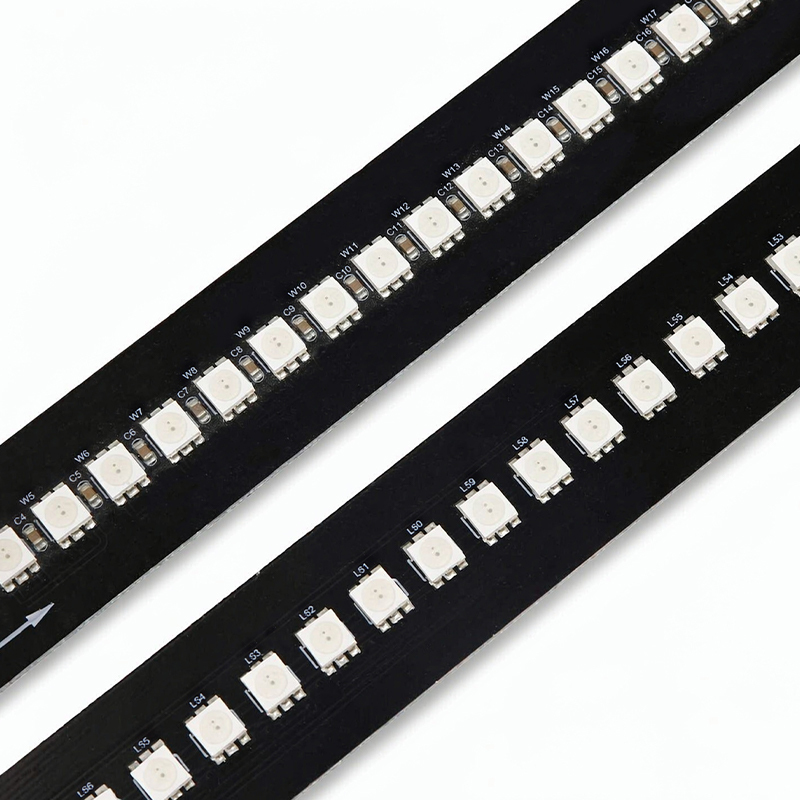

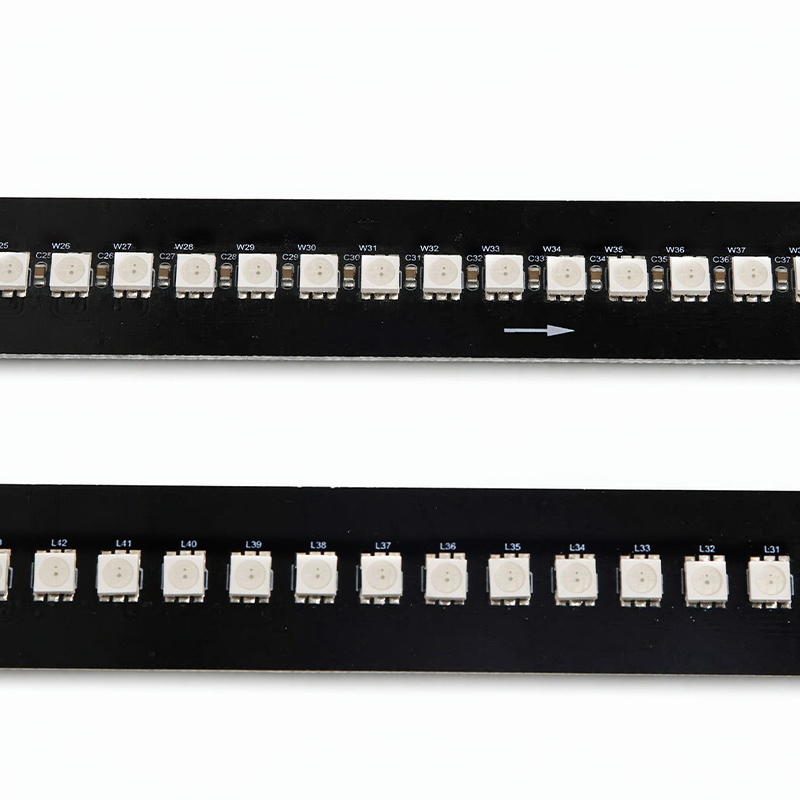

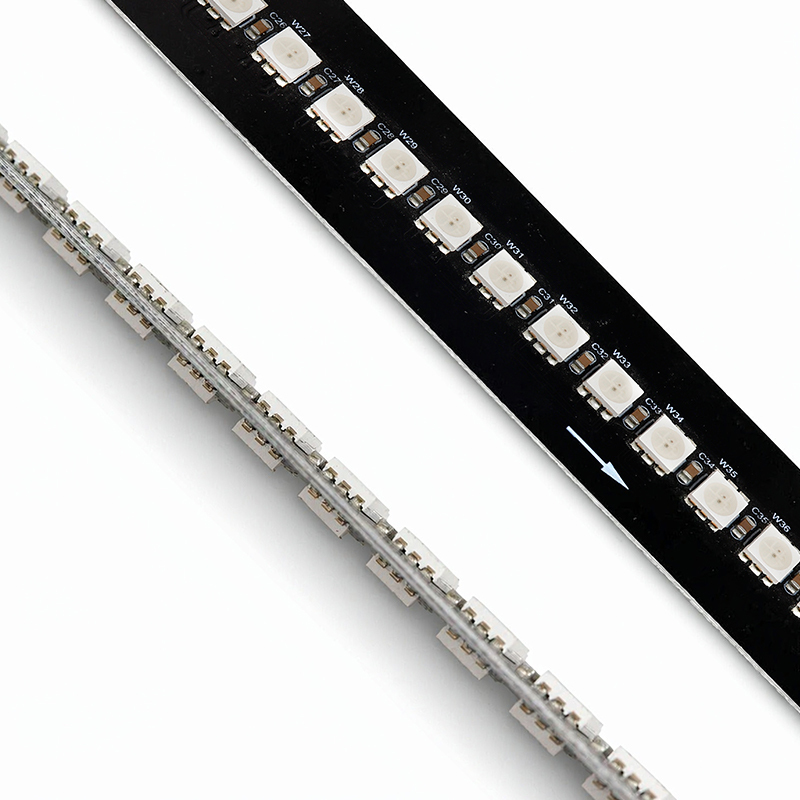

Double-Side 144 LEDs: 72 top + 72 bottom, 360° meteor/comet effect, no dark zone.

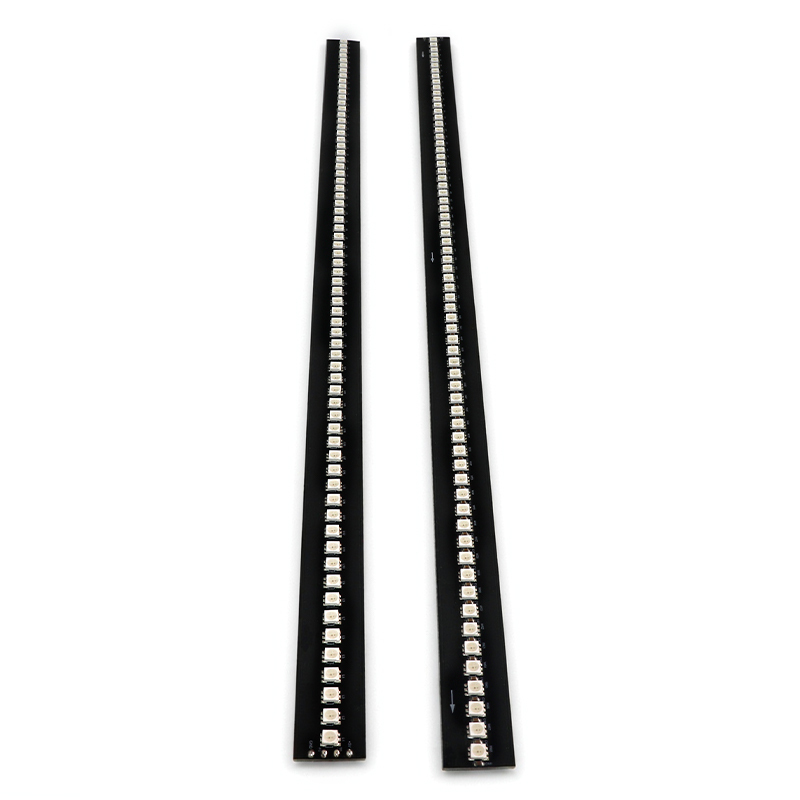

17.5mm FR4 Board: Glass-fiber PCB, high temp resistance, stable for tube assembly.
DC12V System: Better voltage drop than 5V pixel tubes, easier for mid-length installs.
Meteor / 3D Ready: Supports comet, rain, gradient, chase, matrix mapping via SPI controllers.
Product: 40mm Meteor Tube Dedicated LED Board
Board Width: 17.5mm
Board Material: FR4 / glass-fiber, double-sided
Tube Diameter: 40mm（fits 40mm PC tube）
Voltage: DC12V
LED Type: SMD5050 RGB
LED Qty: 144 LEDs/m（72/side）
IC Type: SK6813（addressable RGB, breakpoint transmission）
Pixels: 24 pixels/m（6 LEDs/IC）
LEDs per Pixel: 6

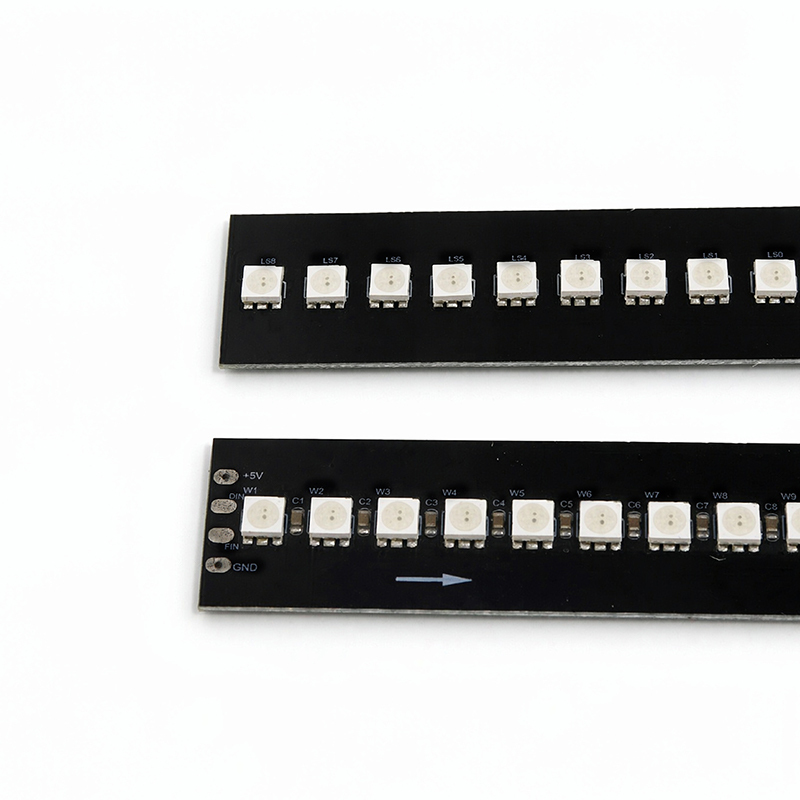

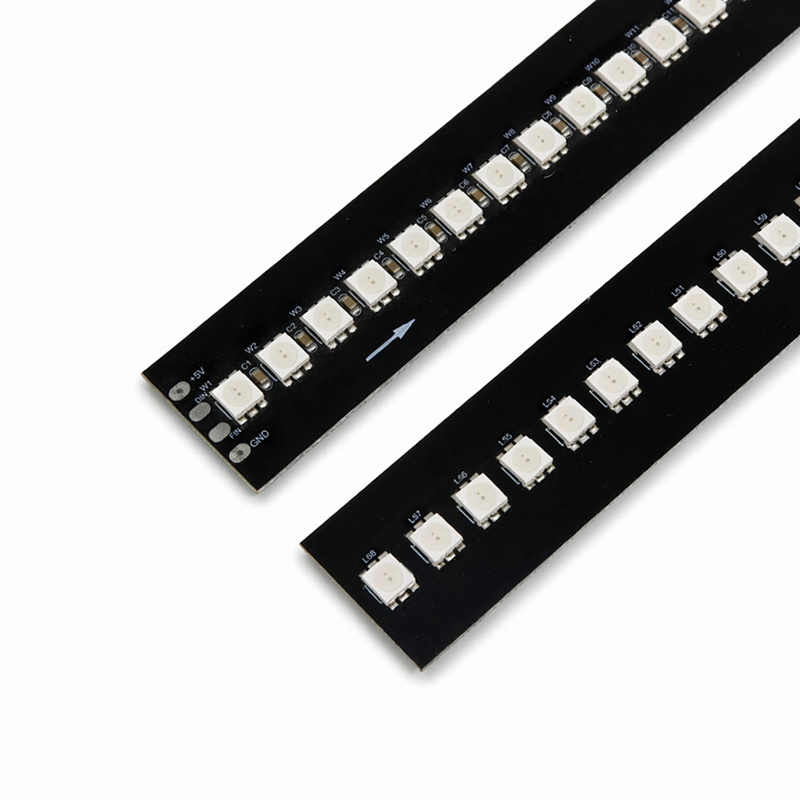

Data: DIN / DOUT / VCC / GND
Gray Scale: 256 × 3
Refresh: high-speed PWM, no visible flicker
Power: ≈ 17.3W/m typical, 34.6W/m max
Controller: T-1000S, K-1000C, SPI SD player, H807DMX（SK6813 mode）, Art-Net SPI
Cutting: by 6-LED pixel segment only
Tube Cover: Milky / transparent / smoke PC
IP Rating: IP20 bare board / IP65 / IP66 finished tube
Temp.: -25℃ ~ +45℃
Life: 30,000–50,000h
Use: meteor tube, comet light, stage pixel tube, 3D matrix, bar/KTV lighting
