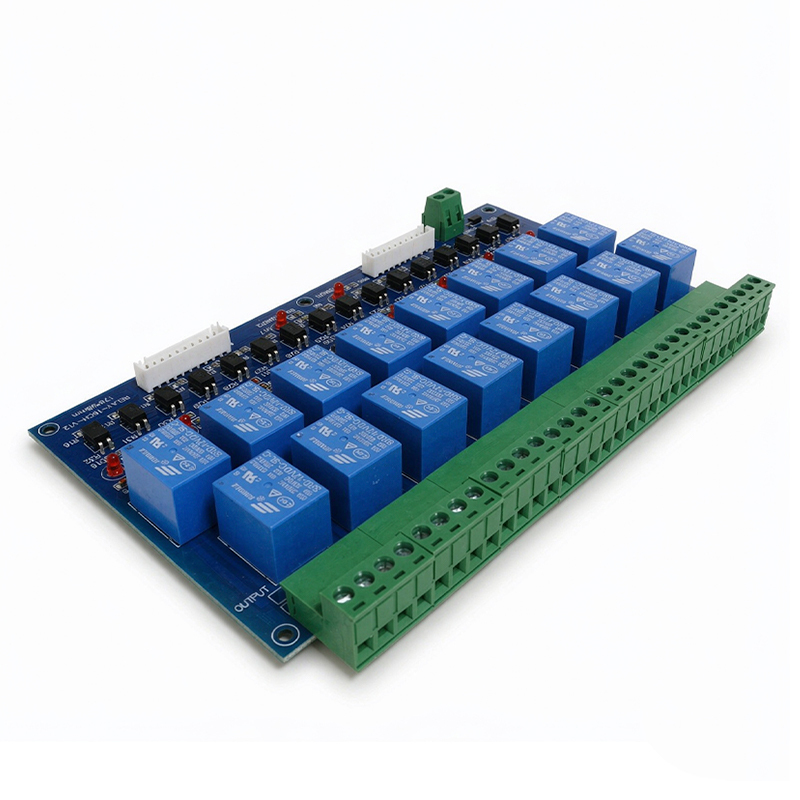

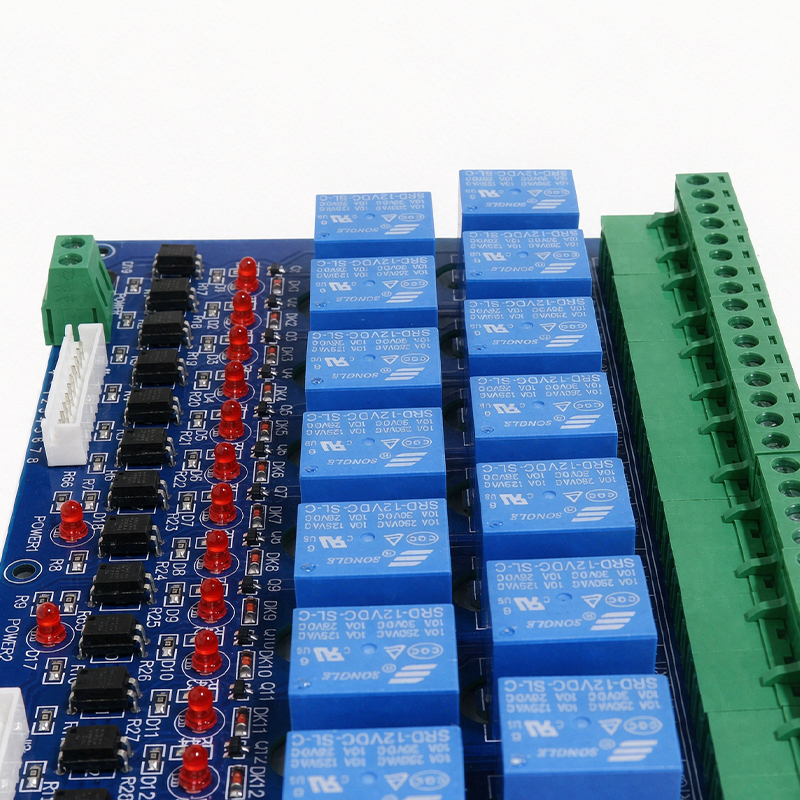

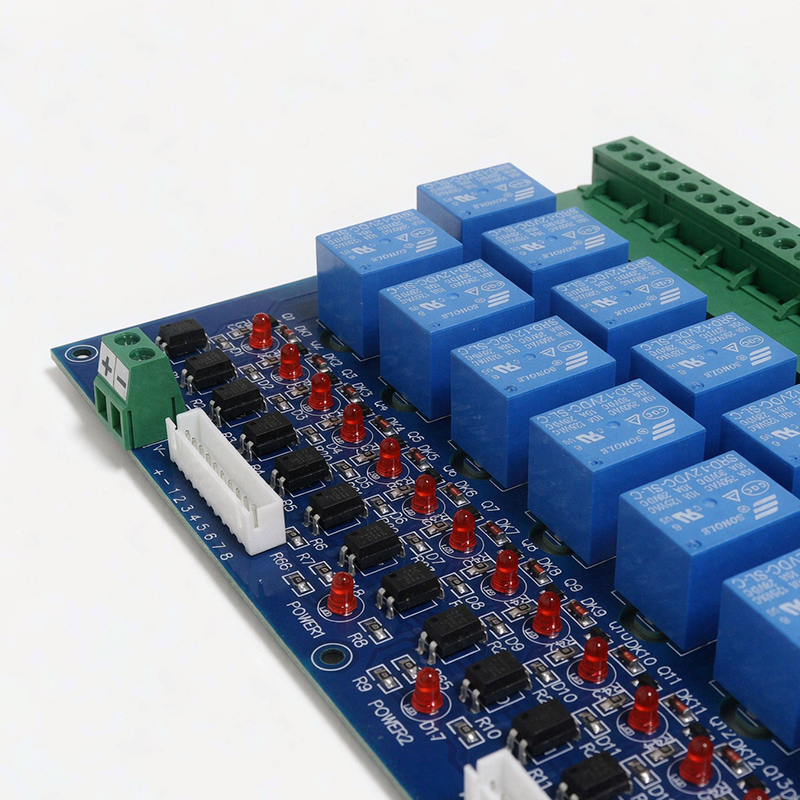

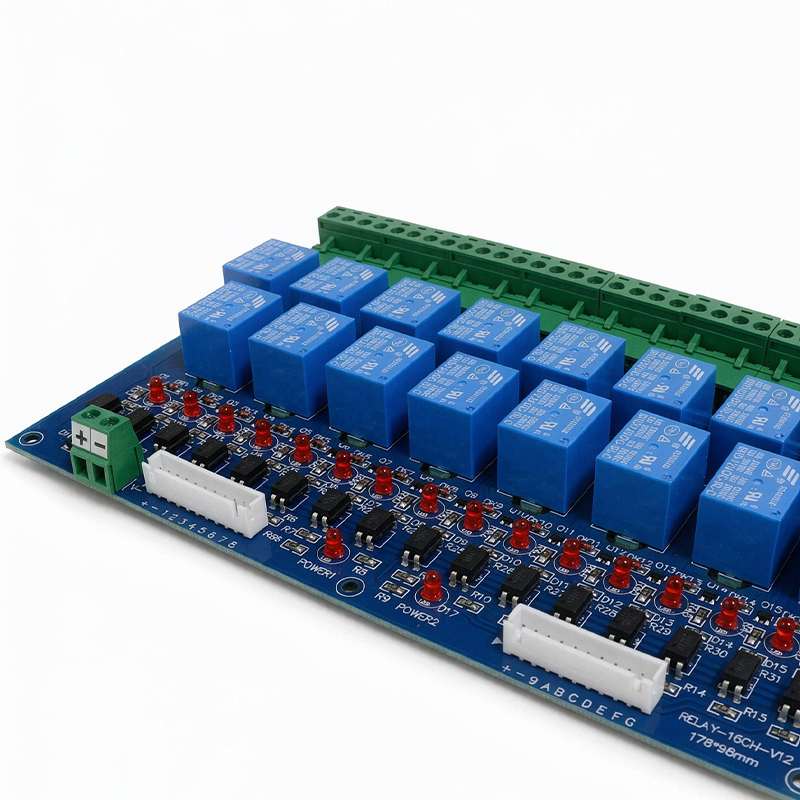

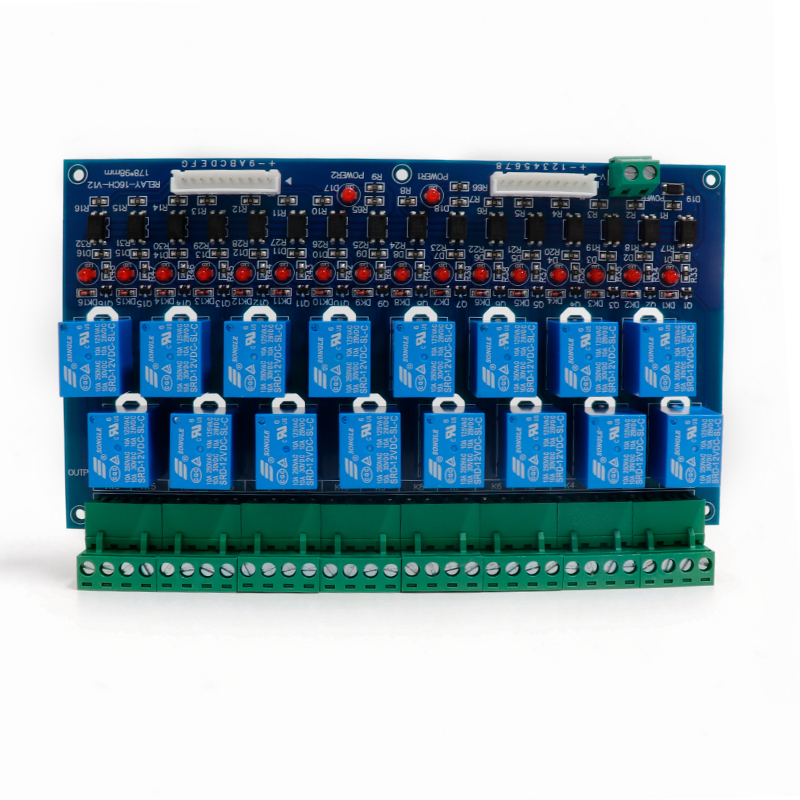

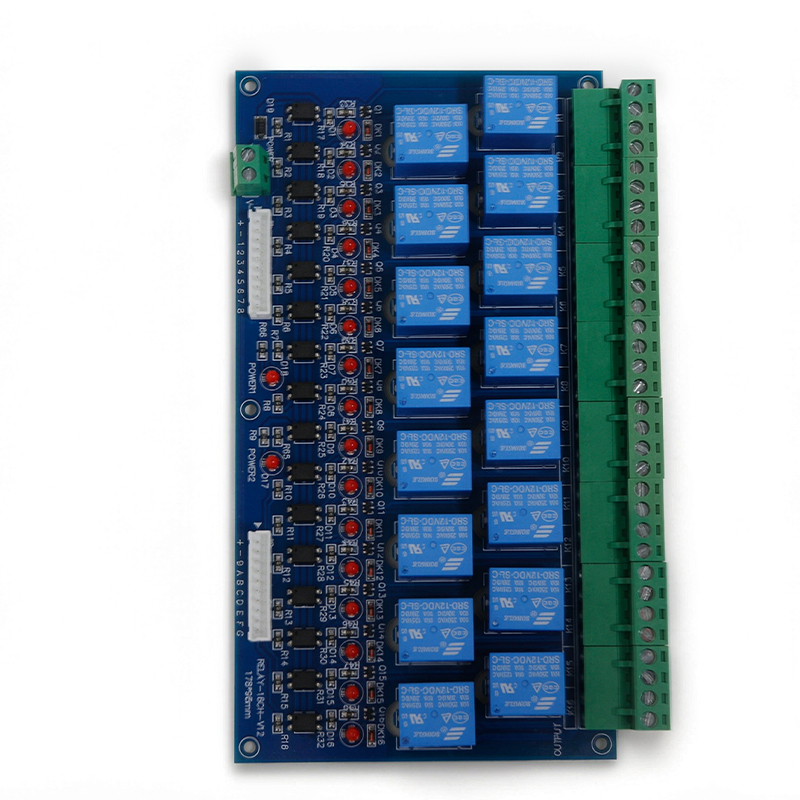

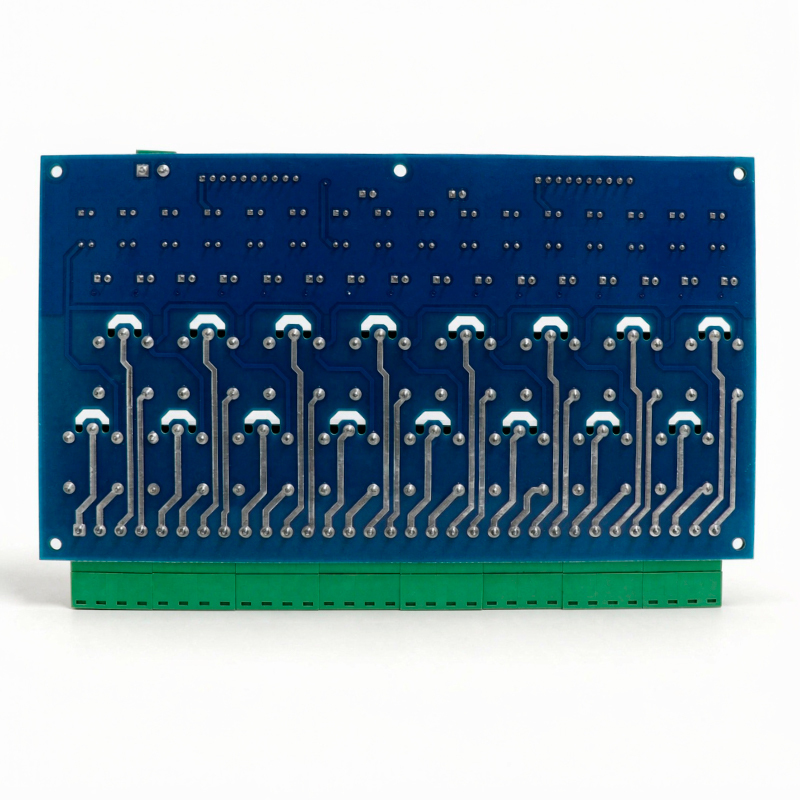

Upgrade your lighting and automation with our 16‑Channel DMX512 Relay Controller. Designed for professionals, it delivers reliable switching for stage lights, motors, pumps, and smart home devices. With 10A per channel (160A total) and support for standard DMX512/RDM protocols, it integrates seamlessly into any setup. Dual 3‑pin and 5‑pin XLR, RS485 interface, and clear LED indicators ensure hassle‑free installation. Built‑in short‑circuit protection and a wide 12‑24V DC input make it safe and versatile. Compact metal housing withstands demanding environments. Perfect for theaters, DJs, event productions, and industrial control. Experience rock‑solid performance and total control—order yours today!
16 Independent High‑Power Relays: 10A per channel, 160A total capacity for heavy‑duty lighting and equipment.
Full DMX512 & RDM Support: Compatible with all standard DMX consoles; remote device management enabled.
Flexible Connectivity: 3‑pin/5‑pin XLR, RS485, and screw‑terminal control input for versatile integration.
Robust Protection & Wide Voltage: 12‑24V DC operation with short‑circuit and over‑current safeguards.
Clear Status Display & Durable Build: LED indicators for each channel; rugged metal housing for stage and industrial use.
|
Item |
Specification |
|---|---|
|
Product Name |
16‑Channel DMX512 Relay Controller |
|
DMX Channels |
16 (each controls one relay) |
|
Protocol |
DMX512 (1990), RDM compliant |
|
Relay Rating |
10A @ 250V AC / 30V DC per channel; 160A total max |
|
Control Interface |
3‑pin XLR, 5‑pin XLR, RS485 (screw terminal) |
|
Power Supply |
12‑24V DC, 2A recommended |
|
Power Consumption |
< 5W (static), < 200W (all relays on) |
|
Display |
LED indicators for DMX signal, power, and each relay status |
|
Address Setting |
DIP switch or digital display (model dependent) |
|
Protection |
Short‑circuit, over‑current, reverse polarity |
|
Housing |
Metal, black, wall‑mountable |
|
Dimensions |
200 × 120 × 45 mm (approx.) |
|
Weight |
850 g |
|
Operating Temp. |
-20°C to 60°C |
|
Applications |
Stage lighting, smart home, industrial automation, motor/pump control |
