The circular PCB design ensures even light diffusion and efficient heat dissipation. Perfect for architectural outlines, signage, stage lighting, and DIY smart decor, this module is easy to install and highly durable. Unleash your creativity and transform any space into a dynamic visual experience with this powerful, energy-efficient pixel light.
Smart Built-in IC: Features an integrated SK6813 control chip, enabling individual addressability and precise color control for each of the 12 LEDs.
Vibrant Full-Color Output: Delivers 24-bit color depth (16.7 million colors) with high-brightness 5050 SMD LEDs for stunning visual effects.
Stable 12V Operation: Designed for 12V DC input, minimizing voltage drop and ensuring reliable performance in large-scale or long-distance installations.
Easy Daisy-Chain Connection: Single-line data transmission with DIN/DOUT ports allows for seamless cascading of multiple modules without complex wiring.
Versatile & Durable Design: Compact 40mm round form factor with clear polarity and signal flow markings, ideal for both indoor decor and outdoor weatherproof enclosures.
|
Parameter |
Specification |
|---|---|
|
Product Name |
12V SK6813 12-LED RGB Pixel Module |
|
LED Type |
12 x 5050 SMD RGB LEDs |
|
IC Model |
SK6813 (Built-in, 12V version) |
|
Input Voltage |
DC 12V |
|
Control Protocol |
Single-wire NZR (Compatible with SK6812/WS2812B) |
|
Color Resolution |
256 levels per color (16.7 million colors) |
|
Dimensions |
Diameter: 40mm (1.57 inches) |
|
Connector |

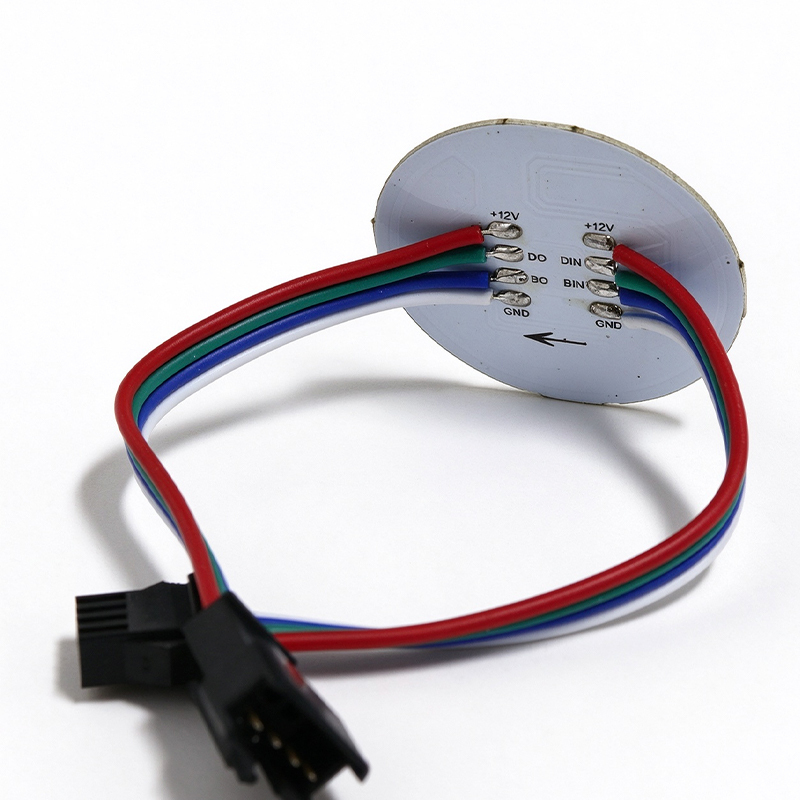

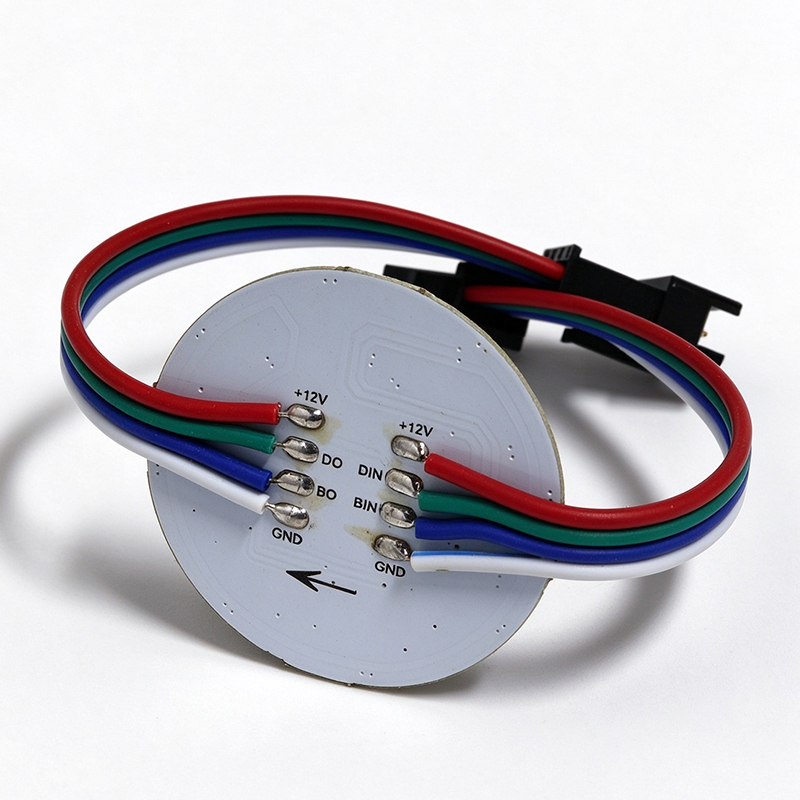

4-pin (V+, GND, DIN, DOUT) |
|
Cascading |
Supports break-point continuous transmission |
|
Viewing Angle |
120° |
|
Applications |
Advertising signs, architectural lighting, stage effects, DIY projects |
