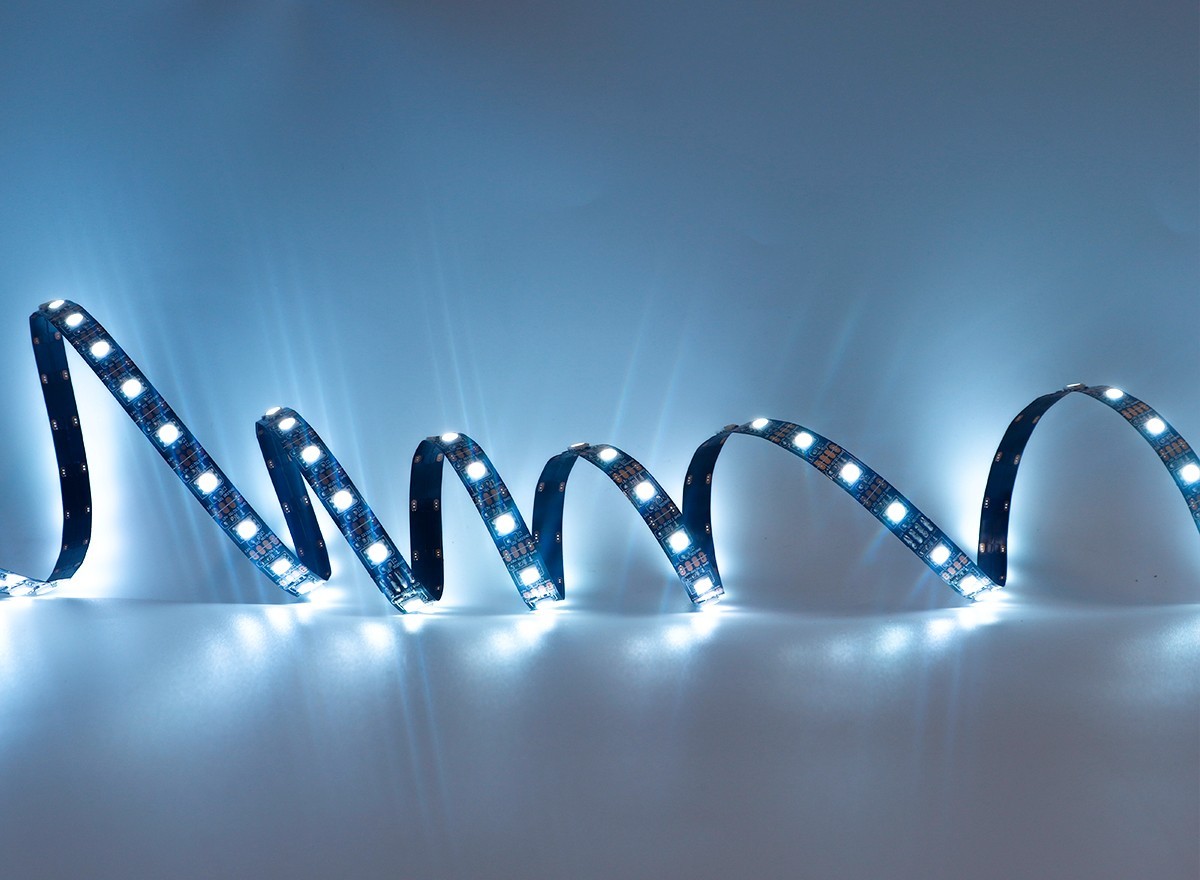

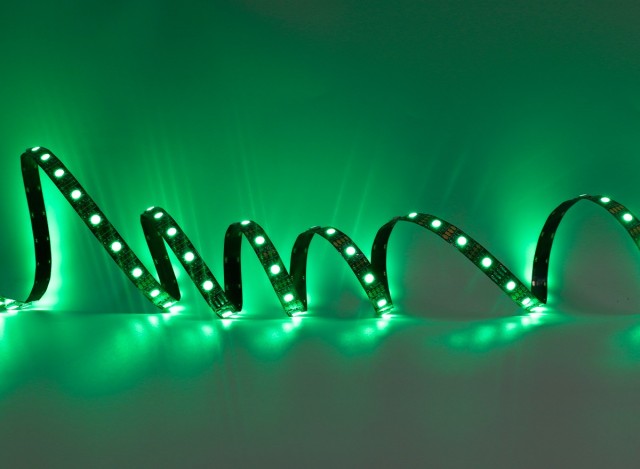

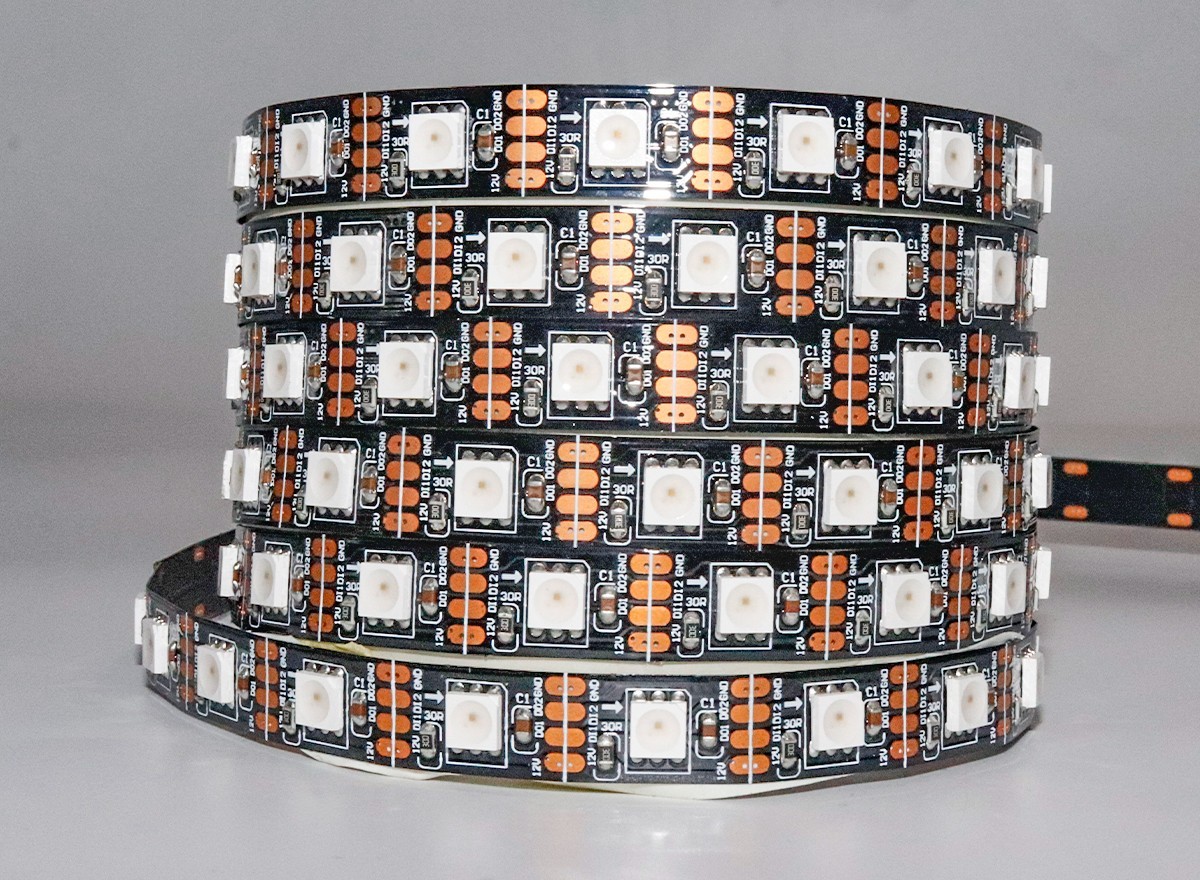

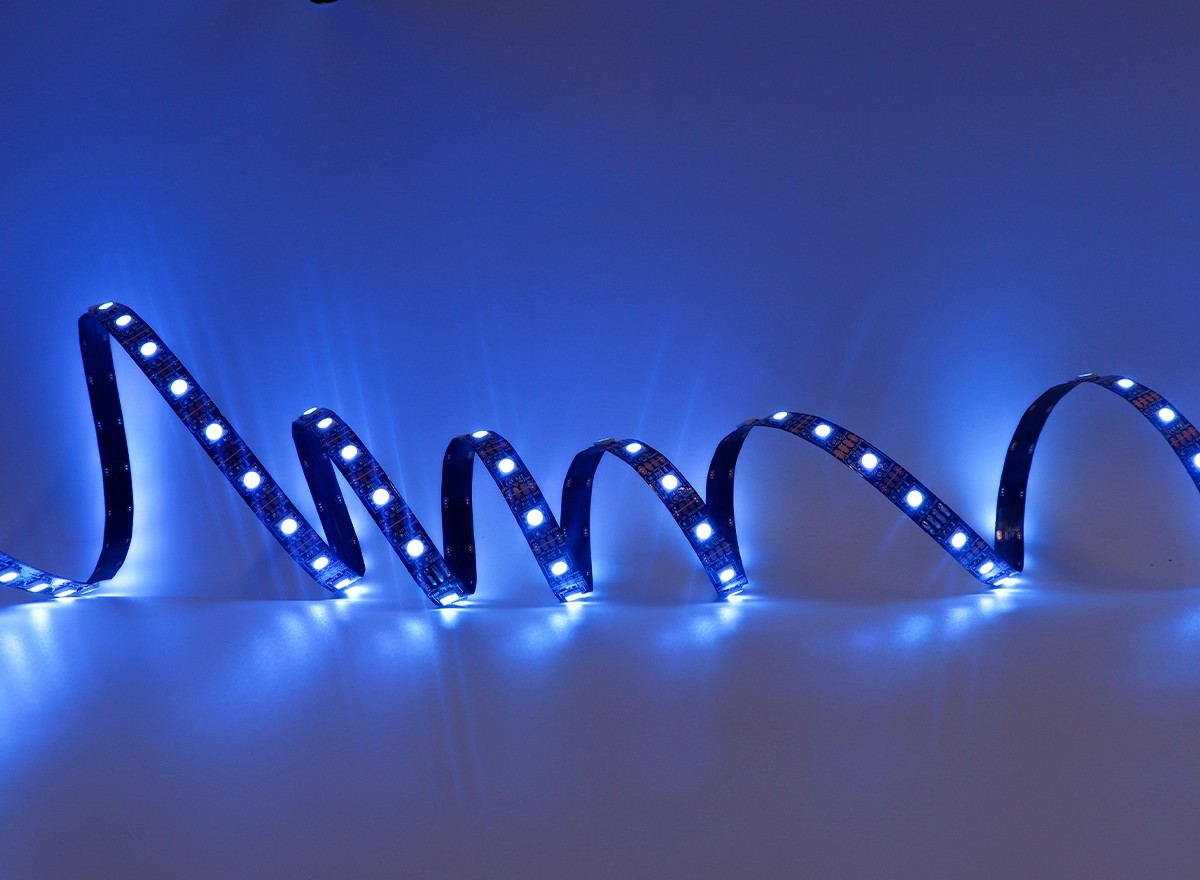

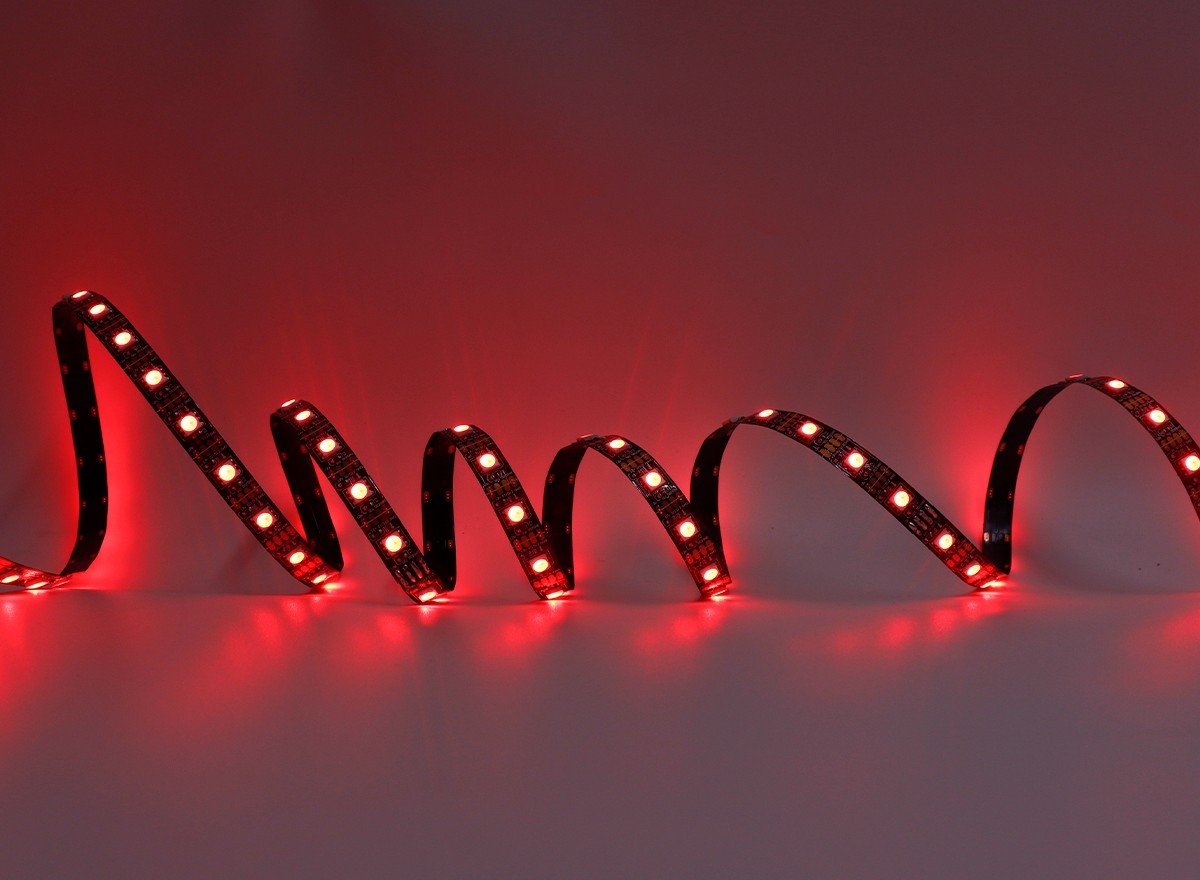

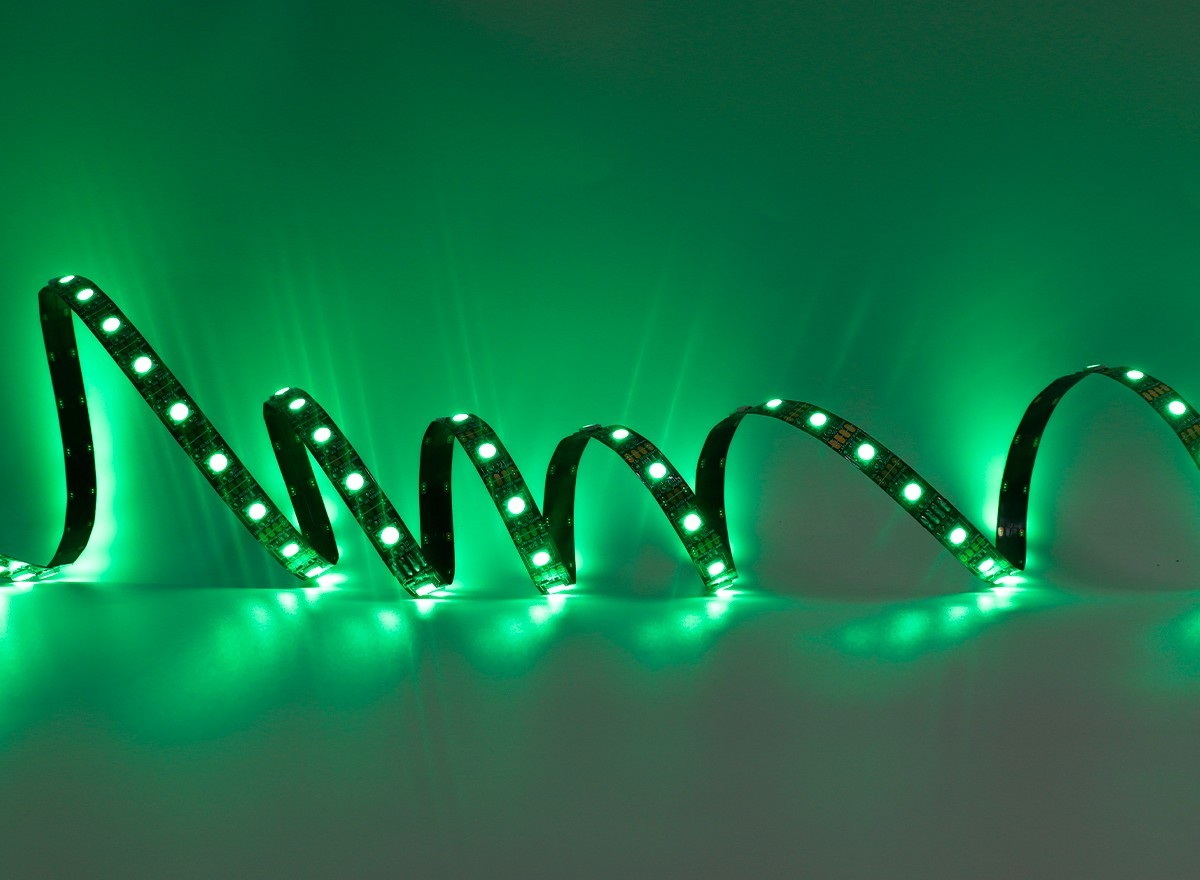

This DC12V GS8208 5050 RGB strip delivers 60 addressable pixels per meter with a built-in constant-current IC in every 5050 LED. Unlike 5V pixel strips, it runs on 12V for much lower current and longer stable runs, while the dual data lines (DI + BI) give true breakpoint resume—one dead pixel won’t kill the chain. GS8208 adds 12-bit built-in gamma and up to 8kHz PWM, so fades look smoother and camera flicker is minimal. Cut every 16.6mm, 10mm white/black PCB, IP20–IP67 options. Drive it from K-1000C, T-1000S, DMX decoder, ArtNet or Madrix. Ideal for building outlines, bars, KTV, retail signs, stages and permanent installs where 5V strips would need constant power injection.
60 Pixels/m Single Control: 1 GS8208 IC = 1 5050 RGB LED, 256 gray/channel, 24-bit color, chase/gradient/text/3D effects.
Breakpoint Resume: DI + BI redundant data; single IC fault is bypassed, chain continues unless two adjacent pixels fail.
12V Long-Run Friendly: Less current than 5V SK6812/WS2812B; 5m roll usually fine from one end-feed, fewer power injections on big jobs.
Smooth Dimming & Camera Safe: 12-bit internal gamma, 800kbps e-RZ, PWM up to 8kHz—better low-brightness gradients and less video flicker than 2kHz WS2815.
Pro Install Form Factor: 10mm PCB, cut every 16.67mm, 4-pin 12V/GND/DI/BI, 3M adhesive, white/black board, IP20/IP65/IP67, SD/DMX/ArtNet/Madrix ready.
|
Item |
Specification |
|---|---|
|
LED Type |
SMD 5050 RGB |
|
IC |
GS8208 (external or 5050-integrated version, constant-current) |
|
Density |
60 LEDs/m = 60 pixels/m |
|
Voltage |
DC 12V (9–15V operating range) |
|
Power |
~9.0 W/m typical / 14.4 W/m max |
|
Current |
~1.2 A/m typical, ~1.2 A/m full white (constant-current IC) |
|
Cut Unit |
Every 1 LED / 16.67 mm |
|
PCB Width |
10 mm (white / black) |
|
Color |
RGB, 256 gray/channel, 16.7M colors |
|
Signal |
e-RZ code, 800 kbps, no clock line |
|
Data Lines |
DI (main) + BI (backup / breakpoint resume) |
|
Gamma / PWM |
12-bit built-in gamma, PWM up to 8 kHz |
|
Wiring |
12V / GND / DIN / BIN (4-pin JST-SM) |
|
Beam Angle |
120° |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 optional |
|
Controller |
K-1000C, T-1000S, DMX512 decoder, ArtNet, Madrix, LEDEdit |
|
Run Rule |
5m one-feed OK; longer runs inject 12V/GND midway |
|
Lifespan |
50,000 hrs |
|
Note |
Addressable + breakpoint resume; RGB only, not RGBW; BI to GND on WS281x-style controllers |
