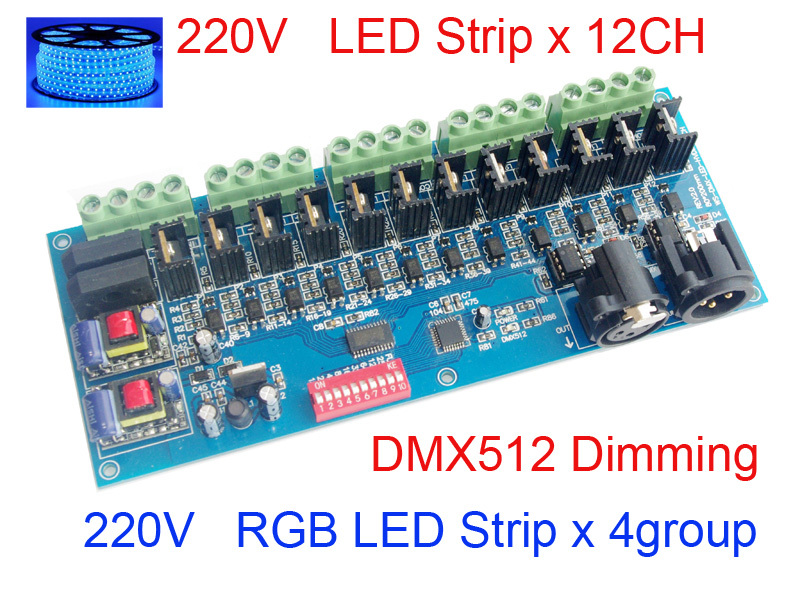

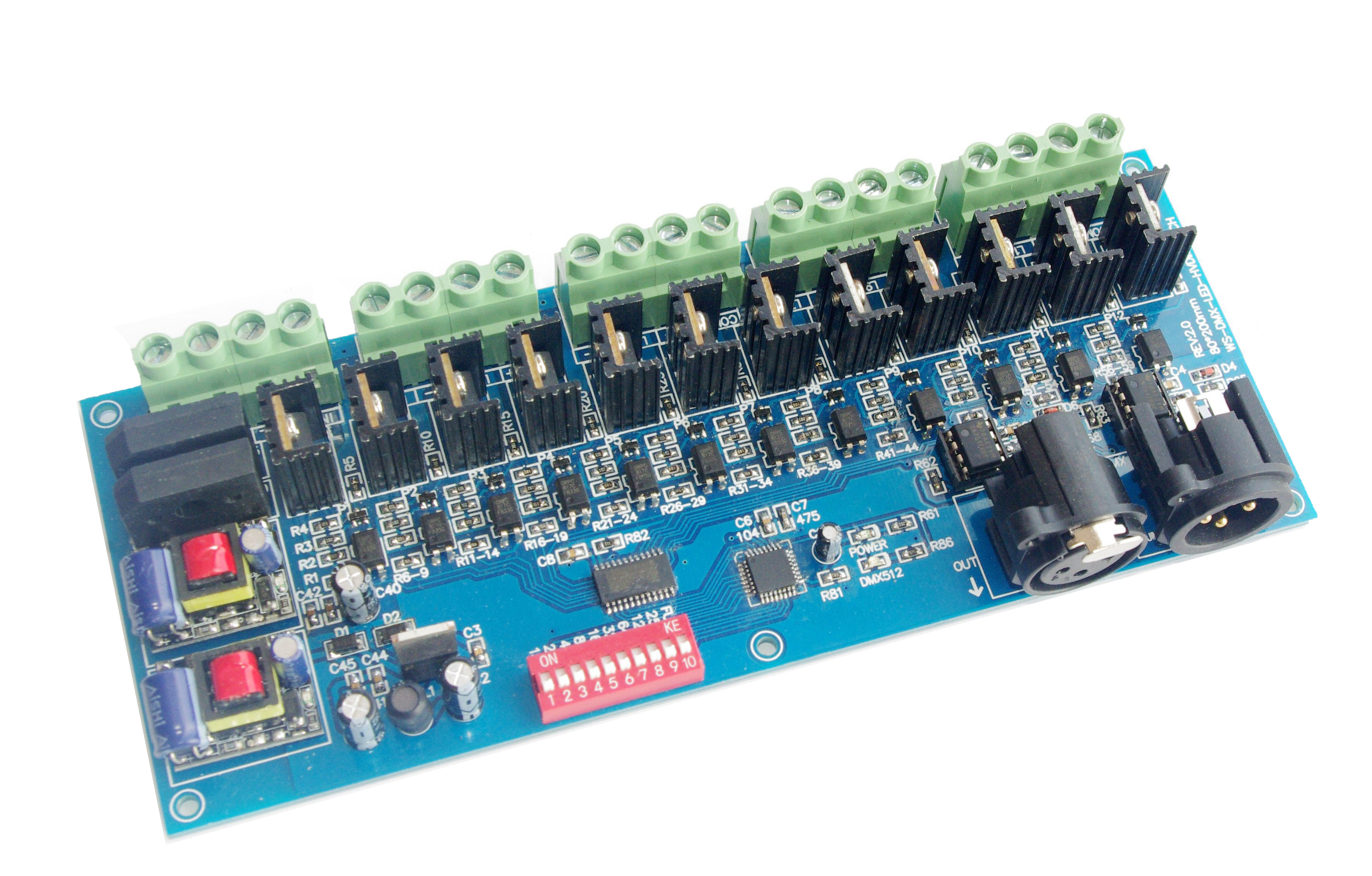

12CH LED DMX HV Dimmer AC110V/220V, DMX512 Decoder for Dimmable AC LED

No.DMX-LED-HVDIM-12CH

The DMX-LED-HVDIM-12CH (WS-DMX-HVDIM-12CH) is a 12-channel DMX512 high-voltage dimmer decoder for AC110V/220V 50Hz lighting, including dimmable AC LED fixtures. It occupies 12 DMX addresses, sets start address via binary DIP (1/2/4/8/16/32/64/128/256 + FUN), and provides up to 5A per channel. With 200×80×35mm size and 180g weight, it suits stage, architectural, commercial and decorative lighting. DMX pass-through aids daisy-chain install.

12-Channel HV DMX Dimming: Drives AC110V/220V loads from DMX512 control.
LED Dimmable Focus: Positioned for dimmable AC LED/compatible phase-dimmable lamps (verify fixture spec).
5A Per Channel: Rated 5A/channel; suitable for multi-zone dimmer packs (observe total load/thermal).

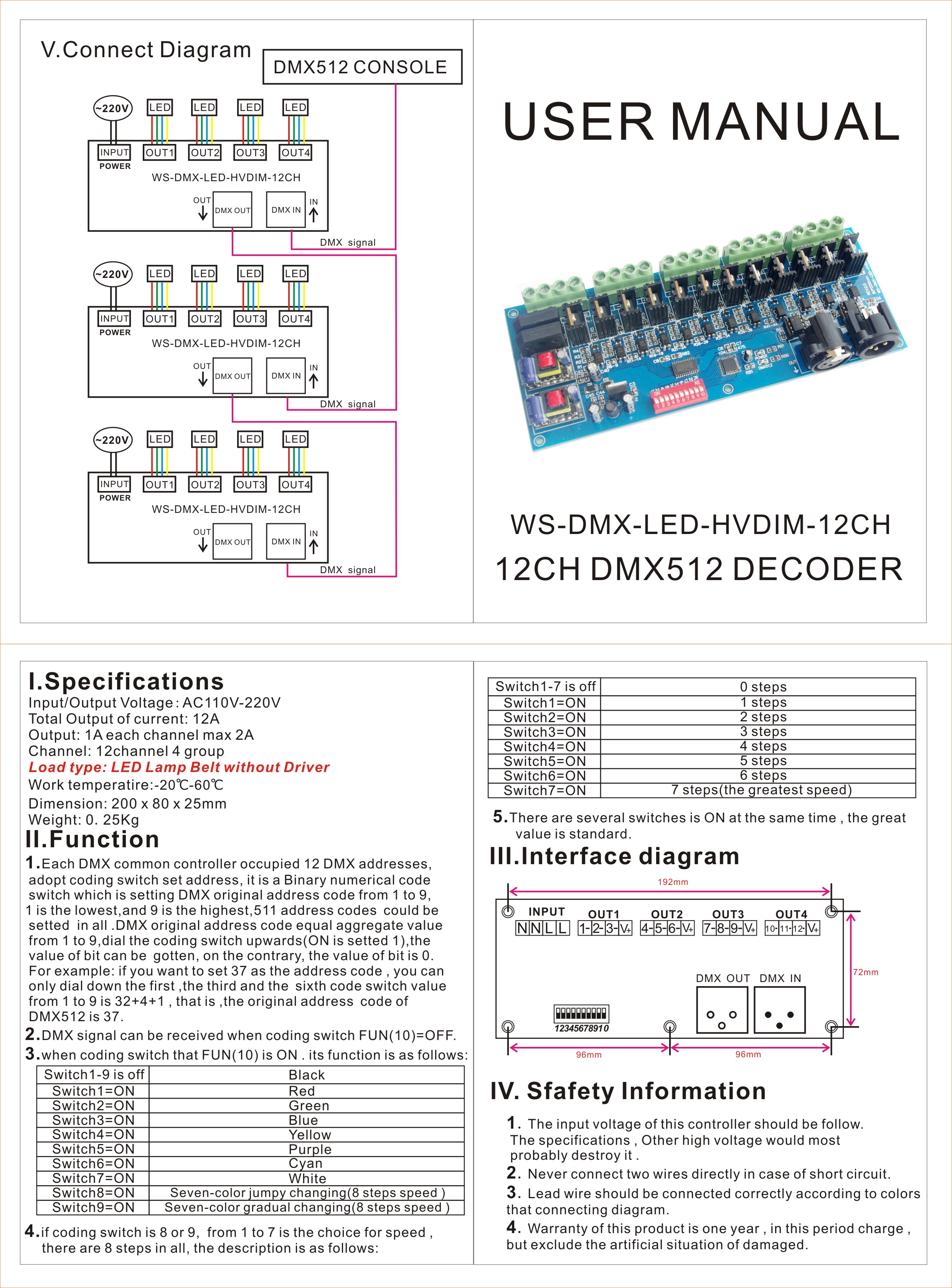

DIP Address/Mode: Binary address setting + FUN(10) for test/speed behaviors per manual.
Daisy-Chain Wiring: DMX signal interface/OUT for multi-unit lighting system deployment.

1-9 pcs

$58.88

10-999 pcs

$54.88

>=1000 pcs

$49.88

GET A QUOTE

Download

View all downloads

Parameter	Specification
Product Name / SKU	DMX-LED-HVDIM-12CH
Alt. Label (per image)	WS-DMX-HVDIM-12CH / 12CH DMX512 DECODER
Control Signal	DMX512 (DMX IN/DMX OUT / POWER-DMX per diagram)
Input Power	~AC110V-220V, 50Hz (mains/AC)
Output	12-channel AC dimming output (OUT 1–12)
Output Current	5A per channel (per manual)
DMX Footprint	Occupies 12 DMX addresses
Address Setting	DIP: +1/+2/+4/+8/+16/+32/+64/+128/+256, FUN(10)
Working Temp.	-20℃ ~ 60℃
Size	L200 × W80 × H35 mm
Weight	180 g
Application	Dimmable AC LED, stage dimming, architectural lighting, commercial decor
Safety Note	Mains voltage; no short; follow local electrical code; don’t connect AC to DMX; check DMX A/B & 120Ω termination; confirm dimming compatibility
