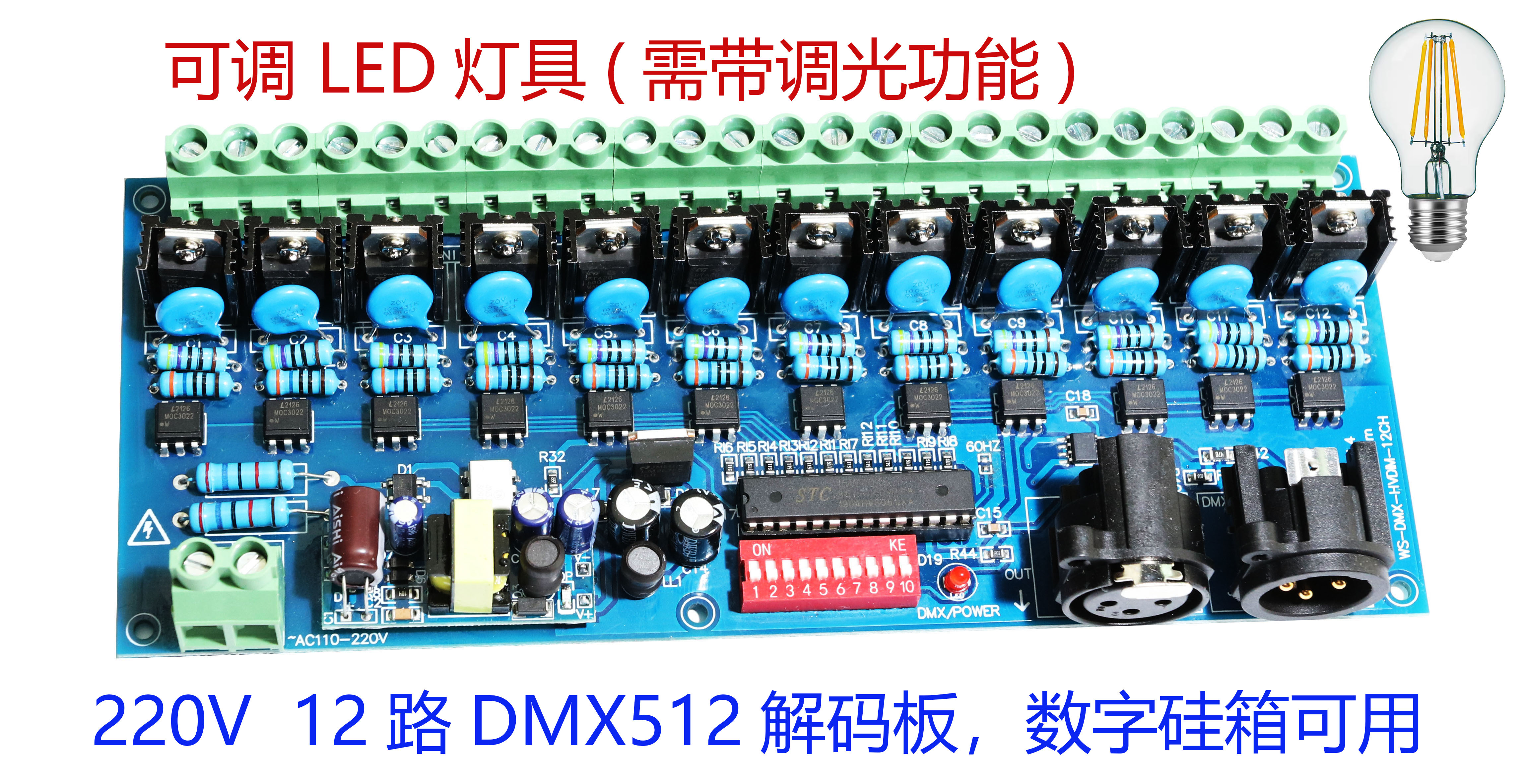

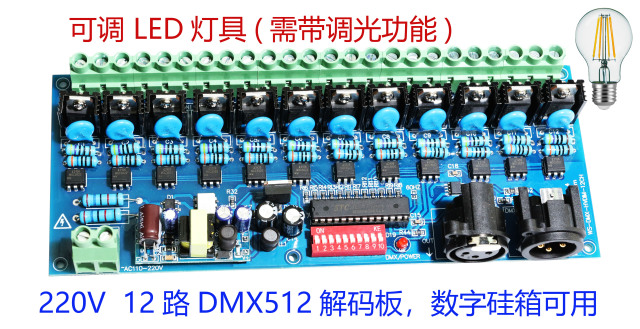

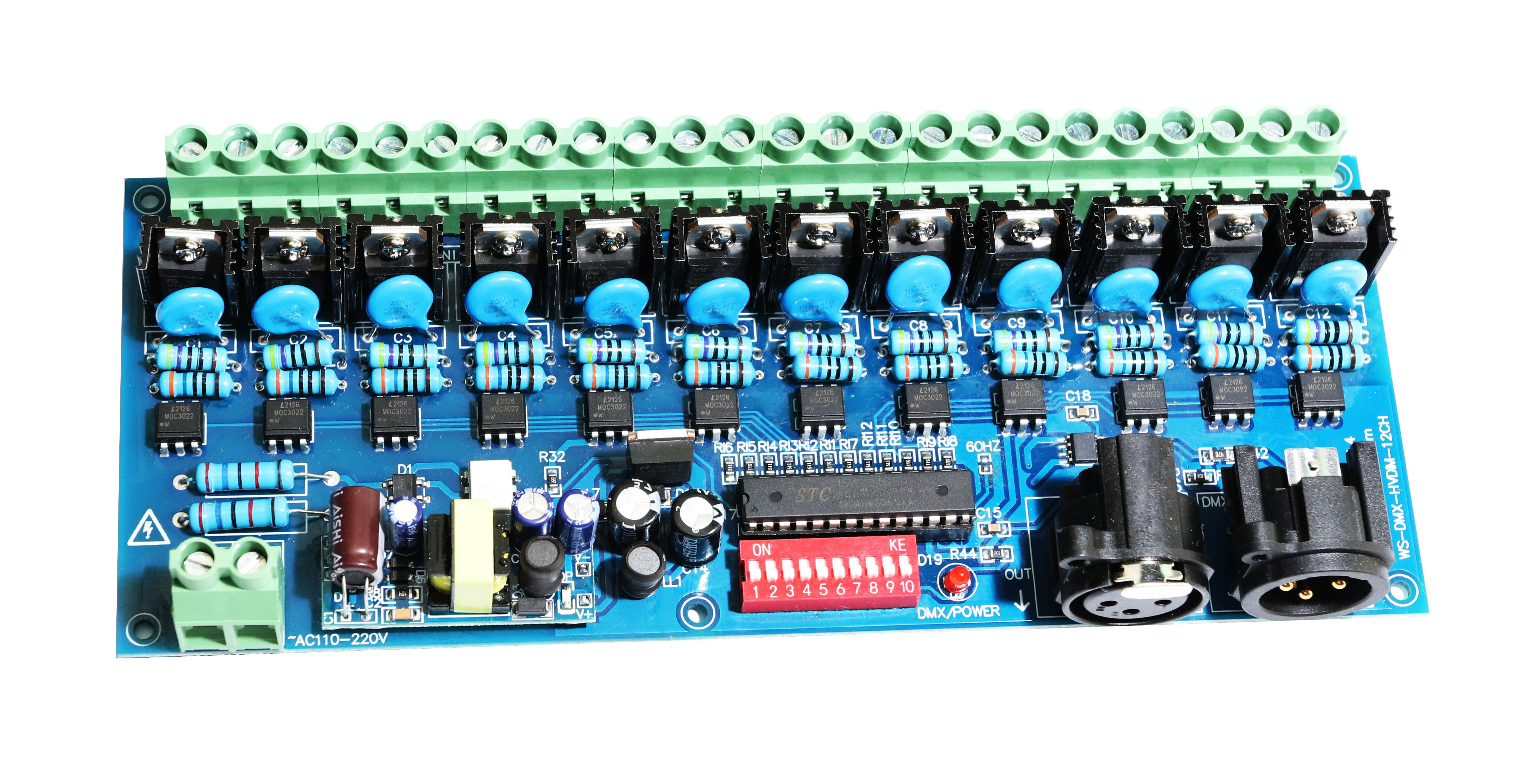

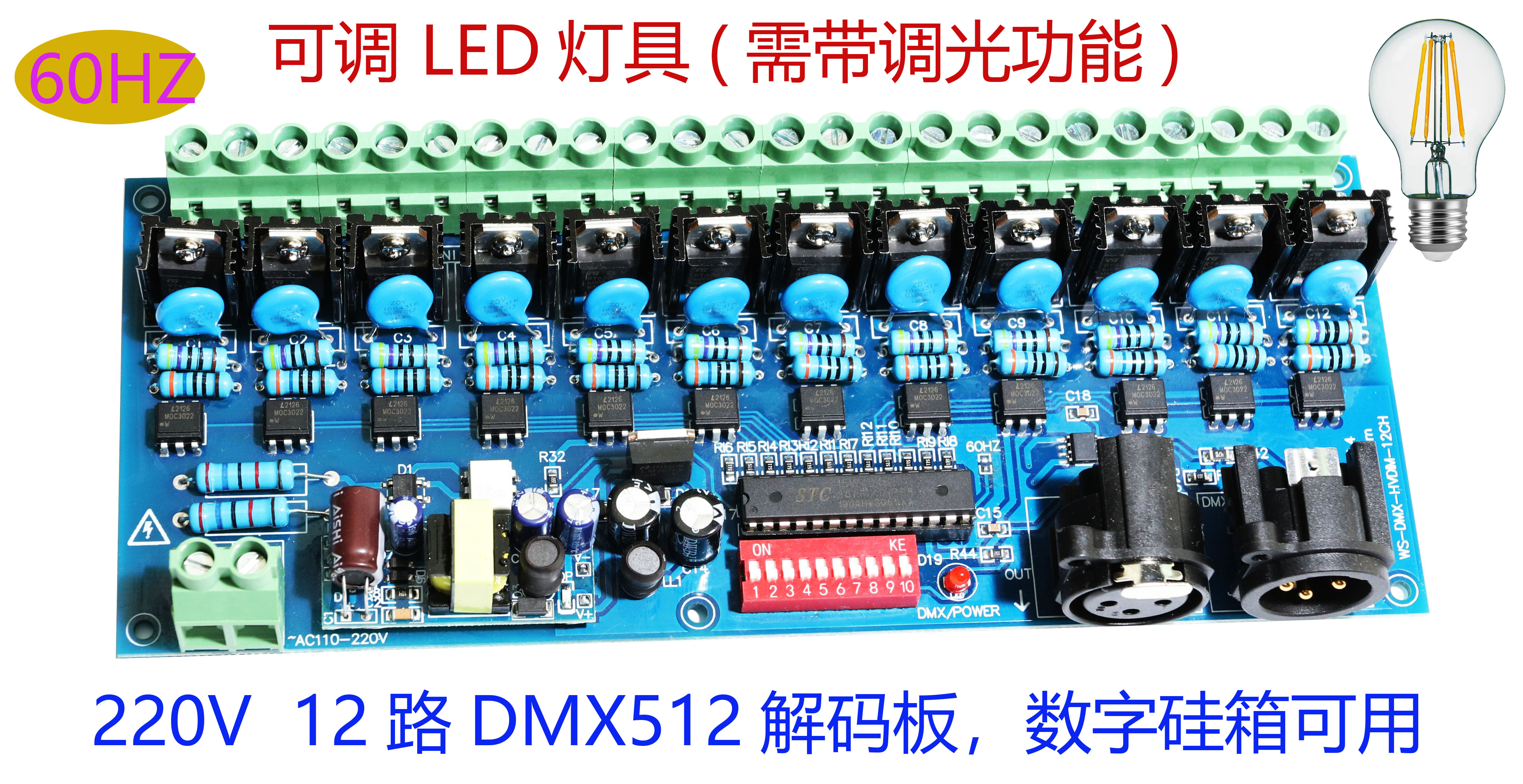

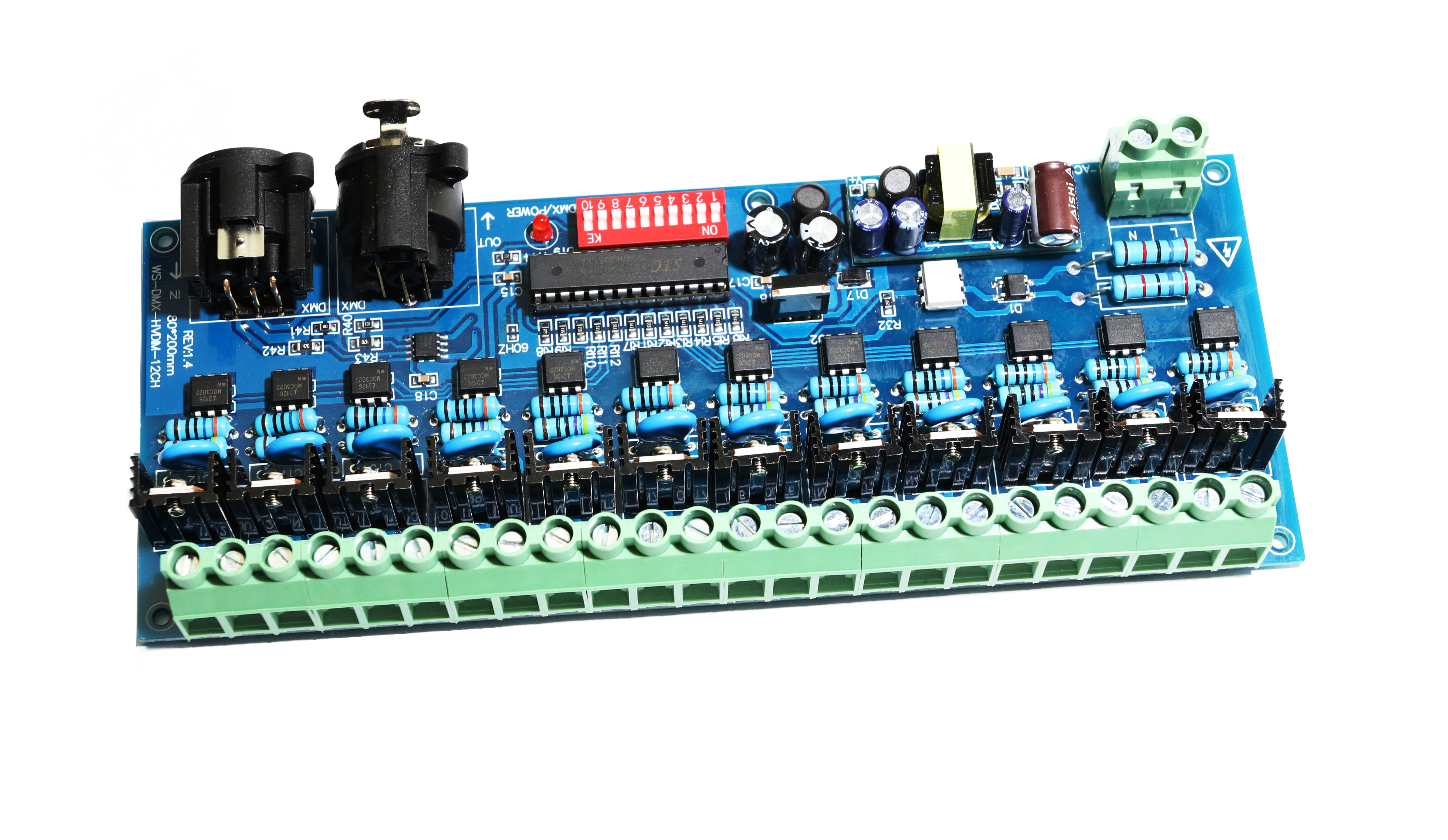

The DMX-HVDIM-12CH (WS-DMX-HVDIM-12CH) is a 12-channel DMX512 high-voltage dimmer decoder for AC110V/220V 50Hz lighting loads, including dimmable AC LED fixtures. It occupies 12 DMX addresses, sets start address via DIP (1/2/4/8/16/32/64/128/256 + FUN), and delivers up to 5A per channel. With 200×80×35mm size and 180g weight, it suits stage, architectural, commercial and decorative lighting. DMX IN/OUT enables daisy-chain wiring. Installers must follow mains safety, avoid shorts, confirm load dimming compatibility, and plan DMX channels to prevent overlap across multiple decoders.
12-Channel HV Dimming: Controls AC110V/220V loads via DMX512, for larger dimmer packs.
LED Dimmable Note: Targeted at dimmable AC LED/compatible AC lamps (verify compatibility).
5A/CH Rating: Up to 5A per channel (plan total load & heat/ventilation accordingly).

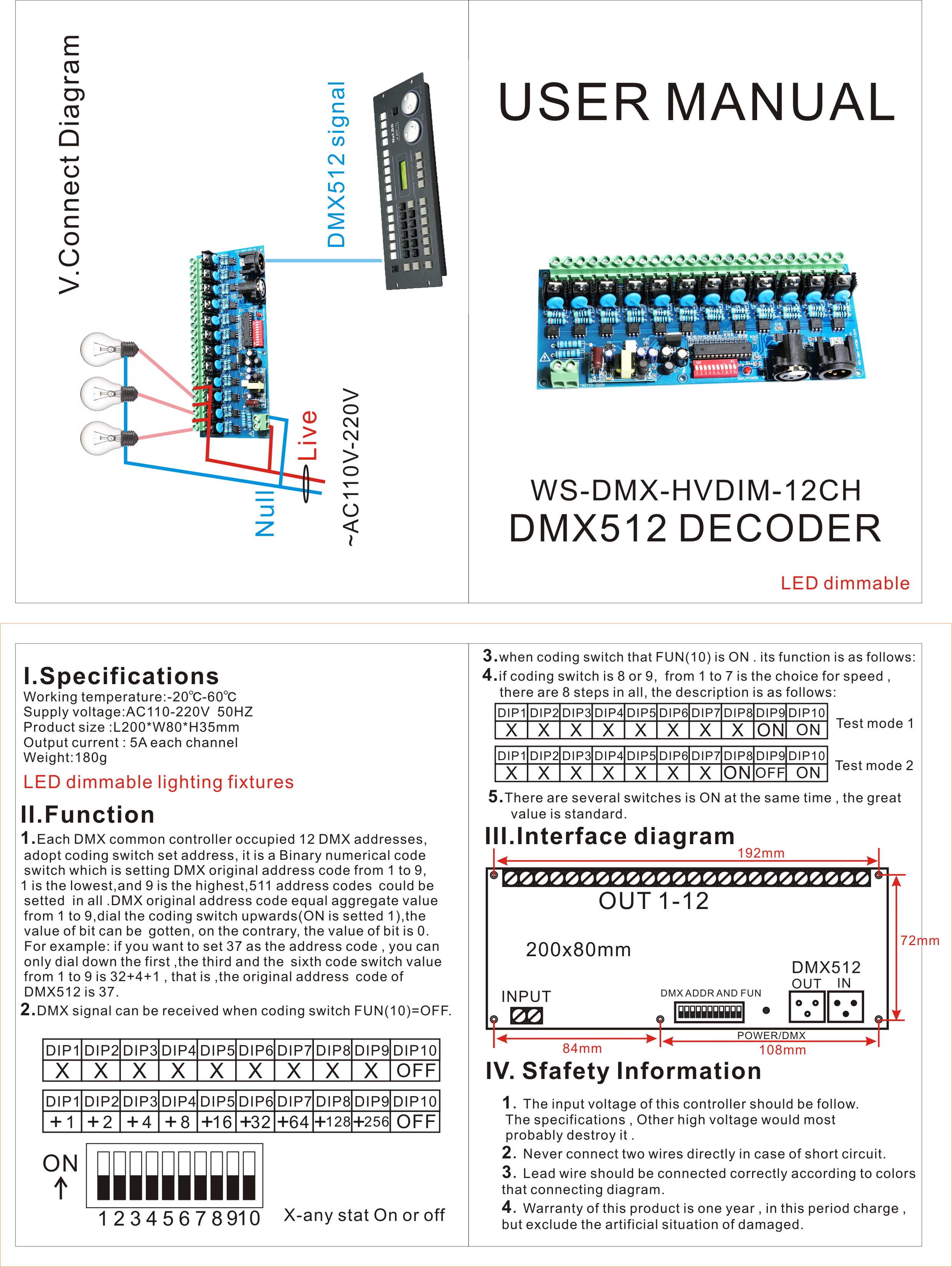

DIP Address/Mode: Binary address + FUN(10) for test/speed behavior per manual.
Daisy-Chain Ready: DMX signal pass-through for multi-unit/lighting-system deployment.
|
Parameter |
Specification |
|---|---|
|
Product Name / Tag |
12CH DMX512 HV Dimmer Decoder / DMX-HVDIM-12CH |
|
Alt. Label (per image) |
WS-DMX-HVDIM-12CH |
|
Control Signal |
DMX512 (DMX IN/DMX OUT or POWER/DMX per diagram) |
|
Input Power |
~AC110V-220V, 50Hz (mains/AC) |
|
Output |
12-channel AC dimming output (OUT 1–12) |
|
Output Current |
5A per channel (per manual) |
|
DMX Address Footprint |
Occupies 12 DMX addresses (start address via DIP) |
|
Address Setting |
DIP: +1/+2/+4/+8/+16/+32/+64/+128/+256, FUN(10) |
|
Working Temp. |
-20℃ ~ 60℃ |
|
Size |
L200 × W80 × H35 mm |
|
Weight |
180 g |
|
Application |
Stage dimming, architectural lighting, AC LED dimmable fixtures, commercial decor |
|
Safety Note |
Mains voltage; no short; follow local electrical code; don’t connect AC to DMX; check DMX A/B & 120Ω termination |
