Its compact 216mm width mounts easily on a standard 35mm DIN rail, providing a reliable, high-density solution for commercial and industrial lighting control.
High-Density Control: Manages 12 independent lighting zones in a single compact DIN rail unit.
Robust Capacity: Each of the 12 channels supports up to 16A continuous (20A max) load.
Seamless Integration: Standard RS485 and Modbus-RTU protocol ensure compatibility with major BMS and smart home hubs.
Emergency Ready: Built-in fire linkage function allows for forced ON/OFF operations during safety emergencies.
Local Management: Onboard digital display and keys allow for manual override and parameter setting without a host controller.

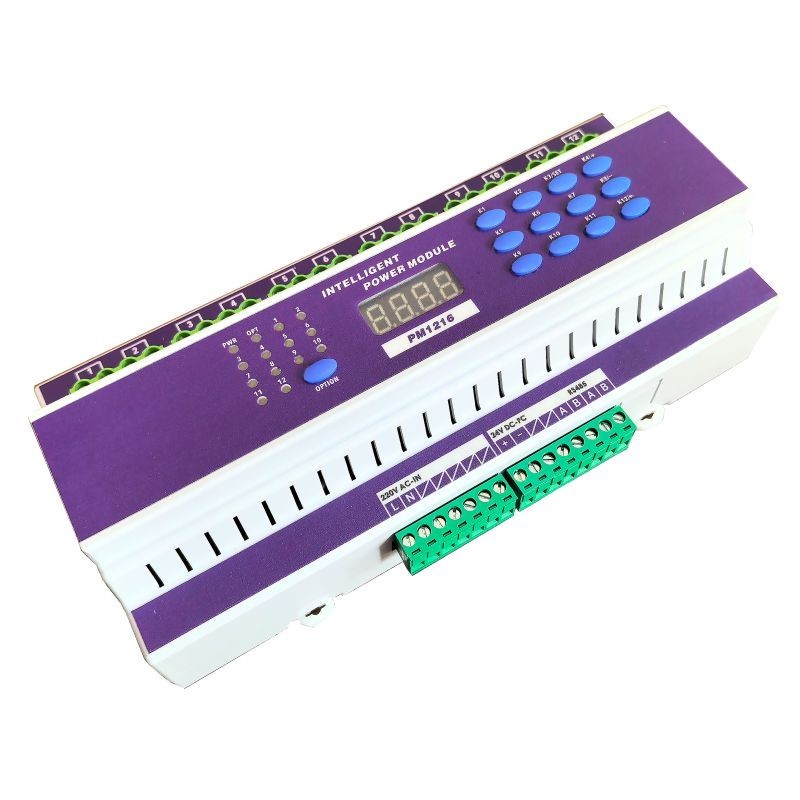

PM1216 12-Zone Intelligent Lighting Module
|
Category |
Specification |
|---|---|
|
Model |
PM1216 |
|
Input Voltage |
220V AC (Module Power Supply) |
|
Output Specs |
12 Channels, 20A / 250V AC Max (Rated 16A) |
|
Communication |
RS485, Modbus-RTU Protocol |
|
Control Mode |
Remote (Modbus), Local Keys, Fire Linkage |
|
Display |
Digital Tube (Address & Status) |
|
Functions |
Delay Switch, Power-on Default, All ON/OFF |
|
Baud Rate |
Configurable (Default: 9600bps) |
|
Safety Feature |
Fire Alarm Linkage (Forced ON/OFF) |
|
Installation |
35mm Standard DIN Rail |
|
Dimensions |
216 × 104 × 66 mm (L × W × H) |
|
Protection |
Over-current protection (Circuit Breaker required) |
