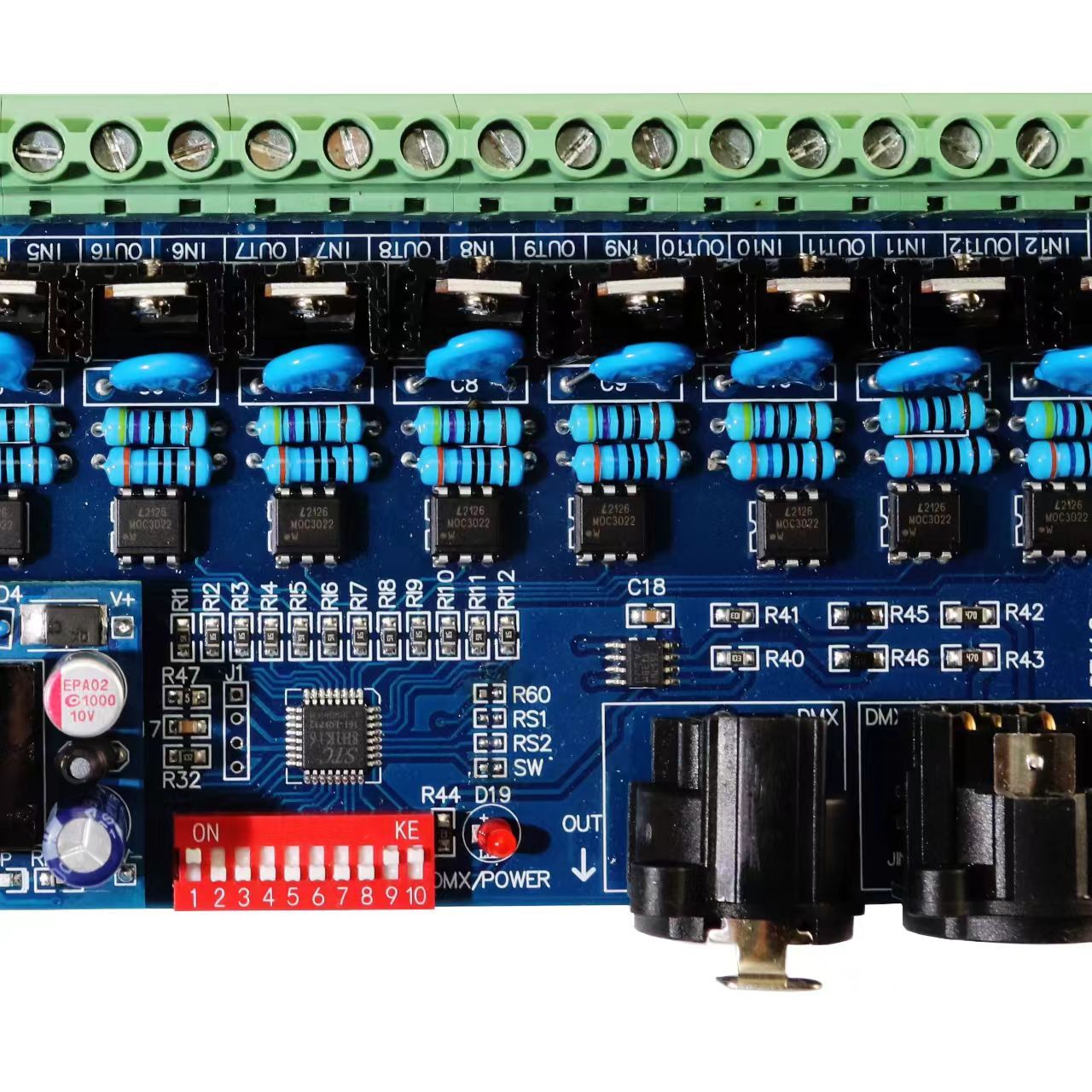

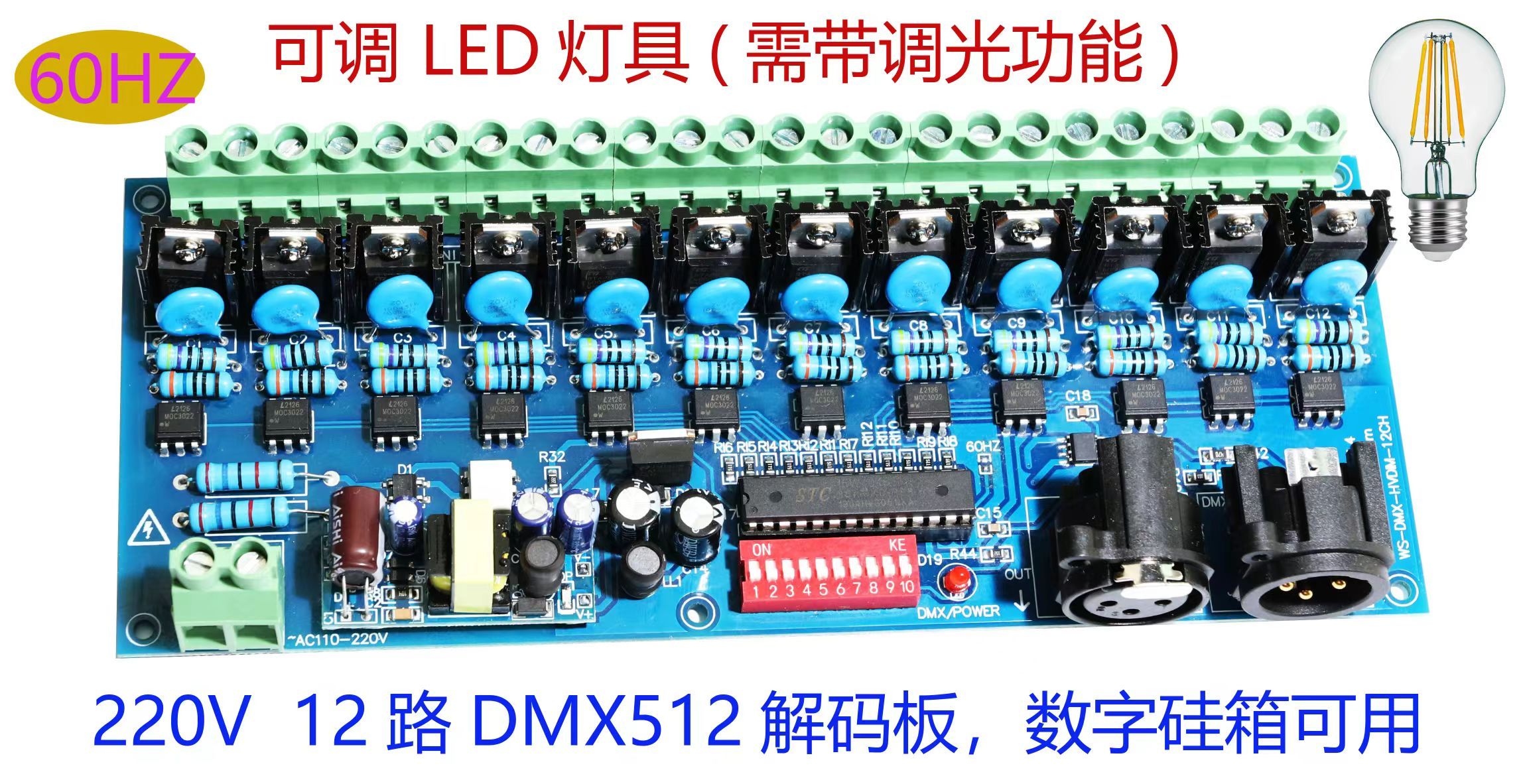

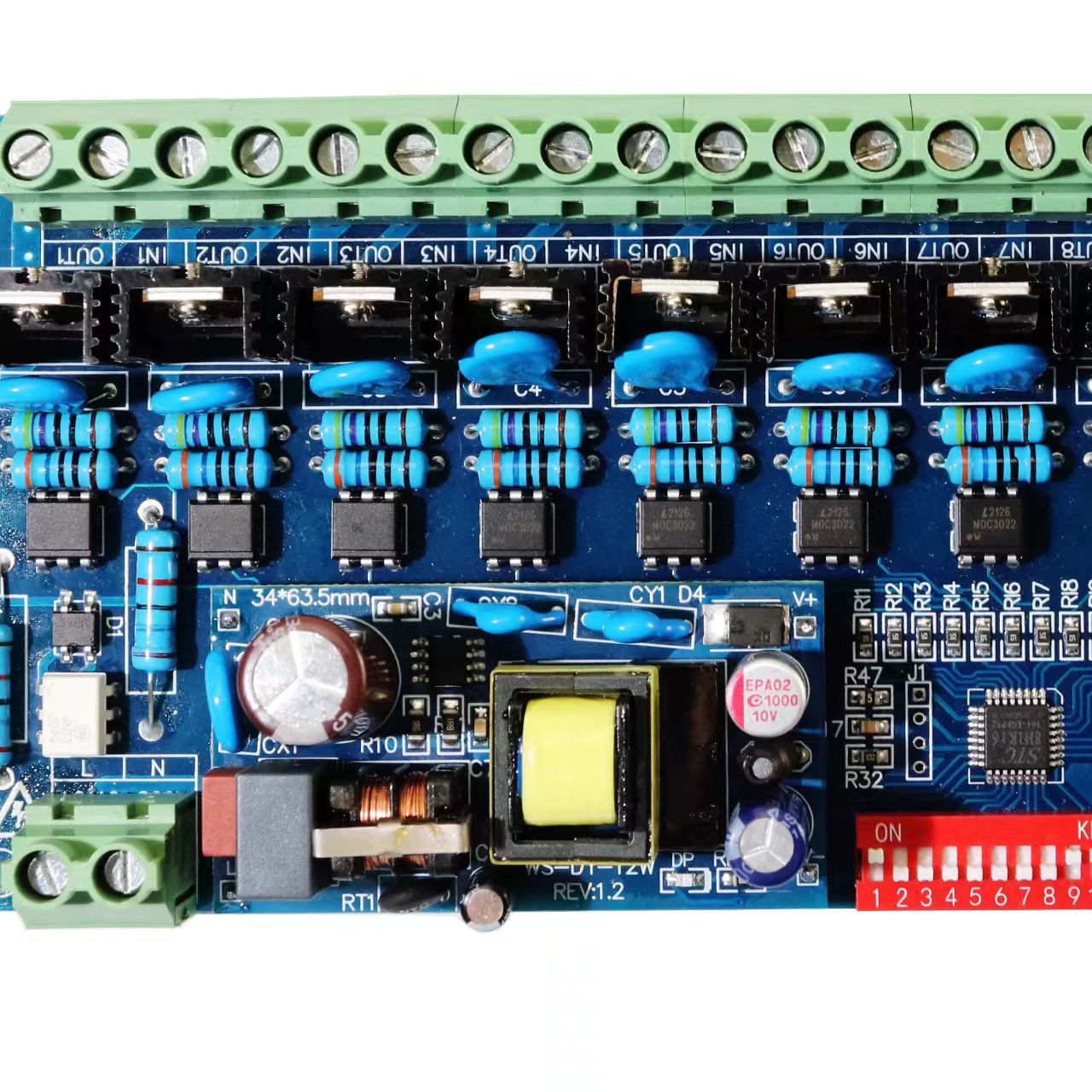

Dim 12 mains-powered lamps from one DMX line. This 12-channel DMX512 digital dimmer uses triac/SCR phase-cut technology to smoothly control incandescent, halogen, and properly labeled dimmable LED lamps. Small boards often run AC110-220V at 5A/ch; pro silicon boxes run AC220V single-phase or AC380V three-phase at 3kW/4kW per channel. DMX value maps to 0–100% brightness with linear/S-curve/square dimming curves, lamp preheat, soft-start, and signal-loss hold. CE-certified versions add opto-isolated DMX, MCB/fuse protection, RFI choke, and LCD addressing. Perfect for theaters, churches, KTV, bars, wedding halls, and façade warm-light dimming. Do NOT connect RGB/COB/pixel LED strips—those need PWM or SPI controllers, not a SCR dimmer.
12 Independent Triac Channels – Occupy 12 DMX addresses; console faders become lamp brightness.
Mains Dimming, Not Switching – 0–100% phase-cut dimming; smoother than relay ON/OFF.
Incandescent / Halogen / Dimmable LED – Resistive loads safest; dimmable-LED only if driver supports phase-cut.
Protections Built-In – Preheat, soft start, over-current MCB/fuse, over-temp, zero-cross detection, RFI choke; CE versions add opto-isolation.
Venue Grade – DMX IN/THRU, LCD/DIP address, linear/S/square curves, scene hold; single-phase 220V or 3-phase 380V models.
|
Parameter |
Compact Board |
Pro Silicon Box |
|---|---|---|
|
Channels |
12 |
12 |
|
Input |
AC 110–220V, 50/60Hz |
AC220V±10% single-phase / AC380V±10% 3-phase 5-wire |
|
Tech |
Triac / SCR phase-cut |
Triac / SCR + inductor + zero-cross |
|
Load / CH |
5A (≈1100W@220V) |
3kW / 4kW (10A–16A) |
|
Total |
60A board limit |
36kW–48kW cabinet |
|
Protocol |
DMX512/1990 |
DMX512/1990, some RDM |
|
DMX Slots |
12 |
12 |
|
Dimming |
256-step |
256 / 4096-step |
|
Curves |
Linear / on-off |
Linear / Square / S / custom |
|
Preheat |
No / fixed |
0–25 / 255 adjustable |
|
Protection |
Fuse |
MCB, short-circuit, over-temp, RFI choke |
|
Signal |
XLR/RJ45 + screw terminal |
XLR IN/THRU, LCD |
|
Cert |
CE claimed |
CE/RoHS/ISO on pro models |
|
Use |
DJ/KTV/small stage |
Theater/broadcast/large rig |
