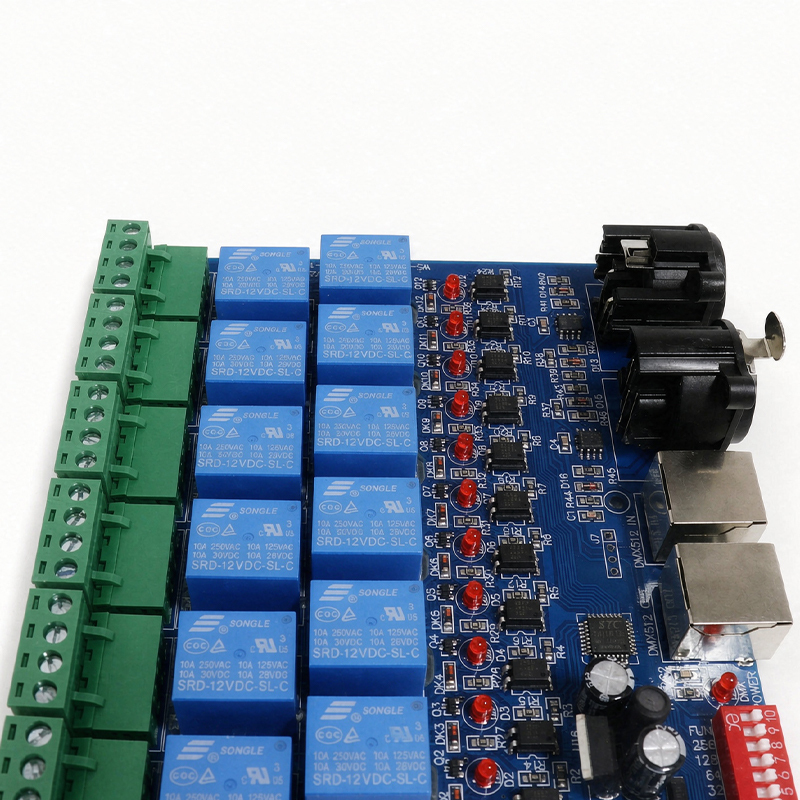

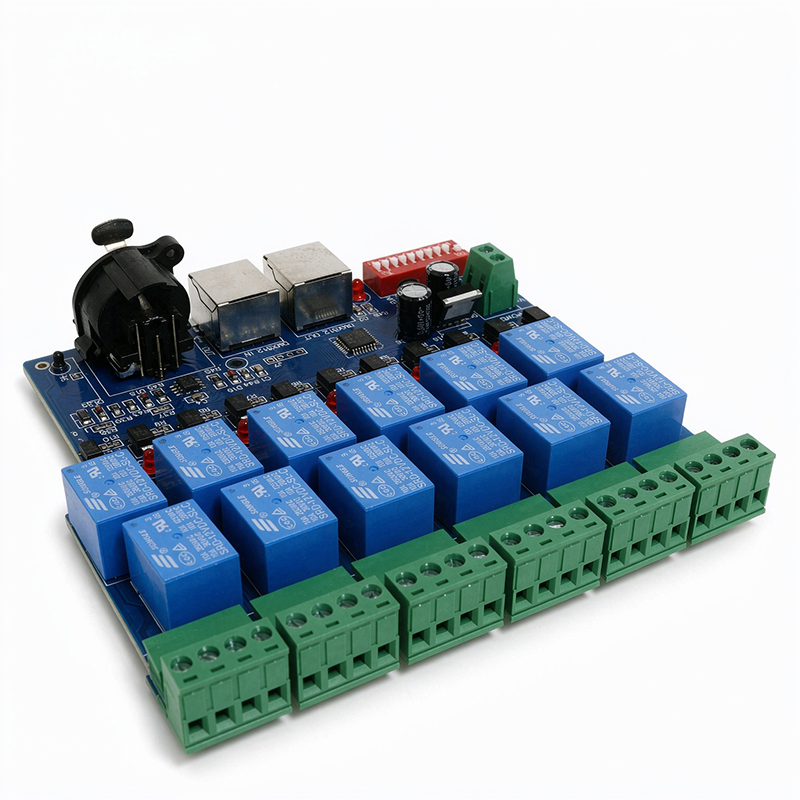

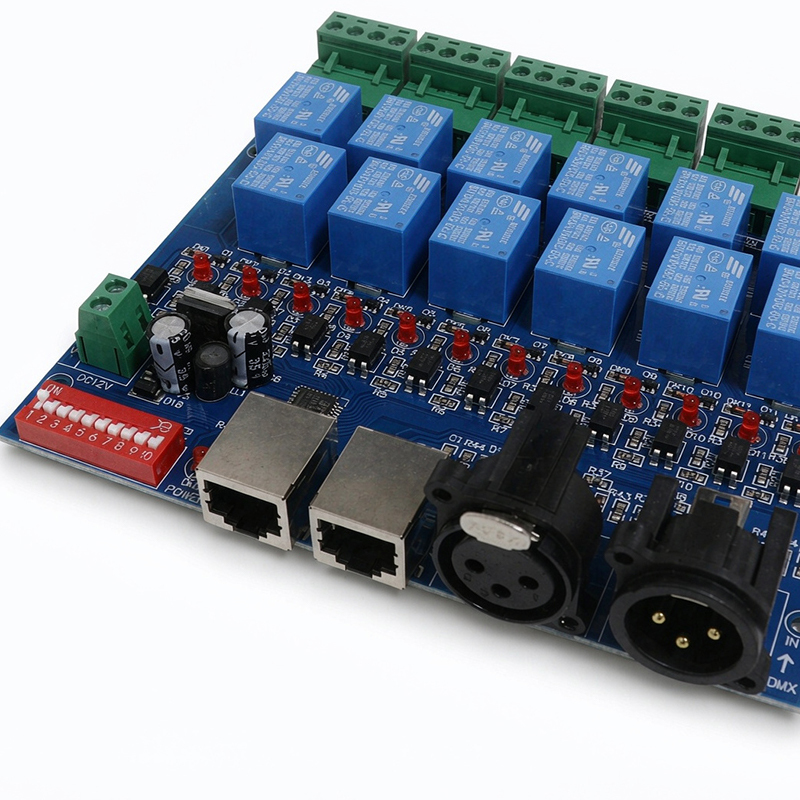

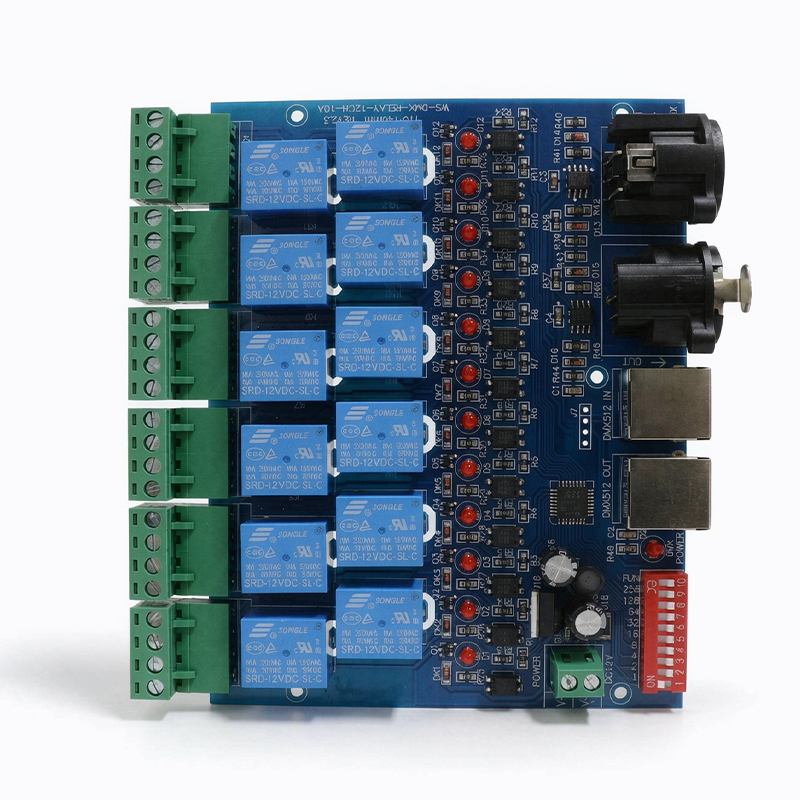

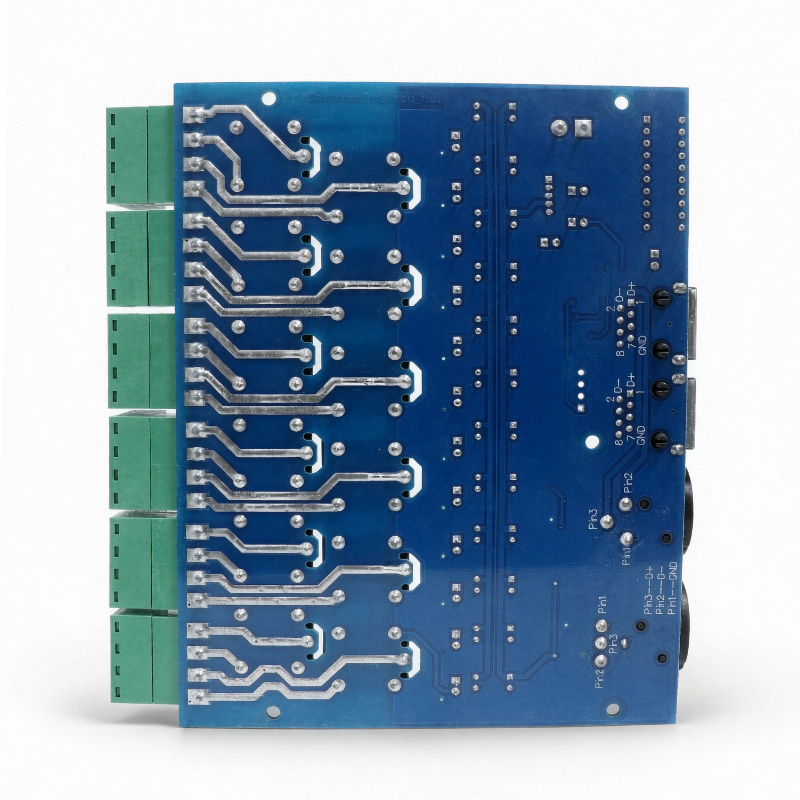

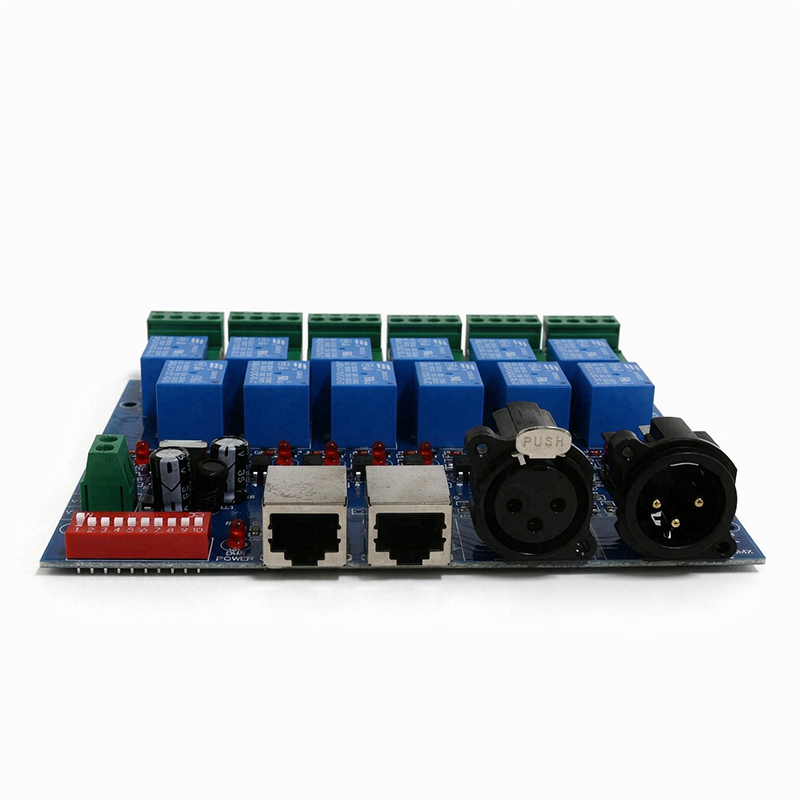

12 Channel DMX512 Relay Switch Controller AC110-220V 12-Way DMX Relay Module

Control up to 12 high-voltage devices from one DMX line.​ Our 12-Channel DMX512 Relay Controller accepts AC 110-220V and provides 12 independent relay outputs (normally open), each rated 5A @ 250VAC. It simply turns loads ON/OFF—perfect for stage lights, fog machines, water pumps, fans, motors, signage, and smart-home circuits. Set the start address with DIP switches or the digital display, then run CH1–CH12 from any DMX512 console. No dimming, no complexity—just reliable power switching. With optical isolation, status LEDs, and a metal/ABS enclosure, it’s built for theaters, events, factories, and installation projects where DMX must drive real AC power.

• 12 Independent Relay Channels​ – Map CH1–CH12 on DMX512 to switch 12 separate AC loads individually.

• AC110-220V Wide Input​ – Self-powered from mains; works on global single-phase voltage without extra PSU.

• 5A Per Channel (250VAC)​ – Handles resistive loads up to ~1100W/channel at 220V; 10A version available for heavier loads.

• Simple DMX Logic​ – DMX 0–127 = OFF, 128–255 = ON; dip switch or digital display for start address 1–512.

• Industrial-Grade Switching​ – Normally-open relays, LED channel indicators, fuse/over-current protection, ideal for stage, HVAC, pumps, motors, and building automation.
