Feature
﹞ 5 channels output, the maximum current of 8A /ch for RGBWY decoder, up to 960W
﹞ Can be used as stand alone DMX Master controller
﹞ OLED Screen and touch button, more convenient operation
﹞ 27 sence modes built-in, with speed and brightness adjust function
﹞ 5 kinds of optional: DIM, CT, RGB, RGBW, RGBWY
﹞ 2 kinds of DMX ports: XLR-5, RJ45
﹞ Short-circuit protection,overload protection,over-temperature protection
﹞ Fast self-testing function
﹞ 8 bit / 16 bit resolution optional(master mode support 8bit only)
﹞ 400 / 1000 / 2000HZ PWM frequency optional
﹞ Multiple dimming curve: (0.1~9.9), liner, log
﹞ Meets DMX512/1990,RDM /2009 protocol
﹞ Supported RDM parameters:
DISC_UNIQUE_BRANCH
DISC_MUTE
DISC_UN_MUTE
DEVICE_INFO
SOFTWARE_VERSION_LABEL
DMX512/RDM_START_ADDRESS
IDENTIFY_DEVICE
MANUFACTURER_LABEL
SUPPORTED_PARAMETERS
Technical Parameter

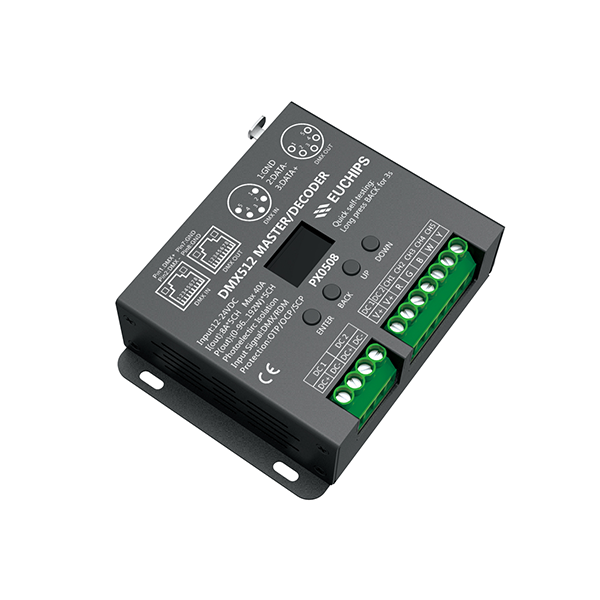

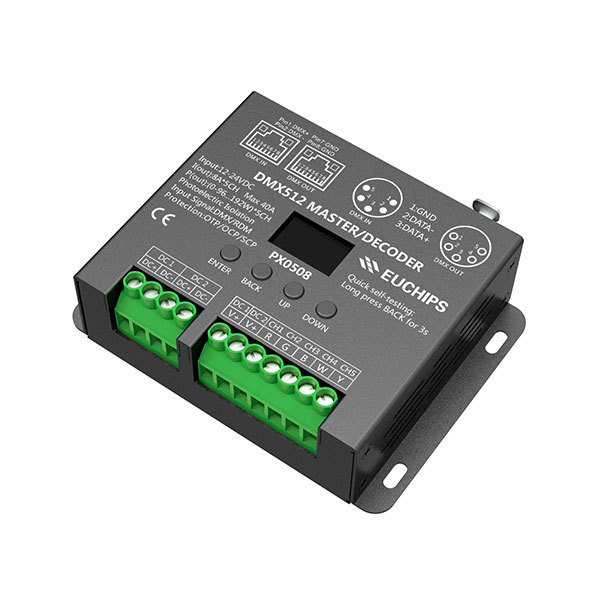

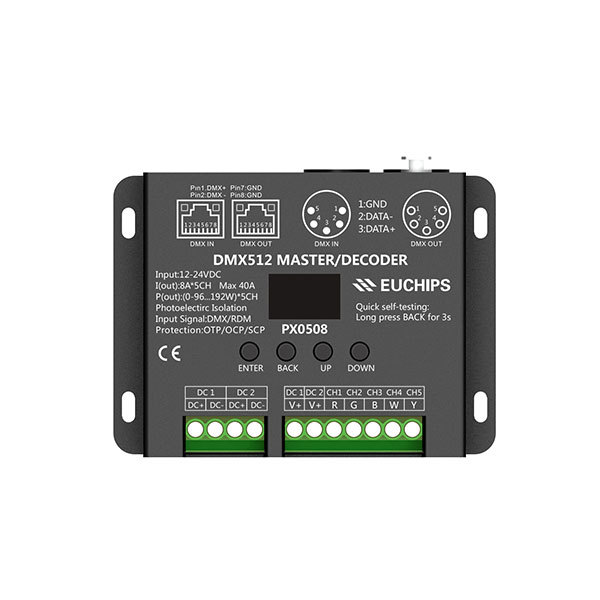

Model : PX0508-OLED
Input Signal : DMX512 1990/RDM 2009
Input Voltage : 12~24V
Output Voltage : 12~24V
Output Current :
8A*5CH/400HZ MAX. 40A
7A*5CH/1000HZ MAX.35A
6A*5CH/2000HZ MAX.30A
Output Powet : (0~96W…192W)*5CH MAX. 960W
Control Mode : DIM/CT/RGB/RGBW/RGBWY
Dimming Curve : 0.1~9.9/Liner/Log
Grey Level : 8Bit (256 levels) / 16Bit (65536 levels)
Protection : Short-Circuit / Over Load / Over Temperature
Dimension : 125*93*36 mm (L * W * H)
Packing Size : 145* 104*42 mm (L * W * H)
G.W. : 365g
Operation Temperature : – 20 – 50 ⊥
Relative humidity : 20% – 90% RH
