A standout feature is its dual-signal circuit design; if a single LED is damaged, the rest of the strip continues to function normally, ensuring maximum reliability. The flexible IP20 bare board is perfect for indoor applications such as TV backlighting, cove lighting, DIY gaming setups, and architectural accents. Easy to cut and connect at every LED, it supports mainstream controllers like Arduino, Raspberry Pi, and K-1000C. Bring your lighting vision to life with this professional-grade, energy-efficient, and highly versatile LED strip.

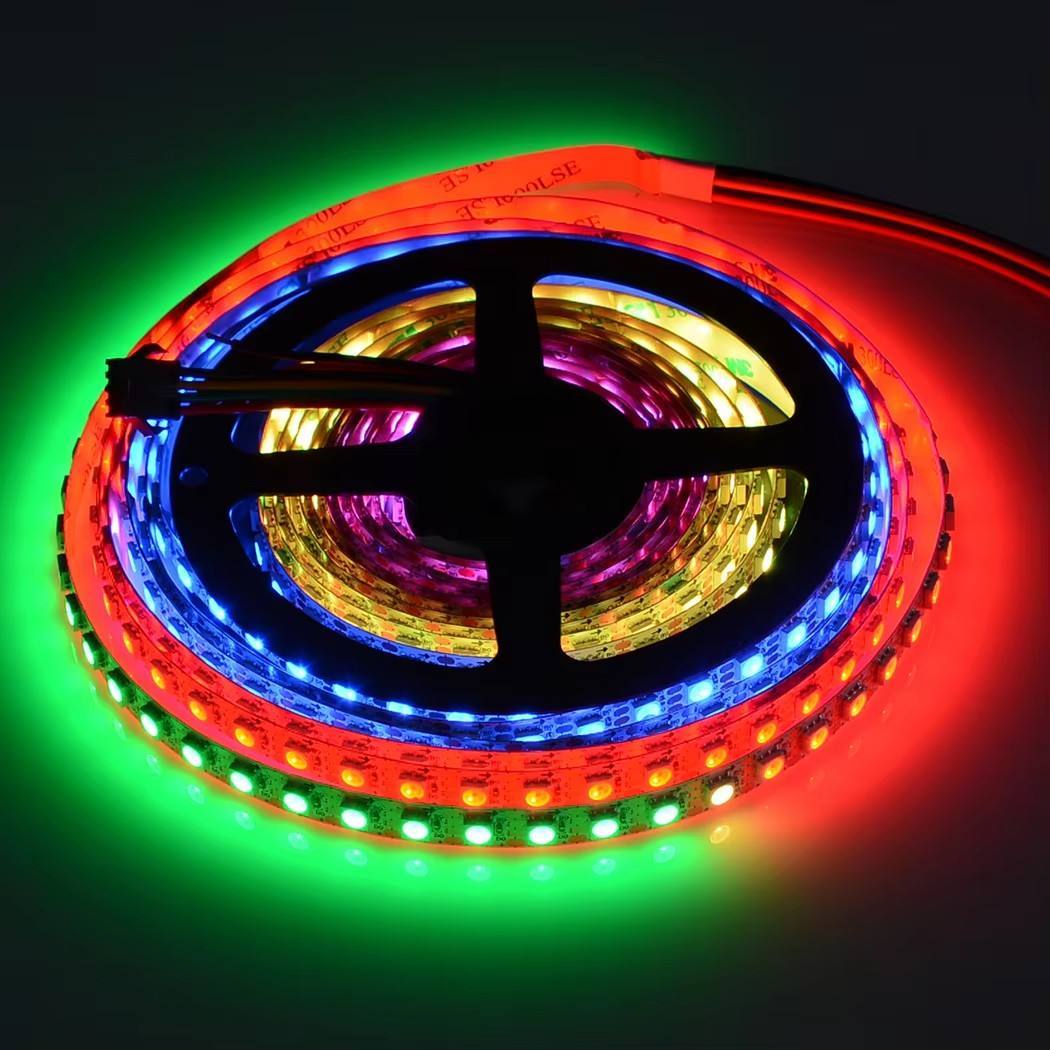

Individually Addressable & Vibrant Colors: Equipped with high-quality WS2815/SK6813 IC chips, allowing each of the 60 LEDs per meter to be controlled separately to display millions of colors and dynamic effects (chasing, fading, etc.).
12V Stable Voltage & Low Heat: Operates on DC12V, which minimizes voltage drop and power consumption. This allows for longer runs (up to 10m) without noticeable brightness decay, making it safer and more energy-efficient than 5V alternatives.
Breakpoint Resume & Dual-Signal: Features a dual-data line design. If one LED fails, the signal automatically passes to the next, so the rest of the strip keeps shining without interruption—perfect for critical installations.

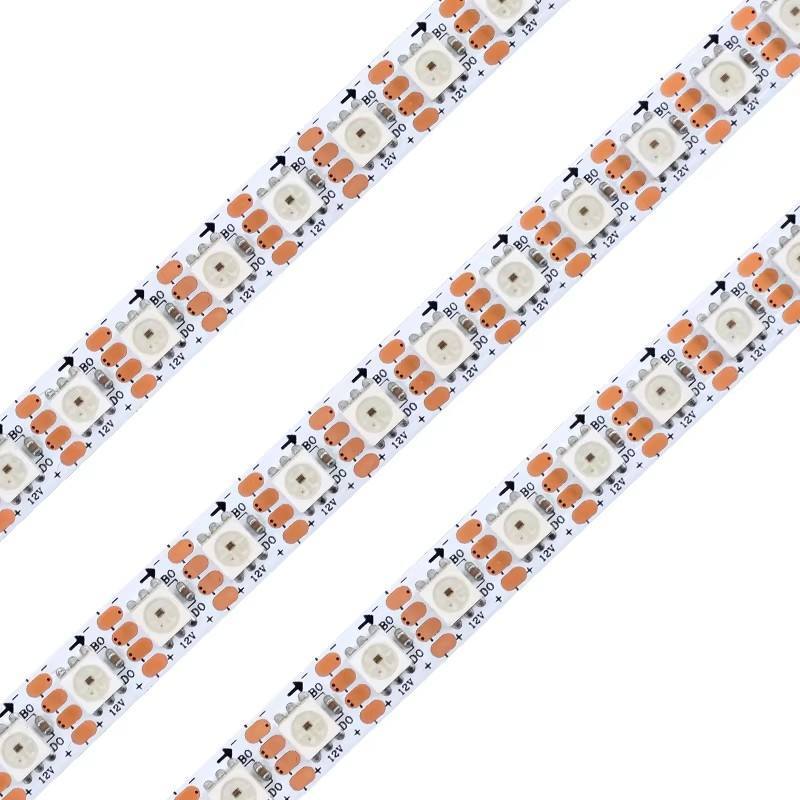

Flexible & Easy Installation: The 10mm wide FPCB board is highly flexible and can be cut at every LED unit (16.6mm intervals). Comes with strong 3M adhesive backing for quick mounting on any clean, dry surface.
Wide Compatibility: Fully compatible with popular SPI controllers, Arduino, ESP32, Raspberry Pi, and mainstream music-sync controllers. Ideal for TV backlights, PC cases, bars, hotels, and stage decor.
|
Specification |
Details |
|---|---|
|
Product Name |
12V WS2815/SK6813 RGB LED Strip Light |
|
PCB Width |
10mm |
|
Working Voltage |
DC 12V |
|
LED Type |
SMD 5050 RGB |
|
LED Density |
60 LEDs / 60 Pixels per meter |
|
IC Type |
WS2815 or SK6813 (High Voltage version) |
|
Color |
Full Color RGB (24-bit) |
|
Cutting Unit |
Every 1 LED (16.6 mm / 0.65 inch) |
|
Power Consumption |
10.8W - 14.4W per meter (depends on brightness) |
|
Waterproof Rating |
IP20 (Non-waterproof, Bare Board) |
|
Beam Angle |
120 Degrees |
|
Grayscale |
256 levels per channel |
|
Signal Type |
Dual-signal (Data & Backup Data) |
|
Connector Type |
4-Pin (V+, GND, DI, BI) |
|
Recommended Uses |
Indoor decoration, TV backlighting, DIY projects, cove lighting, signage |
