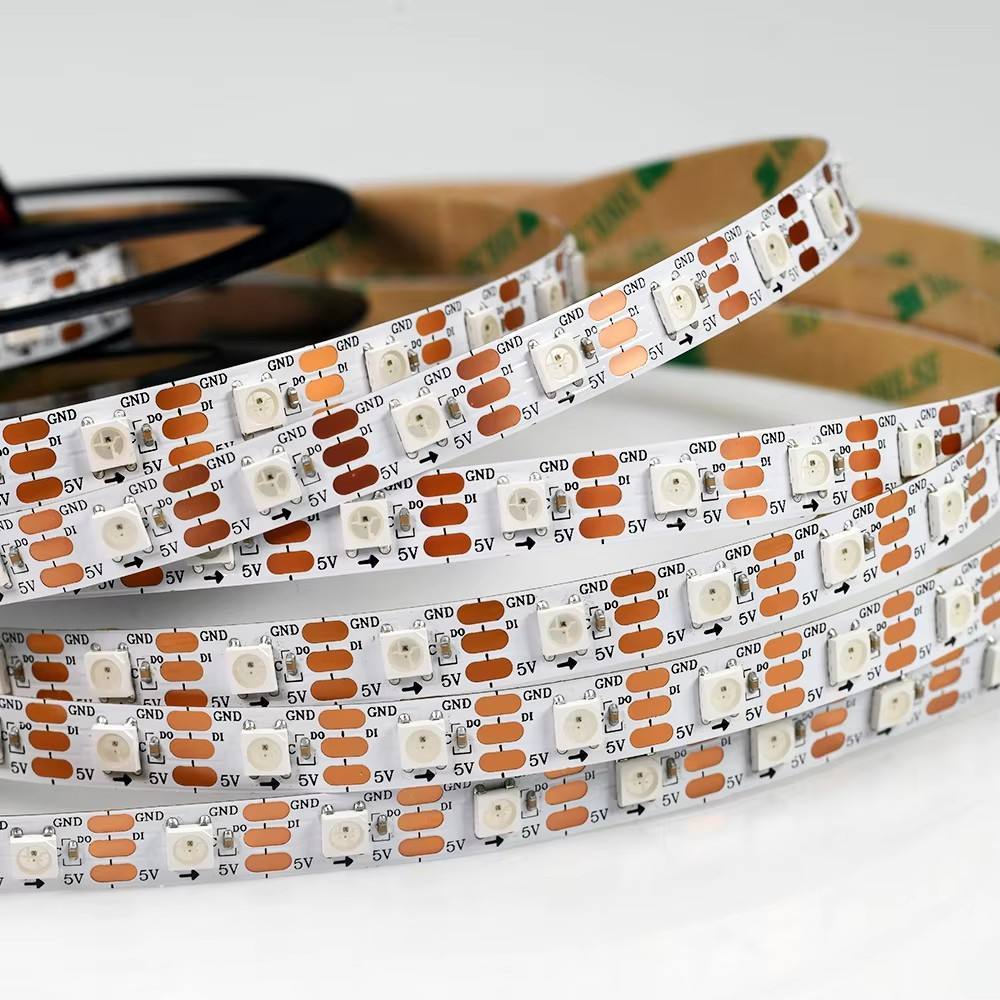

The narrow 10mm PCB allows for flexible installation in tight spaces, while the strong 3M adhesive backing ensures a secure fit. Whether you are building a custom PC setup, ambient bias lighting, or a smart home project, this strip delivers brilliant 24-bit color depth. Please note: as a 5V system, we recommend powering segments over 2 meters with external injection to prevent voltage drop. Unleash your imagination and light up your world with professional-grade precision.
High-Density Pixel Mapping: Features 60 individually addressable LEDs per meter, allowing for ultra-smooth color gradients and complex visual effects without visible gaps.
Universal IC Compatibility: Equipped with SK6812 chips (fully compatible with WS2812B), supporting single-wire data transmission for easy daisy-chaining and programming.
Flexible & Slim Design: The 10mm wide bare board (IP20) is thin and highly flexible, perfect for narrow channels, PC cases, and intricate DIY crafts.
Smart Controller Ready: Works seamlessly with popular ecosystems like Arduino, FastLED library, ESP32, and standard SPI controllers for limitless customization.
Cuttable & Linkable: Cut the strip every 16.67mm (at each LED) without damaging the rest, allowing you to tailor the exact length needed for your project.
|
Parameter |
Specification |
|---|---|
|
Product Type |
Individually Addressable RGB LED Strip |
|
LED Chip |
SK6812 (Compatible with WS2812B) |
|
LED Density |
60 LEDs / Meter |
|
PCB Width |
10mm (0.39 inches) |
|
Working Voltage |
DC 5V |
|
Power Consumption |
18W/m (Max), ~6W/m (Average) |
|
Current Draw |
60mA/LED (Max), 20mA/LED (Average) |
|
Color Type |
RGB Full Color (24-bit) |
|
IP Rating |
IP20 (Non-Waterproof / Bare Board) |
|
Cutting Unit |
Every 1 LED (16.67mm) |
|
Beam Angle |
120 Degrees |
|
Lifespan |
>50,000 Hours |
|
Adhesive |
3M VHB Tape on Backing |
|
Compatible Controllers |
Arduino, ESP8266/ESP32, Raspberry Pi, T-1000K |
|
Package |
5 Meters / Roll |
