Breakpoint Resume (Bypass): WS2815 IC allows data to pass through even if one LED is damaged, ensuring the rest of the strip works normally.
High Density: 96 LEDs per meter (96D/m) for smooth, dense, and continuous lighting effects.
12V Operation: Safer low voltage with reduced current drop compared to 5V strips.
5050 RGB: Standard 5.0x5.0mm tri-color LEDs for vivid and saturated colors.
Wide PCB: 10mm width provides better heat dissipation and easier soldering.
Dream Color Effects: Supports various chasing, flowing, and programmable pixel effects.
Flexible & Cuttable: Can be cut at every 1 IC / 2 LED node (approx. 10.4mm).
|
Parameter |
Specification |
|---|---|
|
Model |
WS2815 (Breakpoint Resume) |
|
LED Type |
SMD 5050 RGB |
|
Working Voltage |
DC 12V |
|
LED Density |
96 LEDs / Meter |
|
IC Density |
48 ICs / Meter (2 LEDs per IC) |
|
PCB Width |
10mm |
|
PCB Color |
White (as shown) |
|
Power Consumption |
~24W / Meter (Max, varies by brightness) |
|
Gray Scale |
256 levels (8-bit) |
|
Colors |
16 Million (RGB full color) |
|
Beam Angle |
120° |
|
Waterproof |
Non-waterproof (IP20) / Optional IP65/IP67 |
|
Operating Temp. |
-25℃ ~ +60℃ |
|
Lifespan |
>50,000 hours |

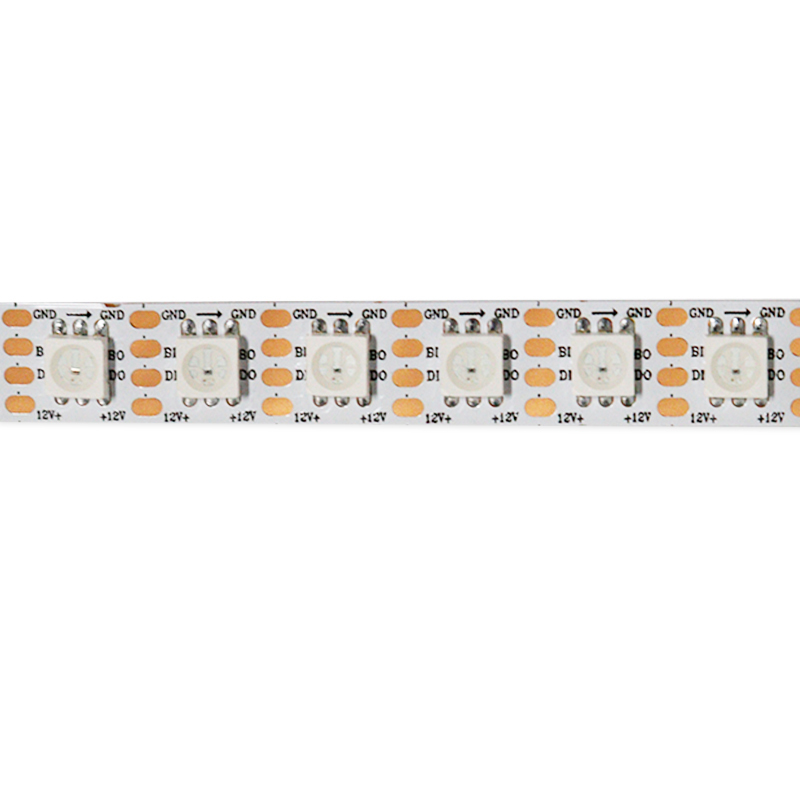

The strip features a 4-pin connection interface (DI=Data In, DO=Data Out):
RED (V+): DC 12V Positive
GREEN (DI): Data Input
BLUE (DO): Data Output (to next strip)
BLACK (GND): Ground (V-)
Note: Dual signal lines (DI/DO) ensure the breakpoint resume function.
Length: 5 Meters / Roll (Custom lengths available)
Width: 10.0 mm
Thickness: approx. 2.0 mm (including components)
Cutting Unit: Every 10.4mm (1 IC group / 2 LEDs)
Architectural decorative lighting
KTV, Bar, and Club lighting
Home theater & Ambient lighting (TV backlight)
Advertising signage & Lettering
Stage & Event effects
Smart IoT lighting projects
Power Supply: Must use a stable DC 12V power adapter. Do not connect directly to AC 110V/220V.
Controller: Requires a WS2815/WS2811 compatible SPI controller or Arduino/Raspberry Pi.
Heat Dissipation: Recommended to install on aluminum profiles for long-term max brightness use.
Installation: Peel off the 3M adhesive backing (if applicable) to stick onto a clean, dry surface.
Cutting: Only cut along the designated scissor lines (copper pads). Solder carefully to avoid short circuits.
