Dual power options (PoE or 12V DC) and compatibility with both 86-type and North American Gang boxes make global deployment effortless. Multi-screen sync, partition management, and web-based theme uploads deliver a fully branded, scalable control solution for hotels, stages, fountains, and architectural installations.
Network-Native Control: Outputs UDP/OSC directly and integrates with Nicolaudie, Sunlite, Daslight, and multi-brand 8-ch LED controllers—no extra gateway needed.
Fully Customizable UI: Custom themes, background images via WEB upload, enterprise logo, welcome screen, and multi-partition layouts tailored to any project.
Flexible Power & Mounting: PoE (IEEE 802.3af/at) or 12V DC; fits both CN 86-type and US/UK Gang boxes for worldwide installation.
Advanced Scheduling & Sync: Timed tasks with NTP clock sync, multi-screen linkage with tablet two-way mirroring, and broadcast/single-point dual control modes.
Enterprise Security: Auto-lock screen, admin password, operation confirmation, and independent partition isolation ensure safe, unauthorized-proof operation.

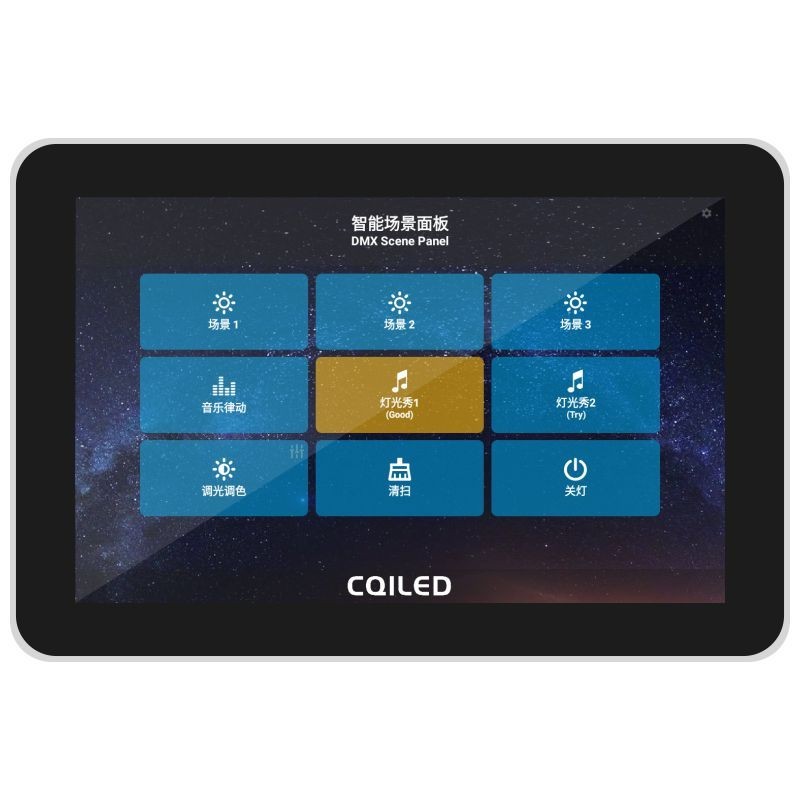

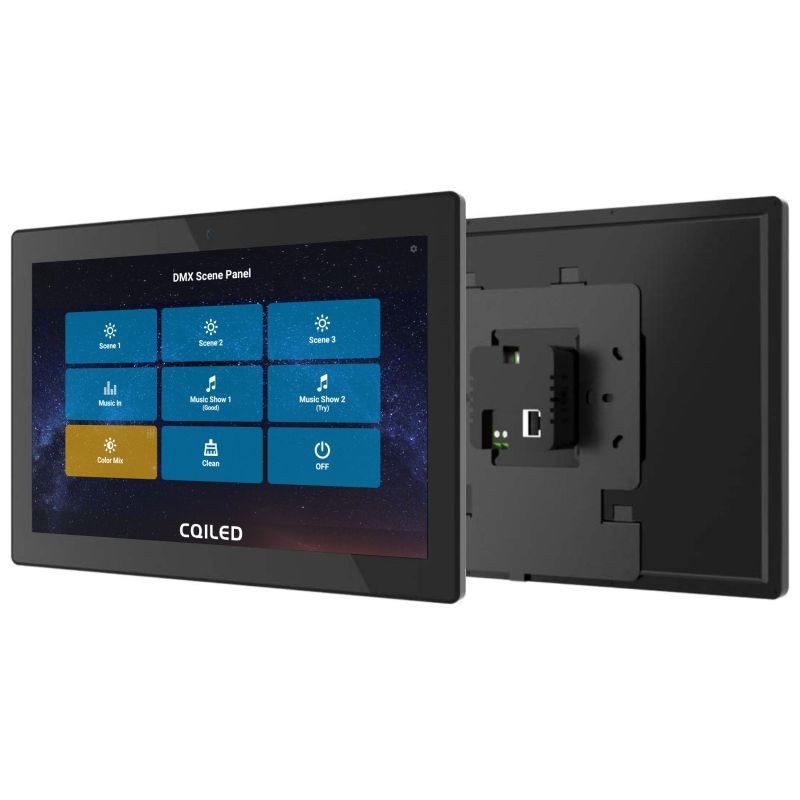

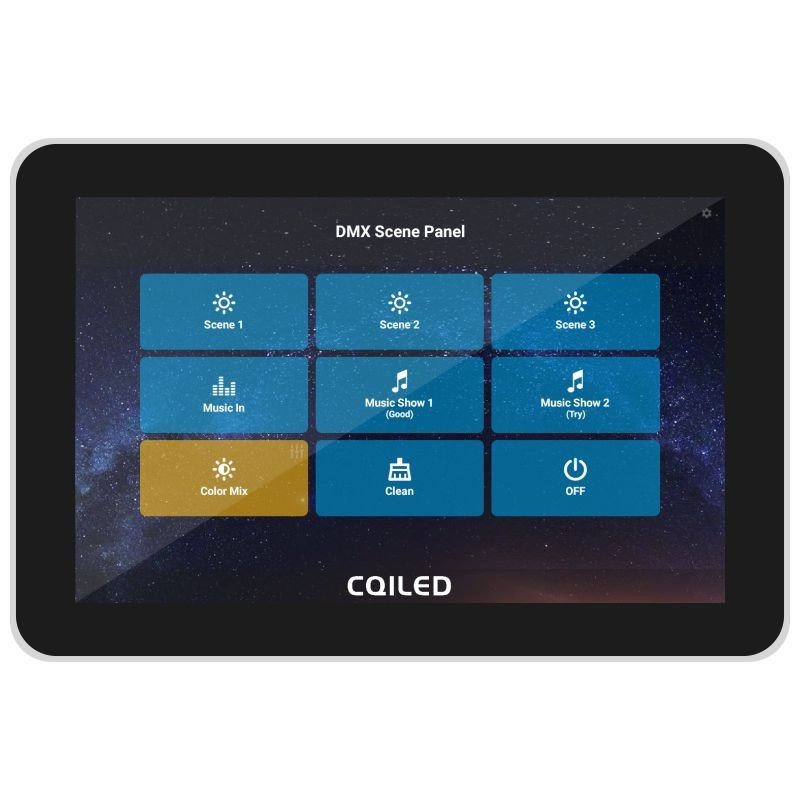

CQ-DSP10 10" PoE Smart Scene Panel
|
Category |
Specification |
|---|---|
|
Model |
CQ-DSP10 |
|
Display |
10" TFT Touchscreen (optional 4"/5"/8"/10"+ sizes) |
|
Power Supply |
PoE (IEEE 802.3af/at) or 12V DC external |
|
Communication |
Ethernet, UDP, OSC, DMX (via network controller) |
|
Control Output |
UDP / OSC commands, compatible with Nicolaudie, Sunlite, Daslight |
|
Control Functions |

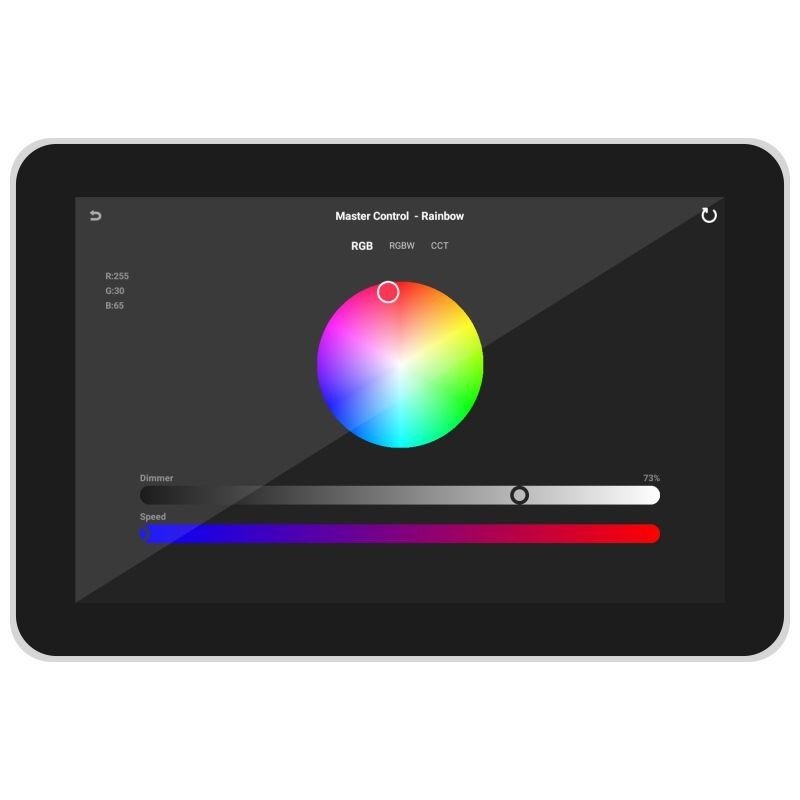

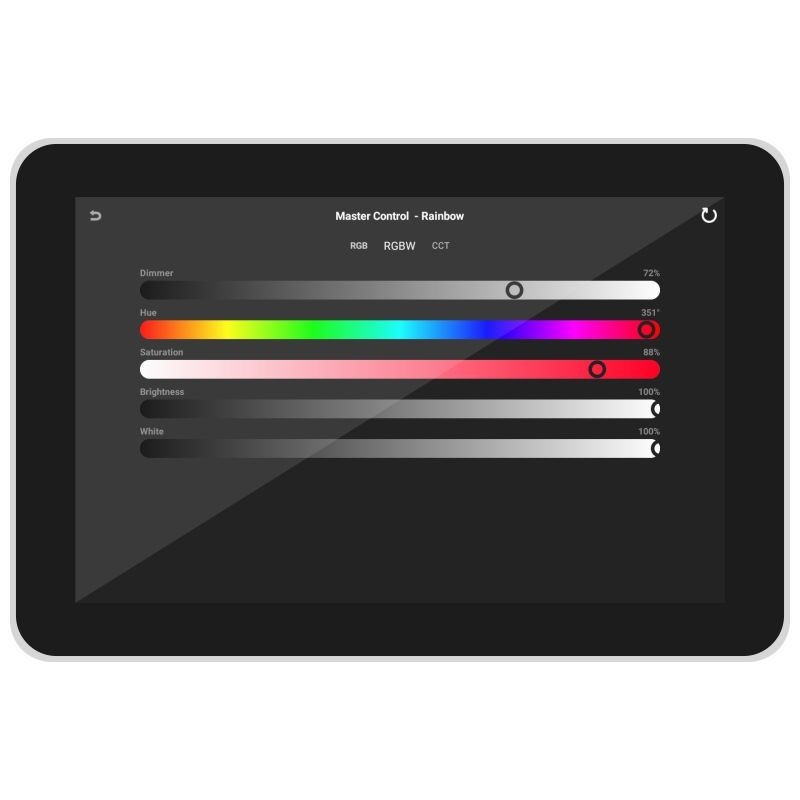

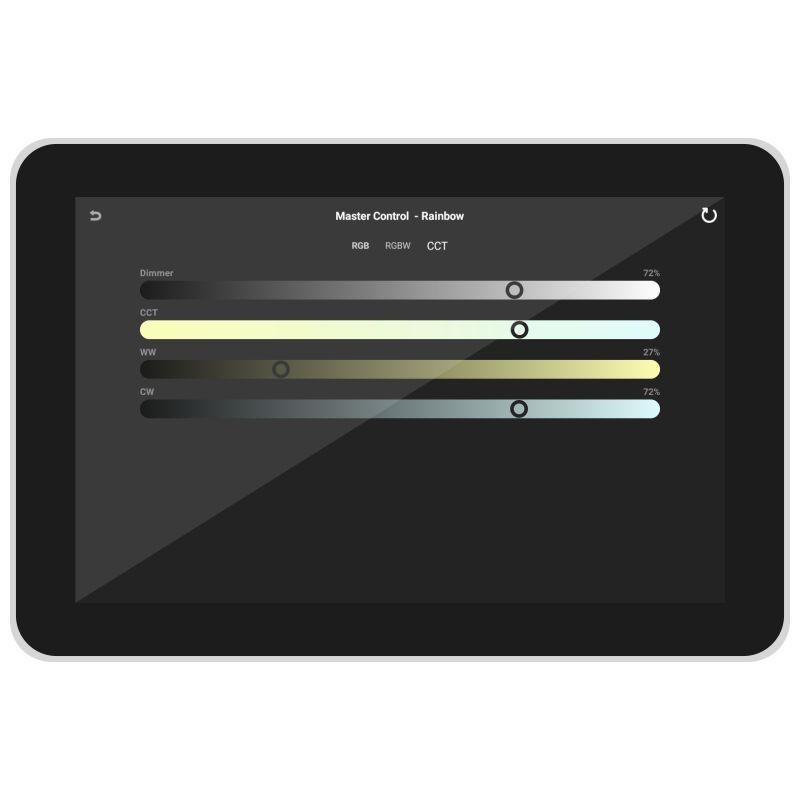

Scene switch, RGBW dimming, CCT tuning, timed tasks, scheduling |
|
Network Features |
NTP sync, multi-screen linkage, tablet two-way sync, broadcast & single-point modes |
|
Compatibility |
Multi-brand 8-ch LED main controllers, music fountains, stage lighting, DMX devices |
|
UI Customization |
Custom themes, WEB background upload, enterprise logo, welcome screen, multi-partition |
|
Security |
Auto-lock, admin password, operation confirmation, partition isolation |
|
Installation |
CN 86-type back box / North American Gang box (flush mount) |
|
Configuration |
On-screen setup, WEB interface, no PC software required |
|
Language |
Neutral interface (multi-language support, customizable) |
