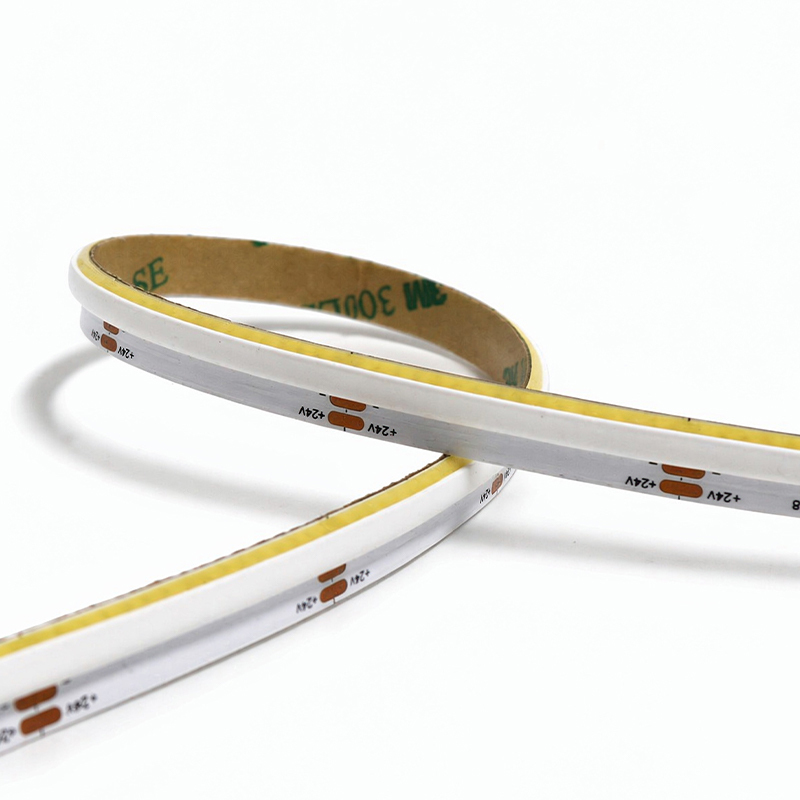

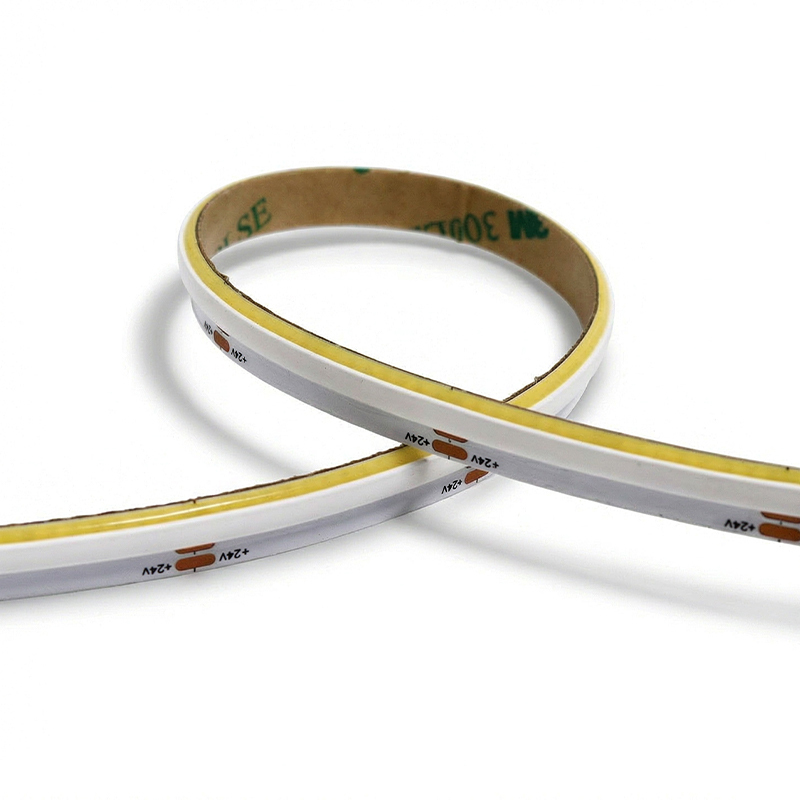

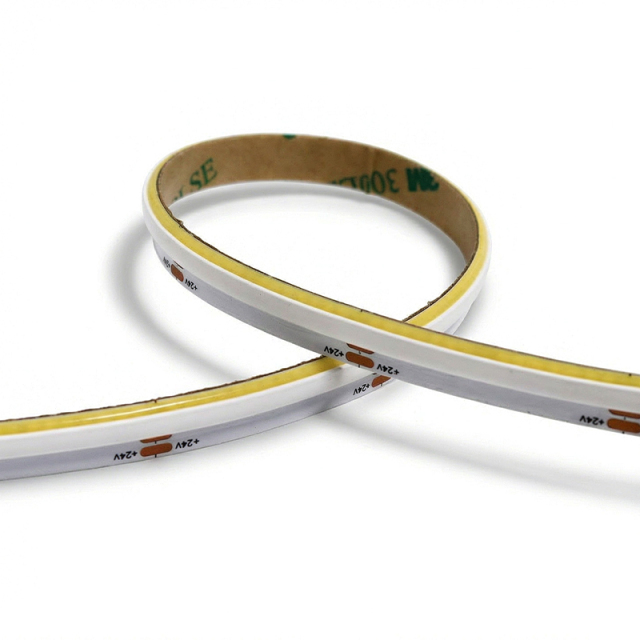

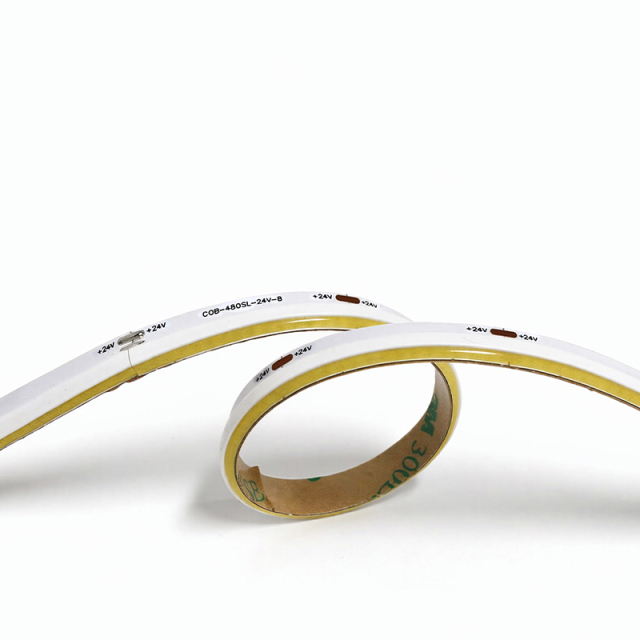

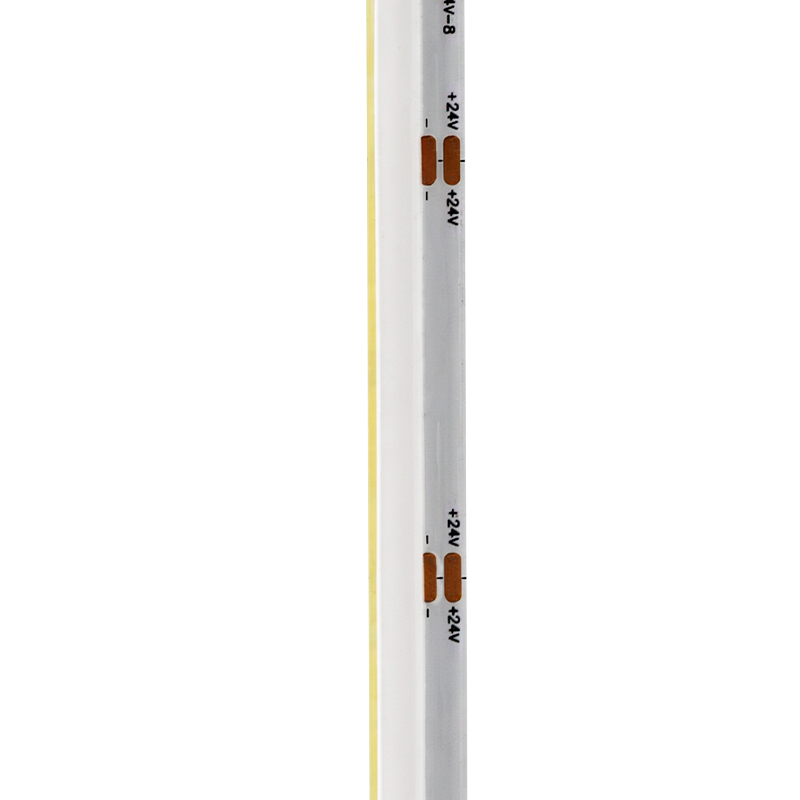

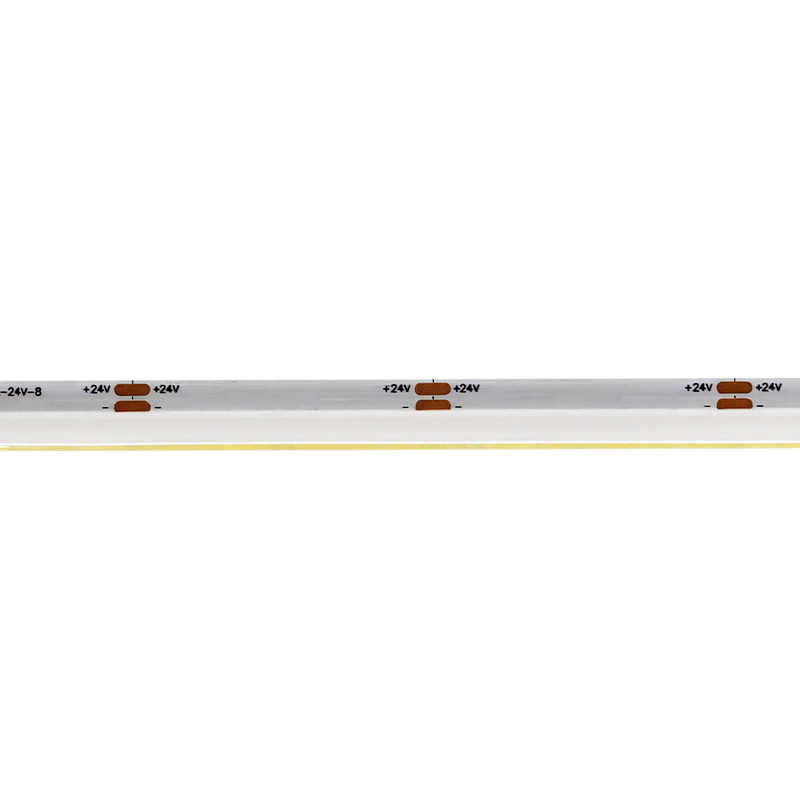

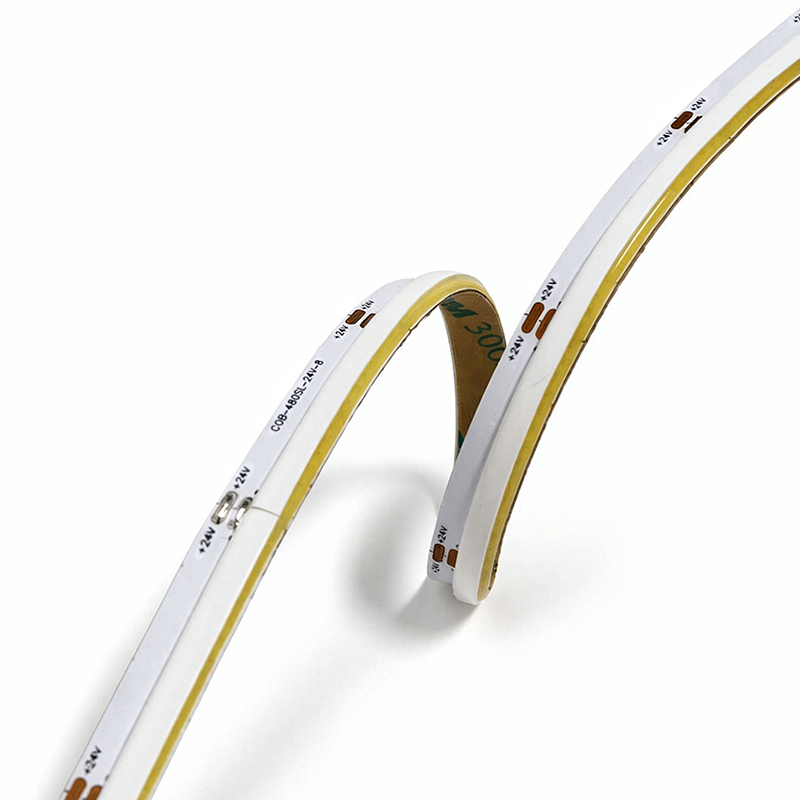

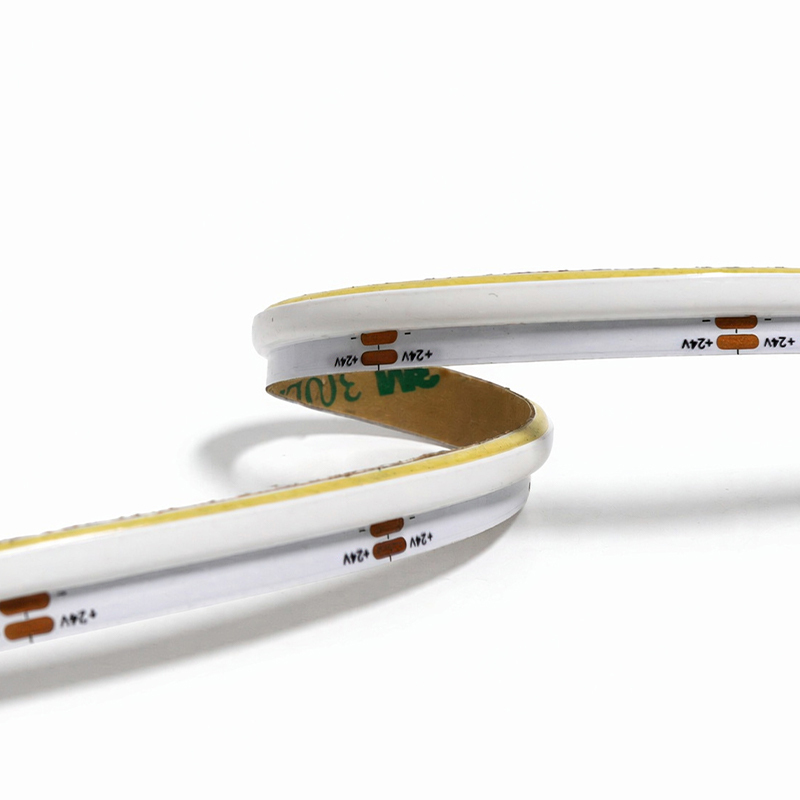

This 24V 8mm side-emitting COB LED strip packs 480 chips per meter for a continuous, dot-free neon-like glow. Light exits from the side, making it ideal for coves, shelves, mirror edges, channel letters, and architectural contours. CRI90+ shows true colors, while the slim 8mm FPC hides in tight profiles. 24V design keeps voltage drop low for longer runs. Dimmable with PWM / 0-10V / DALI drivers. Soft, glare-free, and professional.
True Side Emission: Light projects sideways along the surface—perfect for edge lighting, light slots, and hidden installations.
480 COB Chips/m: Ultra-high density creates a seamless line with no visible dots or dark zones.
Slim 8mm PCB: Fits narrow aluminum profiles, cabinet grooves, sign shells, and furniture edges.
CRI90+ True Color: Warm to cool white options (2700K–6500K) for retail, hospitality, and residential projects.
24V Constant Voltage: Lower voltage drop than 12V, dimmable, stable for 5m+ runs with proper driver.
|
Item |
Specification |
|---|---|
|
Model |
COB-480D-8MM-24V / FCOB-480D-8MM-24V |
|
LED Type |
COB flip-chip |
|
LEDs per Meter |
480D/m |
|
Voltage |
DC 24V |
|
Power |
10W/m – 12W/m |
|
PCB Width |
8mm |
|
Thickness |
≈1.8mm |
|
CCT |
2700K / 3000K / 4000K / 5000K / 6500K |
|
CRI |
Ra ≥90 (Ra95 optional) |
|
Lumen |
≈650–1300 lm/m (by CCT & version) |
|
Beam Angle |
120°–180° side view |
|
Cut Unit |
33.3mm / 50mm (model dependent) |
|
Roll Length |
5m / 10m |
|
Dimming |
PWM, 0-10V, DALI |
|
IP Rating |
IP20 / IP65 / IP67 |
|
Life Span |
30,000–50,000 hrs |
|
Application |
Cove, shelf, signage, mirror, architecture |
