The built-in signal reshaping circuit ensures distortion-free data transmission even in long cascading chains, making it ideal for high-density pixel screens, flexible LED strips, and decorative lighting. With a wide operating voltage of 3.7V–5.5V and a refresh rate of up to 2KHz, this chip offers excellent compatibility with popular controllers like Arduino, Raspberry Pi, and WLED. Upgrade your lighting projects with pure whites and brilliant colors in one miniature, easy-to-solder package.
🎨 True RGBW 4-in-1 Color Mixing: Features independent Red, Green, Blue, and dedicated White chips. Achieve pure, clean white light and pastel shades without the color distortion common in RGB-only LEDs.
⚡ Built-in Intelligent IC: Integrated SK6812 control chip eliminates the need for external drivers. Supports single-wire data transmission with auto signal reshaping for stable, long-distance cascading (up to 1024+ pixels).

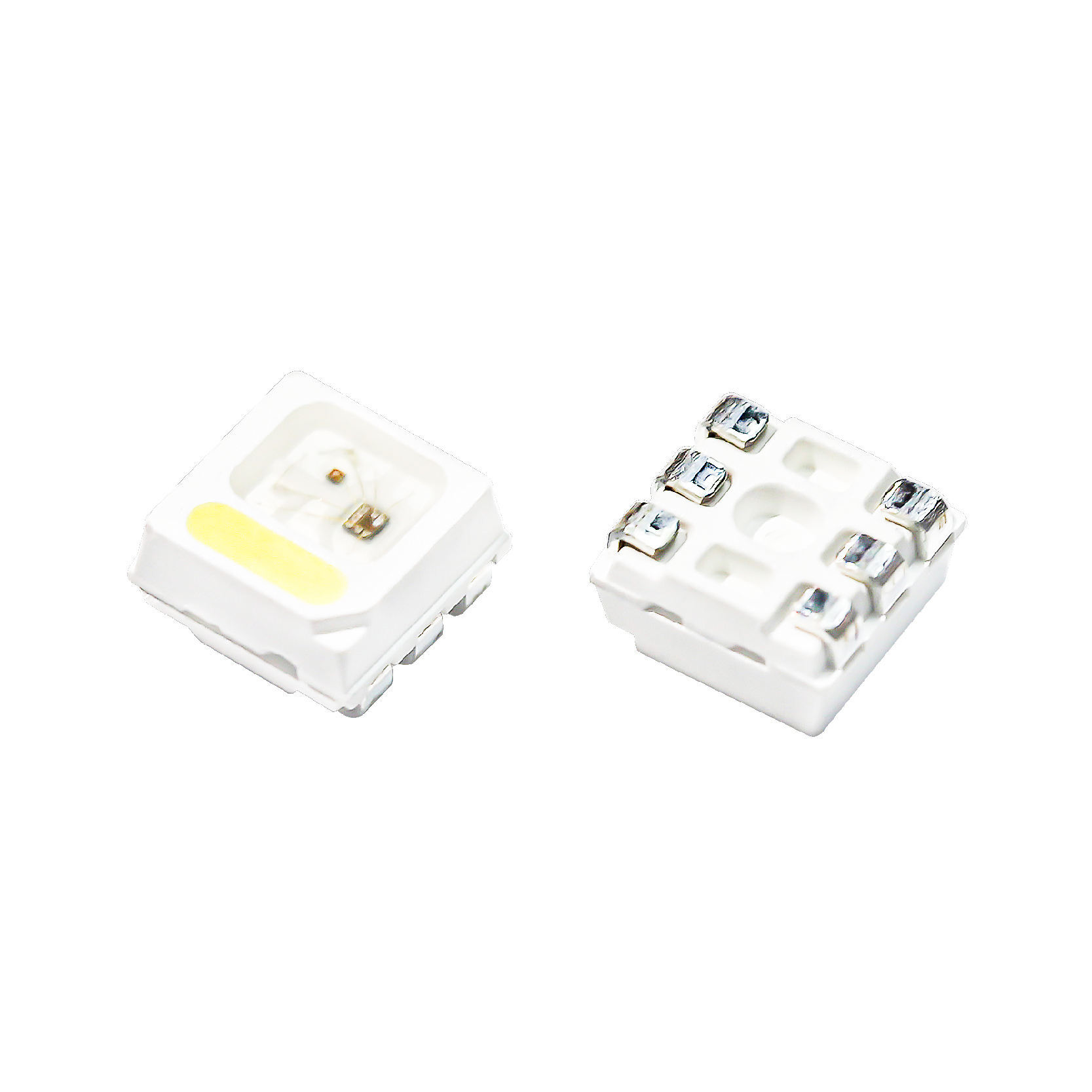

📏 Ultra-Compact 3535 Package: Miniature 3.5x3.7mm footprint (SK6812MINI) allows for high-density LED arrays, perfect for narrow pixel pitch displays, micro lighting, and space-constrained PCB designs.
🔋 Wide Voltage & Low Power: Operates at 3.7V–5.5V (5V typical), compatible with USB power banks, Li-Po batteries, and standard 5V adapters. Low heat generation ensures long lifespan.
🔗 Plug & Play Compatibility: Fully compatible with mainstream development platforms and libraries including FastLED, Adafruit NeoPixel, and WLED. Ideal for DIY makers, stage lighting, and smart home decor.
|
Item |
Specification |
|---|---|
|
Brand |
OPSCOLED |
|
Model |
SK6812MINI RGBW |
|
Package Type |
SMD 3535 (3.5 × 3.7 × 1.9 mm) |
|
LED Type |
RGBW (Red, Green, Blue, White) |
|
White Color Options |
Warm White (WW) / Natural White (NW) / Cool White (CW) |
|
Integrated IC |
SK6812 (Single-wire control, built-in) |
|
Operating Voltage |
DC 3.7V – 5.5V (Typical 5V) |
|
Data Protocol |
Single-line NZR (Return-to-Zero) |
|
Data Transfer Rate |
800 kbps |
|
Color Resolution |
32-bit (8-bit per channel: R, G, B, W) |
|
Gray Levels |
256 levels per color channel |
|
Refresh Frequency |
≥ 2 kHz (Typical) |
|
Cascading |
DIN → DOUT, auto signal reshaping |
|
Max Cascading Length |
>1024 pixels @ 30 fps |
|
Pin Count |
6 pins (DIN, VDD, DOUT, GND, etc.) |
|
Operating Temperature |
-25°C to +85°C |
|
Storage Temperature |
-40°C to +105°C |
|
Viewing Angle |
120° (Typical) |
|
Applications |
Pixel screens, dream color strips, point light sources, decorative lighting, smart home, DIY projects |
